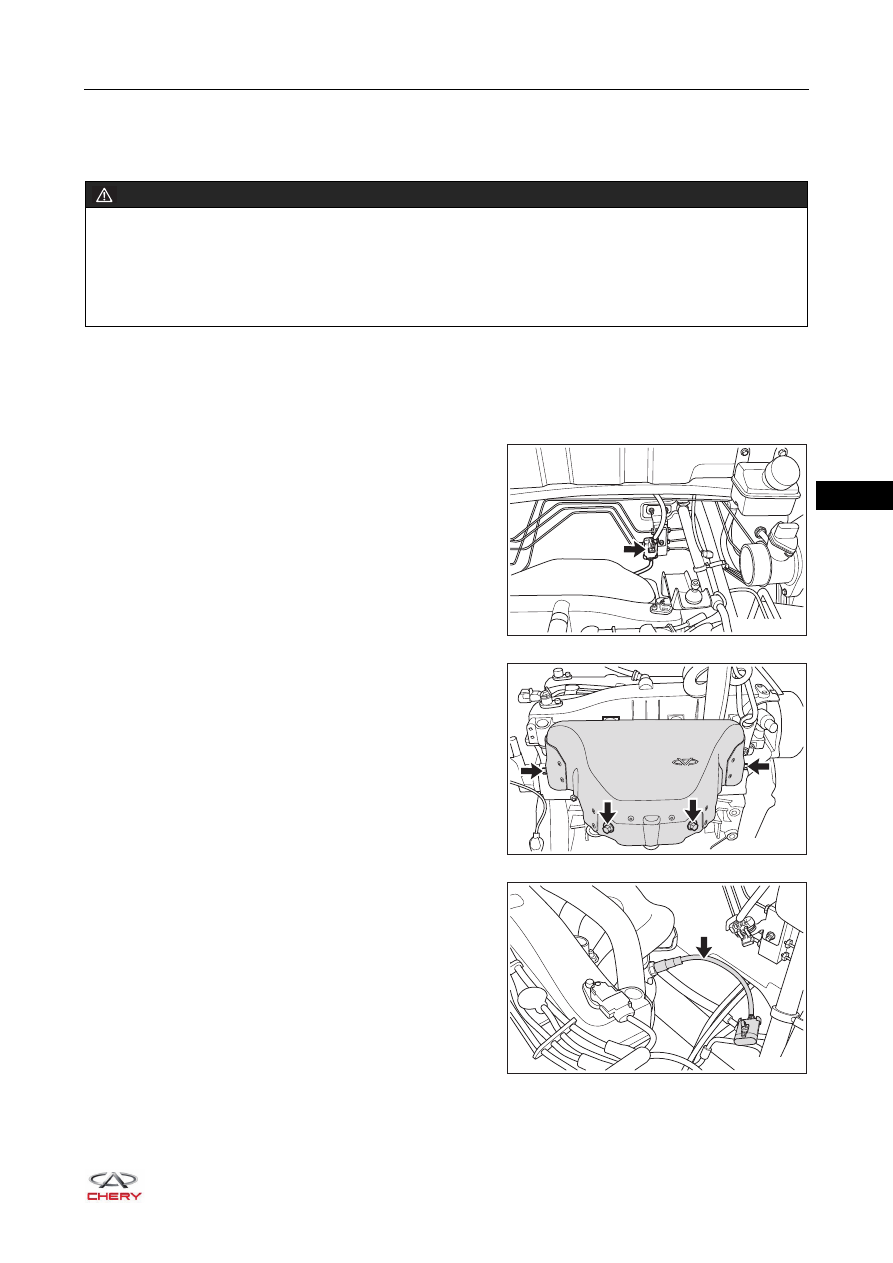

Upstream Oxygen Sensor

Removal

1. Turn off all the electrical equipment and ignition switch.
2. Disconnect the negative battery cable.
3. Remove the engine trim cover assembly (

See page 10-10

).

4. Remove the upstream oxygen sensor.

a. Remove and disconnect the upstream oxygen sensor

connector (arrow) from bracket.

b. Remove 4 fixing bolts (arrow) from exhaust manifold

heat insulator, and remove the exhaust manifold heat
insulator.

(Tightening torque: 23 ± 2 N·m)

c. Remove the upstream oxygen sensor (arrow) from

precatalytic converter assembly.

(Tightening torque: 40 - 60 N·m)

WARNING

 Temperature of exhaust system is very high when engine is running. Before removal and installation, you

must make sure that the engine has stopped running; otherwise there is a risk of scald injury.

 Be sure to wear necessary safety equipment when repairing to prevent accidents.
 Try to prevent body paint surface from being scratched during removal and installation.

RT21090110

RT21110020

RT21090130

09–

14

09

Inspection

1. Measure resistance of upstream oxygen sensor with a

digital multimeter.

If result is not as specified, replace upstream oxygen sensor.

Installation

Installation is in the reverse order of removal.

RT21090140

-

+

A

B

C

D

Multimeter

Connection

Condition

Specified

Condition

Pin C - Pin D

20°C

7 - 11 Ω

Pin A - Pin B
Pin A - Pin C
Pin A - Pin D
Pin B - Pin C
Pin B - Pin D

Always

No continuity

09–

15

09

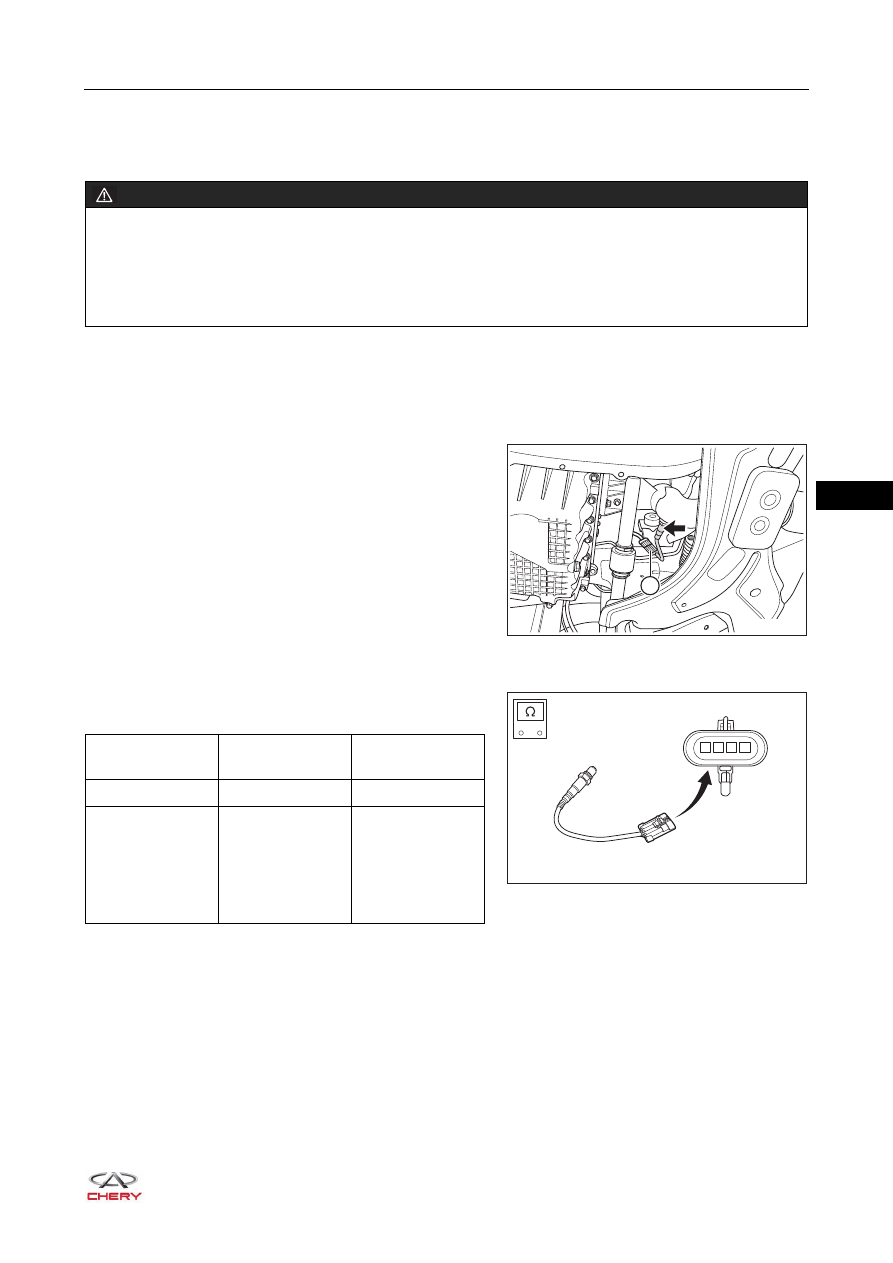

Downstream Oxygen Sensor

Removal

1. Turn off all the electrical equipment and ignition switch.
2. Disconnect the negative battery cable.
3. Raise the vehicle to the proper position.
4. Remove the downstream oxygen sensor.

a. Remove and disconnect the downstream oxygen

sensor connector (1) from bracket.

b. Remove the downstream oxygen sensor (arrow) from

precatalytic converter assembly.

(Tightening torque: 40 - 60 N·m)

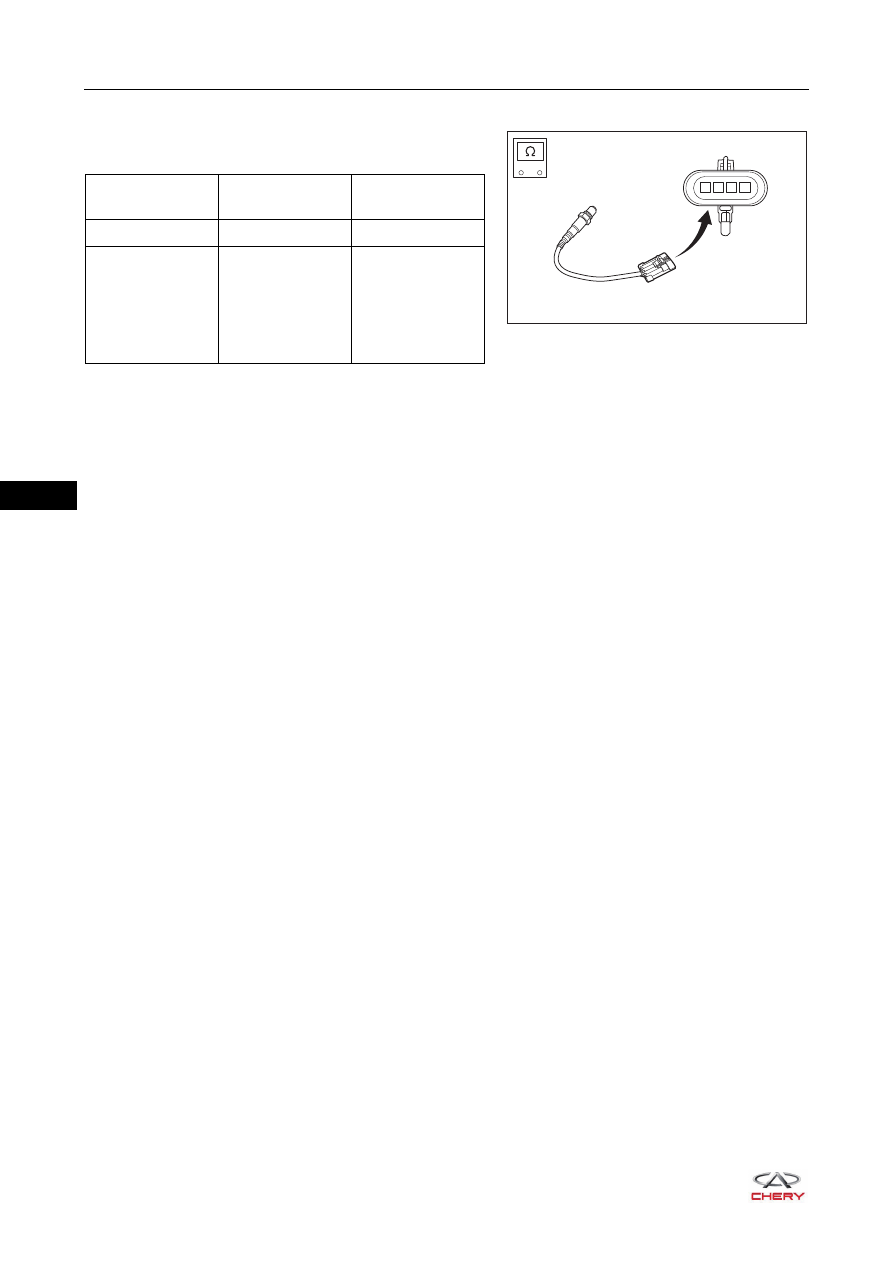

Inspection

1. Measure resistance of downstream oxygen sensor with a

digital multimeter.

If result is not as specified, replace downstream oxygen sensor.

Installation

Installation is in the reverse order of removal.

WARNING

 Temperature of exhaust system is very high when engine is running. Before removal and installation, you

must make sure that the engine has stopped running; otherwise there is a risk of scald injury.

 Be sure to wear necessary safety equipment when repairing to prevent accidents.
 Try to prevent body paint surface from being scratched during removal and installation.

1

RT21090150

RT21090140

-

+

A

B

C

D

Multimeter

Connection

Condition

Specified

Condition

Pin C - Pin D

20°C

7 - 11 Ω

Pin A - Pin B
Pin A - Pin C
Pin A - Pin D
Pin B - Pin C
Pin B - Pin D

Always

No continuity
