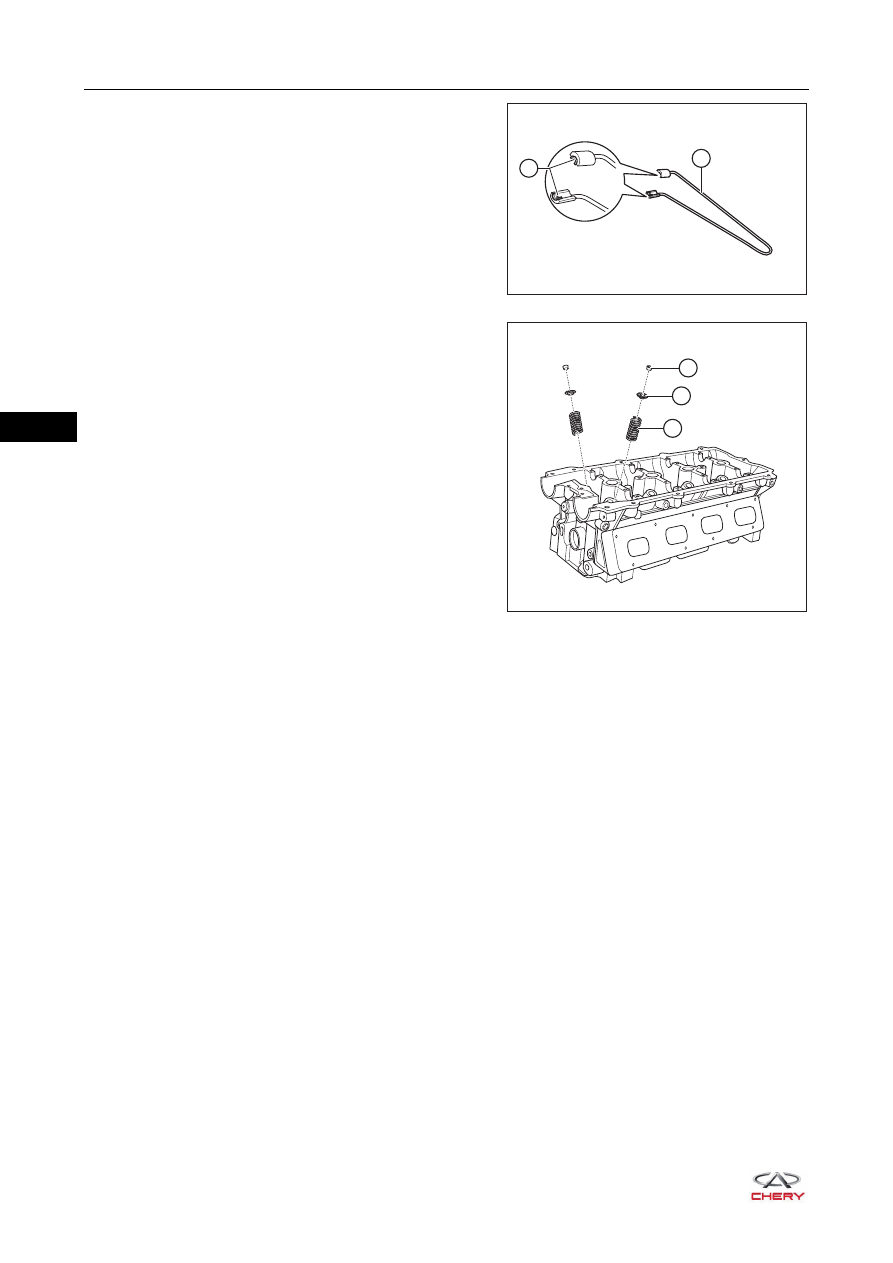

4. Install the valve cotter (1) to the valve cotter installer (2).

5. Install the valve spring (1) and valve spring upper seat

(2).

6. Using a valve spring compressor, compress the valve

spring and install the valve cotter (3) in place.

7. Tap valve cotter lightly with a rubber hammer to make sure the cotter is installed in place after assembly.

2

RT21070590

1

RT21070591

2

1

3

07–

63

07

Installation

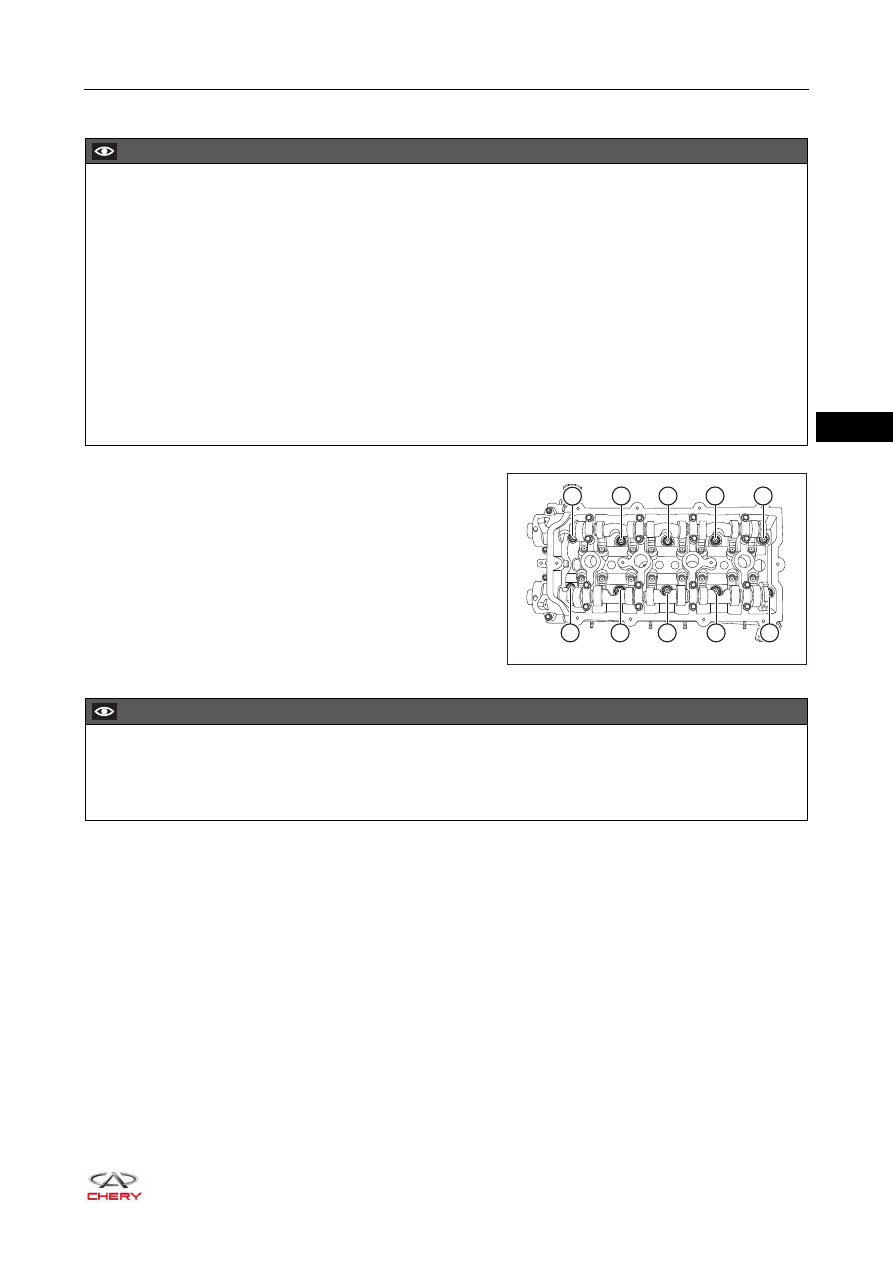

1. Make sure to tighten the cylinder head fixing bolts in the

sequence from (1) to (10) shown in the illustration:
a. Apply a small amount of oil to the bolt head and root.
b. Install the bolts and tighten them in place by hands.
c. Tighten the cylinder head fixing bolts in the following

procedures:
1st step: Tighten the bolts to 45 ± 5 N·m in the
sequence from (1) to (10) shown in the illustration.
2nd step: Rotate the bolts clockwise by 180° ± 10° in
tightening sequence.

2. Other installation procedures are in the reverse order of removal.

CAUTION

 Remove residual seal gum and oil on cylinder head and cylinder block.
 Replace cylinder head gasket.
 Check that cylinder head gasket is neat and clean without any chips and scratches. The side stamped

with part number of cylinder gasket should face upward.

 Install cylinder gasket to flat surface of cylinder block with a dowel pin.
 Clean the joint surface between cylinder head and combustion chamber, together with the flat surface of

cylinder block top and thread hole. There should be no accumulated oil at the bottom of cylinder block
thread hole.

 During installation, piston should not be located at the top dead center, in order to prevent it from being

impacted by the opening valve when installing rocker arm.

 Install cylinder head bolt washer with the chamfering surface facing upward and the flat side facing

cylinder head.

RT21070592

8

4

5

9

7

3

2

6

10

1

CAUTION

 Check cylinder head fixing bolts before installation. If they are damaged, replace immediately.
 Be sure to tighten cylinder head bolts by following the operating procedures above strictly to achieve the

technology standard for vehicle usage.

07–

64

07

Engine Mounting Assembly

Removal & Installation - Rear Mounting Assembly

1. Turn off all the electrical equipment and ignition switch.
2. Disconnect the negative battery cable.
3. Support the transmission with a transmission carrier.
4. Remove the engine rear mounting cushion assembly (for MT model).

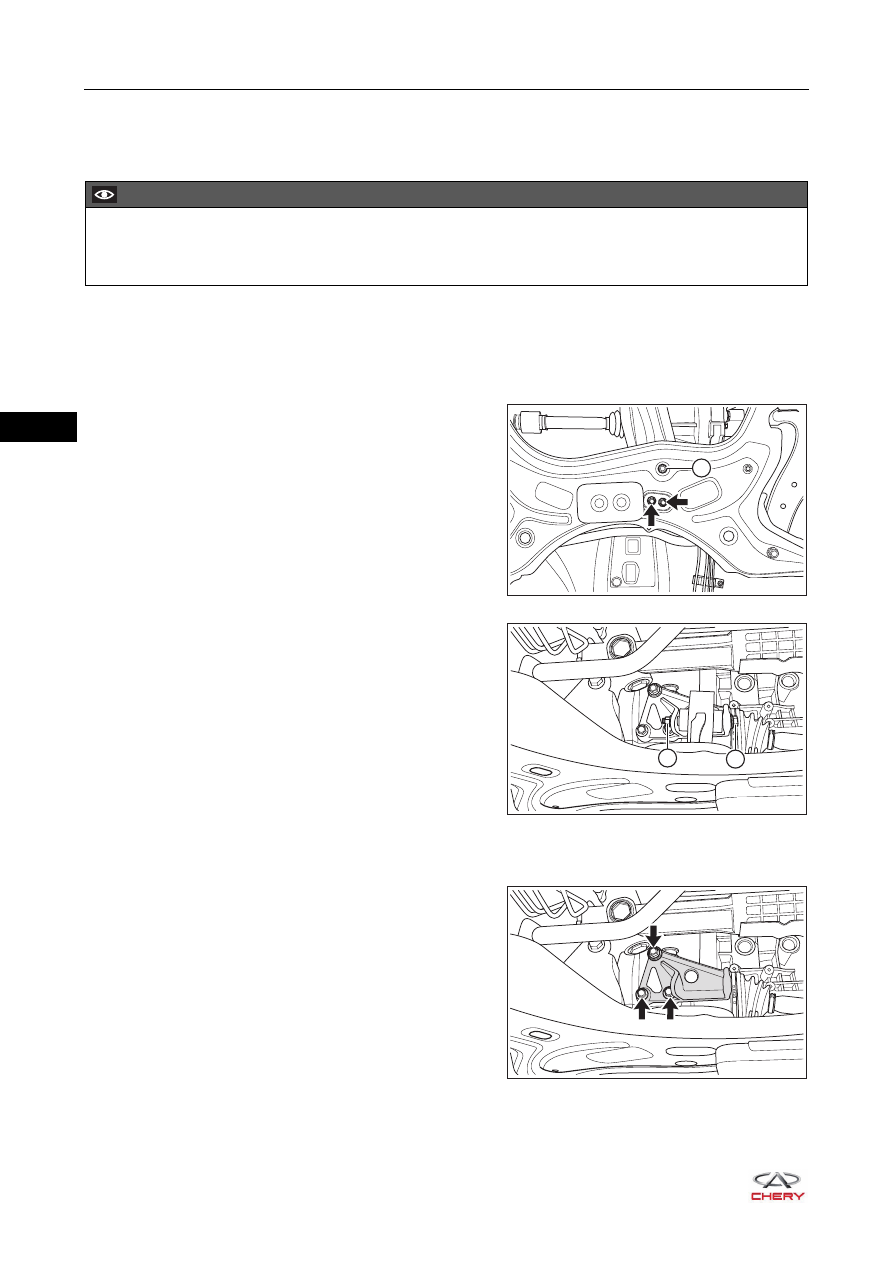

a. Remove 2 coupling bolt (arrow) between rear

mounting cushion assembly and front sub frame
welding assembly.



(Tightening torque: 70 ± 5 N·m)

b. Remove the fixing nut (1) from rear mounting cushion

assembly.



(Tightening torque: 70 ± 5 N·m)

c. Remove the locking nut (1) for through bolt between

rear mounting bracket and rear mounting cushion
assembly, and remove the through bolt (2).



(Tightening torque: 70 ± 5 N·m)

d. Remove the engine rear mounting cushion assembly.

5. Remove the engine rear mounting bracket (for MT model).

a. Remove 3 coupling bolts (arrow) between rear

mounting bracket and transmission case.



(Tightening torque: 55 ± 5 N·m)

b. Remove the engine rear mounting bracket from transmission case.

CAUTION

 Be sure to wear necessary safety equipment when repairing to prevent accidents.
 Try to prevent body paint surface from being scratched during removal and installation.

1

RT21070600

2

1

RT21070610

RT21070620

07–

65

07

6. Remove the engine rear mounting cushion assembly (for CVT model).

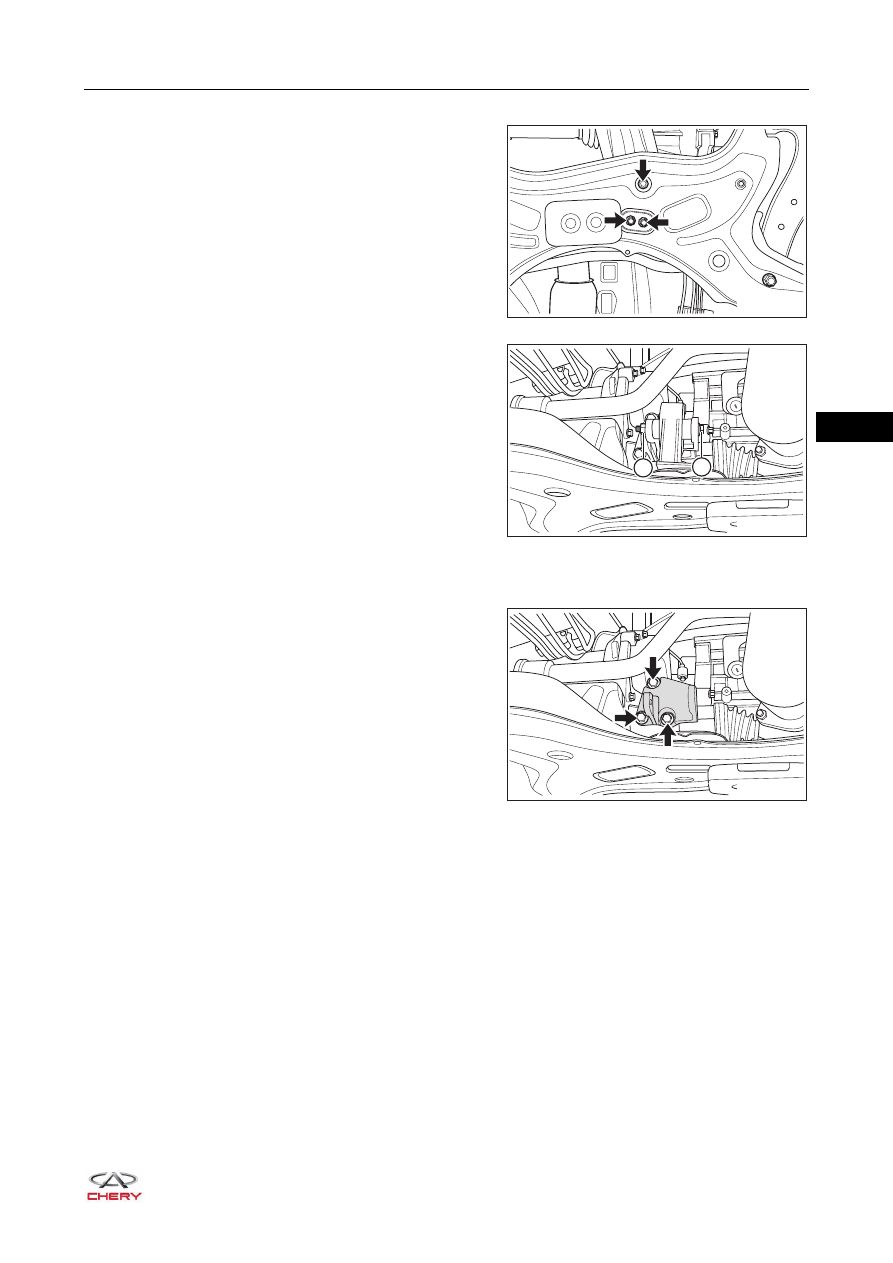

a. Remove 3 coupling bolts (arrow) between rear

mounting cushion assembly and front sub frame
welding assembly.



(Tightening torque: 70 ± 5 N·m)

b. Remove the locking nut (1) for through bolt between

rear mounting bracket and rear mounting cushion
assembly, and remove the through bolt (2).



(Tightening torque: 70 ± 5 N·m)

c. Remove the engine rear mounting cushion assembly.

7. Remove the engine rear mounting bracket (for CVT model).

a. Remove 3 coupling bolts (arrow) between rear

mounting bracket and transmission case.



(Tightening torque: 80 ± 6 N·m)

b. Remove the engine rear mounting bracket from transmission case.

8. Installation is in the reverse order of removal.
