Chery Tiggo 5 (T21). Manual - part 52

06–

50

06

Check for Open

Check for Short

a. Check wire harness between air flow meter connector

terminals and ECM connector terminals.
Check for Open

Check for Short

E-017

E-023

1

2

3

4 5

C1

C2

C3 C4

C5

C6

C7

C8 C9 C10

-

+

RT21065016

Multimeter

Connection

Condition

Specified

Condition

E-017 (2) - E-023

(C9)

Always

Continuity

Multimeter

Connection

Condition

Specified

Condition

E-017 (2) or

E-023 (C9) - Body

ground

Always

No continuity

E-017 (2) or

E-023 (C9) -

Battery positive

Always

No continuity

Replace wire harness or connector (air
flow meter - ECM or engine compartment
fuse and relay box)

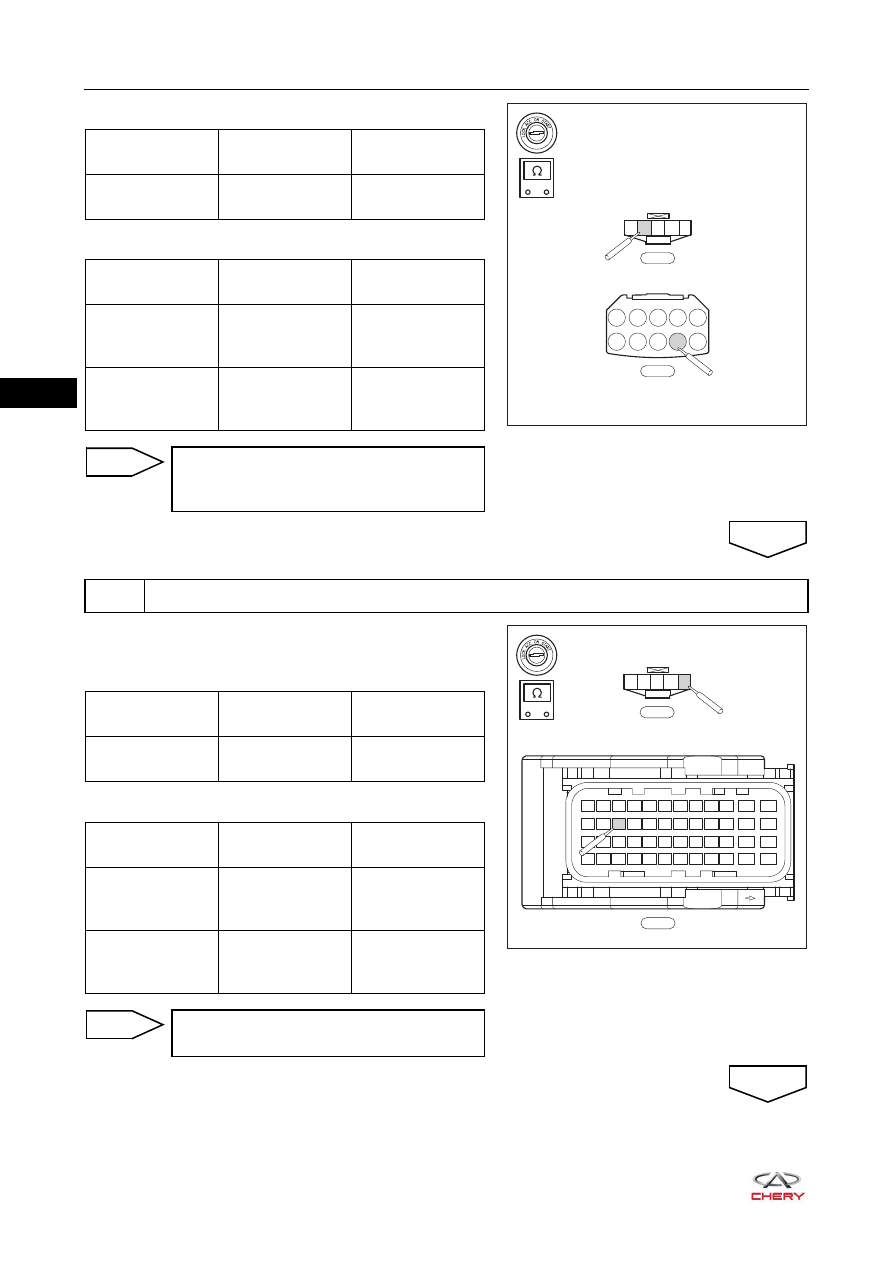

6

Check air flow meter signal circuit

NG

OK

E-017

E-035

1

2

3

4 5

37 38 39 40 41 42 43 44 45 46

47

48

25 26 27 28 29 30 31 32 33 34

35

36

13 14 15 16 17 18 19 20 21 22

23

24

1

2

3

4

5

6

7

8

9 10

11

12

-

+

RT21065017

Multimeter

Connection

Condition

Specified

Condition

E-017 (5) - E-035

(27)

Always

Continuity

Multimeter

Connection

Condition

Specified

Condition

E-017 (5) or

E-035 (27) - Body

ground

Always

No continuity

E-017 (5) or
E-035 (27) -

Battery positive

Always

No continuity

Repair or replace wire harness or
connector (air flow meter - ECM)

NG

OK

06–

51

06

a. Remove air flow meter.
b. Check air flow meter for debris and damage.

a. Use X-431 3G diagnostic tester to read the ECM DTC.
b. Refer to "DTC Confirmation Procedure".
c. Check if DTC P0101-00, P0102-00 or P0103-00 still exists.

7

Check air flow meter

Clean or replace air flow meter, and go to
next step

8

Check for DTCs

Replace ECM

System is operating normally.
Reassemble vehicle and perform a road test to confirm that malfunction reported by customer has
been repaired.

NG

OK

NG

OK

06–

52

06

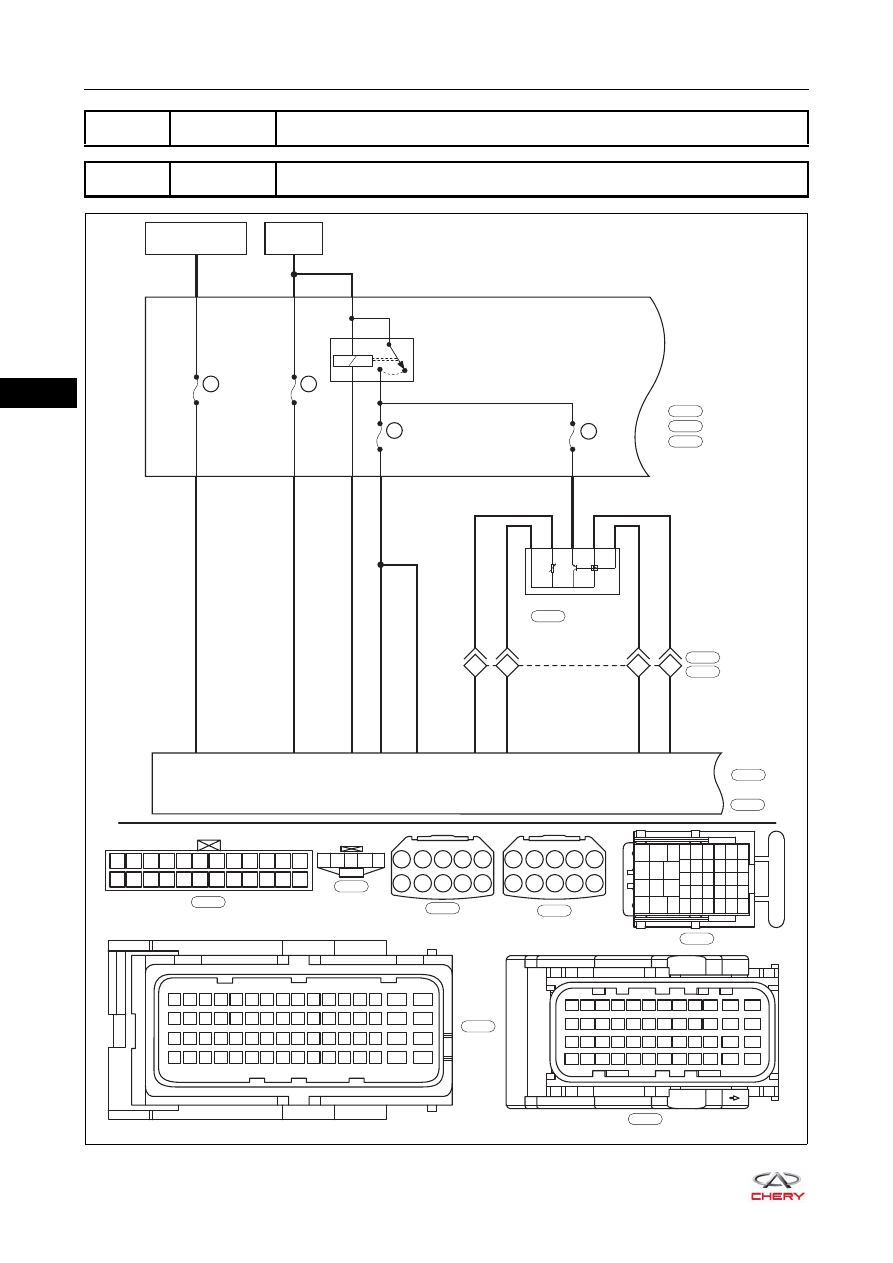

DTC

P0112-00 Intake Air Temp. Circ. Low Input

DTC

P0113-00 Intake Air Temp. Circ. High Input

ET21065004

BATTERY

ECM
MAIN
RELAY

10A

EF19

10A

EF17

10A

EF40

A2

F14

2-20

RL

A4

2-35

L

2-5

Br

A6

2-15

2-16

RR

R

86

87

85

30

ENGINE
COMPARTMENT
FUSE AND
RELAY BOX

IGNITION SWITCH
    ON OR START

A1

A2

A3

A4

A5

A6

A7

A8 A9 A10

F12

F24

F11

F23

F10

F22

F9

F21

F8

F20

F7

F19

F6

F18

F5

F17

F4

F16

F3

F15

F2

F14

F1

F13

Gr

E-076

W

E-069

E-076

E-069

B

E-033

49 50 51

63

64

15

16

31

32

47

48

33 34 35

17 18 19

1

2

3

52 53 54 55 56 57 58 59 60 61 62

36 37 38 39 40 41 42 43 44 45 46

20 21 22 23 24 25 26 27 28 29 30

4

5

6

7

8

9 10 11 12 13 14

ECM-2

E-033

10A

EF27

RL

LR

LG

LG

LR

LY

LG

LG

LR

C9

AIR FLOW METER

1-38

1-21

1-27

1-45

3

1

2

4

5

16

23

18

17

E-007
E-038

E-017

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

31

35

39

40

41

42

32

33

36

37

38 34

27

28

29

30

C1

C2

C3 C4

C5

C6

C7

C8 C9 C10

L

E-023

E-023

B

E-007

1

2

3

4 5

B

E-017

37 38 39 40 41 42 43 44 45 46

47

48

25 26 27 28 29 30 31 32 33 34

35

36

13 14 15 16 17 18 19 20 21 22

23

24

1

2

3

4

5

6

7

8

9 10

11

12

B

E-035

ECM-1

E-035

06–

53

06

DTC Confirmation Procedure

Confirm that battery voltage is over 12 V before performing the following procedures.
 Turn ignition switch to LOCK.
 Connect X-431 3G diagnostic tester (the latest software) to Data Link Connector (DLC).
 Turn ignition switch to ON.
 Use X-431 3G diagnostic tester to record and clear the DTCs stored in the ECM.
 Select Read Code.
 If the DTC is detected, the malfunction indicated by the DTC is current. Go to the diagnosis 

procedure - Step 1.

 If DTC is not detected, the malfunction indicated by the DTC is intermittent (

See page 06-18

).

Diagnosis Procedure

a. Turn ignition switch to LOCK.
b. Check ECM grounds E-026 and E-028 (

See page 06-18

).

DTC Code

DTC Definition

DTC Detection

Condition

Possible Cause

P0112-00

Intake Air Temp. Circ.
Low Input

Ignition switch ON
Engine running

 Air flow meter
 Wire harness or connector
 ECM

P0113-00

Intake Air Temp. Circ.
High Input

CAUTION

 When performing circuit diagnosis and test, always refer to the circuit diagram for specific circuit and

component information.

1

Check ECM ground point

Repair or replace ground wire harness or
ground point

NG

OK
