Chery Tiggo 5 (T21). Manual - part 45

06–

22

06

P1275-00

Manufacturer Controlled Computer and Auxiliary Outputs

P1276-00

Manufacturer Controlled Computer and Auxiliary Outputs

P1615-00

ECM Status Unknown

P1616-00

Authentication not OK

P1617-00

No Response from SIM During Challenge Period

P1618-00

Fail to Write EOL Confiditional Data into EEPROM

P1619-00

ECM Not Programmed (Virgin State)

P1811-13

Manufacturer Controlled Computer and Auxiliary Outputs

P1812-11

Manufacturer Controlled Computer and Auxiliary Outputs

P1813-12

Manufacturer Controlled Computer and Auxiliary Outputs

P2188-00

System Too Rich at Idle

P2195-00

O2 Sensor Signal Stuck Lean; Bank 1 Sensor 1

P2196-00

O2 Sensor Signal Stuck Rich; Bank 1 Sensor 1

P2270-00

O2 Sensor Signal Stuck Lean; Bank 1 Sensor 2

P2271-00

O2 Sensor Signal Stuck Rich; Bank 1 Sensor 2

U0101-87

Lost Communication With TCM (CVT only)

U0129-87

Lost Communication With BSM

U0140-87

Lost Communication With BCM

U0155-87

Lost Communication With ICM

U0164-87

Lost Communication With CLM

U0167-87

Lost Communication With IMMO

P0101-00

Mass or Volume Air Flow Circ. Range/Performance

P0102-00

Mass or Volume Air Flow Circ. Low Input

P0103-00

Mass or Volume Air Flow Circ. High Input

P0531-00

A/C Refrigerant Pressure Sensor "A" Circuit Range/Performance

P1568-00

DV-E Cause of Failure: Spring Check

U0001-00

High Speed CAN Defective

DTC Code

DTC Definition

06–

23

06

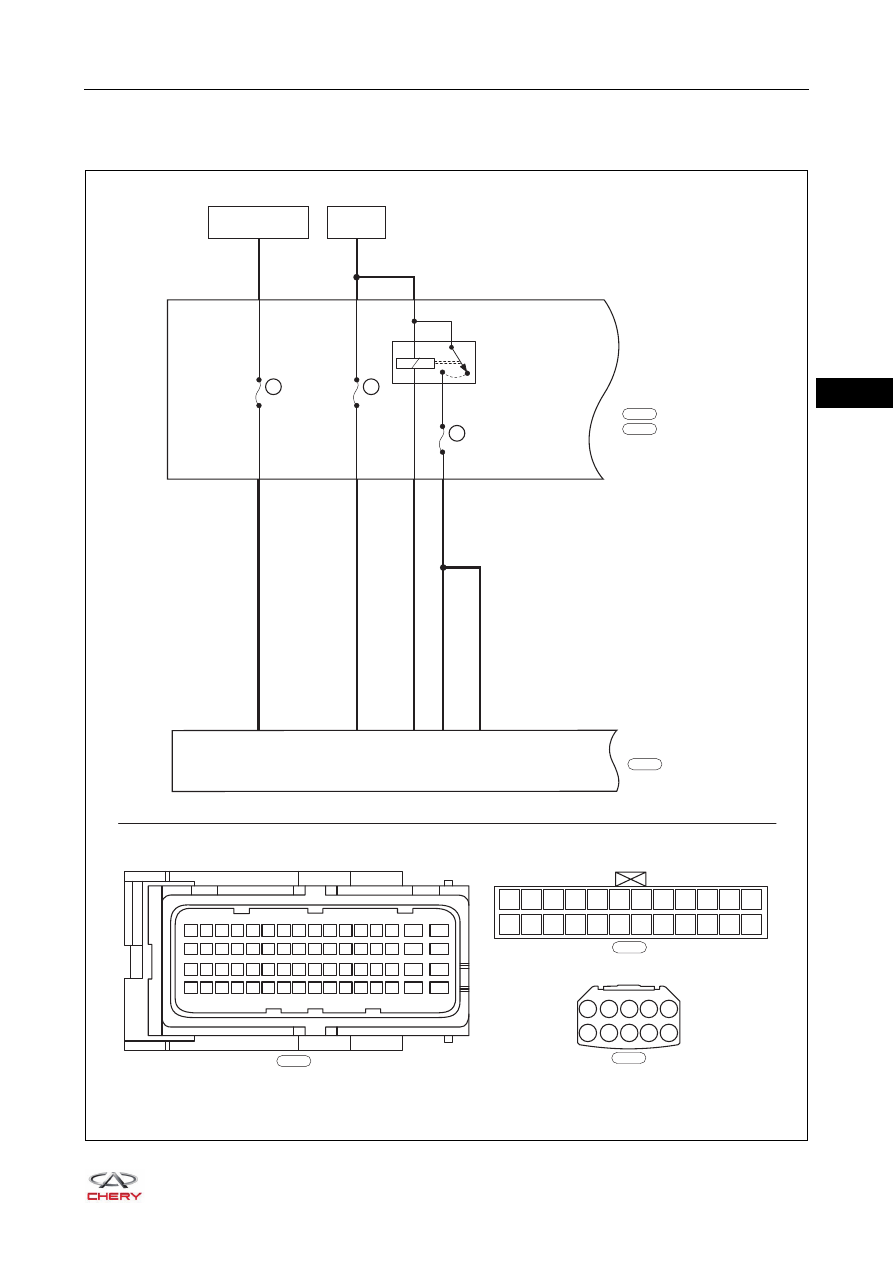

ECM Power Supply Circuit & Ground Circuit Testing

Power Supply Circuit (Page 1 of 1)

ET21065000

BATTERY

ECM
MAIN
RELAY

10A

EF19

10A

EF17

10A

EF40

A2

F14

2-20

RL

A4

2-35

L

2-5

Br

A6

2-15

2-16

RR

R

86

87

85

30

ENGINE
COMPARTMENT
FUSE AND
RELAY BOX

IGNITION SWITCH
    ON OR START

A1

A2

A3

A4

A5

A6

A7

A8 A9 A10

F12

F24

F11

F23

F10

F22

F9

F21

F8

F20

F7

F19

F6

F18

F5

F17

F4

F16

F3

F15

F2

F14

F1

F13

Gr

E-076

W

E-069

E-076

E-069

B

E-033

49 50 51

63

64

15

16

31

32

47

48

33 34 35

17 18 19

1

2

3

52 53 54 55 56 57 58 59 60 61 62

36 37 38 39 40 41 42 43 44 45 46

20 21 22 23 24 25 26 27 28 29 30

4

5

6

7

8

9 10 11 12 13 14

ECM-2

E-033

06–

24

06

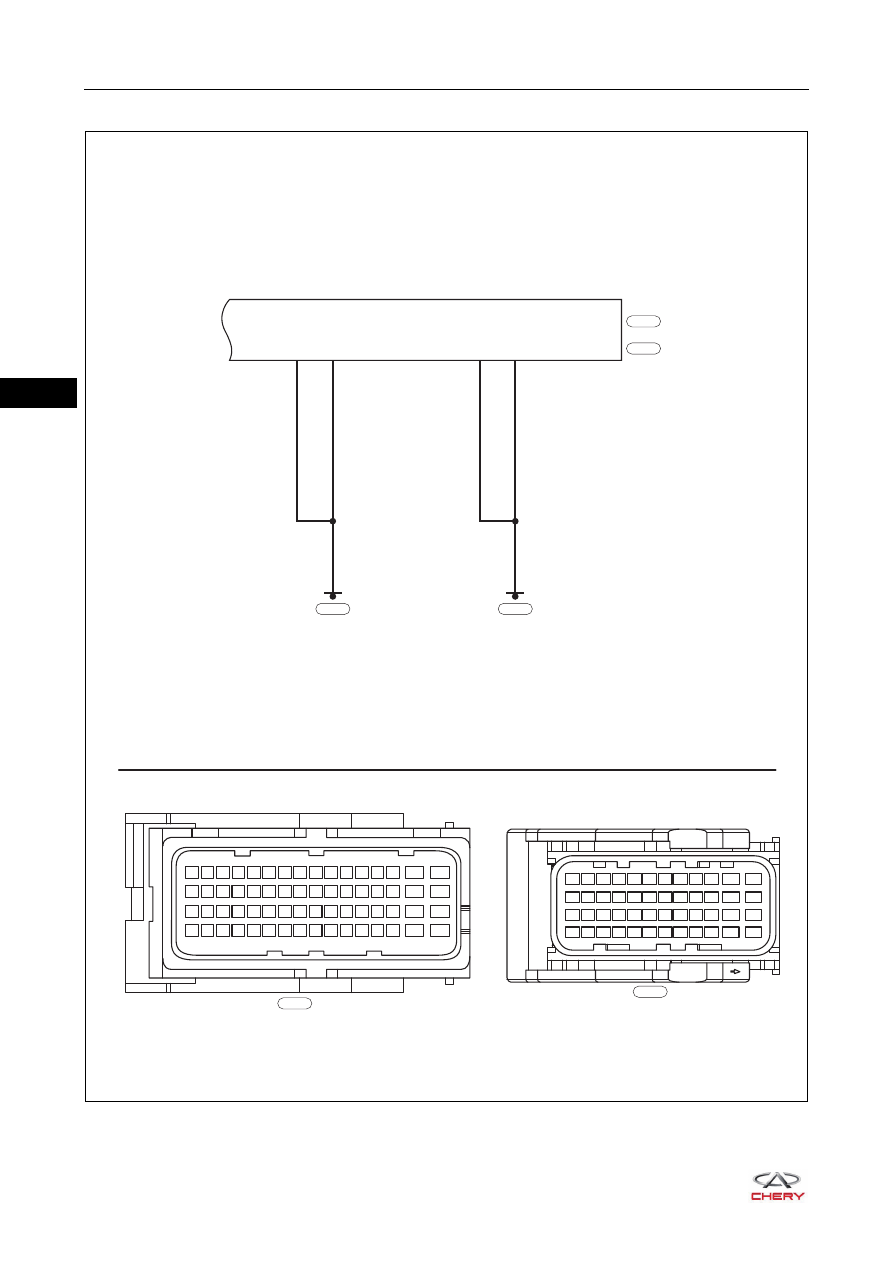

Ground Circuit (Page 1 of 1)

ET21065001

37 38 39 40 41 42 43 44 45 46

47

48

25 26 27 28 29 30 31 32 33 34

35

36

13 14 15 16 17 18 19 20 21 22

23

24

1

2

3

4

5

6

7

8

9 10

11

12

B

E-033

B

E-035

49 50 51

63

64

15

16

31

32

47

48

33 34 35

17 18 19

1

2

3

52 53 54 55 56 57 58 59 60 61 62

36 37 38 39 40 41 42 43 44 45 46

20 21 22 23 24 25 26 27 28 29 30

4

5

6

7

8

9 10 11 12 13 14

ECM-2

ECM-1

E-033

E-035

2-63

2-64

1-47

Br

Br

B

B

Br

B

1-48

E-026

E-028

06–

25

06

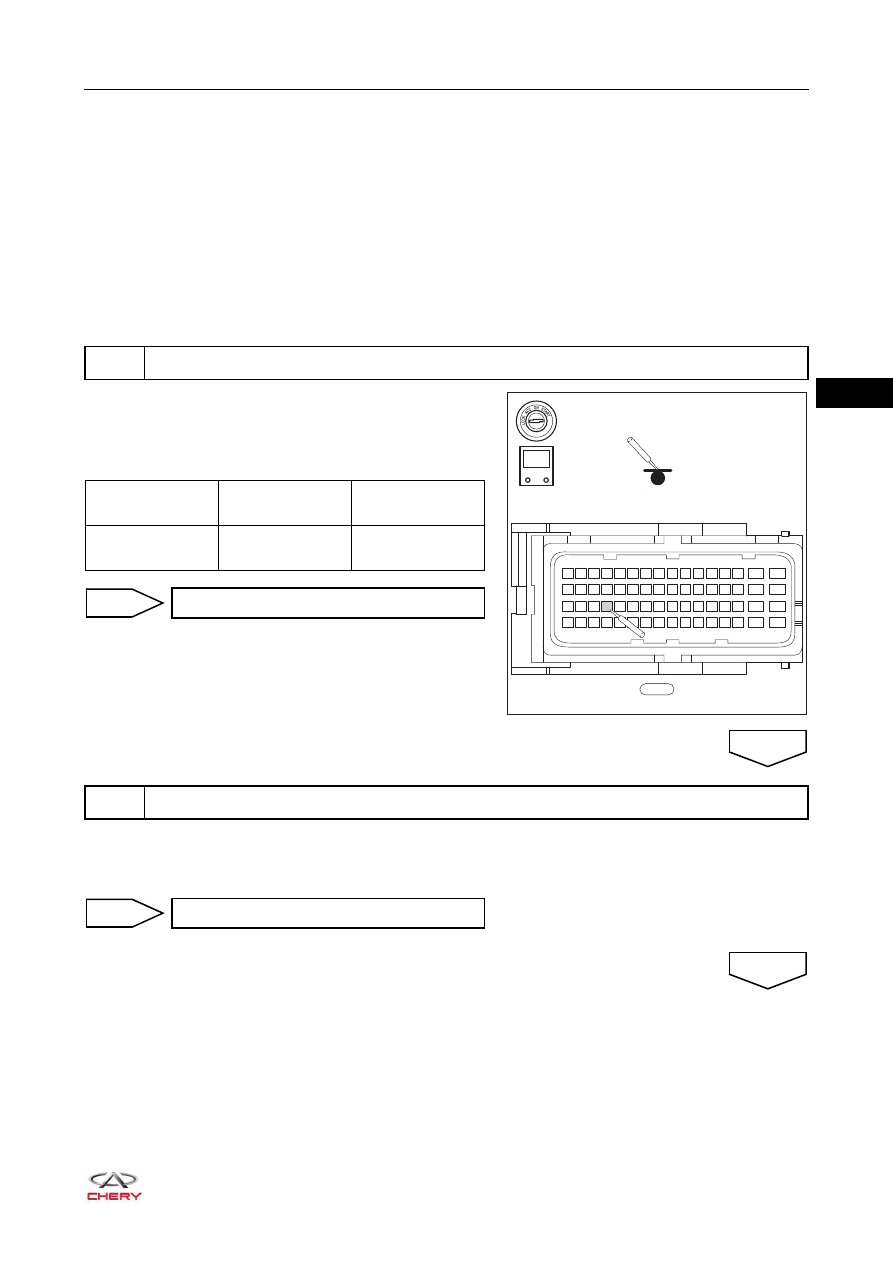

Confirmation Procedure

Before performing the following procedures, confirm that battery voltage is higher than 12 V.
 Turn ignition switch off.
 Connect X-431 3G diagnostic tester (the latest version) to Data Link Connector (DLC).
 Turn ignition switch ON.
 Using diagnostic tester, select Read Datastream.
 If the datastream is not detected, the malfunction indicated by the datastream is current. Go to the

diagnosis procedure - Step 1.

 If the datastream is detected, the malfunction indicated by the datastream is intermittent (

See page 06-18

).

Diagnosis Procedure

a. Turn ignition switch off.
b. Disconnect ECM connector E-033.
c. Check voltage between terminals of ECM connector



E-033 and body ground.

a. Unplug ECM fuse EF19 (10A) from engine compartment fuse and relay box.
b. Check resistance of fuse.

Standard resistance: less than 1 Ω

1

Check ECM power supply circuit

E-033

49 50 51

63

64

15

16

31

32

47

48

33 34 35

17 18 19

1 2 3

52 53 54 55 56 57 58 59 60 61 62

36 37 38 39 40 41 42 43 44 45 46

20 21 22 23 24 25 26 27 28 29 30

4 5 6 7 8 9 10 11 12 13 14

-

+

V

RT21065001

Multimeter

Connection

Condition

Specified

Condition

E-033 (20) - Body

Ground

Always

11 to 14 V

Go to step 4

OK

NG

2

Check ECM fuse

Replace ECM fuse

NG

OK
