GENERAL INFORMATION

Description

The QR523 five-speed transaxle is a constant-mesh manual transaxle that is synchronized in all gear ranges, includ-
ing reverse.

The transaxle consists of three major sub-assemblies:

• Input shaft

• Output shaft

• Differential transaxle assembly
The transaxle shift system consists of the following components:

• Mechanical shift cover

• Shift rails

• Shift forks

08



• Shift cables

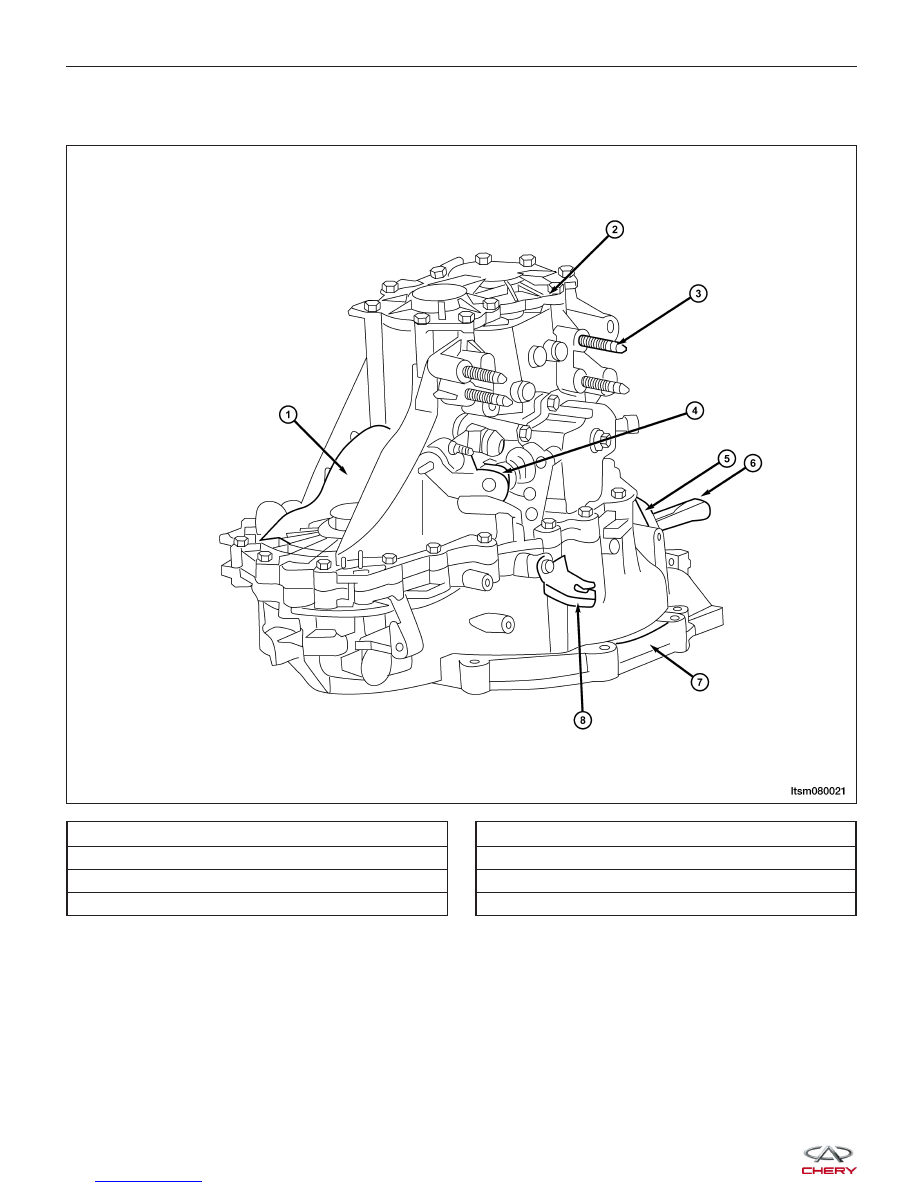

QR523 External View

1 - Transaxle Housing Assembly

2 - Bearing Cap Assembly

3 - Stud Bolt

4 - Gear-Shifting Mechanism Assembly

5 - Release Fork Dust Boot

6 - Release Fork

7 - Clutch Housing Assembly

8 - Hydraulic Clutch Line Bracket

GENERAL INFORMATION

LTSM080021



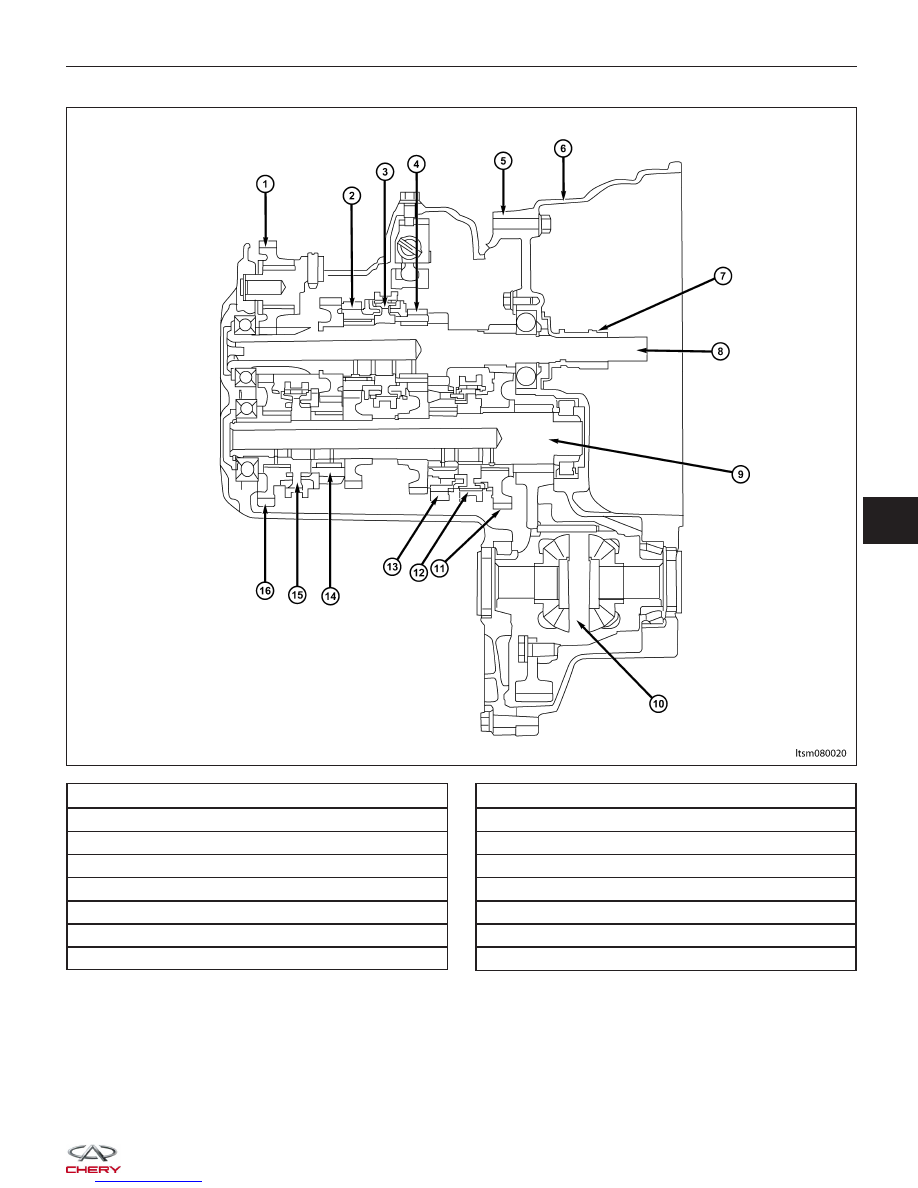

QR523 Internal View

1 - Idler Assembly

2 - Pinion Gear, 4th Gear

3 - 3rd-4th Gear Synchronizer

4 - Pinion Gear, 3rd Gear

5 - Transaxle Housing

6 - Clutch Housing

7 - Release Bearing Saddle

8 - Input Shaft

9 - Output Shaft

10 - Differential Assembly

11 - Driven Gear of 1st Gear

12 - 1st-2nd Gear Synchronizer

13 - Driven Gear, 2nd Gear

14 - Driven Gear, 5th Gear

15 - Synchronizer of 5th-Gear and Reserve Gear

16 - Gear, Reverse Gear

GENERAL INFORMATION

LTSM080020
