Diagnostic Procedure

1.

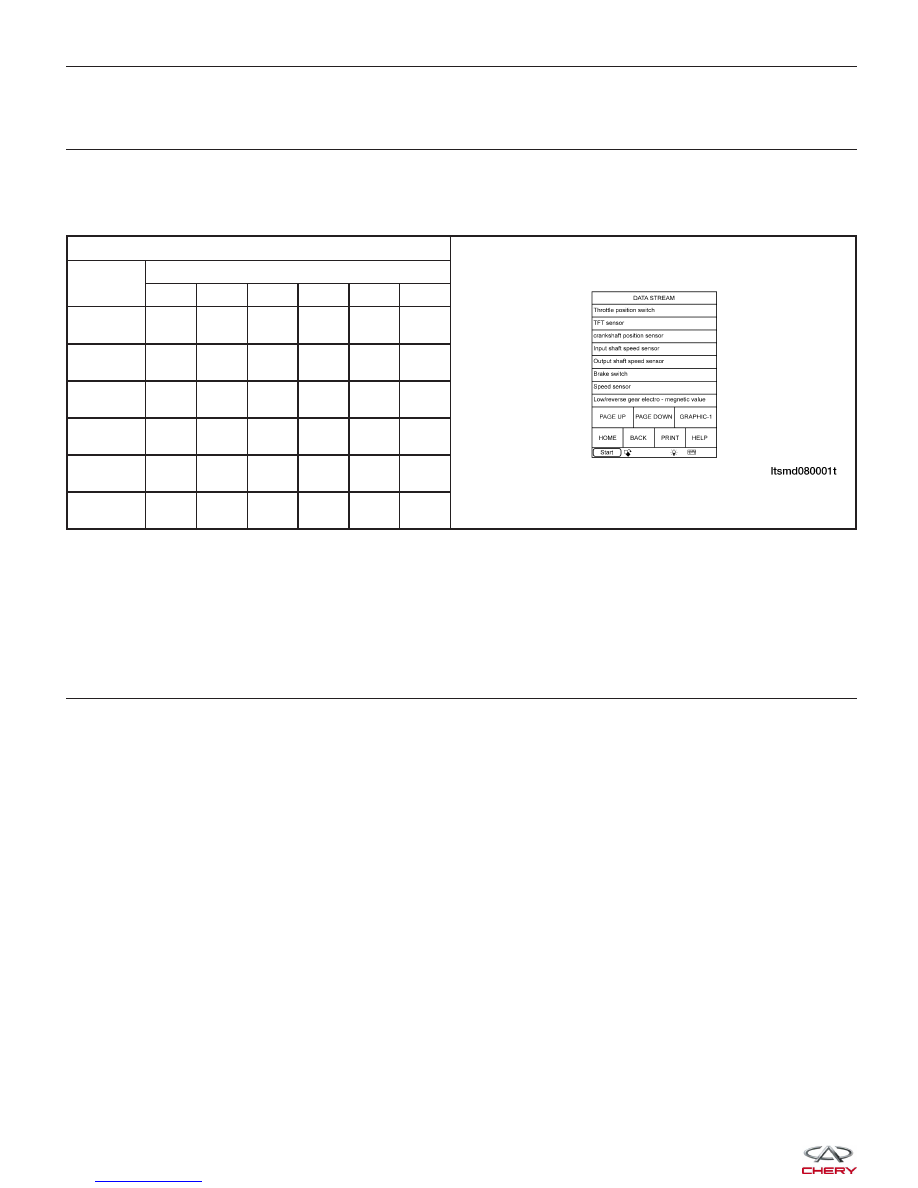

CHECK A/T SOLENOID SIGNAL

• With the scan tool, select view DTC and data stream for A/T.

• Start the engine.

• Monitor the value of the gear position as indicated in the following table while driving:

SEQUENCE SOLENOID (EVS) CONDITION

LEVER

POSITION

EVS

EVS1

EVS2

EVS3

EVS4

EVS5

EVS6

R

Not

active

Not

active

Not

active

Not

active

Not

active

Not

active

N/P

Not

active

Not

active

Active

Not

active

Not

active

Not

active

1

Not

active

Not

active

Active

Active

Not

active

Not

active

2

Not

active

Active

Not

active

Active

Not

active

Not

active

3

Not

active

Not

active

Not

active

Not

active

Not

active

Not

active

4

Active

Active

Not

active

Not

active

Not

active

Not

active

Is the check result normal?

Yes

>>

The condition that caused this DTC is intermittent (See Diagnostic Help in Section 08 Transaxle &

Transfer Case).

No

>>

Go to the next step.

2.

ACTUATE TEST

• With X-431, perform the solenoid actuate test.

• The solenoid should be heard.

Is the check result normal?

Yes

>>

Go to step 6.

No

>>

Go to the next step.

DIAGNOSIS & TESTING



3.

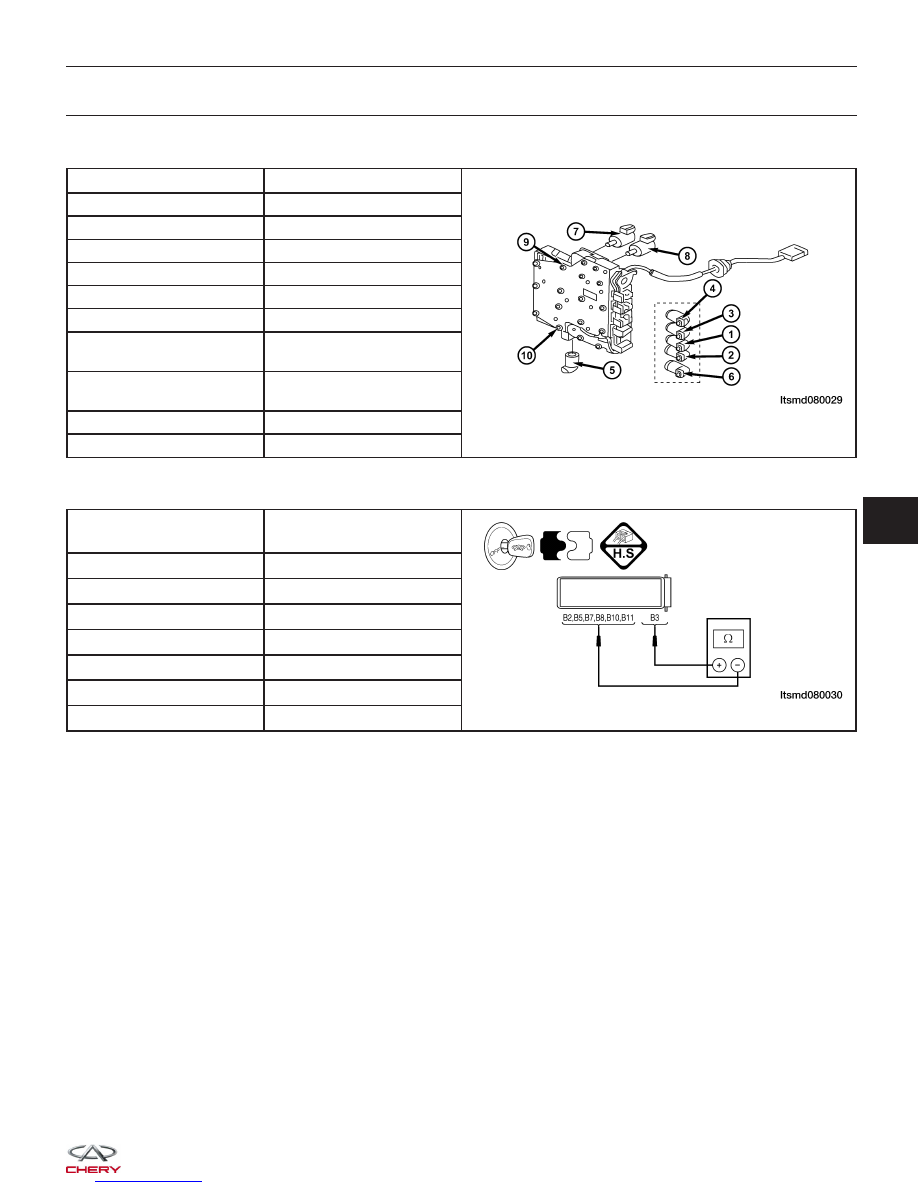

CHECK SHIFT SOLENOID VALVE 3 (SSV3) RESISTANCE

• Check SSV3 resistance as follows:

NUMBER

SOLENOID

1

Shift Solenoid Valve 1

2

Shift Solenoid Valve 2

3

Shift Solenoid Valve 3

4

Shift Solenoid Valve 4

5

Shift Solenoid Valve 5

6

Shift Solenoid Valve 6

7

Pressure adjust solenoid

valve

8

Torque converter lock

solenoid valve

9

Manual valve

10

Valve body

• Check SSV3 resistance as shown in the following table:

SHIFT SOLENOID VALVE

A/T ASSEMBLY

TERMINAL

VALVE 1 (SSV1)

B11 - B3

VALVE 2 (SSV2)

B8 - B3

VALVE 3 (SSV3)

B10 - B3

VALVE 4 (SSV4)

B7 - B3

VALVE 5 (SSV5)

B5 - B3

VALVE 6 (SSV6)

B2 - B3

RESISTANCE (23°C)

38 - 42 (

⍀)

Is the check result normal?

Yes

>>

Replace the valve with a known good one.
With X-431, perform the solenoid actuate test.
− If the solenoid can be heard, go to step 6.
− If the solenoid can’t be heard, go to the next step.

No

>>

Replace the damaged solenoid valve.

DIAGNOSIS & TESTING

08



4.

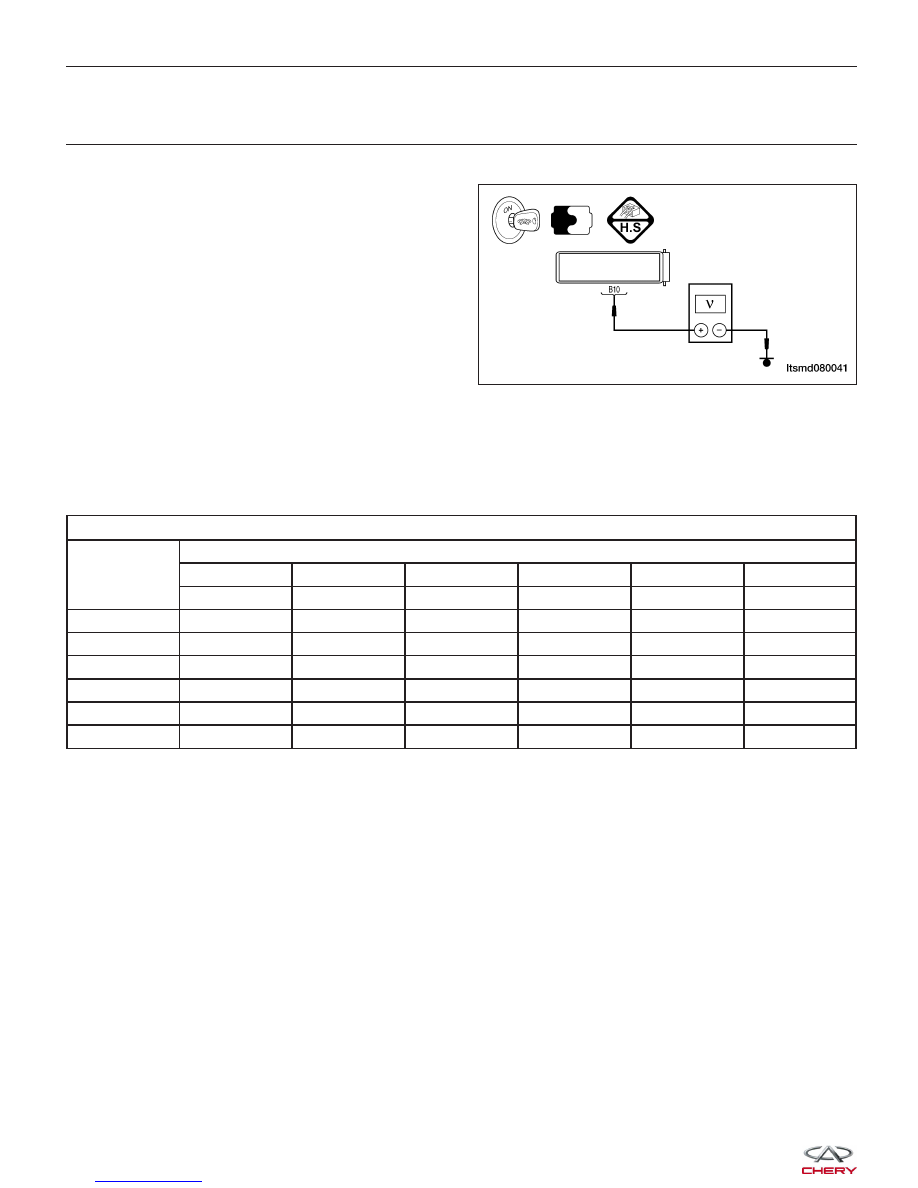

CHECK SHIFT SOLENOID VALVE 3 (SSV3) POWER SUPPLY

• Turn the ignition switch on.
• Check power supply between SSV3 E-037 terminal

B10 and ground in the A/T assembly connector
E-037.

• Battery voltage should exist.

• Or using the appropriate diagnostic test tool and a digital multimeter perform the following:

• Check the EVS3 solenoid supply voltage between TCM pin 1 and TCM pin 7 when activating the EVS3 sole-

noid and deactivating the EVS3 solenoid.

• Check the shift solenoid control signal. Check the voltage of the shift solenoid in each shift position.

• Check the voltage of the EVS3 solenoid supply circuit between the transaxle assembly electrical connector pin

B3 and pin B10.

SEQUENCE SOLENOID (EVS) CONDITION

LEVER

POSITION

TCM TERMINAL

EVS1

EVS2

EVS3

EVS4

EVS5

EVS6

1 - 10

1 - 9

1 - 7

1 - 8

1 - 13

1 - 14

R

0 V

0 V

0 V

0 V

0 V

0 V

N/P

0 V

0 V

+12 V

0 V

0 V

0 V

1

0 V

0 V

+12 V

+12 V

0 V

0 V

2

0 V

+12 V

0 V

+12 V

0 V

0 V

3

0 V

0 V

0 V

0 V

0 V

0 V

4

+12 V

+12 V

0 V

0 V

0 V

0 V

Is the check result normal?

Yes

>>

Go to the next step.

No

>>

Repair or replace the open circuit or short to ground in harness or connectors.

DIAGNOSIS & TESTING

LTSMD080041



5.

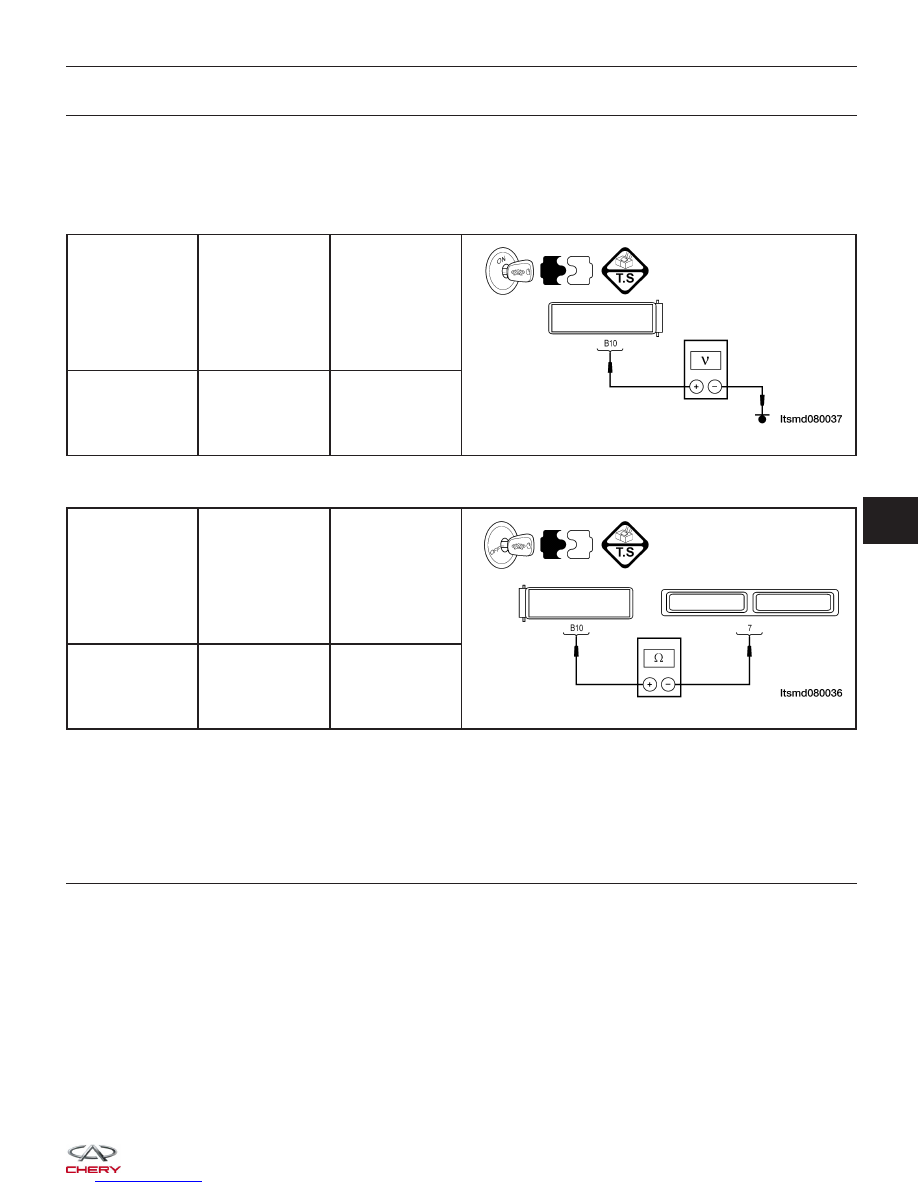

CHECK SHIFT SOLENOID VALVE 3 (SSV3) CONTROL CIRCUIT

• Turn the ignition switch off.

• Disconnect TCM connector.

• Disconnect A/T assembly connector.

• Turn the ignition switch on.

• Check harness for short to power supply.

A/T ASSEMBLY

CONNECTOR

E-037

TERMINAL

GROUND

VOLTAGE

B10

Ground

Should not exist

• Check the harness for an open or short to ground in harness or connectors.

A/T ASSEMBLY

CONNECTOR

E-037

TERMINAL

TCM

CONNECTOR

E-036

TERMINAL

CONTINUITY

B10

7

Yes

Is the check result normal?

Yes

>>

Go to the next step.

No

>>

Repair or replace the open circuit or short to power supply or short to ground in harness or connectors.

6.

CHECK DTC

• With the X-431 scan tool, read TCM DTCs.

• Refer to ⬙DTC Confirmation Procedure⬙.

Is DTC P0763 present?

Yes

>>

Replace the TCM.

No

>>

The system is now operating properly.
Reassemble the vehicle and road test to verify the customers complaint is repaired.

DIAGNOSIS & TESTING
