CHERY A520 SERVICE MANUAL CHASSIS
47
SECTION III REAR WHEEL ALIGNMENT
I.
CHECK
THE
ADJUSTED
REAR-WHEEL CAMBER ANGLE, AND
REAR-WHEEL TOE-IN VALUES:

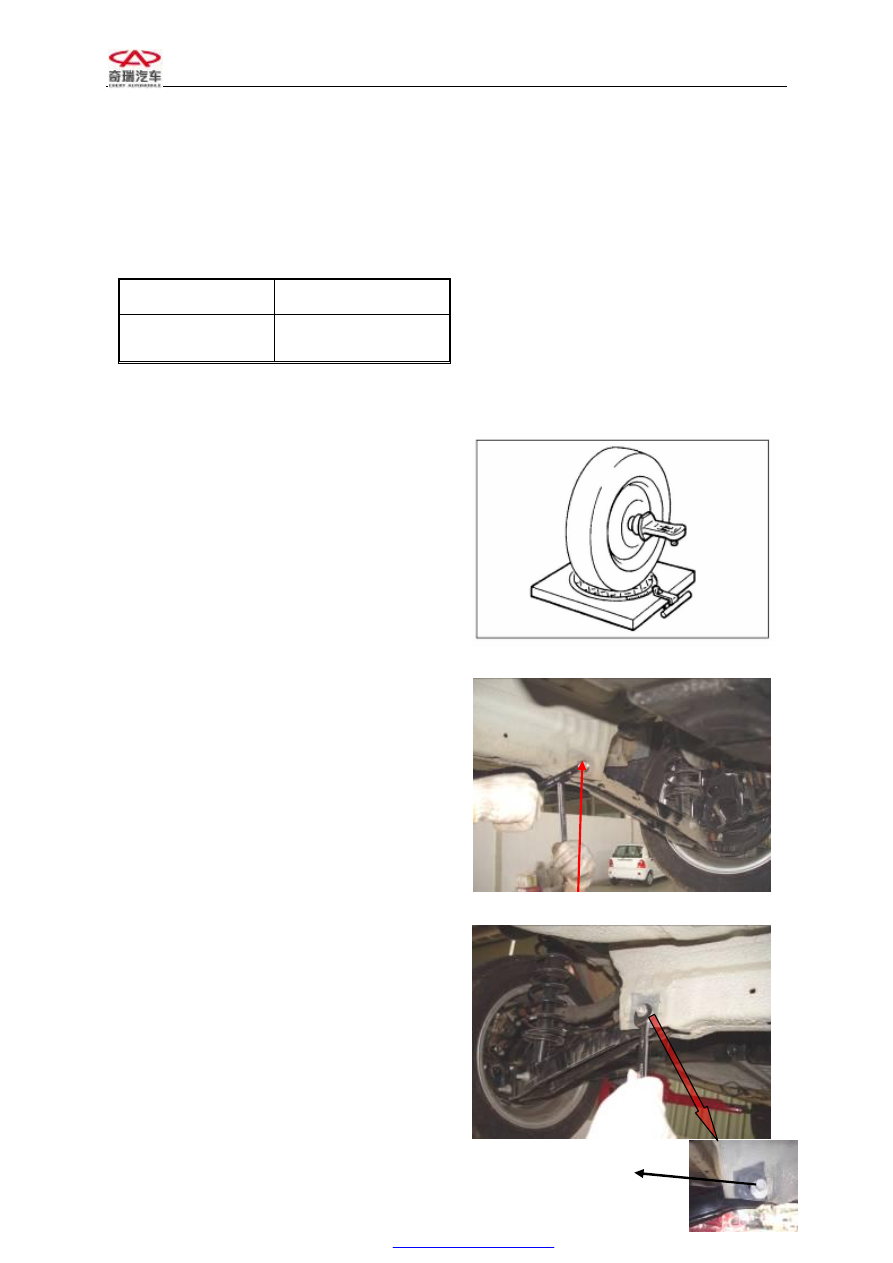

Criteria: Rear wheel alignment should meet the
requirements as follows:
Rear wheel toe-in
17′20＂±5′(or 3mm)
Rear wheel camber
angle
-0
0
40′±10′
II. REAR WHEEL TOE-IN AND REAR
WHEEL
CAMBER
ANGLE
ADJUSTMENT
1. Rear wheel toe-in adjustment
Toe-in adjustment can be done by use of
optical test instrument or mechanical toe-in
regulator. Wheel aligner or alignment tester
should be installed on the wheels.
Installation should be carried out according to
the concrete instructions of the equipment
manufacturers.
(1) If the rear wheel toe-in is found not to
meet relevant requirements, you can
loosen the adjusting bolt 14 and adjusting
nut 12 of the lower control arm as the
figure illustrated. Note: prevent the nut
from shedding out of the slot.
(2) Screw the eccentric adjusting bolt 14 to
alter the value of rear wheel toe-in until it
complies with the requirements, and fasten
the nut 12 to specified torque (100 ～
120N.m).(The left and right sides are the
same)

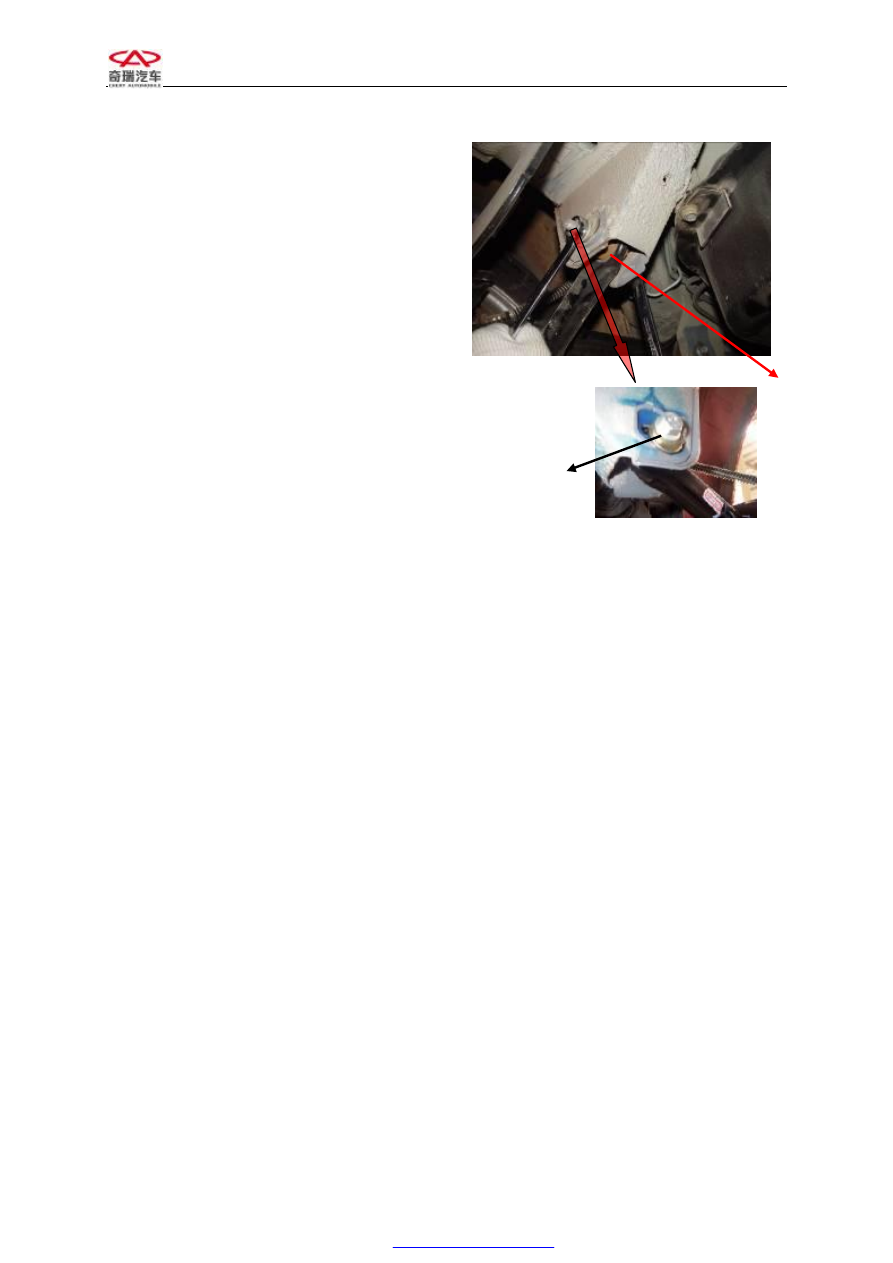

Adjusting Nut 12
Adjusting Bolt 14
