CHERY A21 SERVICE MANUAL

MECHANISM OF 2.0NALC ENGINE

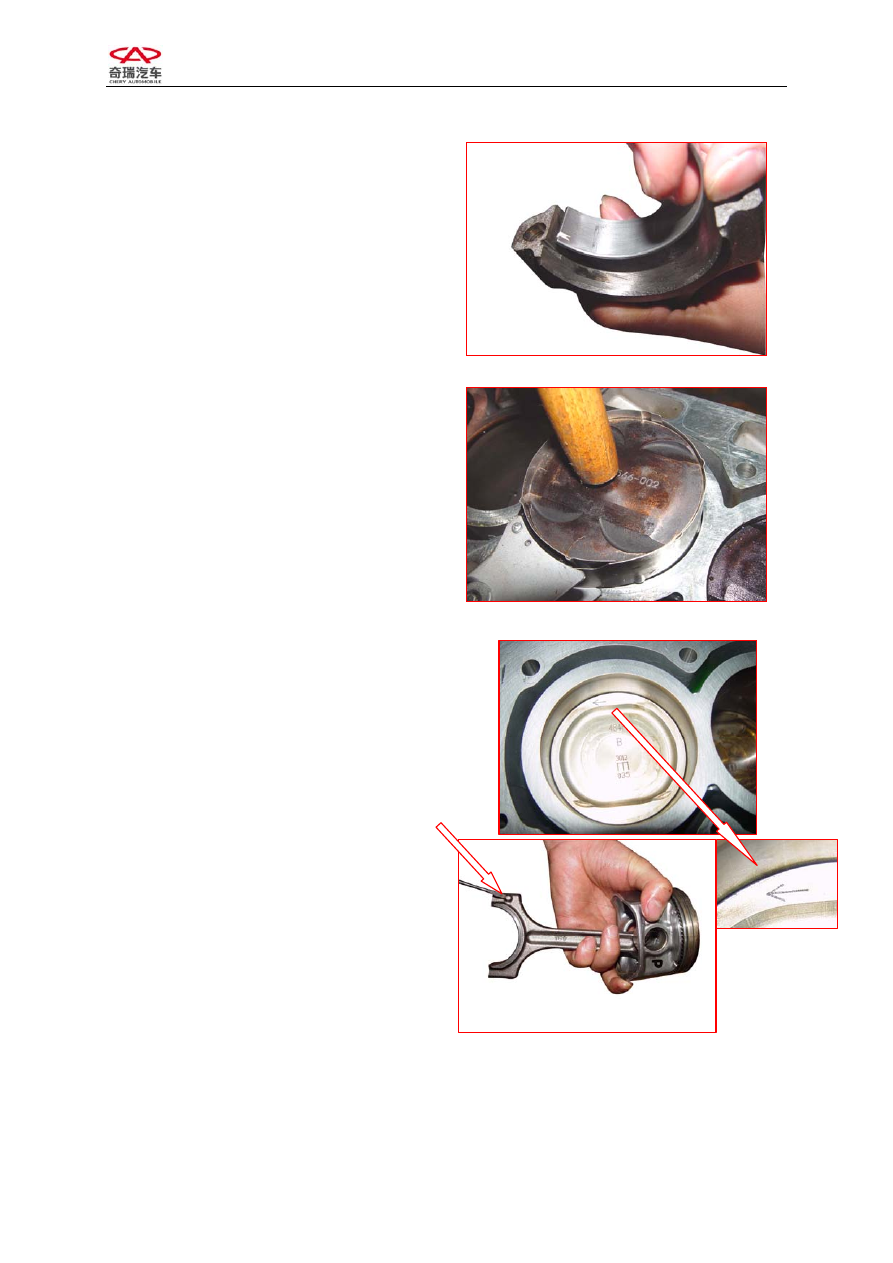

3) Mount the upper bearing of connecting

rod and the connecting rod together.

Note: the gap on bushing should be orderly
with that of connecting rod.

4) Spread the engine transmission oil in the

engine cylinder, clasp the piston ring
with special tool, tap the piston head
with wooden handle and encase the
piston connecting rod assembly.

Note: the end of connecting rod with a point
should face the cylinder and consists with the
arrowhead on the top side of piston.

CHERY A21 SERVICE MANUAL

MECHANISM OF 2.0NALC ENGINE

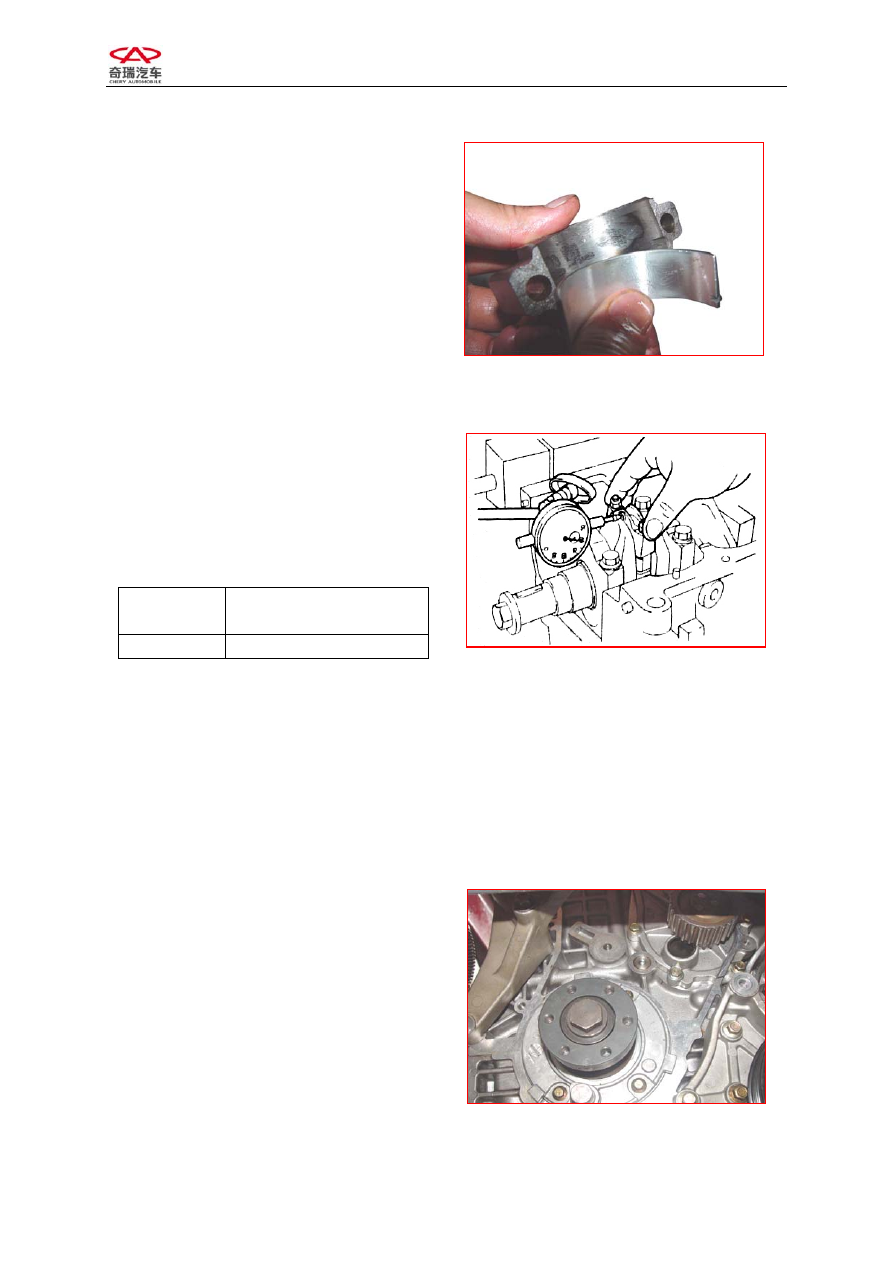

5) Mount the lower bearing of connecting

rod and the connecting rod cap together.
Then spread engine transmission oil.

Note: the gap on bushing should be orderly
with that of connecting rod.

6) Close the connecting rod cap and screw

down the bolt.

Torque: 25±3N•m, then screw 90°±5°

7) Examine the axial clearance of

connecting rod.

Examine the axial clearance with micrometer
guage or feeler gauge.

Standard Value

（mm）

Clearance

0.15—0.50

8) Mount the engine oil strainer.

9) Mount the oil pan.

10) Mount the cylinder head.

11) Mount the timing belt during timing

adjusting.

4.Replace front oil seal of crankshaft

4.1 Needed tools and auxiliary materials

Ratchet wheel and ratchet rod, 13#, 15#, 17#,
22# sleeve, 13# open end wrench, allen
wrench, engine transmission oil and guide
sleeve of crankshaft oil seal

4.2 Process of Replacement

4.2.1 Process of Removal

1) Dismantle the timing belt (See

“replacing the timing belt” for details).

CHERY A21 SERVICE MANUAL

MECHANISM OF 2.0NALC ENGINE

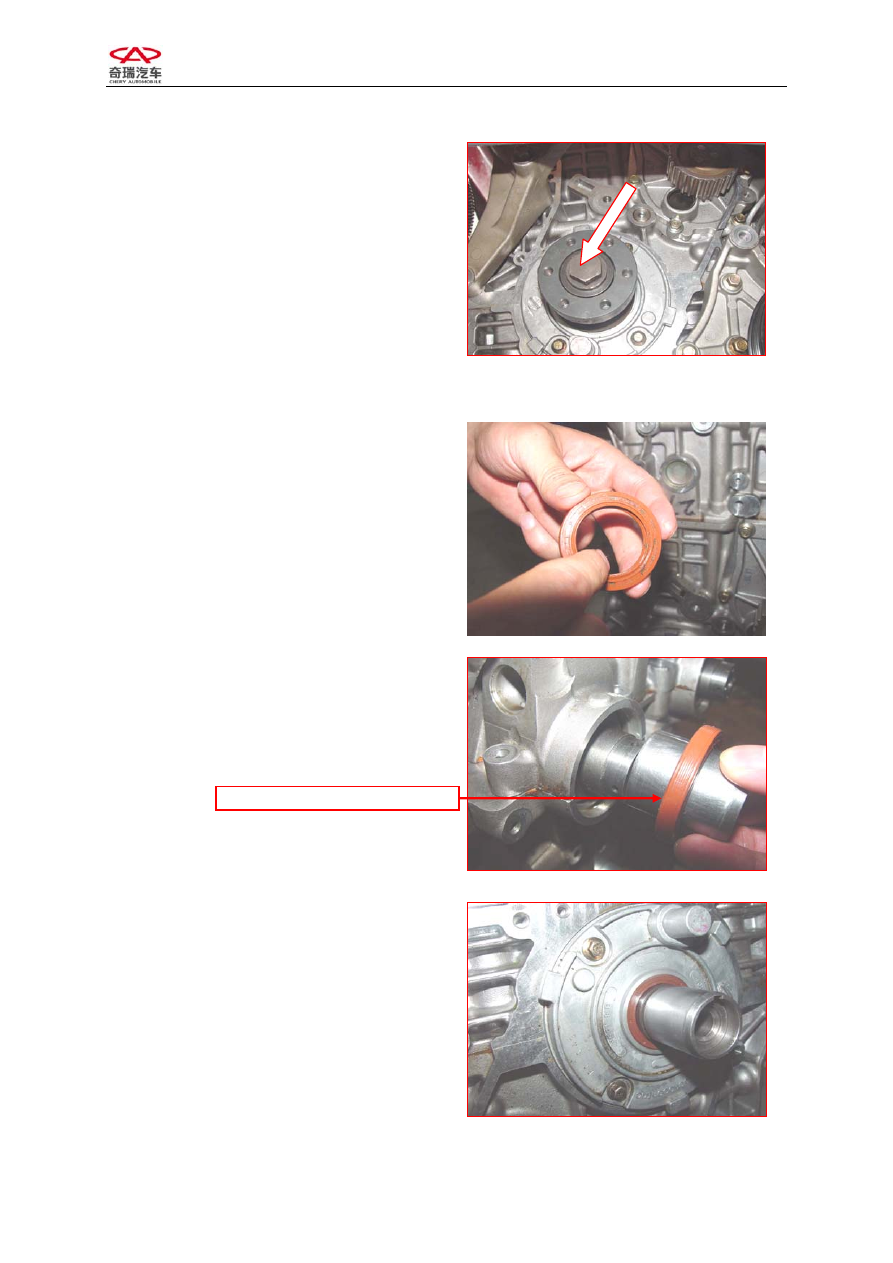

Engage the gear to 5th, then press the
brake with toes, Dismantle the
connecting bolt of timing belt pulley and
crankshaft with torque wrench. Remove
the timing belt.

Torque:130±10,then screw 65°±5°

3) Pry out the old oil seal with right-angled

screwdriver carefully.

Note: Be careful in dismantling the oil seal
not to damage the oil seal seat ring.

4.2.2

Installation

Clean the oil seal seat ring and spread
transmission oil on the seat ring

Spread transmission oil at the seal lip.

3) Enclose the guide sleeve of crankshaft

oil seal, special tool, with that oil seal.

4) Press the oil seal into oil seal seat ring

and knock it to right position with
hammer.

5. Replacement of oil pump

5.1 Needed tools and auxiliary materials

A set of big sleeves, a set of small sleeves
and a set of open end wrench

Guide Sleeve of Crankshaft Oil Seal

CHERY A21 SERVICE MANUAL

MECHANISM OF 2.0NALC ENGINE

5.2

Process of Replacement

5.2.1

Process of Removal

1) Dismantle the timing belt (See “removal

of timing belt” for details).

2) Engage the gear to 5th, then press the

brake with toes, and remove the timing
belt pulley.

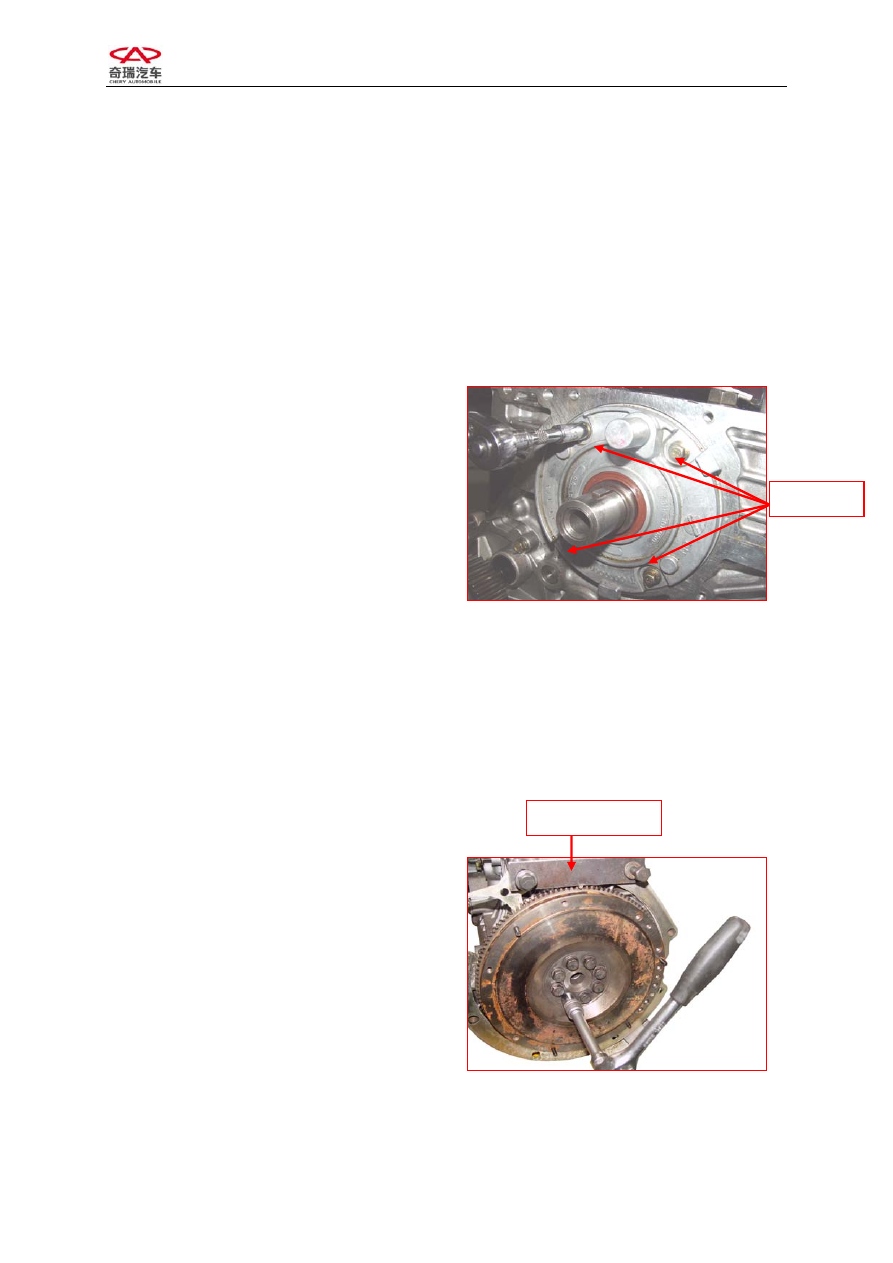

Dismantle the fastening bolt of oil pump
with 10# sleeve and take out the oil
pump. Torque:8+3NM

4) Pry out the oil seal.

5) Clean the seat ring of oil pump.

5.2.2

Installation

1) Spread oil on the gasket of oil pump.

2) Mount the oil pump in its seat ring.

Note: The bulge of oil pump should be put
downwards because the wrong position can
not make the bolt be screwed in.

3) Mount the oil seal.

Mount the other parts.

6. Replacement of crankshaft rear oil seal

6.1

Needed tools and auxiliary materials

A set of big sleeves, a right-angled
screwdriver, a small hoist and engine oil

6.2

Process of Removal

1) Suspend the engine assembly from

vehicle (See “suspending of engine
assembly” for details

）.

2) Remove the clutch pressure plate.

For removing the flywheel, lock the

flywheel

with special tool and then screw off the
fastening bolt with sleeve wrench.

4) Pry the old oil seal with the right-angled

screwdriver.

Note: Do not damage the oil seal seat ring.

Fastening

Flywheel Tool
