CHERY A21 SERVICE MANUAL



MECHANISM OF 2.0NALC ENGINE

27



C:



Revise it if the planeness exceeds, and
replace when it exceeds the limit value.

The permitted maximum abrading thickness
between cylinder block and cylinder head is:

2.2.3



Installation

The installing steps are reverse to those for
removal.

Note:

1)



Dismantle valve springs into groups.
The 1st and 4th cylinders are in one
group and the 2nd and 3rd ones are in
the other group. Then put the piston to
the upper point of 1st and 4th cylinders
in order to dismantle the valve spring of
1st and 4th cylinders, replace their valve
oil seal and mount the spring
immediately. And put the piston to the
upper point of 2nd and 3rd cylinders in
order to replace the other valve oil seal.
Those steps prevent from that the valve
falls into cylinder and the unanticipated
trouble occurs.

2)



Wipe the engine transmission oil on the
opening of oil seal when mounting the
valve oil seal.

3)



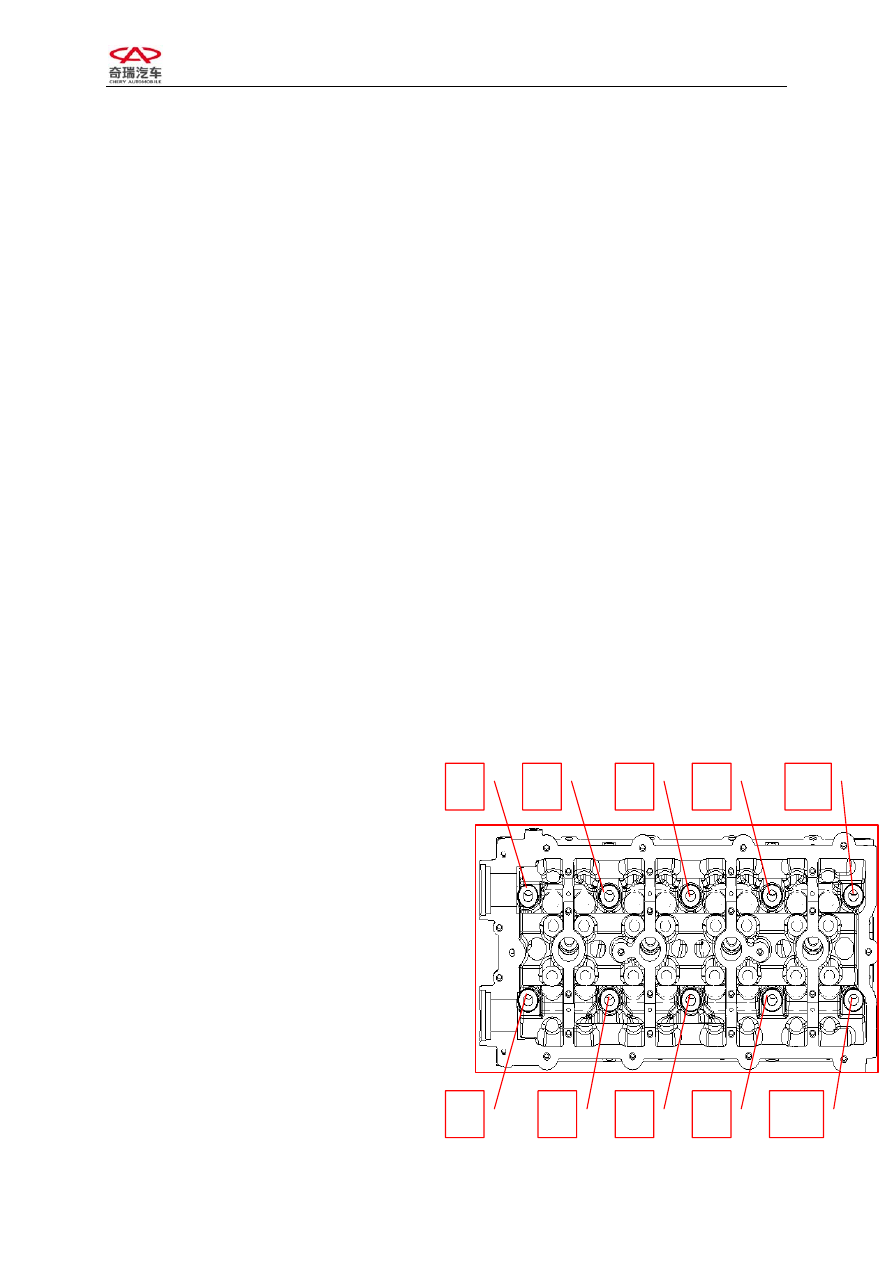

Fasten the cylinder bolt as the following
process.

A:



Smear some oil on the top and root of
bolt.

B:



Fasten to 40±5NM in sequence.

C:



Fasten 90±5 degree clockwise.

D:



Fasten 90±5 degree clockwise.





2.3 Replace thermostat

2.3.1 Structural

diagram

10

CHERY A21 SERVICE MANUAL



MECHANISM OF 2.0NALC ENGINE

28






















2.3.2  Needed tools and auxiliary materials

Hatch clamp,10# sleeve, ratchet wheel and wrench

2.3.3 Removal

1)  Loosen the clamp of thermostat water exhaust pipe with hatch clamp to release the

coolant.

Note: Do it after the temperature decreased to prevent scald.

2)  Remove the 4 bolts of thermostat cover with 10# sleeve wrench.

3)  Take out the thermostat.

2.3.4 Inspection

Put the thermostat in the boiling water and use it with thermometer. Then observe the
temperatures when the thermostat is turning on and fully opened.

 Temperature

value

Regular unlocking temperature

87

fully opened temperature

104

Replace the new thermostat if the measured value is abnormal.

2.3.5 Installation

The installing steps are reverse to those for removal.

Note: Fill in the engine coolant with fixed quantity after installation.

3

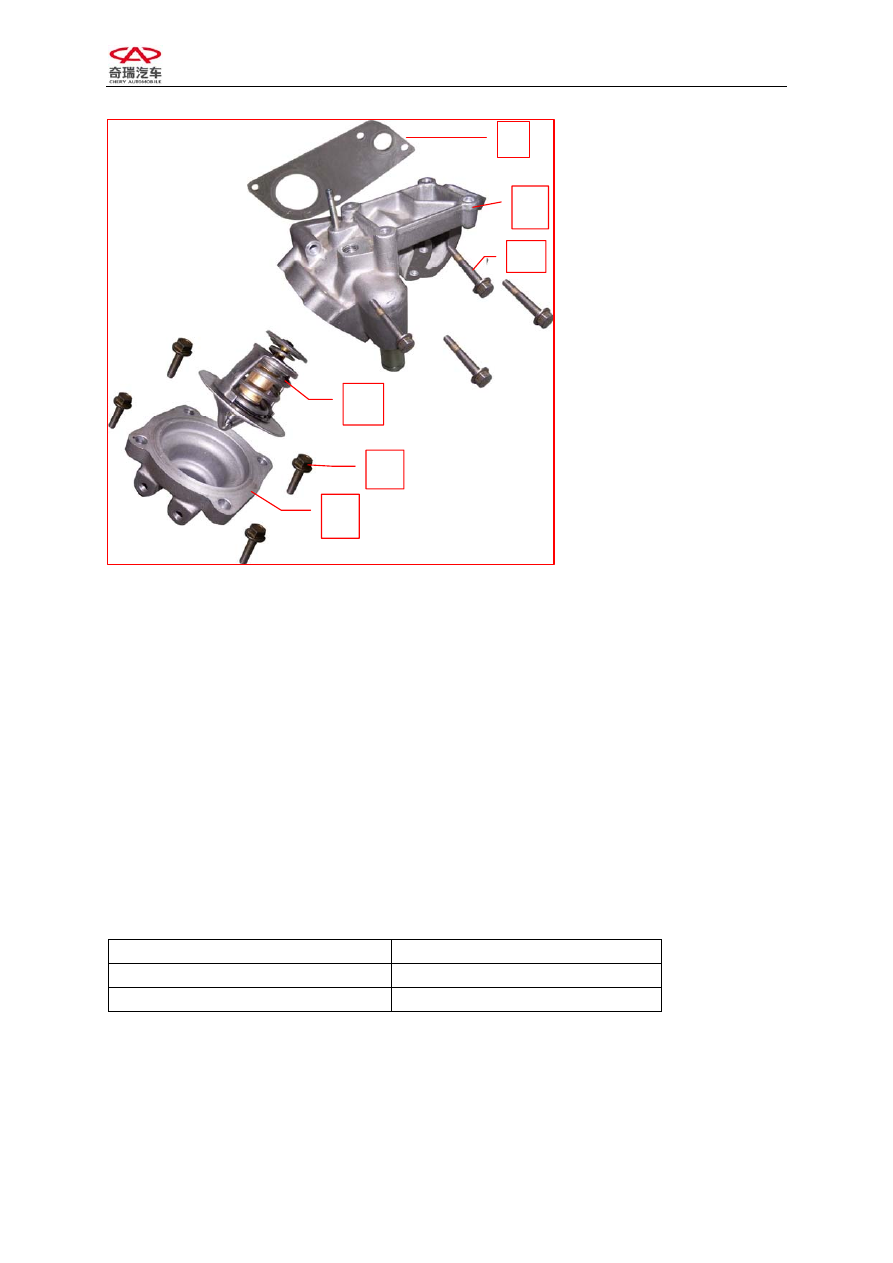

1. Pad—Thermostat Seat

2. Thermostat Seat

3. Hexagonal Flange Bolt

4. Thermostat Assembly

5. Hexagonal Flange Bolt

6. Cover—Thermostat Seat

CHERY A21 SERVICE MANUAL



MECHANISM OF 2.0NALC ENGINE

29

SECTION III SHORT ENGINE

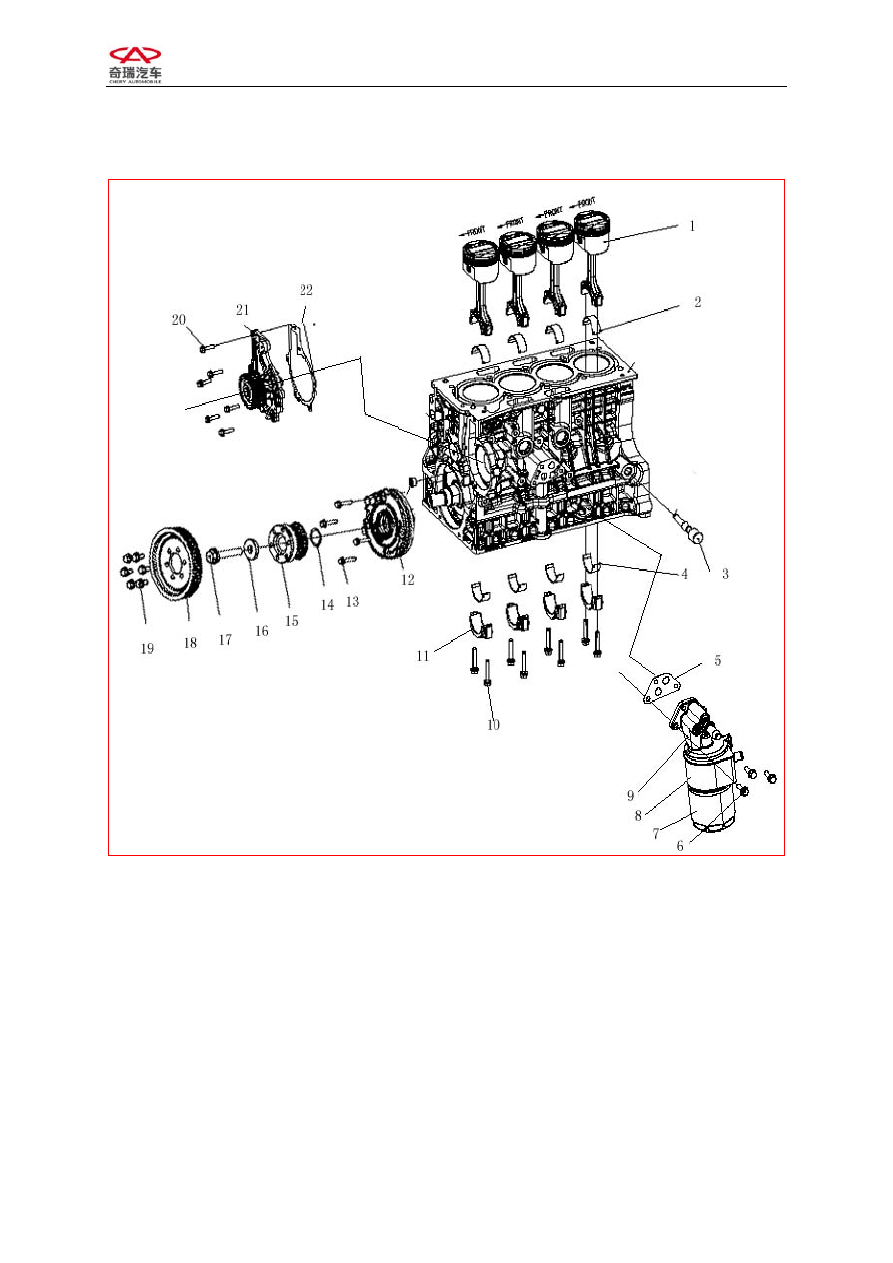

I. STRUCTURE DIAGRAM



1. Piston
2. Connecting Rod Upper Bearing
3. Timing Hole Plug
4. Connecting Rod Lower Bearing
5. Pad
6. Bolt
7. Oil Filter
8. Oil Cooler
9. Oil Filter Seat
10. Connecting Rod Bolt
11. Connecting Rod Bearing Cap

12. Oil Pump
13. Bolt
14. Gasket
15. Crankshaft Timing belt pulley
16. Gasket
17. Bolt
18. Crankshaft Pulley
19. Bolt
20. Bolt
21. Coolant pump
22. Coolant Pump Gasket

CHERY A21 SERVICE MANUAL



MECHANISM OF 2.0NALC ENGINE

30

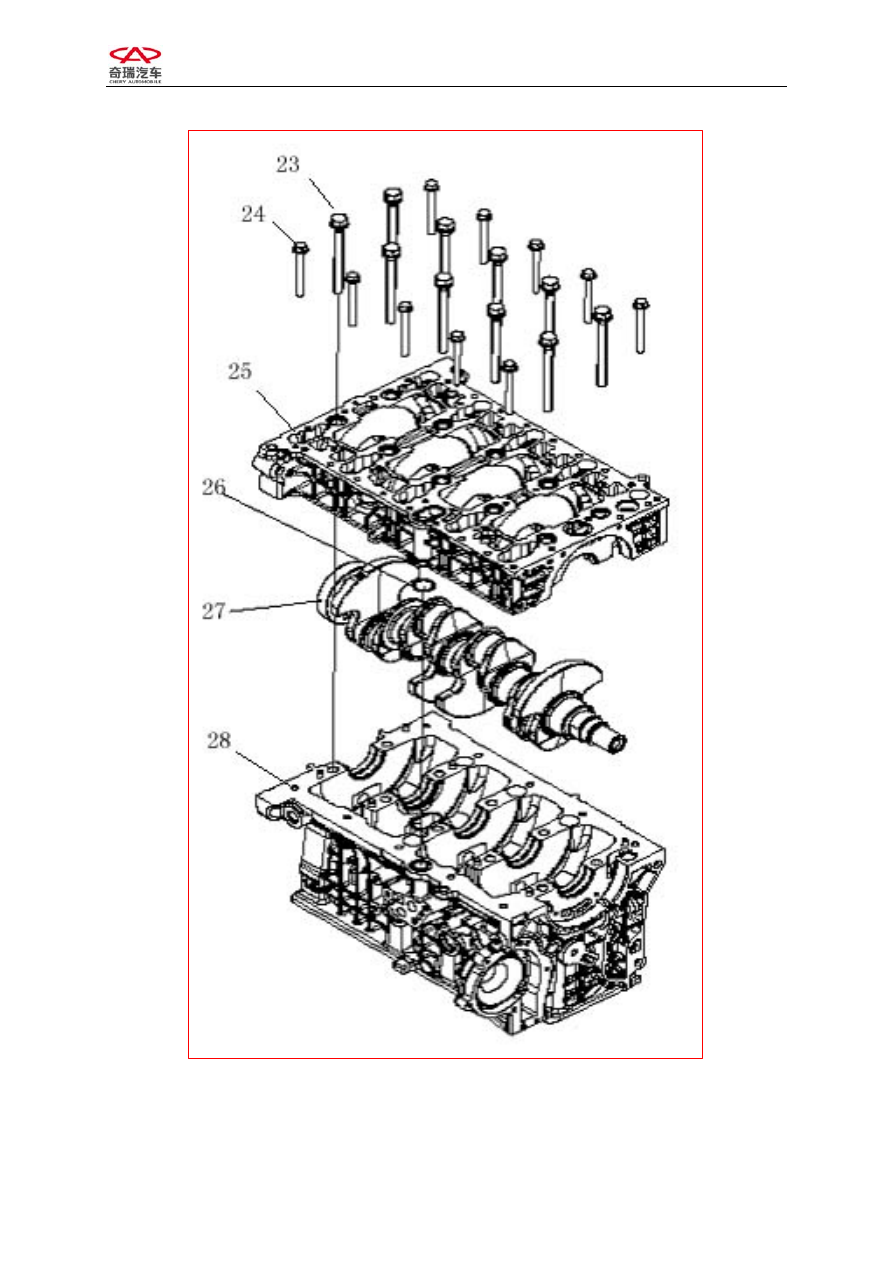

23. Crankshaft Main Bearing Bolt
24. Frame Bolt
25. Frame

26. O-Type Ring
27. Crankshaft
28. Cylinder Block
