MANUAL TRANSMISSION

SPECIFICATION… … … … … … …… … … … … … …… … … … … … ………J-3

DISASSEMBLY OF THE DRIVE SHAFT… … … … … … …… … … … … … ……J-4

DISASSEMBLY  OF  THE  TRANSMISSION…  …  …  …  …  …  ……  …  …  …  J-6

TRANSMISSION  GEARSHIFT  MECHANISM  DIAGRAMATIC  SKETCH  …J-9

RESOLUTION  GRAPH  OF  THE  GEARSHIFT  CONTROL  MECHANISM  ……J-10

SHIFT  ADJUSTMENT…  …  …  …  …  …  ……  …  …  …  …  …  ……  …  ……  …J-11



NEUTRAL  POSITIONING…  …  …  …  …  …  ……  …  …  …    …  …………J-11

FINE  ADJUSTMENT…  …  …  …  …  …  ……  …  …  …  …  ……  …  …  …  …  J-11

TRANSMISSION  RESOLUTION…  …  …  …  …  …  ……  …  …  …  …  …  ………J-12

DISASSEMBLY AND ASSEMBLY OF THE TRANSMISSION… … … … … … …J-15

DISASSEMBLY… … … … … … …… … … … …… … … … … … …………J-15

ASSEMBLY…  …  …  …  …  …  ……  …  …  …  ……  …  …  …  …  …  ……J-21

MAIN POINTS… … … … … … …… … … … … …… … … … … … …………J-24

ADJUSTMENT OF 5

TH

 FORK … … … …… … … … … … …… … … … … … …J-25

ADJUSTMENT … … … … ……… … …… … …… … …… … … … … … …J-25

MAIN  POINTS…  …  …  …  …  …  ……  …  …  …  …  ……  ……  …  …  ………J-25

DISASSEMBLY,  RESOLUTION  GRAPH  AND  ASSEMBLY  OF  THE  REAR

HOUSING…  …  …  …  …  …  ……  …  ……  …    ……  ………  …  …  ……………J-26

DISASSEMBLY…  …  …  …  …  …  …  …  …  …    ……  …  …  …  …  …J-26

RESOLUTION  GRAPH…  …  …  …  …  …  …  …  …  …  …  ……  …  …  …  …  J-27

ASSEMBLY…  …  …  …  …  …  …    …  …  …  …  …  …  …  …  …  …  ……J-27

DISASSEMBLY  AND  ASSEMBLY  OF  CLUTCH  CONTROL  ARM,  CLUTCH

RELEASE SHAFT OIL SEAL, AND CLUTCH RELEASE BEARING ……………J-28

DISASSEMBLY…  …  …  …  …  …  ……  …  …  …  …  ……  …  ……  …  ……J-28

ASSEMBLY…  …  …  …  …  …  ………  …    …  ……    …  ……  ………J-28

DISASSEMBLY  AND  ASSEMBLY  OF  THE  GEARSHIFT  SHAFT  OIL  SEAL…J-29

DISASSEMBLY…  …  …  …  …  …  ……  …  … …  …  ……  …  …  …  …  …  ……J-29

ASSEMBLY…  …  …  …  …  …  ……  …  …  …  …  ……  ……  …  …  ……J-29

DISASSEMBLY  AND  ASSEMBLY  OF  THE  GEARSHIFT  SHAFT  BEARING…J-30

DISASSEMBLY…  …  …  …  …  …  …  …  …  …  …  …  …  …  …  …  …  …J-30

ASSEMBLY…  …  …  …  …  …    …  …  …  …  …  …  …  …  …  …  …  …J-30

RESOLUTION  GRAPH  OF  THE  INPUT  SHAFT…  …  …  …  …  …  ………J-35

RESOLUTION GRAPH… … … … … … …… … … … … …… … … … … … J-35

RESOLUTION  GRAPH  OF  OUTPUT  SHAFT…  …  …  …  …  …  …  …  …  …  J-36

RESOLUTION GRAPH… … … … … …    … … … … … …… … … … … … J-36

ADJUSTMENT  TABLE…  …  …  … …  …  …… … …  …  … …  ……  … …  ……  …J-37

ADJUSTMENT ITEMS… … … … … … …… … … … … …… … … … … … J-37

ADJUSTMENT OF OUTPUT SHAFT… … … … … … …… … … … … … ………J-38

ADJUSTMENT… … … … … … … … … … … …… … … … … … …………J-38

MAIN  POINTS…  …  …  …  …  …  ……  …    …  …  …  ……  …  …  …  …J-38

DISASSEMBLY AND ASSEMBLY OF DIFFERENTIAL, AND CALCULATION AND

ADJUSTMENT  OF  THE  ADJUSTMENT  SHIM  …  …  …  …  …  ……………J-39

DISASSEMBLY…  …  …  …  …  ……  …  …  …  …  …  …  …  …  …  …  …J-39

ASSEMB LY…  …  …  …    ……  …  …    …  …  ……    …  …  …  ……J-40

ADJUSTMENT…  …  …  …  ……  …  …  …  …  …  ……  …  …  …  …  …J-40

RESOLUTION GRAPH OF THE DIFFERENTIAL ASSEMBLY… … … … … … J-41

RESOLUTION GRAPH… … … … … … ……  … … …    …… … … … … … J-41

DISASSEMBLY  AND  ASSEMBLY OF  OIL  SEAL  AND  OUTPUT  FLANGE  ……J-42

DISASSEMBLY…  …  …  …  …  …  …  …  …  ……  ……  …  …  …  …  …  …J-42

ASSEMBLY…  …  …  …  …  …  ……  ……  …  ……  …  …    …  …  ………J-43





SPECIFICATION

Transmission

AQ015      AA type

AQ015      AB type

Main driving

4.133

3.813

1shift

3.455

3.455

2shift

2.056

2.056

3shift

1.370

1.370

4shift

1.032

1.032

5shift

0.850

0.850

Reverse gear

3.167

3.167

Ratio

Speedometer

2.286

2.286

Lubricating oil quantity

2.0L

2.0L

Type of lubricating oil

Transmission oil GL-4 SAE75

Transmission oil GL-4 SAE75

Manipulation type of clutch

Mechanical

Mechanical

Diameter of clutch driven plate

210mm

210mm

Diameter of drive shaft flange

100mm

100mm

General gear ratio of top gear

3.513

3.240

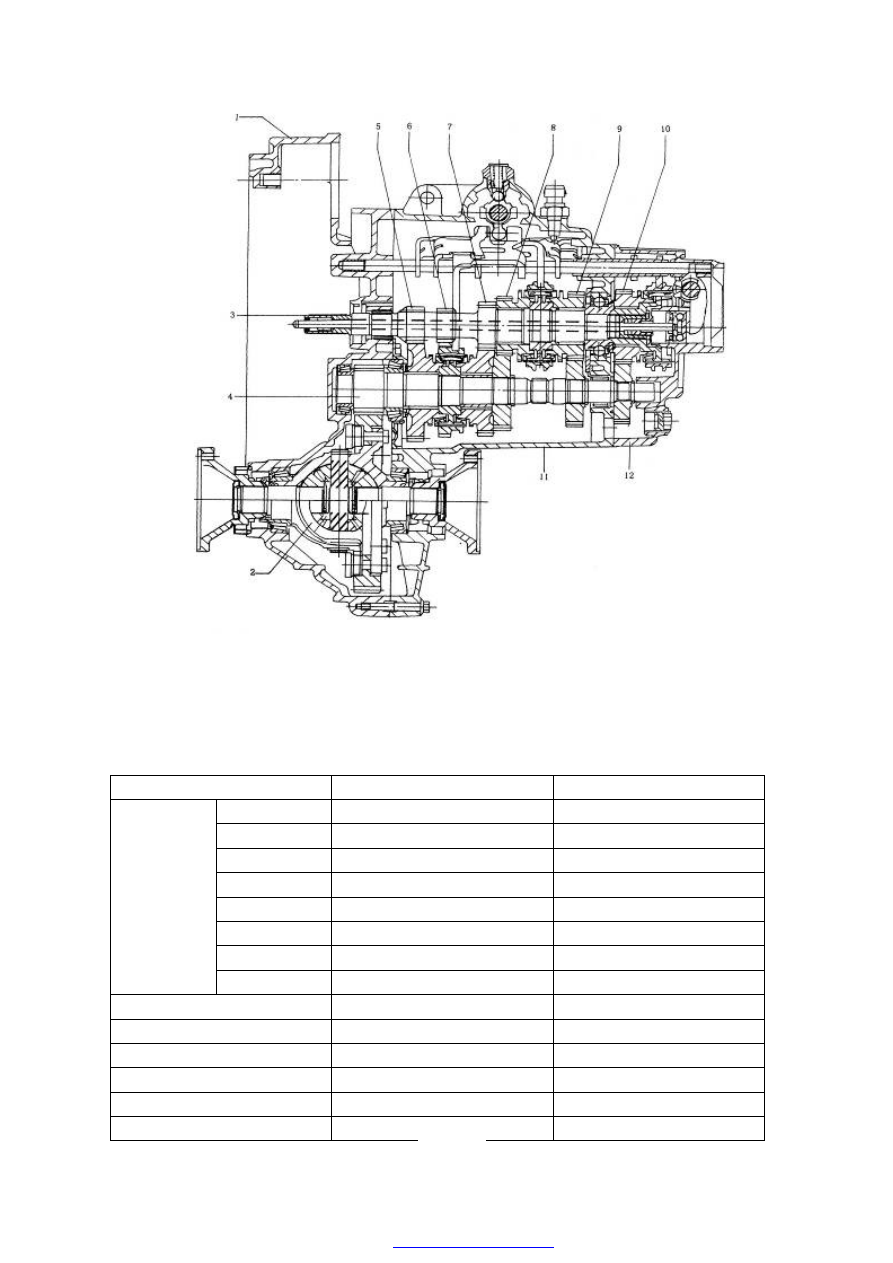

Clutch Assembly Schematic

1.  Clutch Housing        2. Differential        3. Input Shaft        4. Output Shaft
5. 1

st

 Shift    6. Reverse    7. 2

nd

 Shift    8. 3

rd

 Shift    9. 4

th

 Shift    10. 5

th

 Shift

11. Transmission Housing      12. Rear Housing





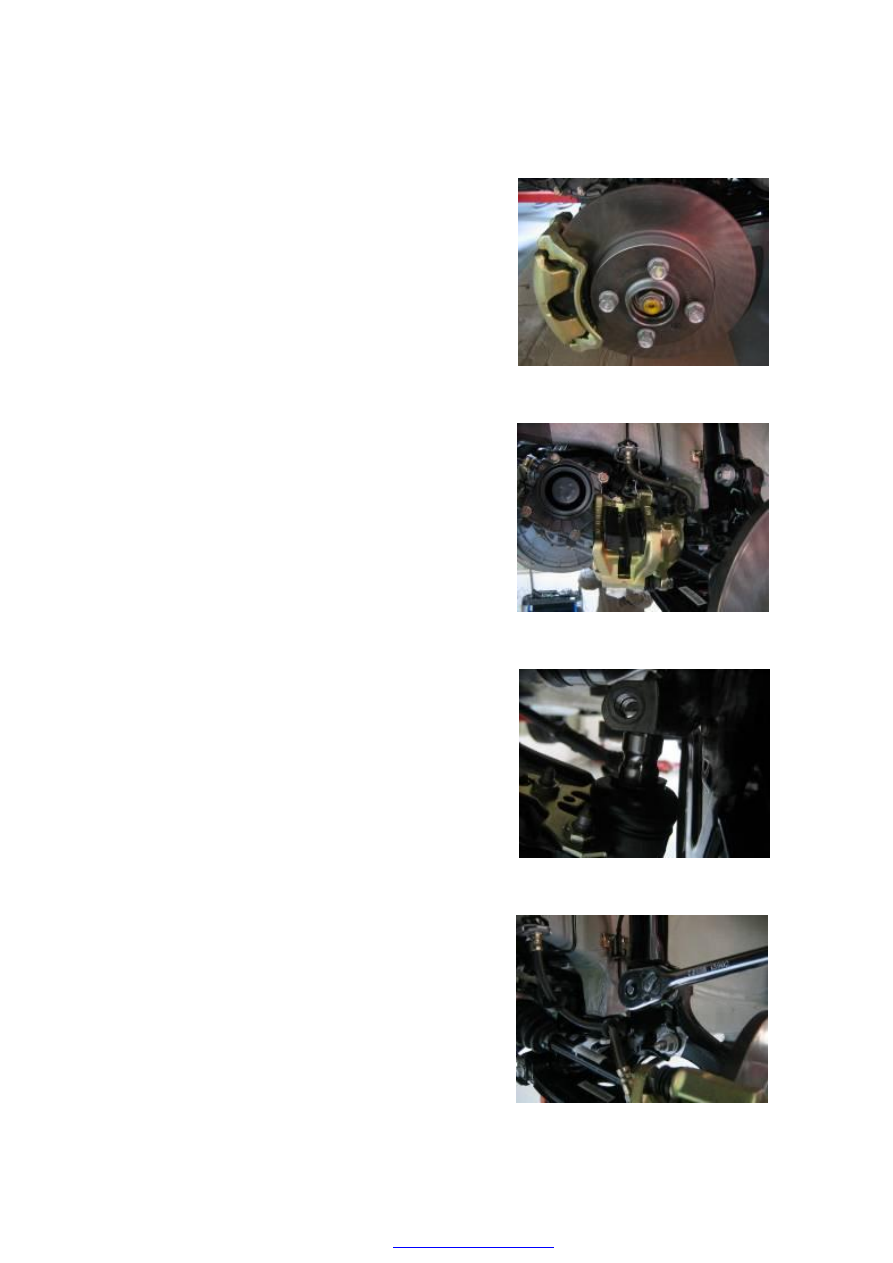

DISASSEMBLY OF THE DRIVE SHAFT



——Tyre disassembly.











——Disassemble two bolts of the brake cylinder and

brake shoe assembly. And hang the assembly on
the shock absorber by the hook.















——Disassemble the connecting bolt    of brake disc

and front axle, and make front axle ball joint off
by pressing it downward.









——

Loosen  the  two fixing  bolts  under the brake disc
and shock absorber.
