Chery A15 / 480 LHD model. Manual - part 18





----Set on the front coil spring 8 and compress it

less than 200~220mm.



----Amount  the  washer  7,  the  front  spring  top

tray  6,  the  bearing  and  vibration  isolator
assy  5  in  sequence,  and  tighten  the slotted
nut 4 to the specified torque (40N•m), then
loosen  the  compressing  tools  on  the  coil
spring.

Precaution: Please note that the two ends of the

front coil spring should reach the corresponding

locating positions of the spring trays.

Inspection  of  the  shock  absorber:  The
methods for checking the shock absorber are
as following:

----Method  of  hand  pressing  the  vehicle  body.

Shake  the  vehicle  body  for  times  on  the
side  of  the  shock  absorber  which  required
to  be  checked  and  feel  whether  it  is
available.  After  the  pressing,  the  vehicle
will  shake  2-3  times  and  then  stop,  which
means the shock absorber works well.

----Method  of  observation.  The  shock  absorber

should  not  leak  oil  at  outside  appearance.
A  little  oil  stain  is  normal.  If  there  is
serious  leakage, the shock absorber should
be replaced.



----Method  of  touch.  After  long  time  running,

touch the exterior of the shock absorber to
check  whether  it  is  hot.  If  not  hot,  the
shock absorber is in trouble.



----Method  of  pulling  and  pressing.  Place  the

piston  rod  of  the  shock  absorber  upwards,
then pull and press it by hand for times and
check:



a  whether  there  is  a  force  during  pulling  and

pressing  which  means  the  force  is  large
while  pulling  up  and  small  while  pressing
down.



b whether there is idle stoke during pulling and

pressing  which  means  there  is  a  force  in
lower  part  and  not  abruptly  in  upper  part
while  pulling;  there  is  a  force  in  lower  part
and not in upper part while pressing.

c  whether  the  shock  absorber  is  locked  and

unable to pull.



d  whether  the  piston  rod  of  shock  absorber  is

severely loose.



Note:  The  above  phenomenons  indicate  the

failures of the shock absorber.

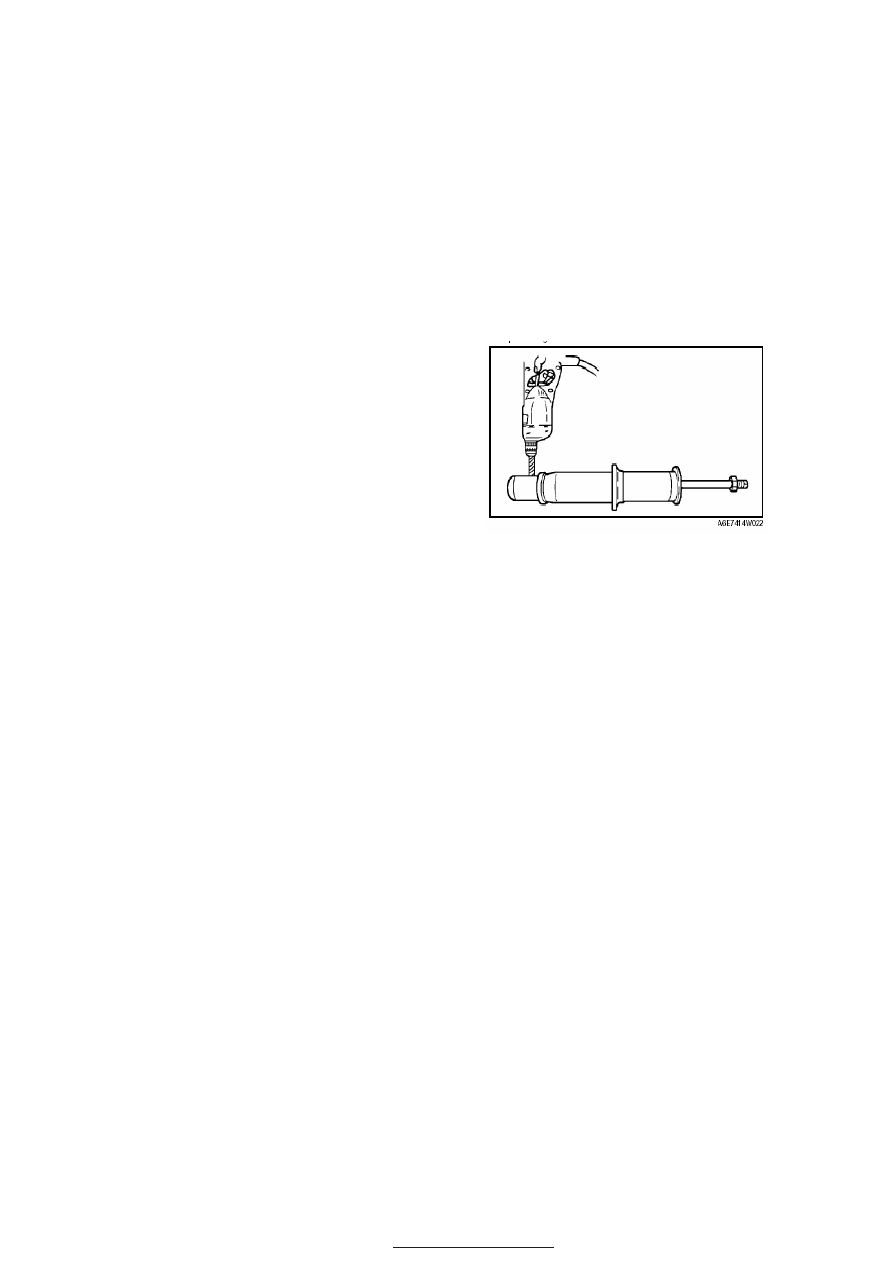

Deal with the front shock absorber

Caution:

Whenever drilling on the shock absorber,

please wear the goggles. The air pressure
in the shock absorber could probably blow
the metal flakes into eyes or face.

----Clamp the shock absorber on flat ground or

point the piston downwards to the clamped
absorber.

----Drill a hole of 2-3mm diameter at a distance

of 20-30mm to the bottom of the tube in
order to emit the air of the tube.

----Turn the shock absorber to make the hole

downwards.

----Move the piston rod up and down for times

to concentrate the oil, then cut the tube at
the end.

----Process the waste oil according to the waste

disposal method.

Note:

l  The shock absorber air is nitrogen.

l  The shock absorber oil is mineral oil.









REMOVAL AND INSTALLATION OF THE FRONT WHEEL BEARING

Removal:

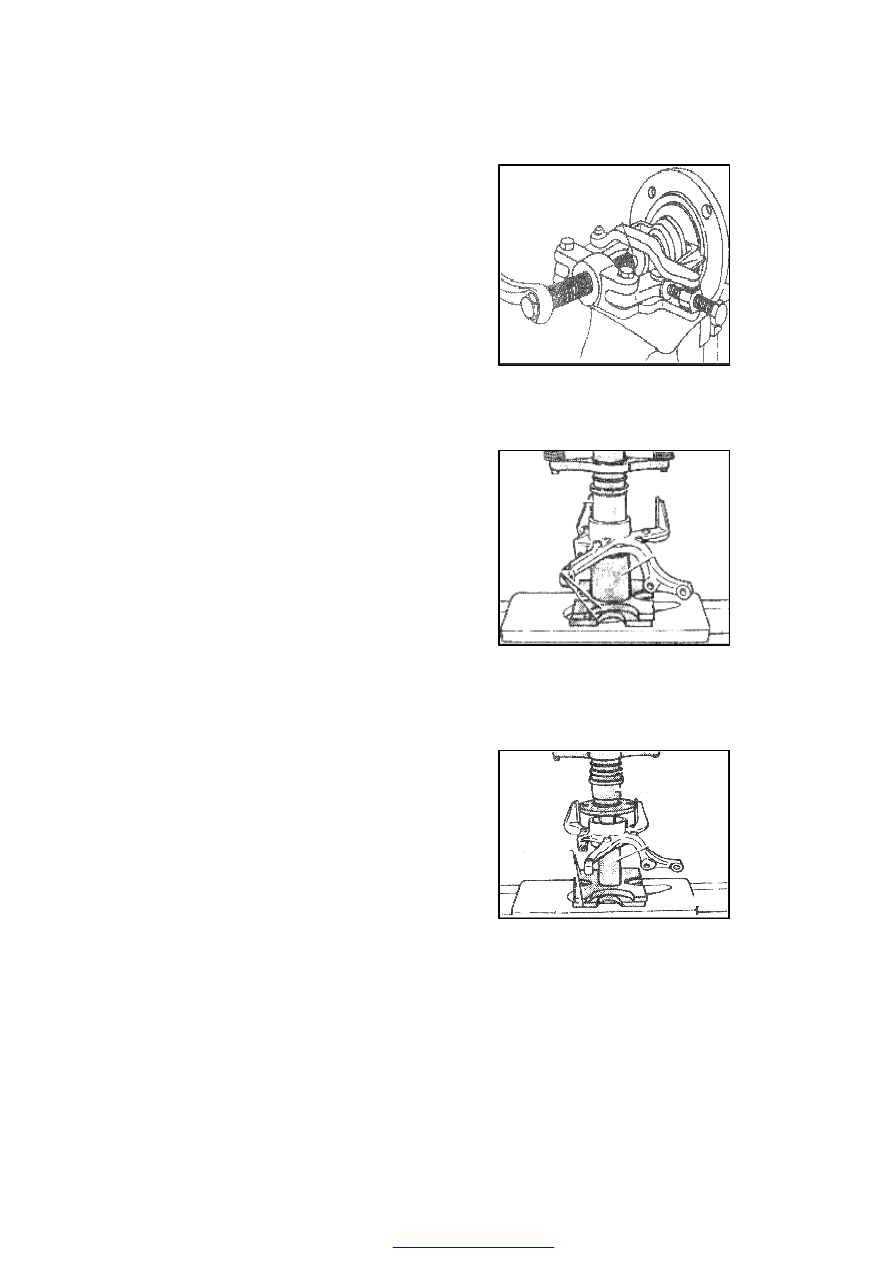

----Remove  the  front  brake  disc  and  the  dust

plate, and then extrude the hub.

----Remove  the  spring  retainer  of  both  sides  and

extrude  the  wheel  bearing.  (shown  as  the
illustration)

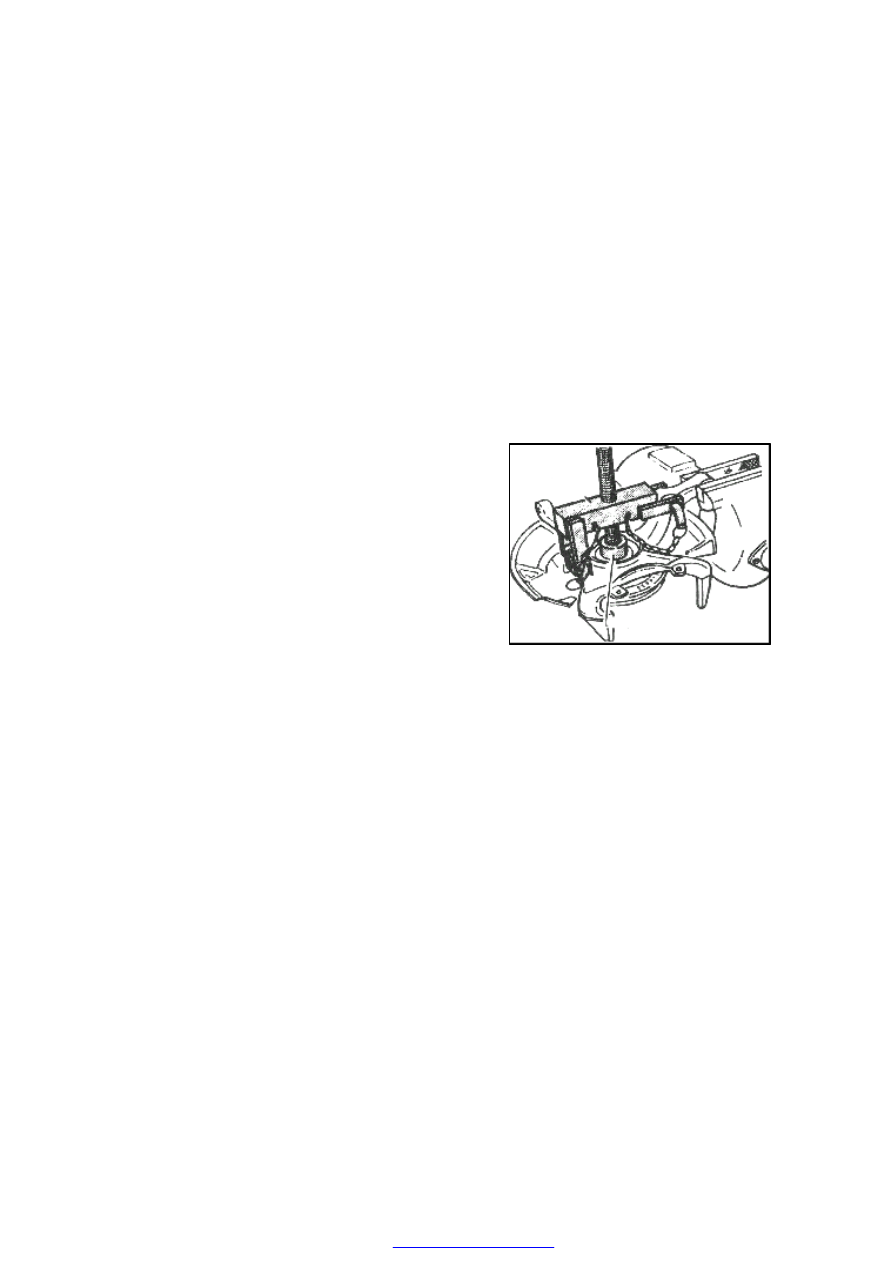

----Pull out the bearing inner race. Use the puller

with  hoop  to  pull  the  wheel  bearing  inner
race  out  of  the  wheel  hub.  (shown  as  the
illustration)



Inspection:

----After  all  the  components  are  disassembled,

please  clean  and  check  them,  and  replace
them with new ones if necessary.

----If the working surface of the brake disc wears

severely beyond the specified value (wearing
limit:  10.0mm),  please  replace  it  with  a  new
one.

Caution: Do not exceed the wearing limit.

----If  the  dust  plate  is  severely  deformed,  please

replace it with a new one.

----If  the  hub  spline  wears  severely  and  looses,

please replace it with a new one.

----If  the  spring  retainer  is  not  available,  please

replace it with a new one.

----If  the  wheel  bearing  is  damaged,  please

replace it with a new one.

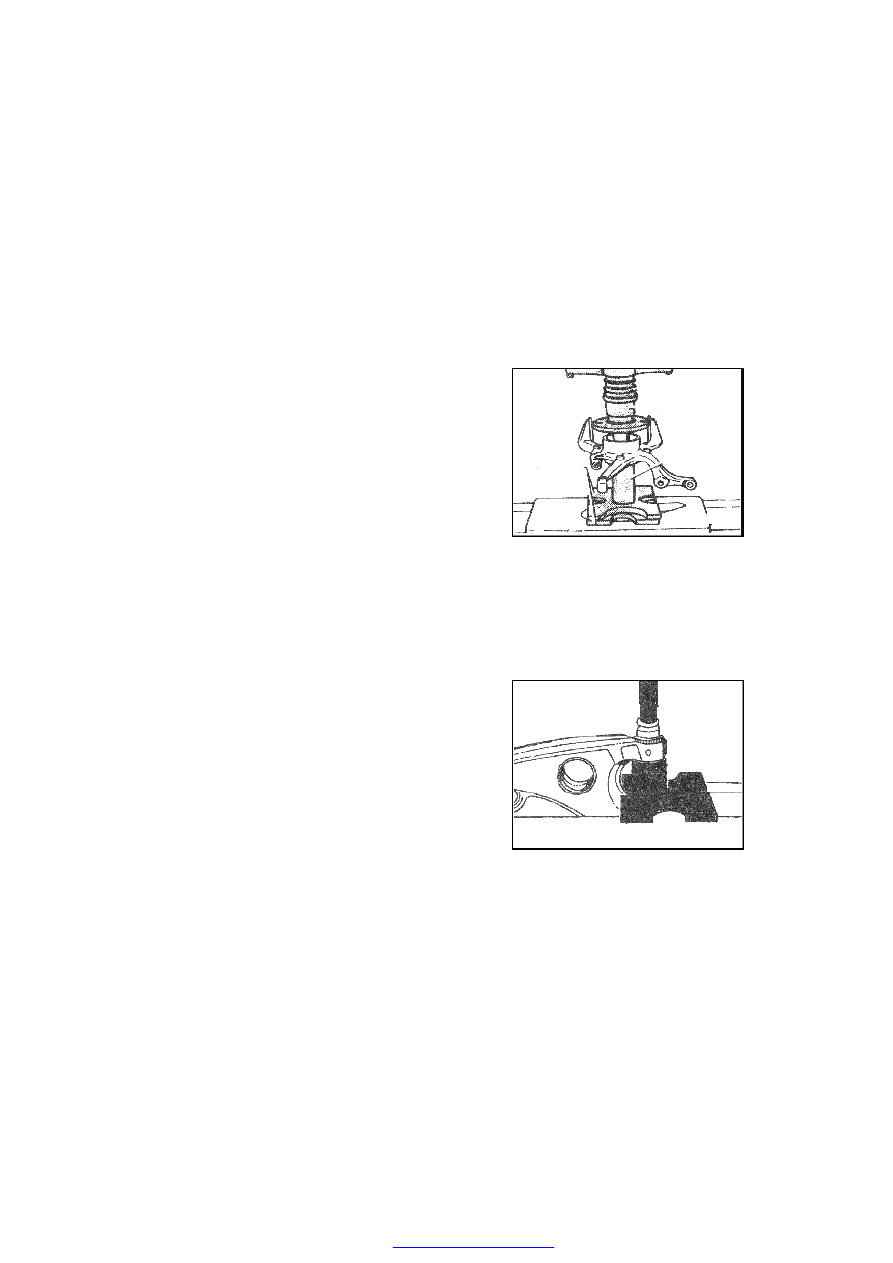

Installation and adjustment

----Set  the  outer  spring  retainer  first,  apply  the

lubricating  grease  onto  the  wheel  bearing
holder and then press the bearing down to the
limit  position,  as  shown  in  the  illustration,
and fix the inner spring retainer last.

----Adjust  the  split  positions  of  the  inner  and

outer  spring  retainer  so  as  to  make  their
difference 180°. Then rotate the bearing inner



race and observe whether it runs normally.

----Apply the lubricating grease on the hub spline

and the bearing  neck, and then press the  hub
into the bearing.





----Tighten  three  M6  bolts  to  fix  the  dust  plate

with the tightening torque of 10N·m.

----Use  the  fuzz-free  cloth  to  clean  the  working

surface  of  the  brake  disc.  If  there  is  oil  stain
on  the  surface,  clean  it  with  ethanol.  And
then install the brake disc.

----Rotate  the  brake  disc  and  observe  whether

there is lock or abnormal noise.







OVERHAUL  OF  THE  LOWER  CONTROL
ARM

Check  the  status  of  damage,  crack  and  bend  of
the control arm.

Replace the ball joint and the rubber cover of the
lower control arm if they loose or wear.



Replace  the  front  housing  of  the  lower  control
arm

----Press  out  the  front  housing  of  the  lower

control arm. (shown as the illustration)

----Apply the  lubricating grease  before installing

the front housing of the lower control arm.

----Press in the  front housing of the control arm.

(shown as the illustration)
