  Chery A15 Maintenance Manual

Combination instrument component parts and functions:

Component Part

Function

Speedometer

Speedometer pointer moves as per signals sent by speed
sensor to indicate running speed of vehicle

Tachometer

Tachometer pointer moves according to signals sent by
ignitor to indicate engine speed

Water temperature

gauge

Water temperature gauge pointer moves according to
signals sent by sensor to indicate temperature of engine
coolant

Fuel gauge

Fuel gauge pointer moves as per signals sent by sensor to
indicate fuel state in fuel tank

Odometer

Odometer calculates the total running distance of vehicle
according to the pulse signals sent by speed sensor, and
may shift among short ranges

Dual short-range

odometer

D

ual short-range odometer calculates running distance of

vehicle according to pulse signal sent by speed sensor,
and may be reset with a switch

Power supply

module

The voltage regulator circuit installed in power supply
module provides power to meters and lights through fuse
S21 10A.

Combination

instrument

Circuit board

Includes circuits of all meters, gauges and lights and drive
circuits of engine oil warning, odometer and short-range
odometer.

Speed sensor

Installed in transmission and send pulse signal to
combination instrument according to output shaft rotation
rate

Water temperature sensor

Converts engine coolant temperature into ohmic value
and sends to combination instrument in form of signal

Fuel sensor

Converts fuel level in fuel tank into ohmic value and
sends to combination instrument in form of signal

Fuel level warning switch

C

onducts switch in fuel gauge in case fuel level falls

lower than set value to turn on warning light

Low engine oil pressure warning

switch

Fixed on engine body and conducts to turn on warning
light when engine oil pressure drops

Engine oil level warning switch

Installed in engine crankcase oil tray and turns on
warning light when engine oil level falls

Brake fluid level warning switch

Installed in oil tank of brake main pump and turns on
warning light when brake fluid level falls

Brake switch

Located on brake pedal bracket and conducted when the
pedal is stepped down to turn on warning light

Door control light switch

Conducted when door is open to turn on warning light

Warning light

Transmits current to warning lights or grounds them to
turn on warning lights when abnormal vehicle conditions
are detected

Indicator light

Transmits current to warning lights or grounds them to
turn on indicator lights or indicate vehicle conditions for
the driver

  Chery A15 Maintenance Manual

Section Two: Working Principle of Instrument System



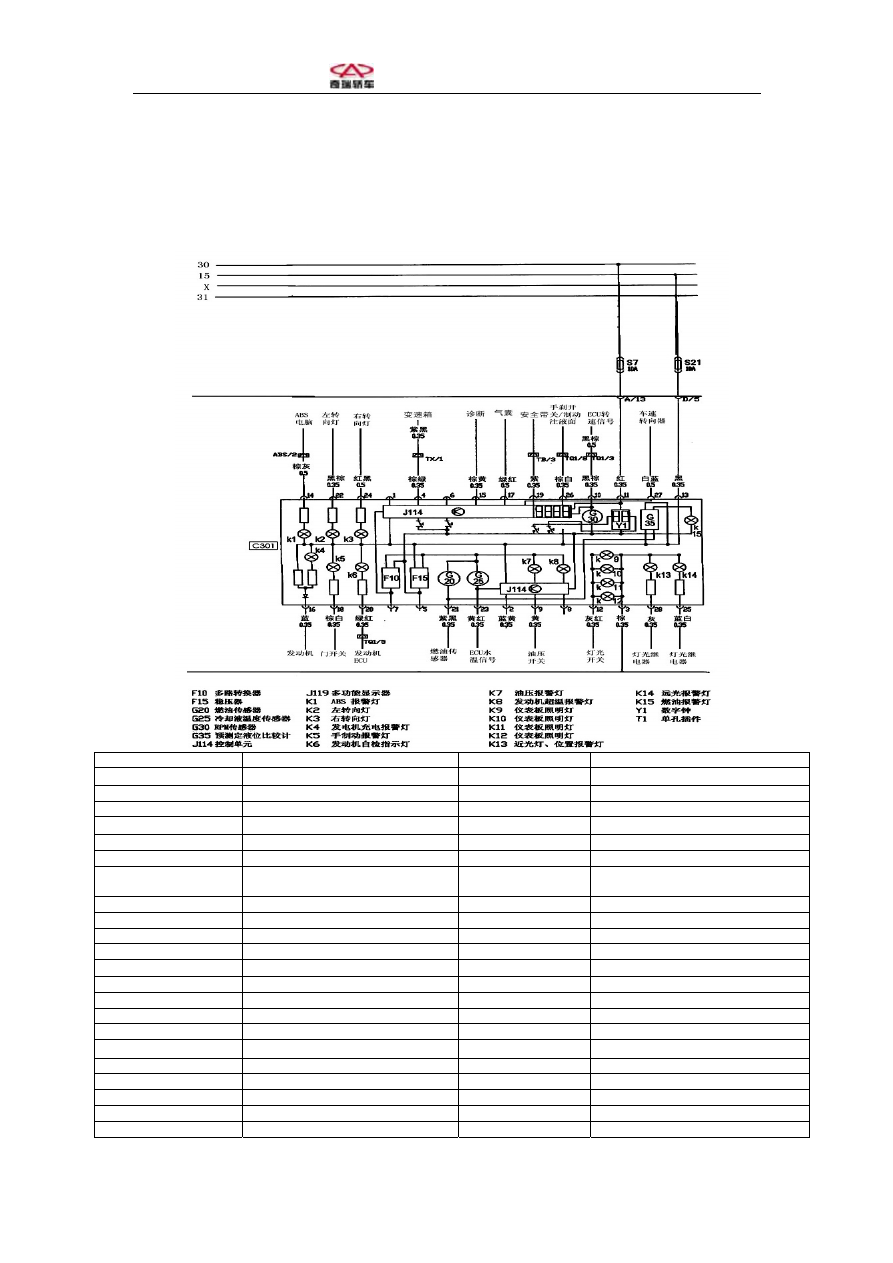

Circuit diagram of instrument system:































ABS 电脑 ABS

computer

控制单元

 Control

unit

左转向灯



Left turn light

多功能显示器

 Multifunction

display

右转向灯



Right turn light

ABS 报警灯

ABS warning light

变速箱

 Gearbox

发电机充电报警灯



Engine charge warning light

诊断

 Diagnoser

手制动报警灯



Hand brake warning light

气囊

 Airbag

发动机自检指示灯



Engine self-checking indicator light

安全带

 Safety

belt

油压报警灯



Oil pressure warning light

手刹开关

/制动注液面

Pointer brake switch/brake fluid

level

发动机超温报警灯



Engine overheating warning light

ECU 转速信号

ECU rotation rate signal

仪表板照明灯

 Dashboard

illuminator

车速转向器

 Speed

converter

近光灯

/位置报警灯

Low beam/position warning light

发动机

 Engine

远光报警灯



High beam warning light

门开关

 Door

switch

燃油报警灯



Fuel warning light

发动机

ECU Engine

ECU

数字钟

 Digital

clock

燃油传感器

 Fuel

sensor

单孔插件



Single hole plug-in

ECU 水温信号

ECU water temperature signal

 Brown

油压开关



Oil pressure switch

 Gray

灯光开关

 Light

switch

 Black

灯光继电器

 Light

relay

 Red

多路转换器

 Multiplexer

 Purple

稳压器

 Voltage

stabilizer  绿 Green

冷却液温度传感器



Coolant temperature sensor

 Yellow

RPM 传感器 RPM

sensor

 White

预测定液位比较计



Pre-measured level comparer

 Blue

  Chery A15 Maintenance Manual



Combination instrument is connected with meter wire harness by a 28-hole plug.









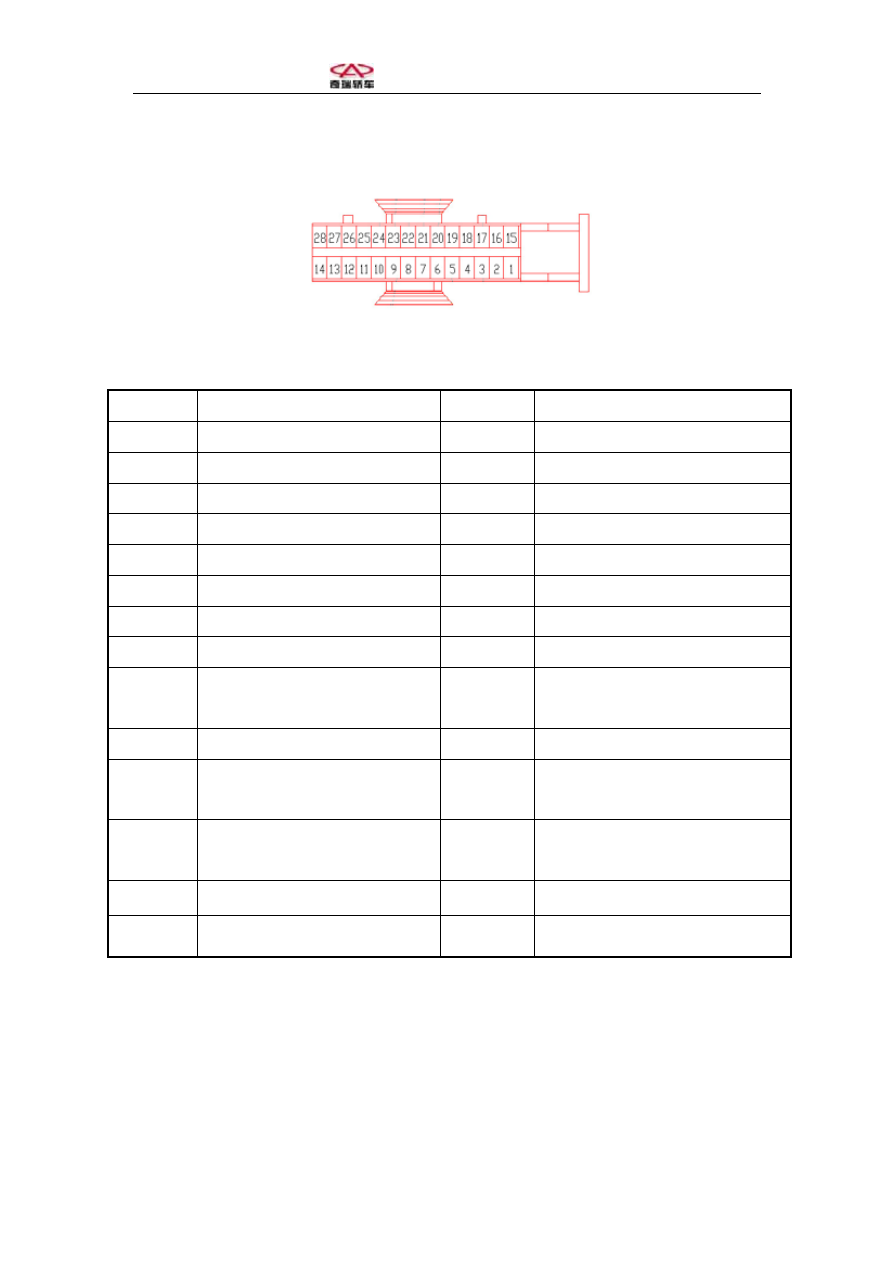

28-hole plug of combination instrument wire harness

Function of each plug hole is listed in the table below:

Plug Hole

Function

Plug Hole

Function

1 Empty

pin

15 Diagnoser

To water tank level warning switch

16

To D+ terminal of generator

Terminal 31 (earthing)

17

Airbag warning signal

Hall sensor speed signal TX1

18

Door light

Terminal 31

19

Safety belt warning light



20

Engine fault warning light



21

To fuel gauge sensor



22

Left turn signal light

Engine oil pressure warning switch

(30kpa)

23

Engine computer water temperature

signal

10

Engine computer A20RPM

24

Right turn signal light

11

Terminal 30, power supply of clock

and MFD

25

Feeder ear of high beam indicator

light

12

Terminal 58b, dashboard lighting

power supply

26

Brake fluid level warning switch

Hand brake indicator light switch

13

Terminal 15

27

Speedometer sensor

14

ABS warning light

28

Night light



1. Speedometer

Chery A15 is equipped with cross coil speedometer with an additional digital

speedometer to indicate running speed of vehicle and total mileage run. Speed

measuring part adopts magnetic structure, and mileage recording part is controlled by

  Chery A15 Maintenance Manual

multifunction LCD.

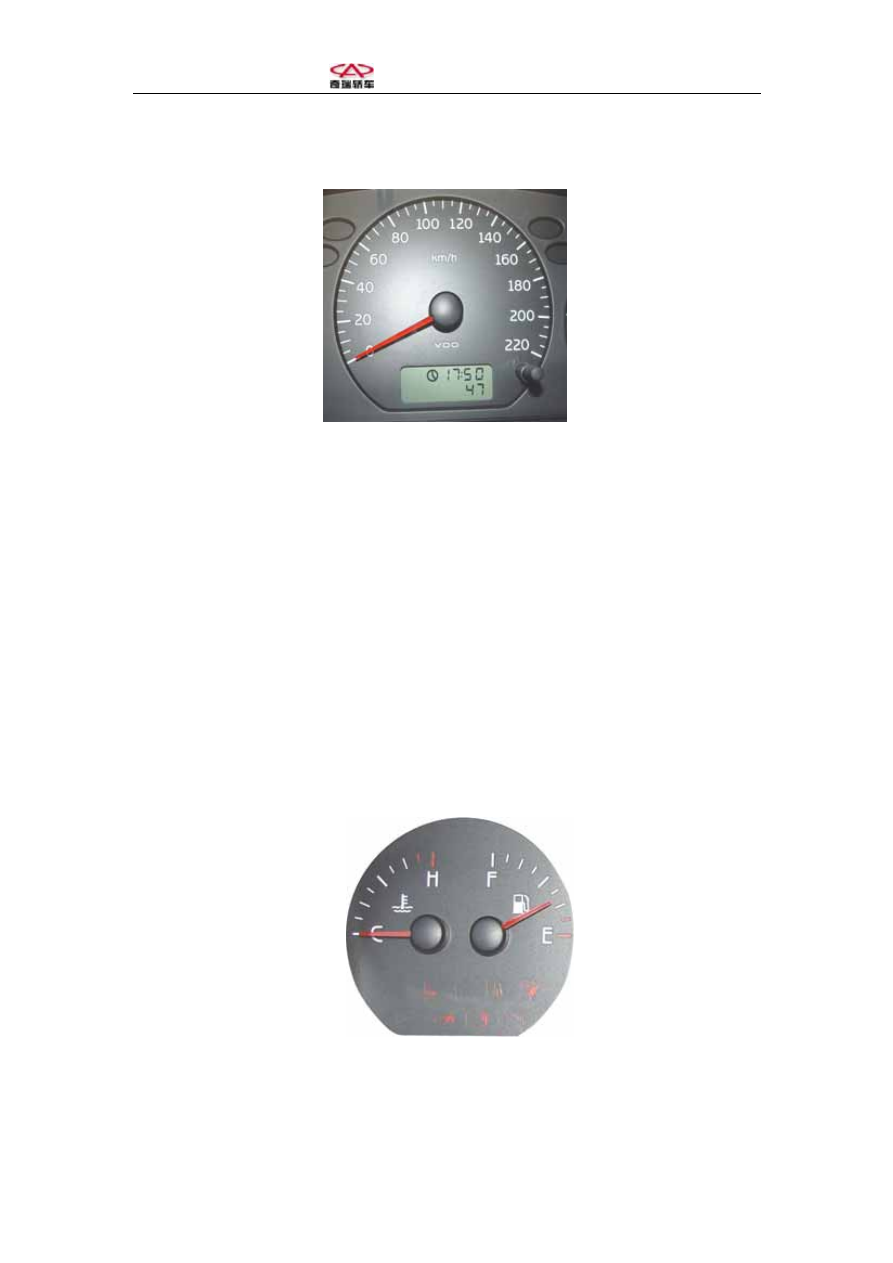

Figure: Speedometer (Meter-2)















Speedometer (Meter-2)

The pointer shall point to scale mark zero when speedometer is not working. When

the vehicle is running, the driving gear in transmission traverses lines of magnetic

force of the permanent magnet in speed sensor to make Hall speed sensor produce

pulse signals to be sent to cross coil speedometer to move the pointer, meanwhile sent

to multifunction LCD to record mileage.



2. Water Temperature Gauge

Water temperature gauge:

Chery A15 adopts cross coil water temperature gauge with pointer. The left part of the

meter (Meter-3) is water temperature gauge, as the figure shows.



Water Temperature Gauge (Meter-3)

Cross coil meter is an electromagnetic device, in which coils are reeled outside the

magnetic spindle in four directions, with the angle formed by two adjacent coils being
