WATER JACKET TUBE

Removal And Installation

Remove the timing gearcase cover. (See Page 7–71.)

Remove the idler gear and hub. (See Page 7–73.)

Remove the fuel injection pump. (See Page 7–42.)

Remove the fuel injection pump idler gear. (See Page
7–75.)

Remove the camshaft gear. (See Page 7–76.)

Remove the timing case. (See Page 7–77.)

Remove the water pump. (See Page 7–85.)

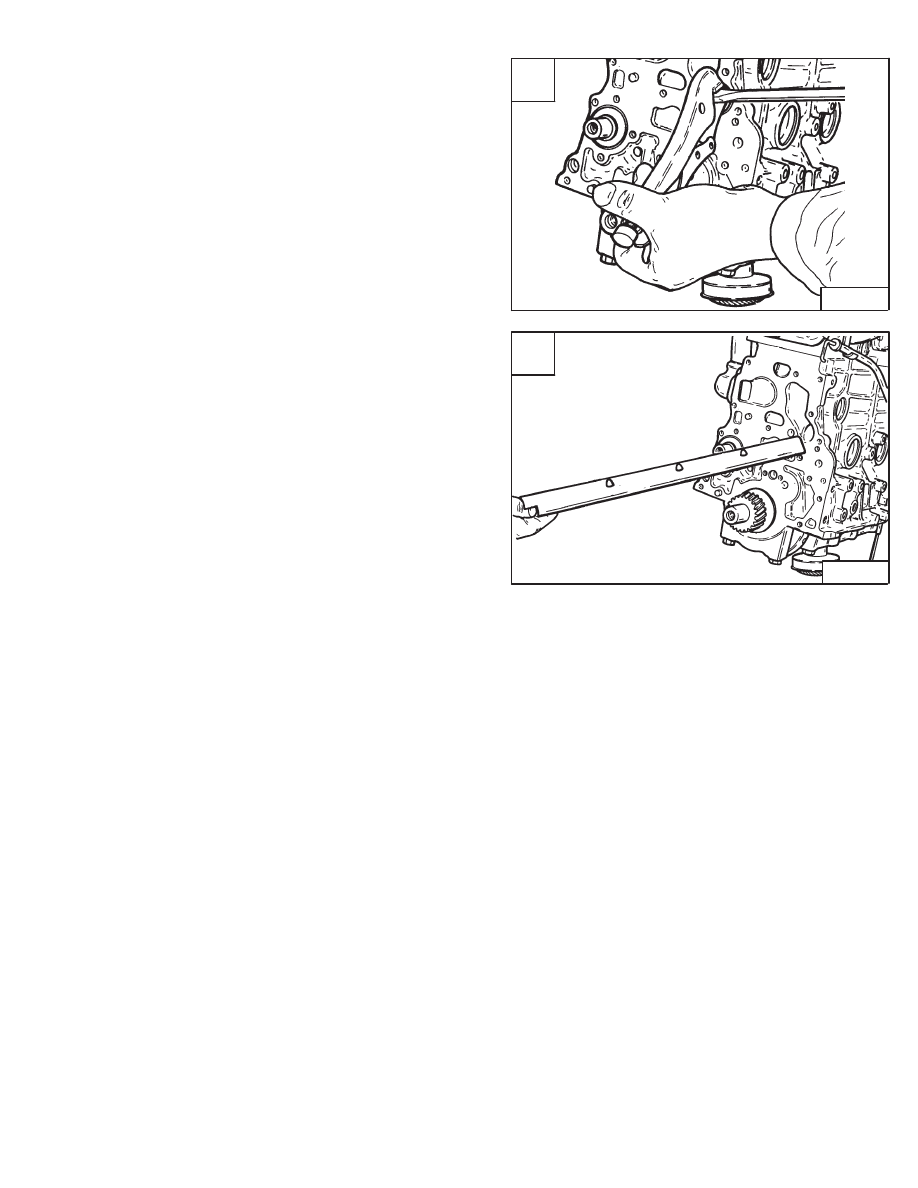

Grip the edge of the water jacket tube with a vise grip. Use
a screwdriver to pry the jacket from the engine block [A].

Remove the water jacket tube from the engine block [B].

A

B–08981

853, 853H Loader

–7–89–

Service Manual

853, 853H Service Manual #6720755 – Engine Service Section Part 4 of 4

B

B–08936

–7–90–

853, 853H Loader

Service Manual

SYSTEMS
ANALYSIS

853,853H Loader

–8–1–

Service Manual

SYSTEM ANALYSIS

BOSS

®

 DIAGNOSTIC TOOL

Procedure

8–3

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

BOSS

®

 INSTRUMENT PANEL

Removal And Installation

8–9

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

MONITOR SERVICE CODE

Chart

8–5

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

BOSS

®

 UNIT

Removal And Installation

8–8

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

RPM SENSOR

Adjustment

8–4

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

SENDER AND SENSOR

Component

8–3

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Service Checks

8–3

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

TROUBLESHOOTING THE BOSS

®

 & LCD DISPLAY

Chart

8–7

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

B.O.S.S. – Bobcat Operation Sensing System

L.C.D. – Liquid Crystal Diode

Page

Number

–8–2–

853, 853H Loader

Service Manual
