5

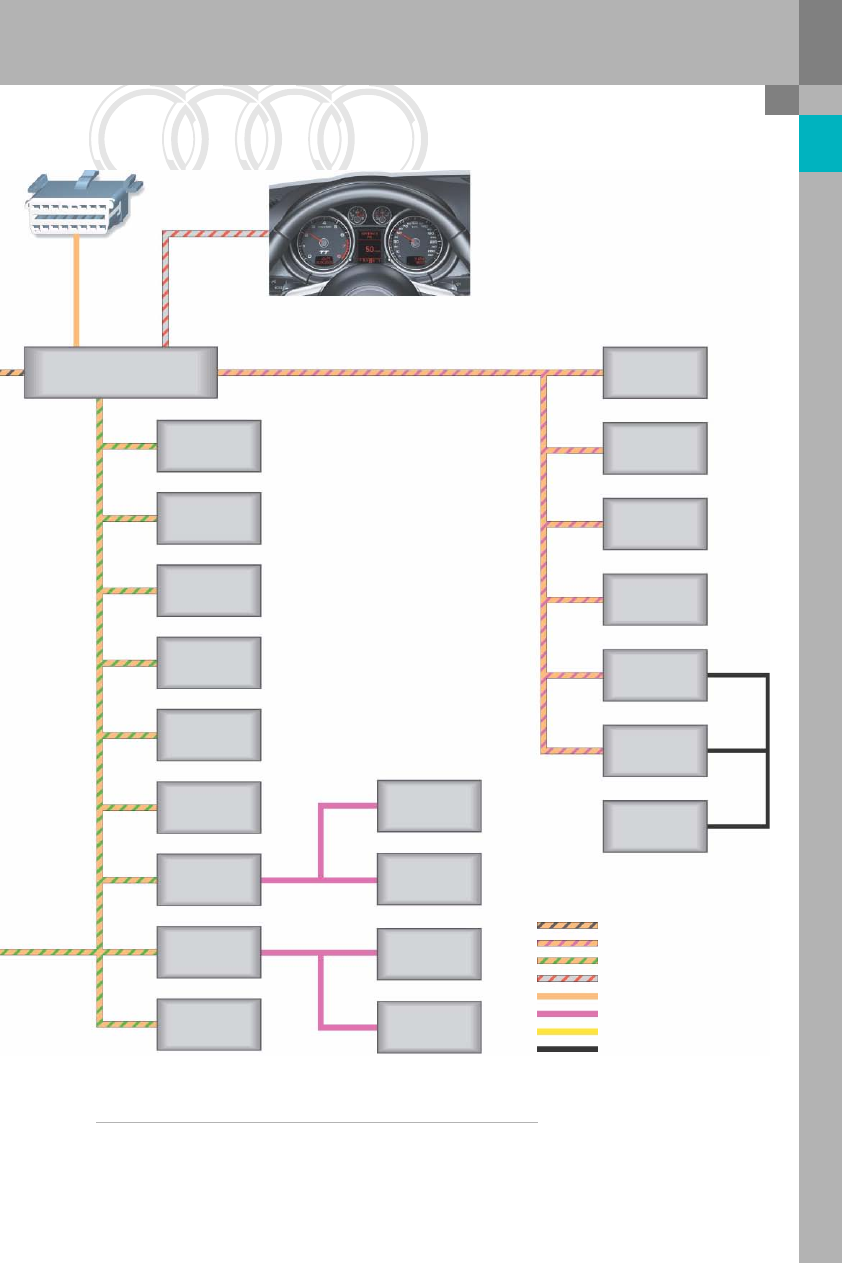

382_044

Driver door

control unit

J386

Telephone transmitter

and receiver unit

R36

Front passenger

door control unit

J387

Parking aid

control unit

J446

Convertible top

operation control unit

J256

Auxiliary air

heater control unit

J604

Climatronic
control unit

J255

Convenience system

central control unit

J393

Onboard power

supply control unit

J619

Tyre pressure monitor

control unit

J502**

Digital satellite

radio tuner

R190

Digital sound package

control unit

J525

TV tuner

R78

Radio

R

Control unit with

display for radio and

navigation

J503

CD changer

R41

Control unit with display

in dash panel insert

J285

Diagnostic port

* for tyre pressure monitoring system 2 only (ECE = Europe)
** for tyre pressure monitor only (SAE = North America)

Anti-theft alarm

system sensor

G578

Alarm horn

H12

Wiper motor

control unit

J400

Rain and light

detector sensor

G397

Powertrain CAN bus

infotainment CAN bus

Convenience CAN bus

Dash panel insert CAN bus

Diagnostics CAN bus

LIN bus

Subbus system

Panasonic bus

Data bus diagnostic interface

J533

Protected by copyright. Copying for private or commercial purposes, in part or in whole, is not
 permitted unless authorised by AUDI AG. AUDI AG does not guarantee or accept any liability
     with respect to the correctness of information in this document. Copyright by AUDI AG.

6

Overview

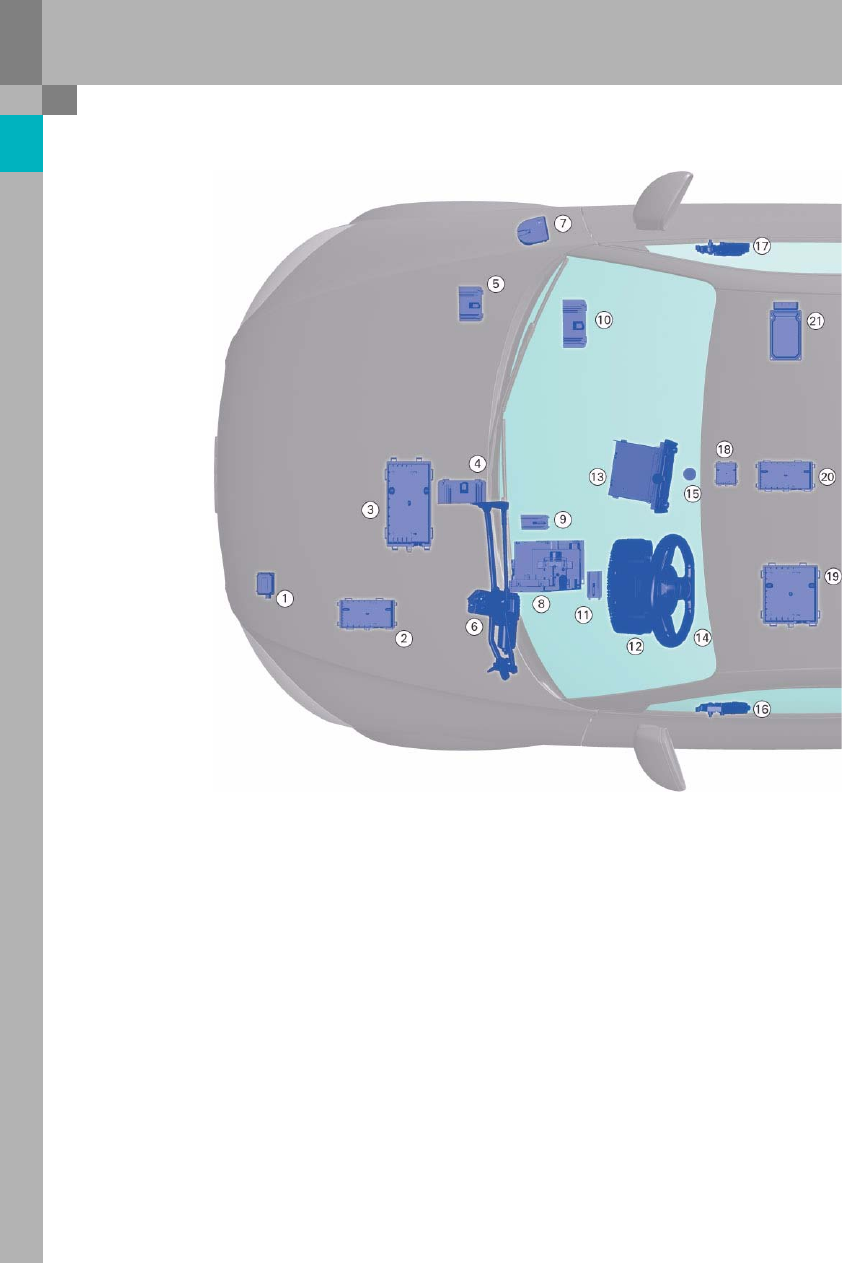

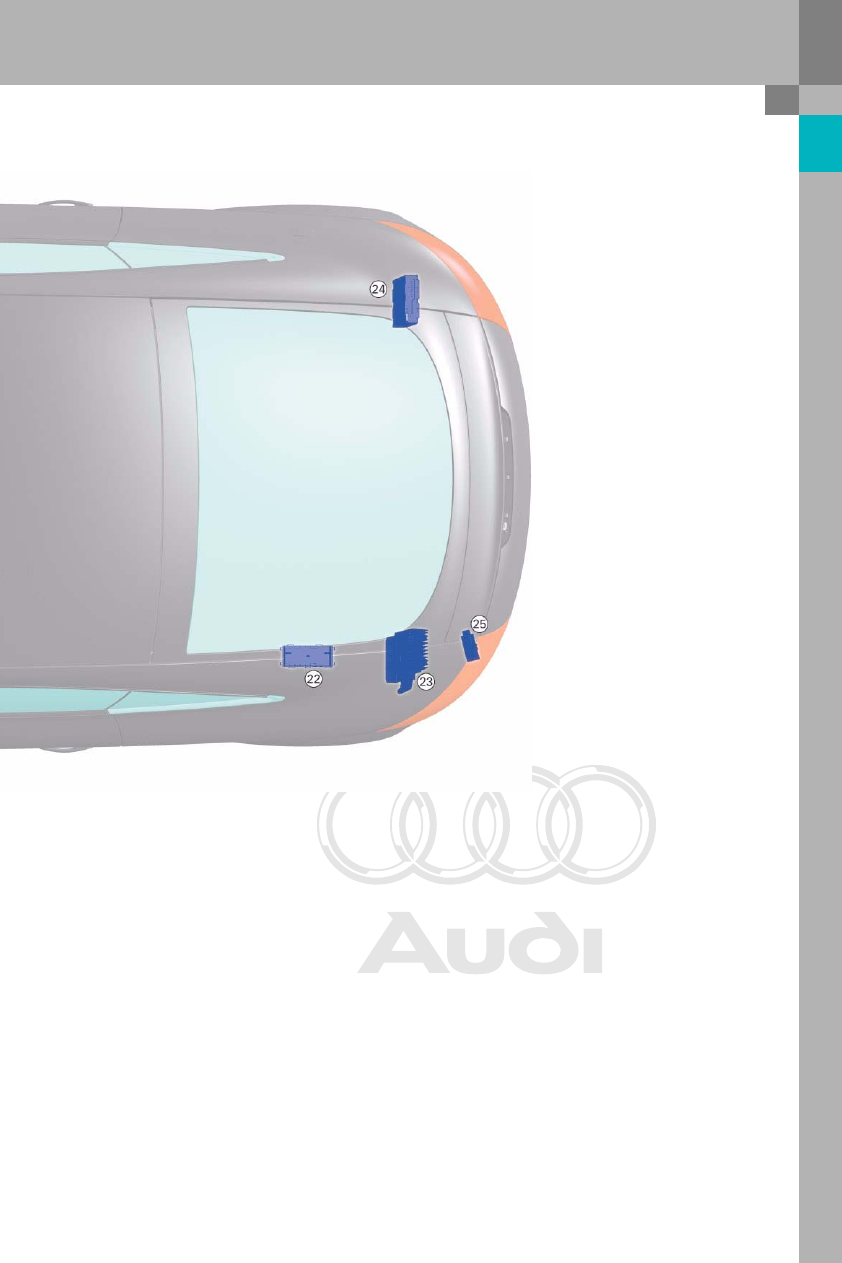

Installation overview - control units

Protected by copyright. Copying for private or commercial purposes, in part or in whole, is not
 permitted unless authorised by AUDI AG. AUDI AG does not guarantee or accept any liability
     with respect to the correctness of information in this document. Copyright by AUDI AG.

7

Legend

1

Garage door operation control unit J530

2

Direct shift gearbox mechatronics J743

3

Power steering control unit J500

4

Engine control unit J623

5

ABS control unit J104

6

Wiper motor control unit J400

7

Alarm horn H12

8

Onboard power supply control unit J519
Headlight range control, control unit J431

9

Data bus diagnostic interface J533

10

CD changer R41

11

Tyre pressure monitor control unit 2 J793 /
Tyre pressure monitor control unit J502*

12

Control unit with display in dash panel insert
J285

13

Radio R
Control unit with display for radio and
navigation J503
Climatronic control unit J255

14

Steering column electronics control unit J527
Steering angle sender G85
Multi-function steering wheel control unit
J453

15

Rain and light detector sensor G397

16

Driver door control unit J386

17

Front passenger door control unit J387

18

Anti-theft alarm system sensor G578

19

Telephone transmitter and receiver unit R36

20

Airbag control unit J234

21

ECD control unit (electronically controlled
damping) J250

22

Digital satellite radio tuner R190

23

Digital sound package control unit J525

24

Convenience system central control unit J393
Parking aid control unit J446
TV tuner R78

25

Radio controlled clock receiver J489

* for tyre pressure monitor only SAE

382_067

Protected by copyright. Copying for private or commercial purposes, in part or in whole, is not
 permitted unless authorised by AUDI AG. AUDI AG does not guarantee or accept any liability
     with respect to the correctness of information in this document. Copyright by AUDI AG.

8

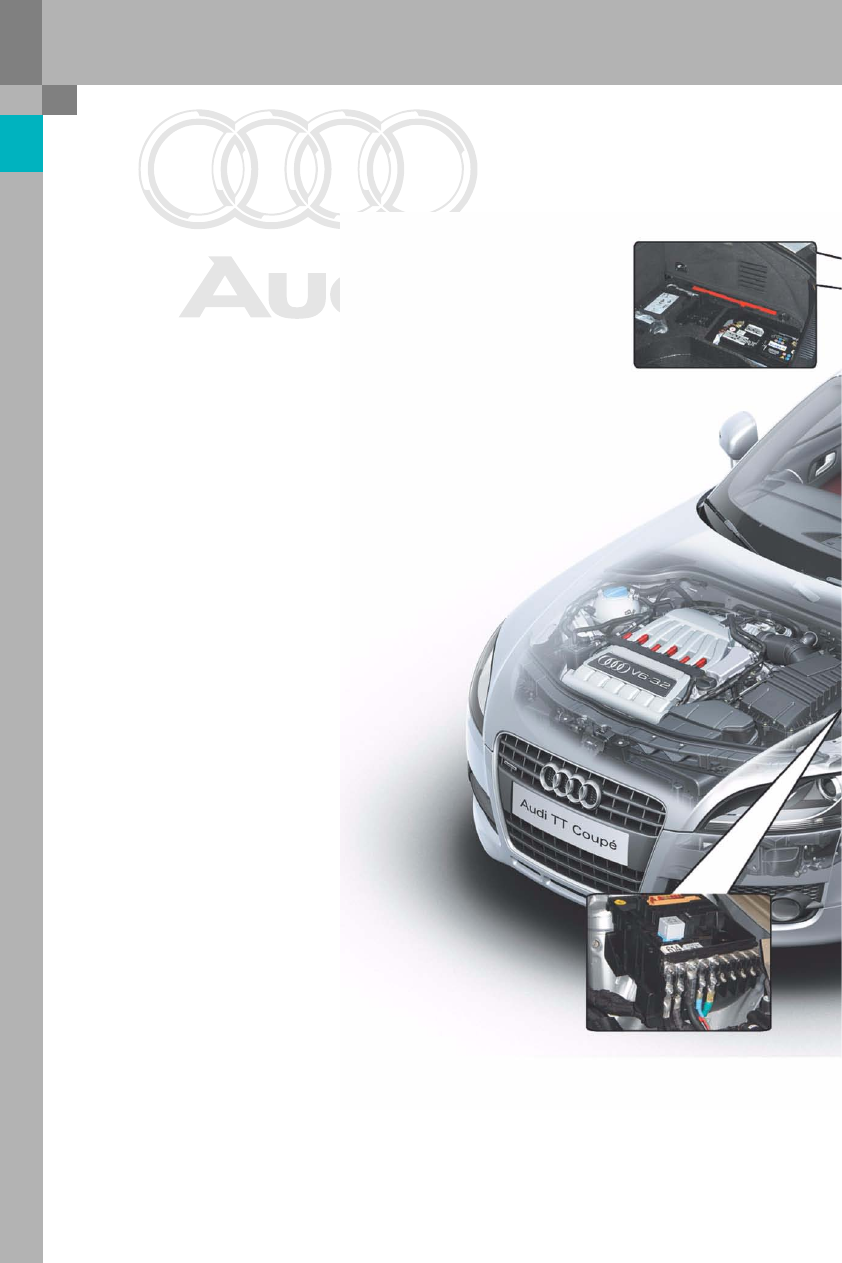

The fuse and relay carriers

In the Audi TT Coupé ´07 the fuse and relay carriers
are located in the following positions:

–

Electronics box in engine compartment, front left

–

Fuse carrier, dash panel left hand side on A-post

–

Onboard power supply control unit and auxiliary
relay carrier below dash panel on left

–

Main fuse box directly on the battery

–

Auxiliary relay carrier in the boot on the right,
below the boot trim

For details of fuse and relay assignments, please
refer to the current service literature.

Overview

Fuses and relays

Auxiliary relay carrier below
the boot trim

Electronics box
