Audi TT (2007 year). Manual - part 211

Protected by copyright. Copying for private or commercial purposes, in part or in whole, is not
 permitted unless authorised by AUDI AG. AUDI AG does not guarantee or accept any liability
     with respect to the correctness of information in this document. Copyright by AUDI AG.

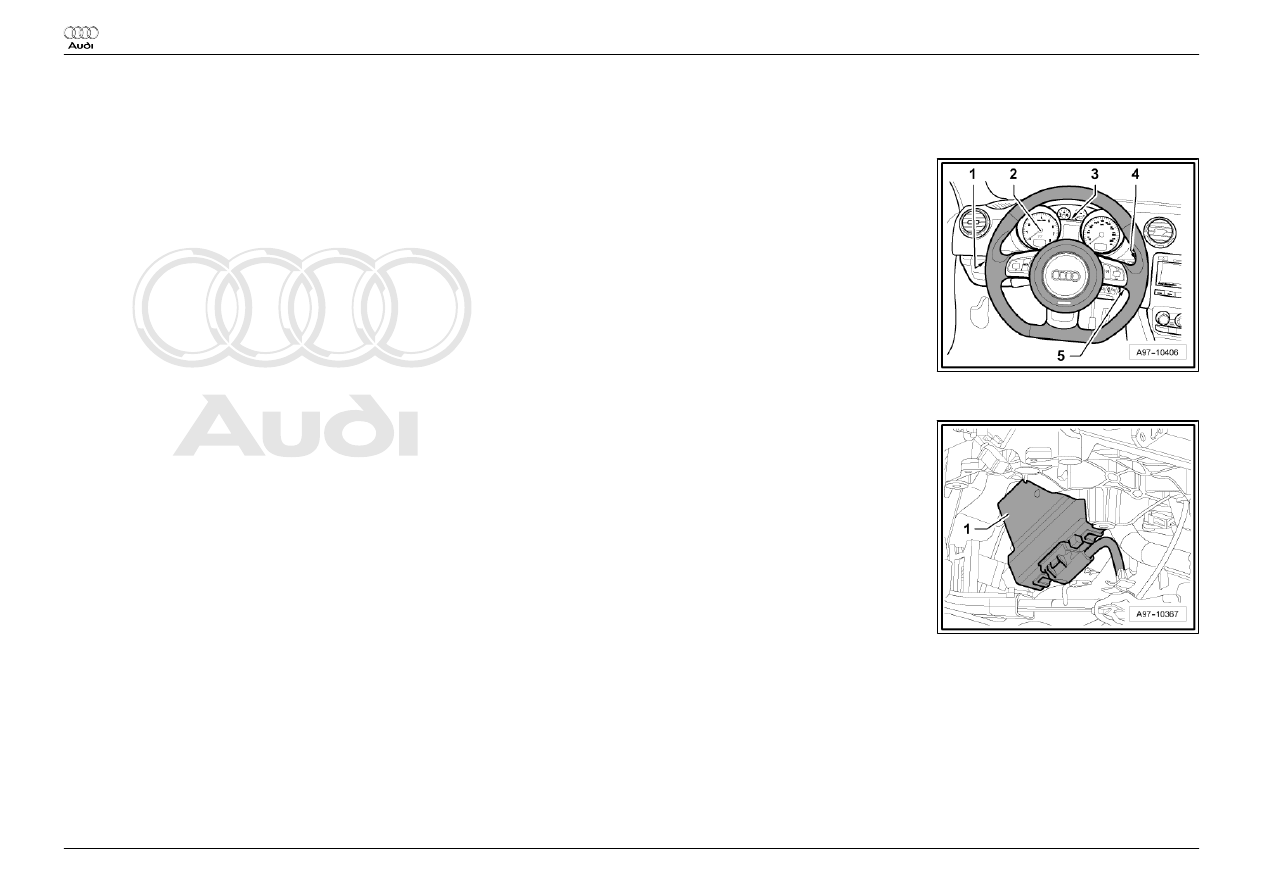

1.13

Control unit in dash panel insert -J285-

1.13.1

Location:

in dash panel insert -Item 2-
1 - Onboard supply control unit -J519-
1 - Relay carrier on left under dash panel
2 - Control unit in dash panel insert -J285-
3 - Tyre pressure monitor control unit 2 -J793-
4 - Headlight range control, control unit -J431-
5 - Data bus diagnostic interface -J533-

1.14

Data bus diagnostic interface -J533-

1.14.1

Location:

Behind the shelf on the driver's side bottom, next to the steering

-Item 1-

 Audi TT

Fitting Locations

No.  804 / 1

Edition  04.2009

Protected by copyright. Copying for private or commercial purposes, in part or in whole, is not
 permitted unless authorised by AUDI AG. AUDI AG does not guarantee or accept any liability
     with respect to the correctness of information in this document. Copyright by AUDI AG.

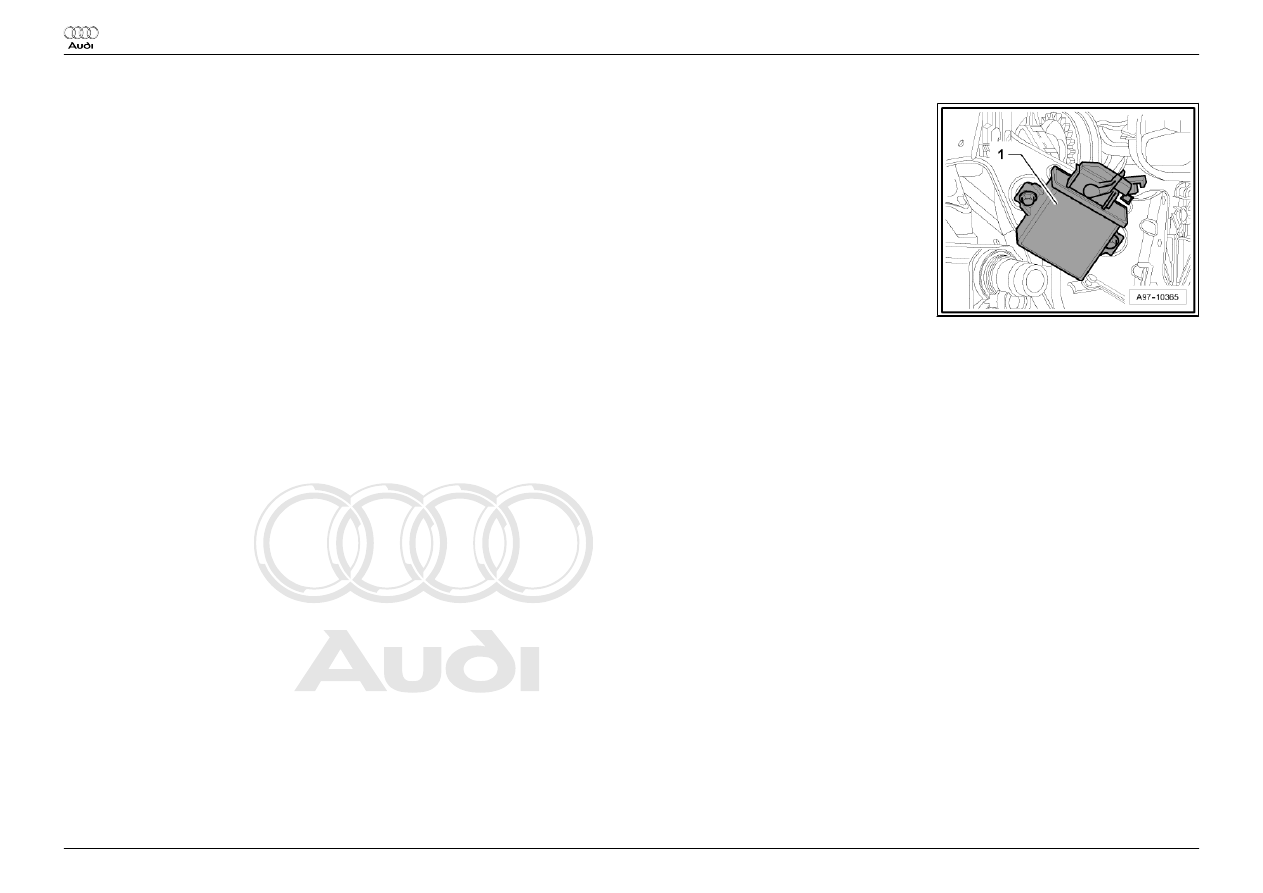

1.15

Headlight range control, control unit -J431-

1.15.1

Location:

Behind the shelf on the driver's side right, next to the steering

-Item 1-

 Audi TT

Fitting Locations

No.  804 / 1

Edition  04.2009

Protected by copyright. Copying for private or commercial purposes, in part or in whole, is not
 permitted unless authorised by AUDI AG. AUDI AG does not guarantee or accept any liability
     with respect to the correctness of information in this document. Copyright by AUDI AG.

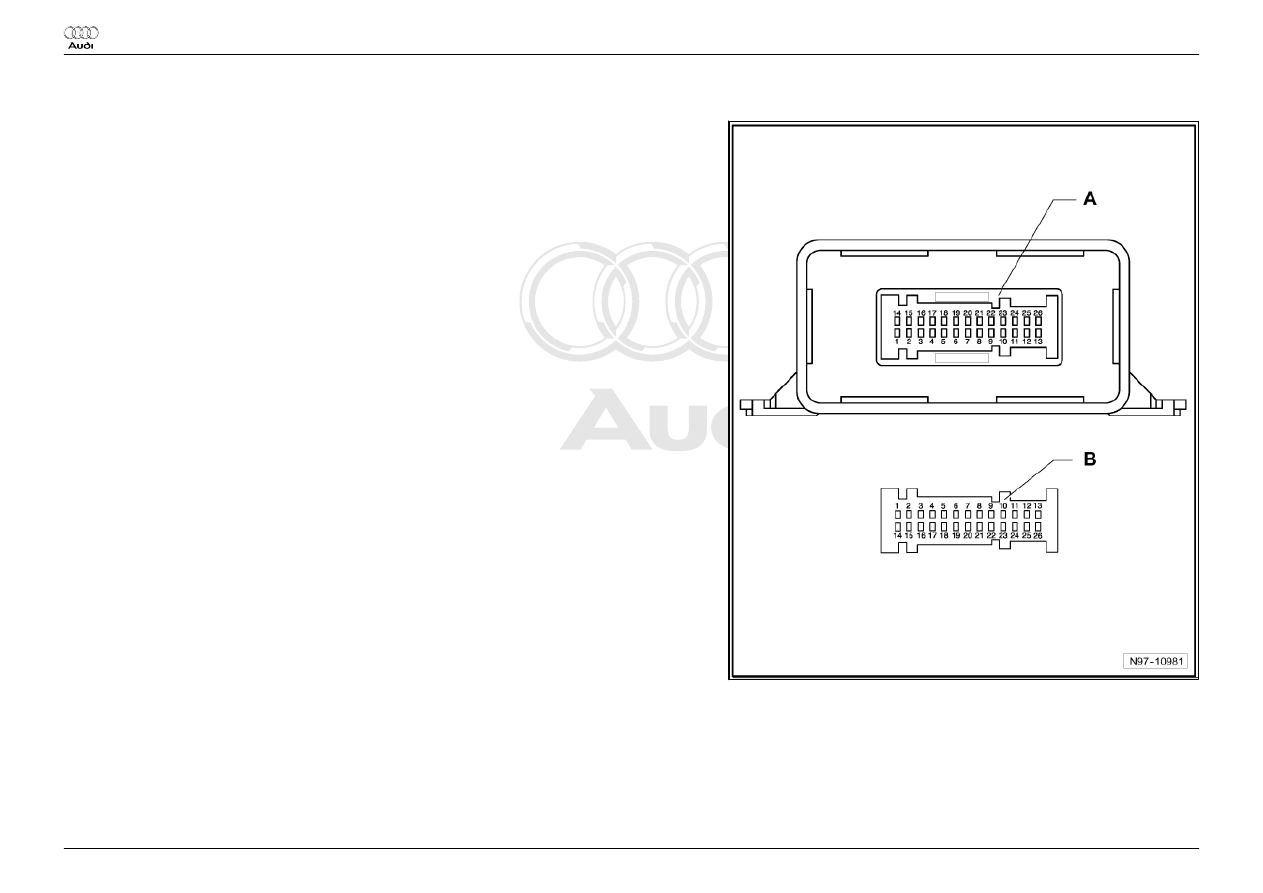

1.15.2

Connector assigment of control unit for headlight range control -J431-

A - Headlight range control, control unit -J431-
Pin connector

B - 26-pin connector -T26a- , black

 Audi TT

Fitting Locations

No.  804 / 1

Edition  04.2009

Protected by copyright. Copying for private or commercial purposes, in part or in whole, is not
 permitted unless authorised by AUDI AG. AUDI AG does not guarantee or accept any liability
     with respect to the correctness of information in this document. Copyright by AUDI AG.

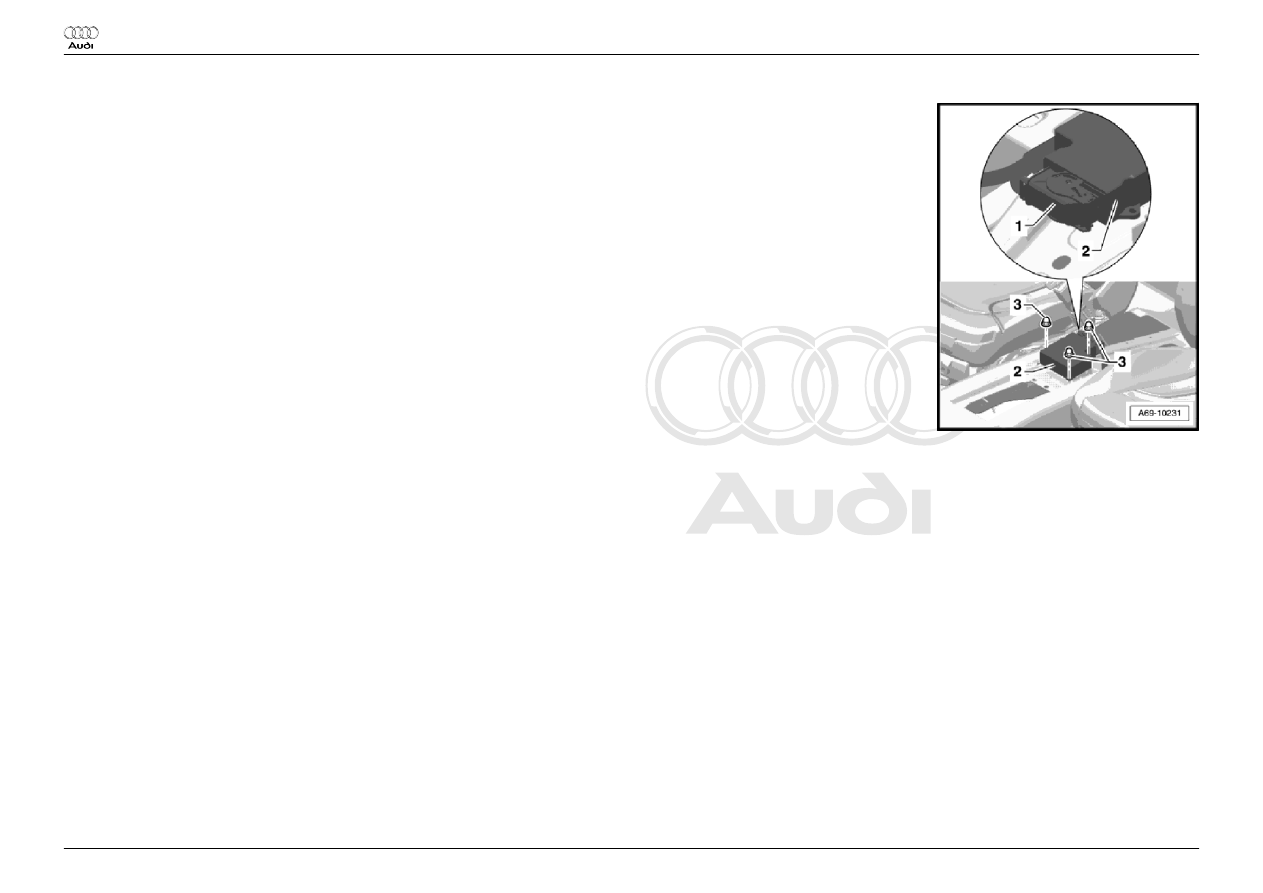

1.16

Airbag control unit -J234-

1.16.1

Location:

Under centre console
1 - Pin connector
2 - Airbag control unit -J234-
3 - Nut

 Audi TT

Fitting Locations

No.  804 / 1

Edition  04.2009
