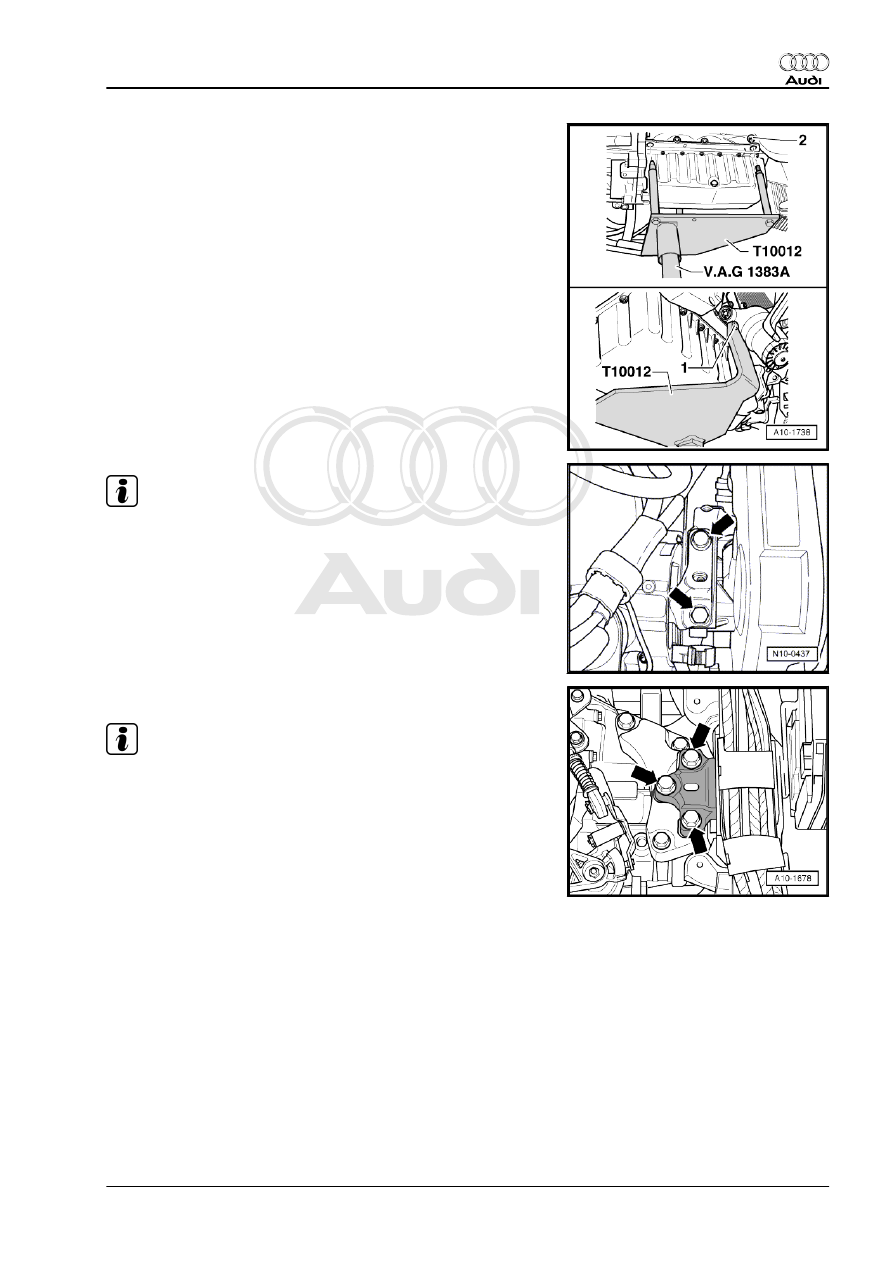

– Secure engine bracket -T10012- to cylinder block with bolt

-1- and nut -2- (tightening torque: approx. 20 Nm).

– Insert engine and gearbox jack -V.A.G 1383 A- in engine sup‐

port -T10012- and raise engine/gearbox assembly slightly.

Note

To unscrew bolts for assembly mounting use stepladder -

VAS 5085- .

– Remove bolts -arrows- for assembly mounting (engine end).

– Remove bolts -arrows- for assembly mounting (gearbox end).

Note

♦

Check that all hoses, pipes and wiring connections between

engine, gearbox and body have been detached.

♦

Carefully guide engine/gearbox assembly when lowering to

avoid damage.

♦

Make sure there is sufficient clearance at air conditioner com‐

pressor and at left-side drive shaft.

– First lower engine/gearbox assembly only slightly.
– Then swing gearbox end of engine/gearbox assembly for‐

wards and only then lower further.

1. Removing engine

27

Protected by copyright. Copying for private or commercial purposes, in part or in whole, is not
 permitted unless authorised by AUDI AG. AUDI AG does not guarantee or accept any liability
     with respect to the correctness of information in this document. Copyright by AUDI AG.

2

Separating engine from manual gear‐

box

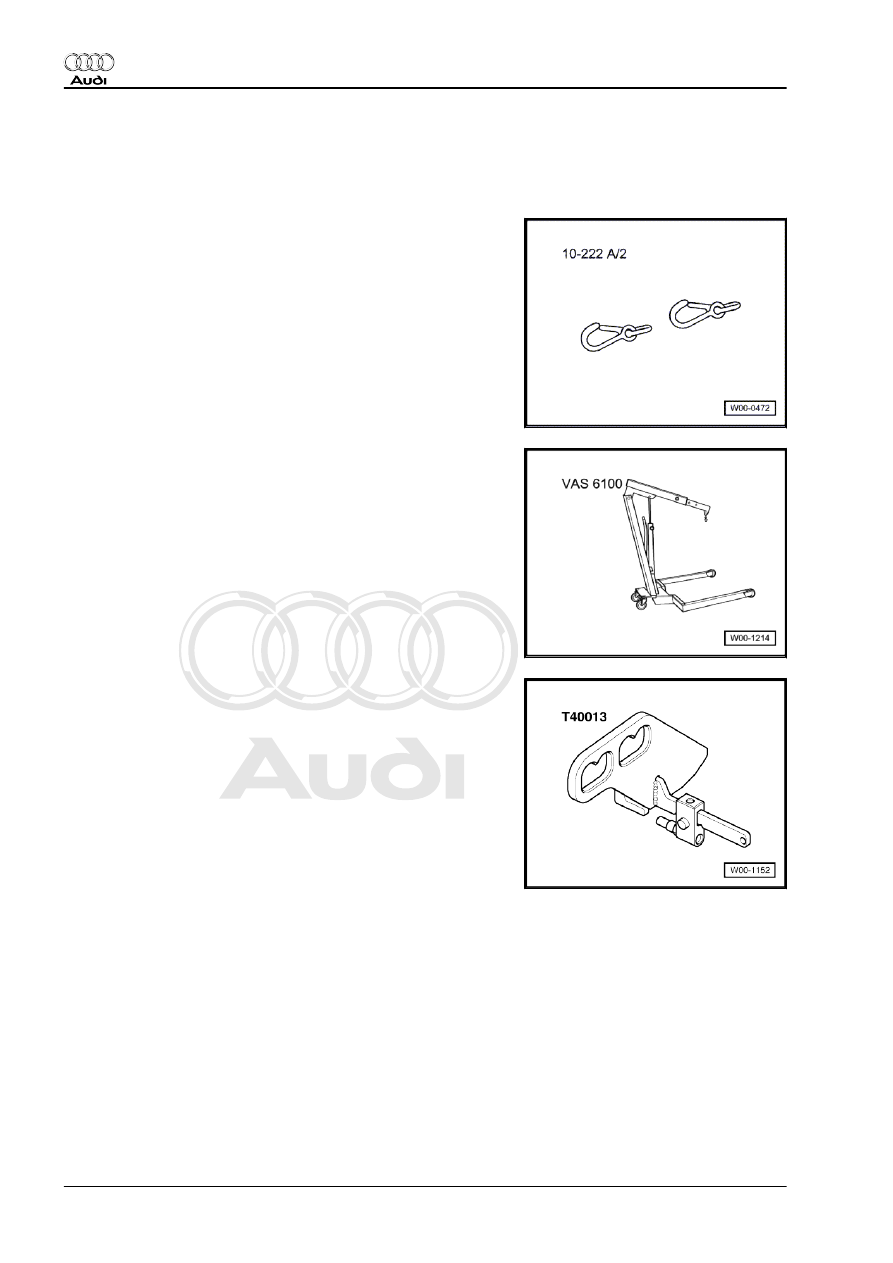

Special tools and workshop equipment required
♦ Hooks -10 - 222 A /2-

♦ Workshop hoist -VAS 6100-

♦ Lifting tackle -T40013-

28

Protected by copyright. Copying for private or commercial purposes, in part or in whole, is not
 permitted unless authorised by AUDI AG. AUDI AG does not guarantee or accept any liability
     with respect to the correctness of information in this document. Copyright by AUDI AG.

Procedure
• Engine/gearbox assembly removed and attached to engine

bracket -T10012- .

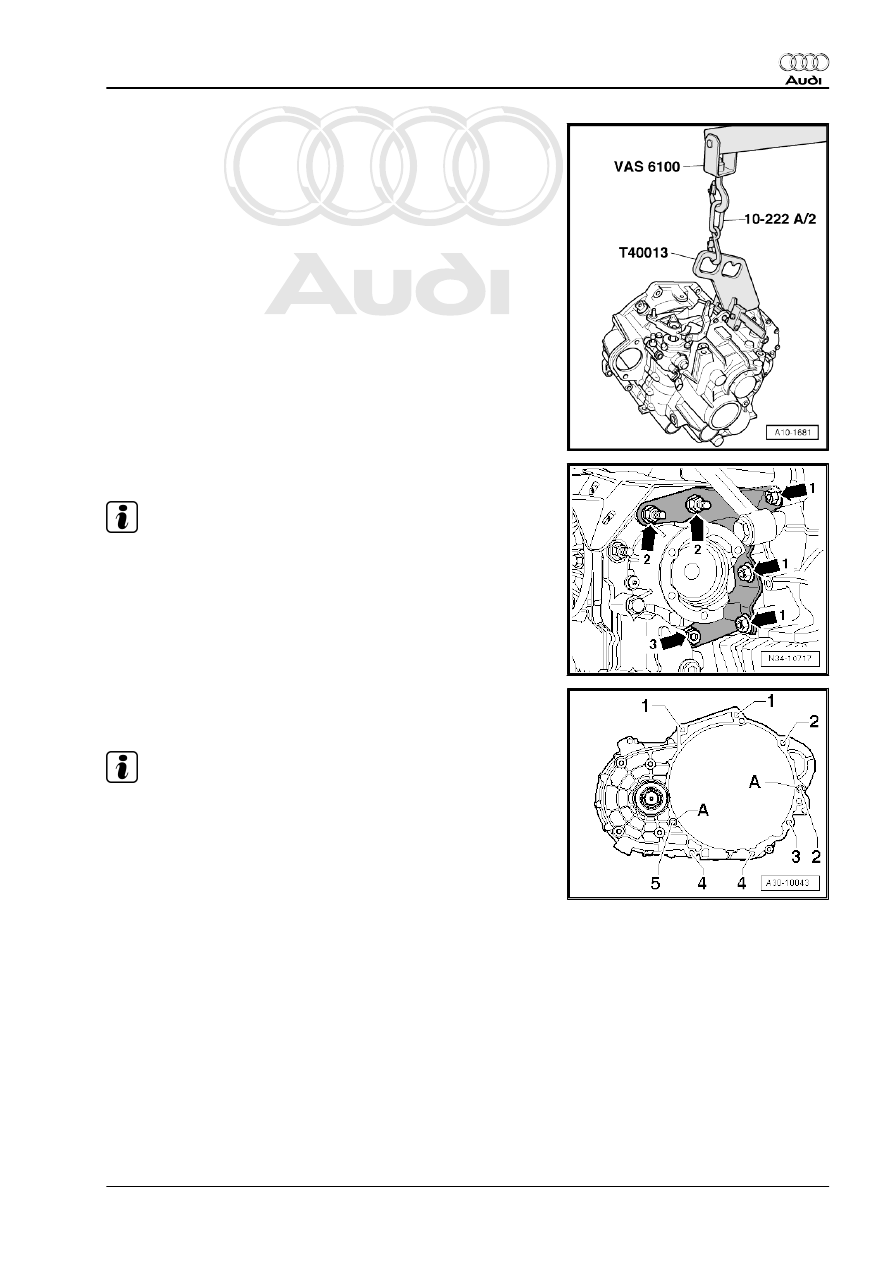

– Attach lifting tackle -T40013- to gearbox and close lock.
– Attach workshop hoist -VAS 6100- with hooks -10 - 222 A /2-

to the lifting tackle.

– Remove bolts -arrows 2, 3- securing bracket for bevel box.

Note

Disregard -arrows 1-.

– Remove bolts -1, 3, 4, 5- securing gearbox to engine.
– Detach gearbox from engine.

Note

Disregard -items 2, A-.

2. Separating engine from manual gearbox

29

Protected by copyright. Copying for private or commercial purposes, in part or in whole, is not
 permitted unless authorised by AUDI AG. AUDI AG does not guarantee or accept any liability
     with respect to the correctness of information in this document. Copyright by AUDI AG.

3

Securing engine to engine and gearbox support

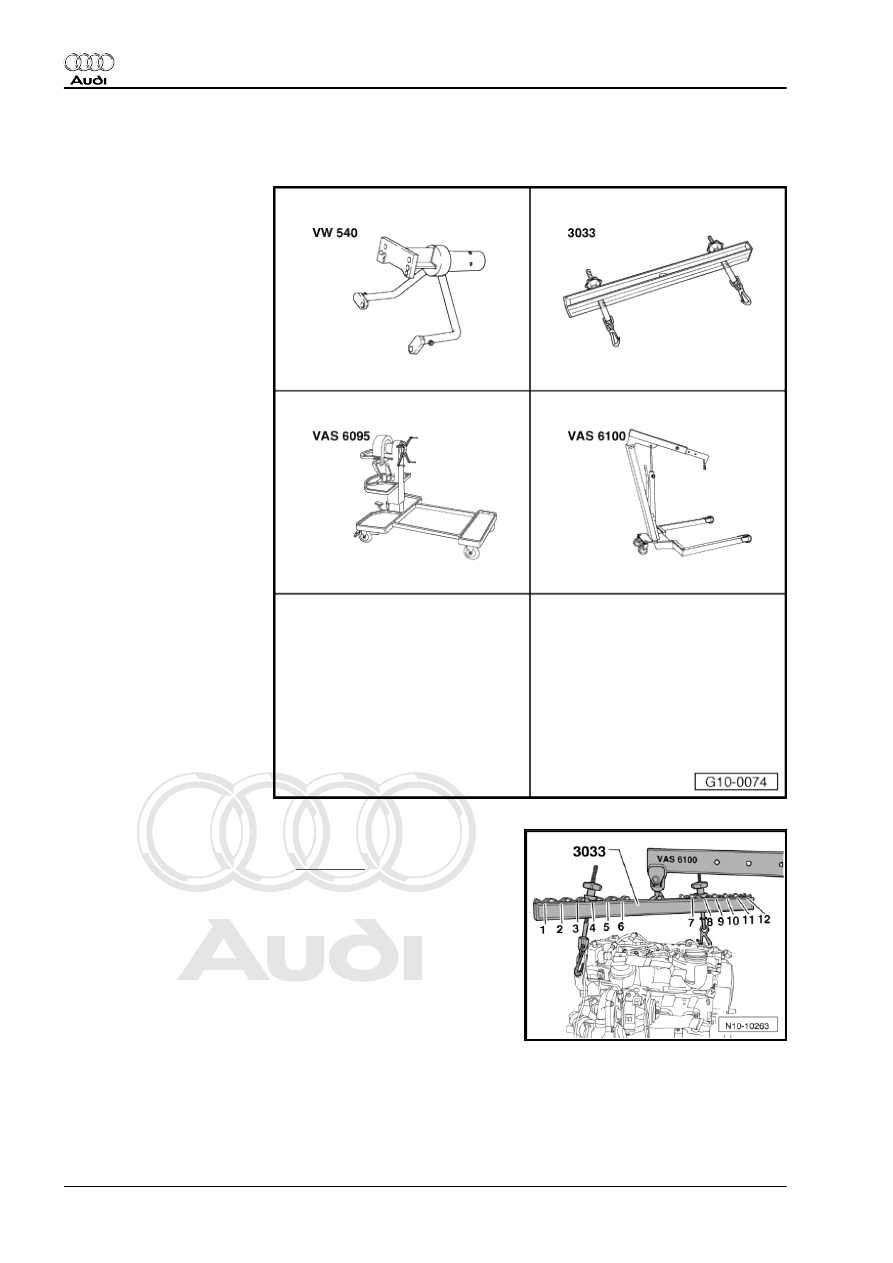

Special tools and workshop

equipment required
♦ Engine and gearbox sup‐

port -VW 540-

♦ Lifting tackle -3033-
♦ Engine and gearbox sup‐

port -VAS 6095-

♦ Workshop hoist -

VAS 6100-

Procedure
• Gearbox detached from engine

⇒ page 28

 .

– Attach lifting tackle -3033- to engine and workshop hoist -

VAS 6100- as shown in illustration.

– Lift engine off engine bracket -T10012- using workshop hoist

-VAS 6100- .
