YES

11-290

VTEC/VTC

DTC Troubleshooting (cont’d)

22. Monitor the OBD STATUS for DTC P0010 in the

DTCs MENU with the HDS.

Troubleshooting is complete.

If the screen indicates FAILED, go to step 1

and recheck. If the screen indicates NOT
COMPLETED, go to step 20 and recheck.

23. Update the ECM/PCM if it does not have the latest

software, or substitute a known-good ECM/PCM
(see page 11-6).

24. Do the VTC TEST in the INSPECTION MENU with

the HDS.

25. Check for Temporary DTCs or DTCs with the HDS.

If DTC P0010 is indicated, check for poor

connections or loose terminals at the VTC oil
control solenoid valve and the ECM/PCM, then go
to step 1. If any other Temporary DTCs or DTCs are
indicated, go to the indicated DTC’s
troubleshooting.

If the ECM/PCM was updated, troubleshooting

is complete. If the ECM/PCM was substituted,
replace the original ECM/PCM (see page 11-284).

Does the scr een indicate PASSED?

Ar e any T empor ar y DT Cs or DT Cs indicated?

05/06/27 17:39:34 61S6M040_110_0290

−

０１

Ｓ６Ｍ６ＡＡＪＫ７２１０００９００１１ＦＡＡＴ００

−

DTC P0011:

YES

11-291

VTC System Malfunction

(2002-2004 models)

1. Reset the ECM/PCM (see page 11-4).

2. Start the engine. Hold the engine speed at

3,000 rpm without load (in Park or neutral) until the
radiator fan comes on.

3. Test-drive at a steady speed between 20

40 mph

(30

60 km/h) for 10 minutes.

4. Check for Temporary DTC P0011 with a scan tool or

the HDS.

Go to step 5.

Intermittent failure, system is OK at this time.

Check for poor connections or loose terminals at
the VTC oil control solenoid valve and the ECM/
PCM.

5. Watch the low oil pressure indicator.

Check the oil pressure (see page 8-7).

Go to step 6.

6. Turn the ignition switch OFF.

7. Remove the power steering pump (see page 17-14)

and the auto-tensioner (see page 4-45).

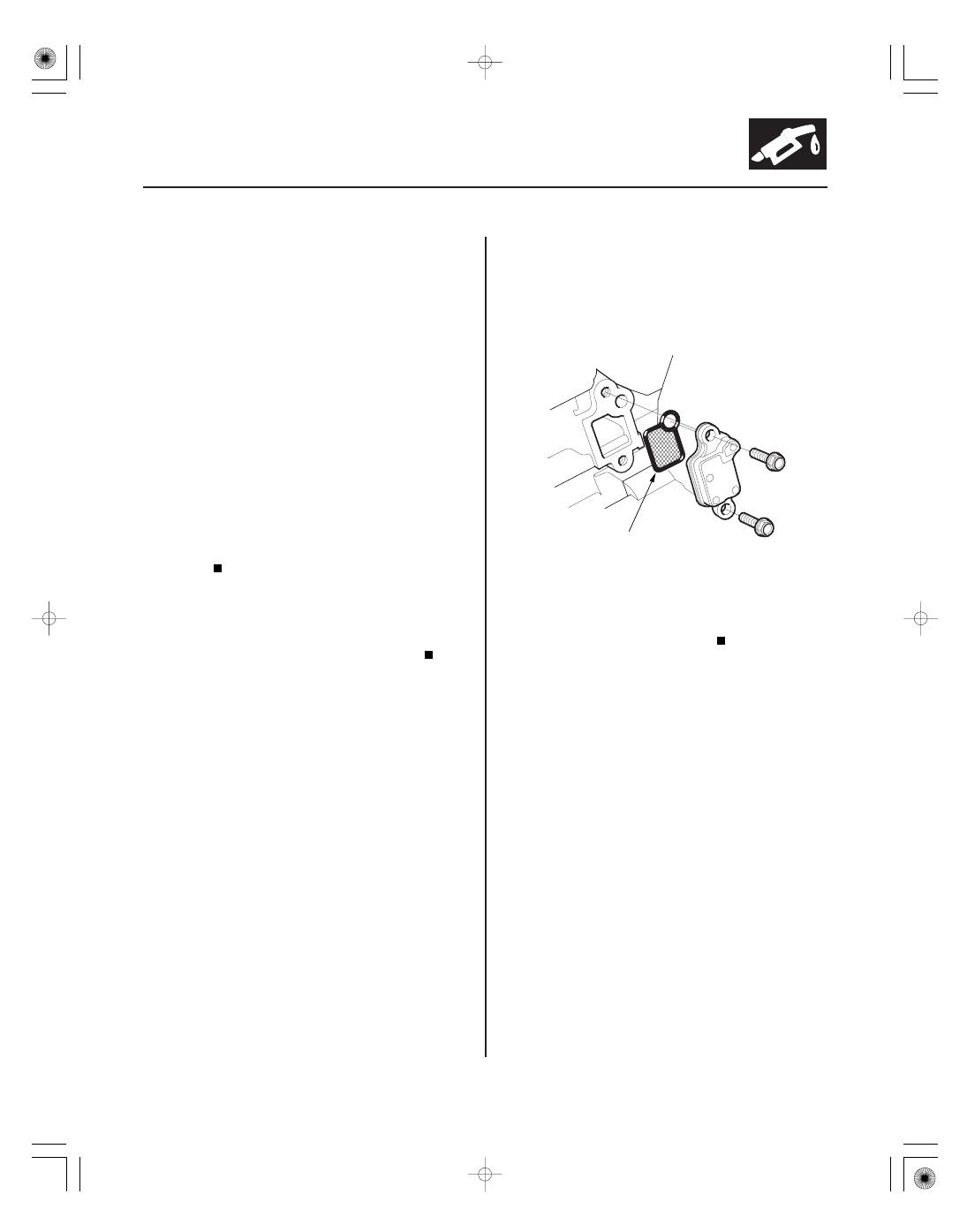

8. Remove the VTC strainer (A), and check it for

clogging.

Go to step 9.

Clean the VTC strainer, and replace the

engine oil filter and the engine oil.

(cont’d)

Is T empor ar y DT C P0011 indicated?

Is the low oil pr essur e indicator on?

Is the str ainer OK ?

05/06/27 17:39:34 61S6M040_110_0291

−

０１

＋

−

YES

11-292

VTEC/VTC

DTC Troubleshooting (cont’d)

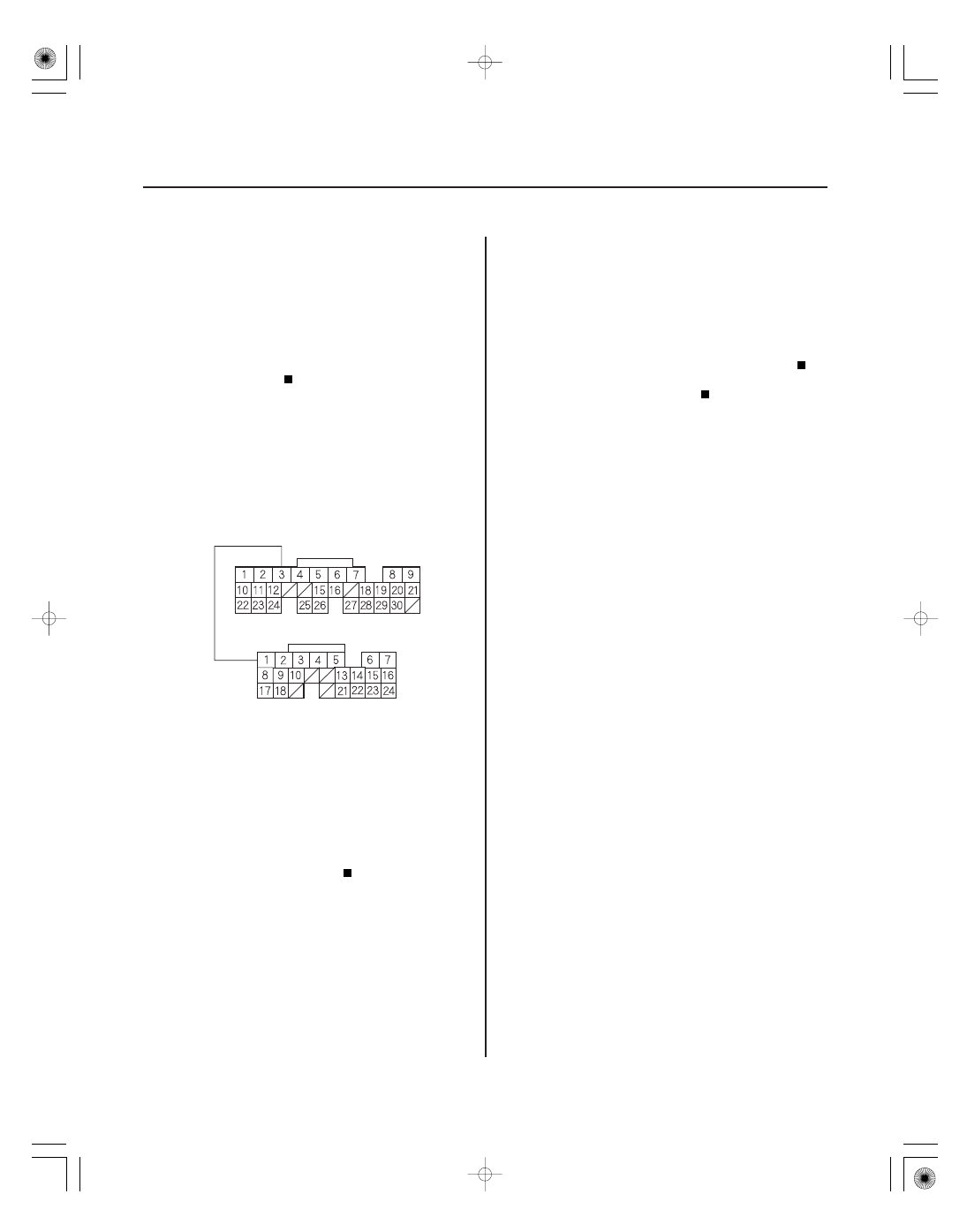

ECM/PCM CONNECTORS

JUMPER
WIRE

A (31P)

B (24P)

IGP1 (YEL/BLK)

VTC
(BLU/WHT)

9. Check the VTC oil control solenoid valve (see page

11-321).

Go to step 10.

Clean the ports of the VTC oil control solenoid

valve, or replace the VTC oil control solenoid valve
(see page 11-321).

10. Install the VTC strainer and the VTC oil control

solenoid valve.

11. Start the engine. Hold the engine speed at 700

1,000 rpm.

12. Connect ECM/PCM connector terminals A3 and B1

with a jumper wire.

Test-drive at a steady speed between

40 mph (30

60 km/h) for 10 minutes.

If temporary DTC P0011 is indicated, update the
ECM/PCM if it does not have the latest software, or
substitute a known-good ECM/PCM (see page 11-6),
then recheck. If the symptom/indication goes away
with a known-good ECM/PCM, replace the original
ECM/PCM (see page 11-284).

Go to step 13.

13. Check the VTC actuator (see page 6-10).

Update the ECM/PCM if it does not have the

latest software, or substitute a known-good ECM/
PCM (see page 11-6), then recheck. If the symptom/
indication goes away with a known-good ECM/PCM,
replace the original ECM/PCM (see page 11-284).

Replace the VTC actuator.

Wire side of female terminals

Is the V T C oil contr ol solenoid valve OK ?

Did the engine stall or r un r ough?

Is the V T C actuator OK ?

05/06/27 17:39:34 61S6M040_110_0292

−

０１

Ｓ６Ｍ６ＡＡＬＫ７２１０００９００１１ＦＡＡＴ００

−

DTC P0011:

YES

11-293

VTC System Malfunction

(2005-2006 models)

1. Turn the ignition switch ON (II).

2. Clear the DTC with the HDS.

3. Start the engine.

4. Watch the low oil pressure indicator with the

engine running.

Check the oil pressure (see page 8-7), then go

to step 15.

Go to step 5.

5. Do the VTC TEST in the INSPECTION MENU with

the HDS.

Go to step 6.

Go to step 9.

6. Test-drive at a steady speed between 19

38 mph

(30

60 km/h) for 10 minutes.

7. Check the VTC STATUS in the DATA LIST with the

HDS.

Go to step 8.

Go to step 6 and recheck.

8. Monitor the OBD STATUS for DTC P0011 in the

DTCs MENU with the HDS.

Go to step 9.

If the screen indicates PASSED, intermittent

failure, system is OK at this time. Check for poor
connections or loose terminals at the VTC oil
control solenoid valve and the ECM/PCM. If the
screen indicates NOT COMPLETED, go to step 5
and recheck.

9. Turn the ignition switch OFF.

10. Remove the power steering pump (see page 17-14)

and the auto-tensioner (see page 4-45).

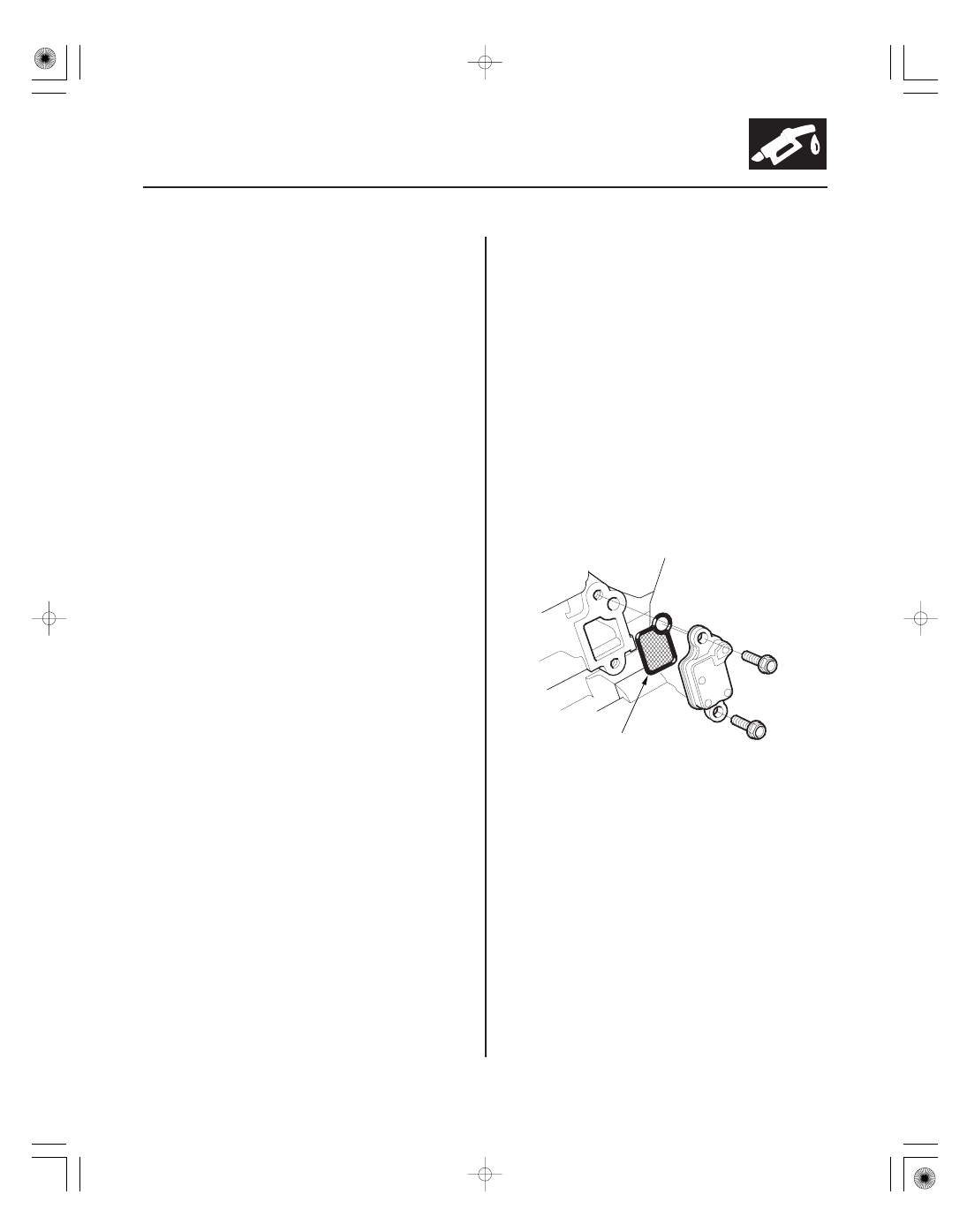

11. Remove the VTC strainer (A), and check it for

clogging.

Go to step 12.

Clean the VTC strainer, replace the engine oil

filter and the engine oil, then go to step 14.

12. Test the VTC oil control solenoid valve (see page

11-321).

Go to step 13.

Replace the VTC oil control solenoid valve

(see page 11-321), then go to step 14.

(cont’d)

Is the low oil pr essur e indicator on?

Is the r esult OK ?

Does it indicate ON?

Does the scr een indicate F AILED?

Is the str ainer OK ?

Is the V T C oil contr ol solenoid valve OK ?

05/06/27 17:39:34 61S6M040_110_0293
