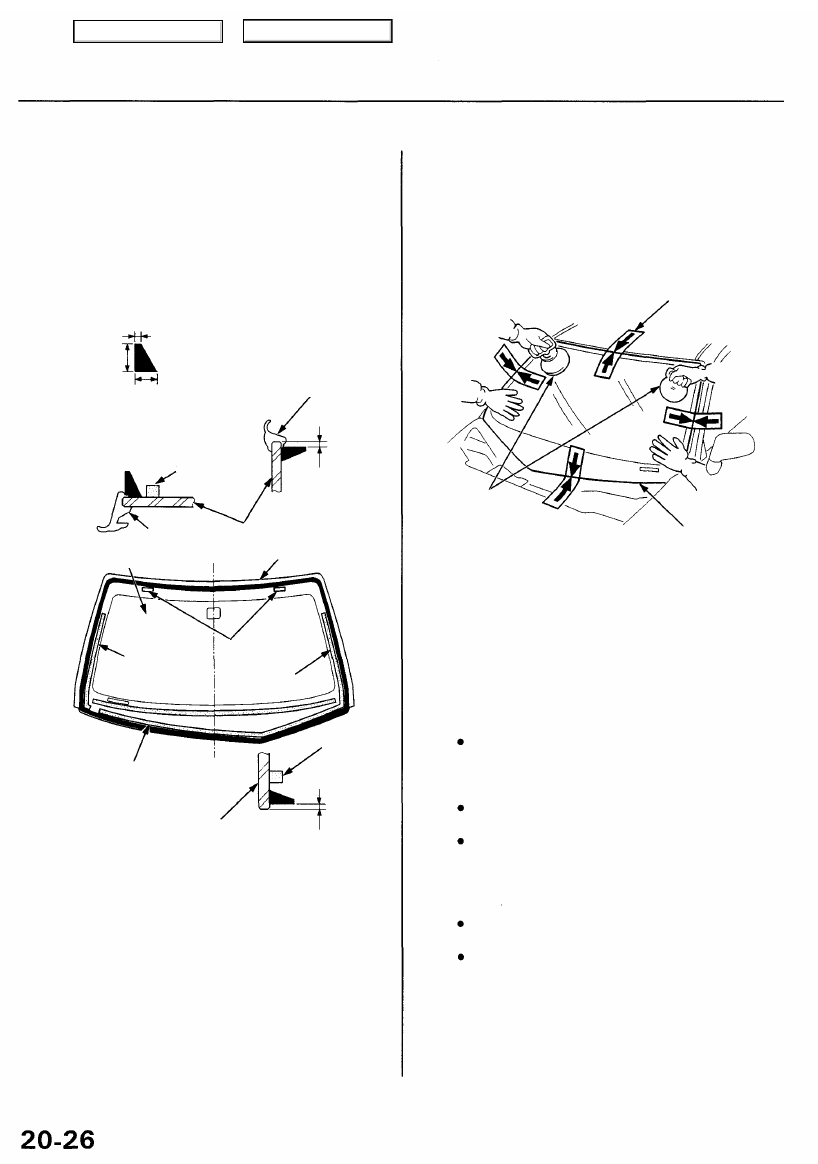

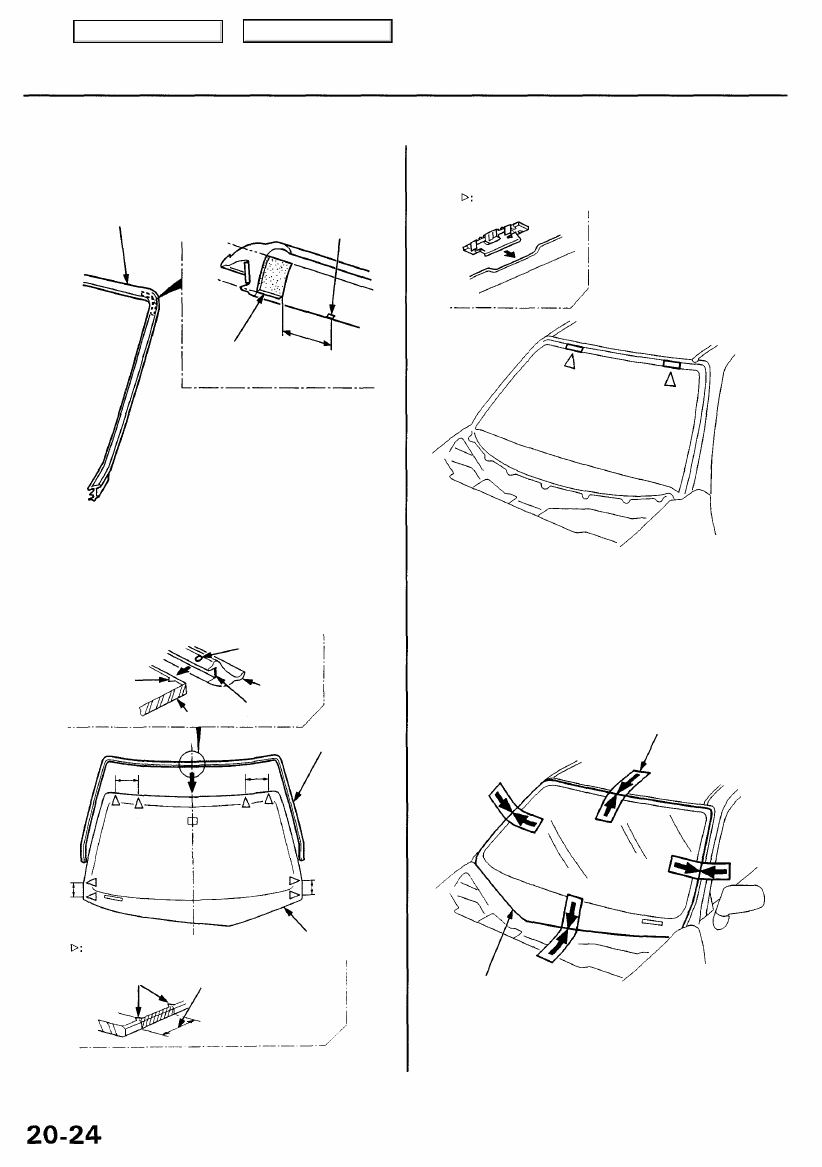

Windshield Installation (cont'd) 5. Glue the molding corner seal to the molding on each side. MOLDING ALIGNMENT 6. Align and glue the molding to the edge of the wind- shield. NOTE: Be careful not to touch the windshield where adhesive will be applied. Inside ALIGNMENT ALIGNMENT MARK (White) 7. Install the fasteners to the body as shown. Fastener locations, 2 8. Set the windshield, then center it in the opening. Make alignment marks across the windshield and body with NOTE: Be careful not to touch the windshield where adhesive will be applied. ALIGNMENT MARK WINDSHIELD 9. Remove the windshield. 2.5 mm (0.98 in.) MOLDING Apply primer (3M N-200, WINDSHIELD Alignment mark locations ALIGNMENT MARKS MOLDING ADHESIVE MOLDING WINDSHIELD Main Menu Table of Contents |
