*1: '00 - 01 models

NOTE:

Different wires with the same color have been given a number suffix to distinguish them (for example, YEL/BLK

1

and YEL/BLK

2

 are not the same).

Connector with male terminals (double outline): View from terminal side
Connector with female terminals (single outline): View from wire side

Related to Fuel and Emissions System.

Main Menu

Table of Contents

System Description

System Connectors [Dash and Floor] (cont'd)

C509

DASHBOARD
WIRE HARNESS

C508

MAIN WIRE HARNESS

LEFT
ENGINE
COMPARTMENT
WIRE
HARNESS

LEFT SIDE
WIRE HARNESS

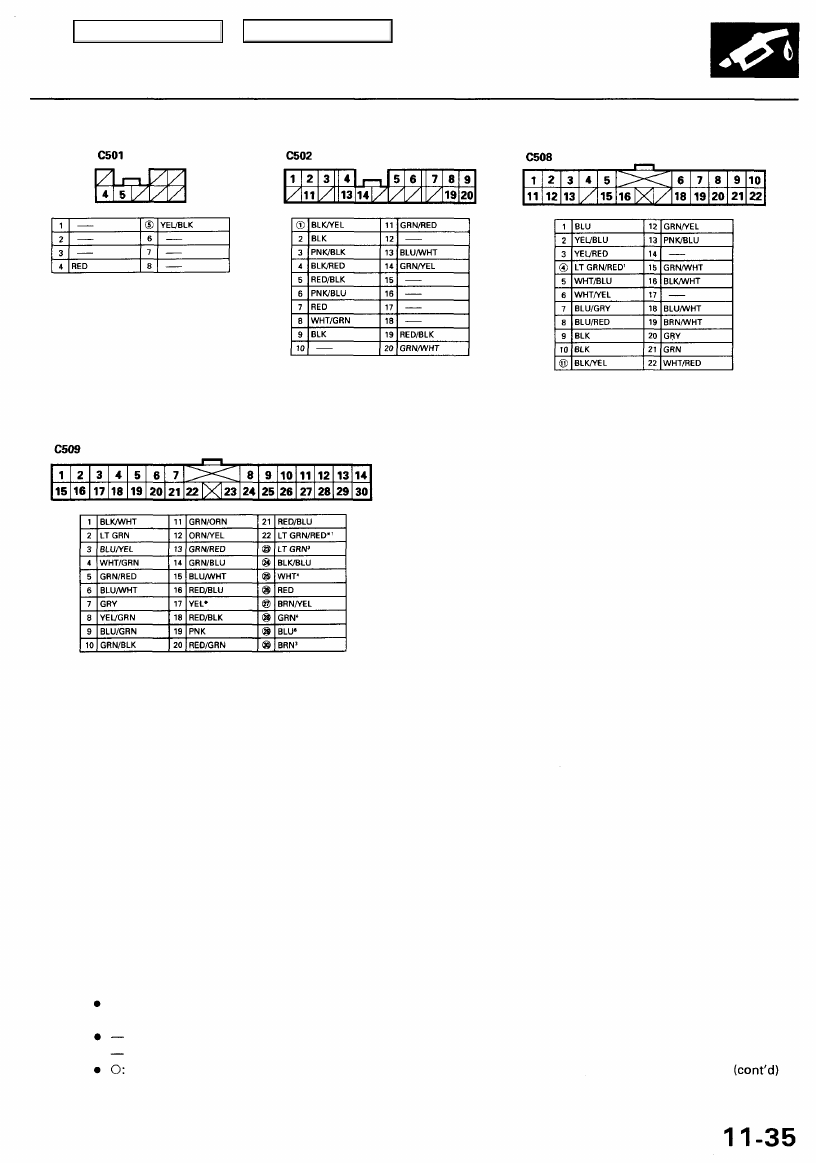

C501

C502

Main Menu

Table of Contents

"1: with VSA

*: Canada

NOTE:

Different wires with the same color have been given a number suffix to distinguish them (for example, YEL/BLK

1

and YEL/BLK

2

 are not the same).

Connector with male terminals (double outline): View from terminal side
Connector with female terminals (single outline): View from wire side

Related to Fuel and Emissions System.

Main Menu

Table of Contents

System Description

System Connectors [Dash and Floor] (cont'd)

C462 (PCM-F)

DASHBOARD
WIRE
HARNESS

RIGHT
ENGINE
COMPARTMENT

WIRE

HARNESS

C469

C442

C601

C461

(PCM-B)

MAIN
WIRE
HARNESS

C459
(PCM-A)

C457

C611

RIGHT
SIDE WIRE
HARNESS

*2: '00 - 01 models

C470

C460
(PCM-C)

C463
(PCM-D)

C450

*

2

C448

VSA

CONVERTER

UNIT*

2

C451
C201

C456

C454

C458

(PCM-E)

C464

C476
C517
