Engine Removal/Installation

Removal (cont'd)

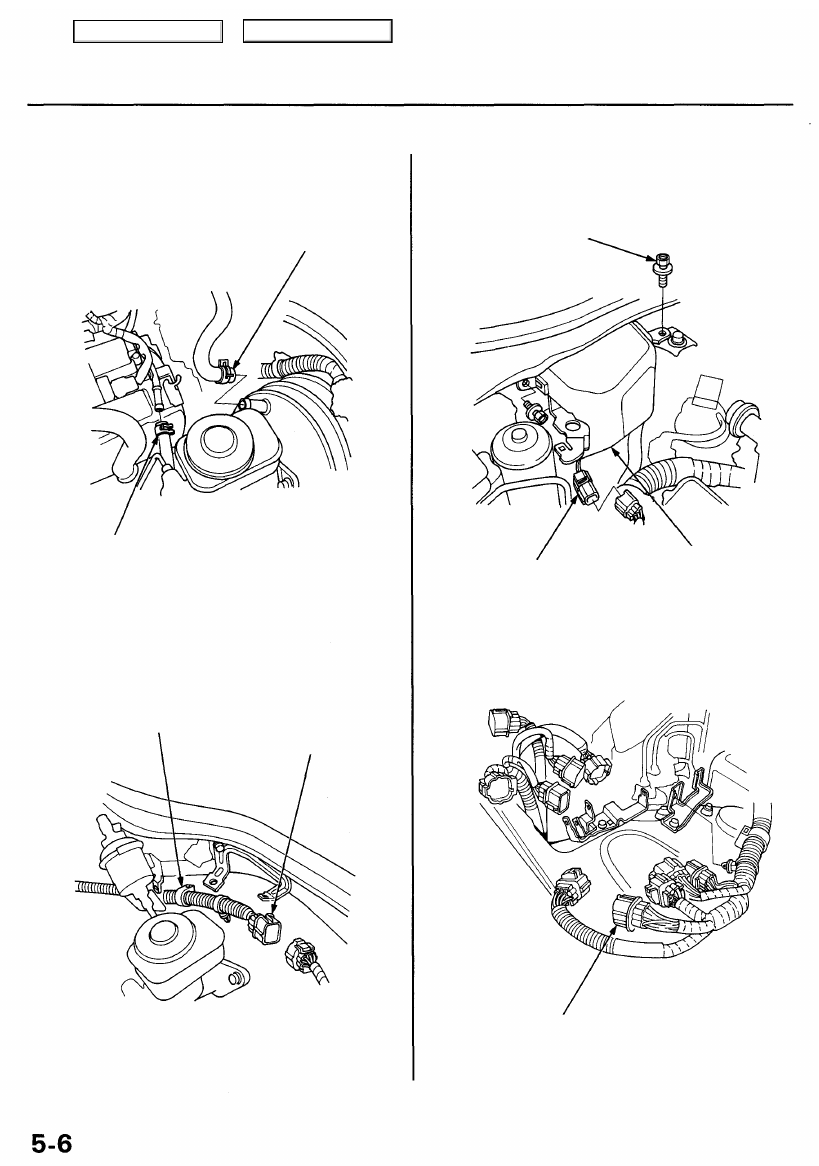

18. Remove the evaporative emission (EVAP) canister

hose and brake booster vacuum hose.

BRAKE BOOSTER
VACUUM HOSE

EVAP CONTROL
CANISTER HOSE

19. Disconnect the transmission sub-harness connec-

tor, and remove the wire harness clamp.

WIRE HARNESS
CLAMP

TRANSMISSION
SUB-HARNESS
CONNECTOR

CONNECTOR

CONTROL
BOX

21. Disconnect the engine wire harness connectors on

the right side of the engine compartment.

ENGINE WIRE
HARNESS CONNECTOR

20. Disconnect the connector, then remove the control

box.

6 x 1.0 mm

12 N-m (1.2 kgf-m,
8.7 Ibf-ft)

Main Menu

Table of Contents

22. Disconnect the spark plug voltage detection module

connector, and remove the engine ground cables.

6 x 1.0 mm

12 N-m (1.2 kgf-m,

8.7 Ibf-ft)

GROUND
CABLES

SPARK PLUG VOLTAGE
DETECTION MODULE
CONNECTOR

23. Remove the vacuum hoses.

VACUUM
HOSES

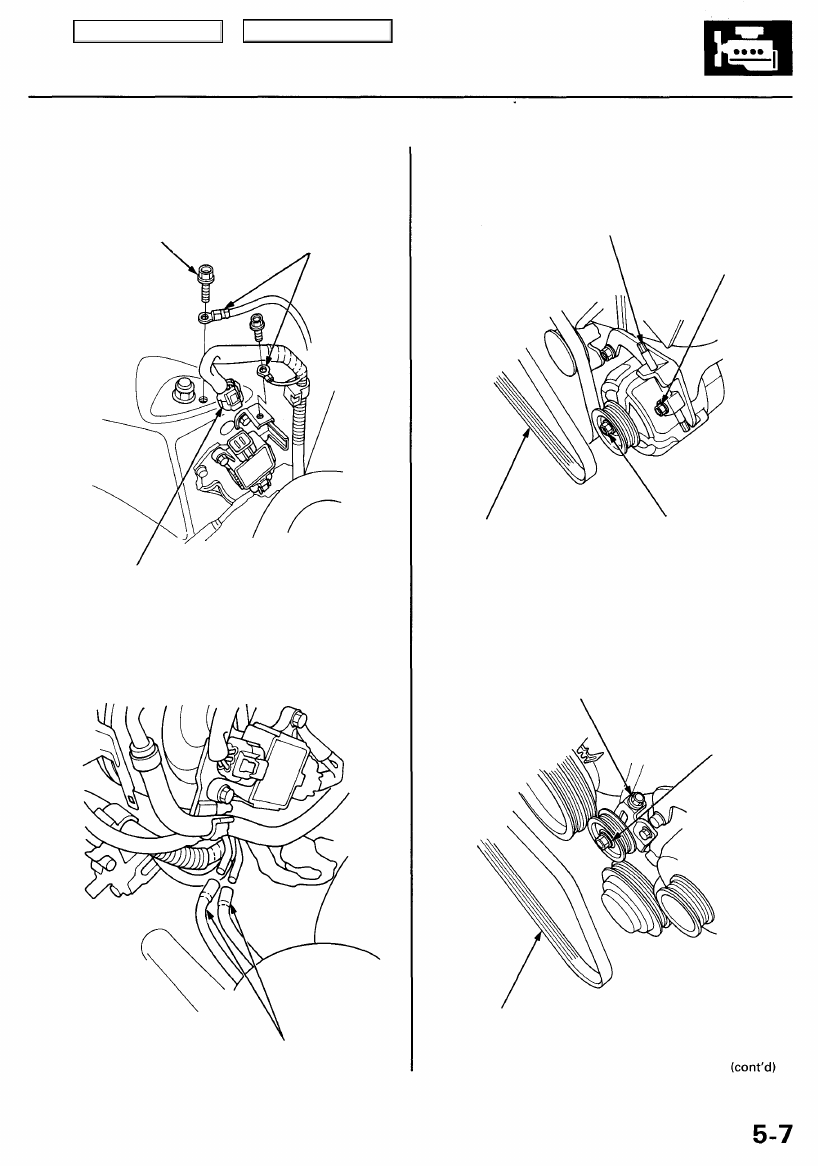

24. Loosen the mounting bolt, lock bolt and adjusting

rod, then remove the alternator belt.

ADJUSTING

ROD

LOCK BOLT

8 x 1.25 mm

22 N-m (2.2 kgf-m,

16 Ibf-ft)

ALTERNATOR
BELT

MOUNTING BOLT

10 x 1.25 mm

44 N-m (4.5 kgf-m,
33 Ibf-ft)

25.

Loosen the idler pulley center nut and adjusting
bolt, then remove the air conditioning (A/C) com-
pressor belt.

ADJUSTING
BOLT

IDLER PULLEY

CENTER NUT

10 x 1.25 mm

44 N-m (4.5 kgf-m,
33 Ibf-ft)

A/C COMPRESSOR
BELT

Main Menu

Table of Contents

Engine Removal/Installation

Removal (cont'd)

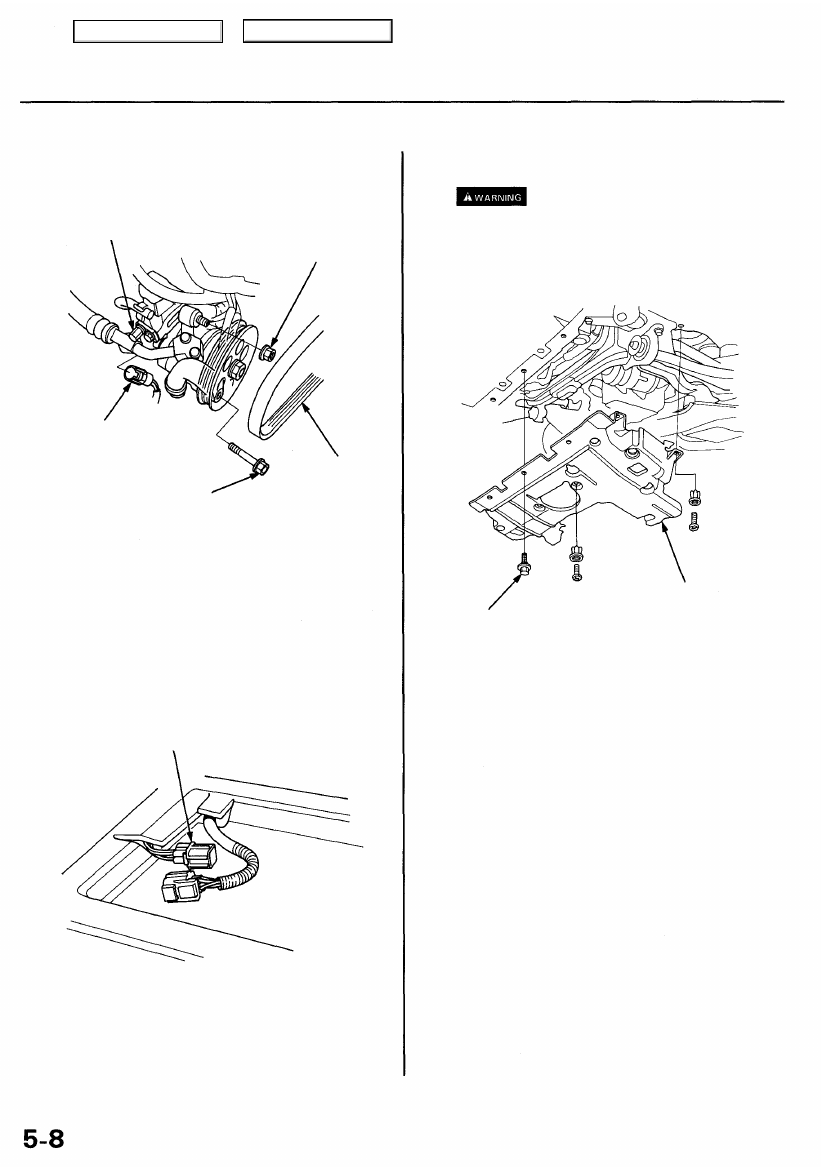

26. Disconnect the power steering pressure (PSP) switch

connector.

ADJUSTING
BOLT

LOCKNUT

8 x 1.25 mm

22 N-m (2.2 kgf-m,

16 Ibf-ft)

PSP SWITCH
CONNECTOR

P/S PUMP
BELT

MOUNTING BOLT

10 x 1.25 mm

44 N-m (4.5 kgf-m,
33 Ibf-ft)

27. Remove the adjusting bolt, locknut and mounting

bolt, then remove the power steering (P/S) pump
belt and pump.
NOTE: Do not disconnect the P/S hoses.

28. Pull the carpet back underneath the front passen-

ger's seat to expose the secondary heated oxygen
sensor (secondary HO2S) connector, then discon-
nect the secondary HO2S connector.

29. Remove the radiator cap.

Use care when removing the radiator

cap to avoid scalding by hot coolant or steam.

30. Raise the hoist to full height.

31. Remove the front tires/wheels and splash shield.

SPLASH
SHIELD

6 x 1.0 mm

9.8 N-m (1.0 kgf-m, 7.2 Ibf-ft)

32. Drain the engine coolant (see page

10-5

). Loosen

the drain plug in the radiator.

33. Drain the automatic transmission fluid (ATF). Reinstall

the drain plug using a new washer (see

section 14

).

34. Drain the differential oil. Reinstall the drain plug

using a new washer (see

section 15

).

35. Drain the engine oil. Reinstall the drain bolt using a

new washer (see page

 8-4

).

36. Remove the damper forks (see

section 18

).

37. Disconnect the suspension lower arm ball joints

(see

section 18

).

38. Remove the driveshafts (see

section 16

).

NOTE: Coat all precision finished surfaces with
clean engine oil. Tie plastic bags over the driveshaft
ends.

SECONDARY
HO2S CONNECTOR

Main Menu

Table of Contents

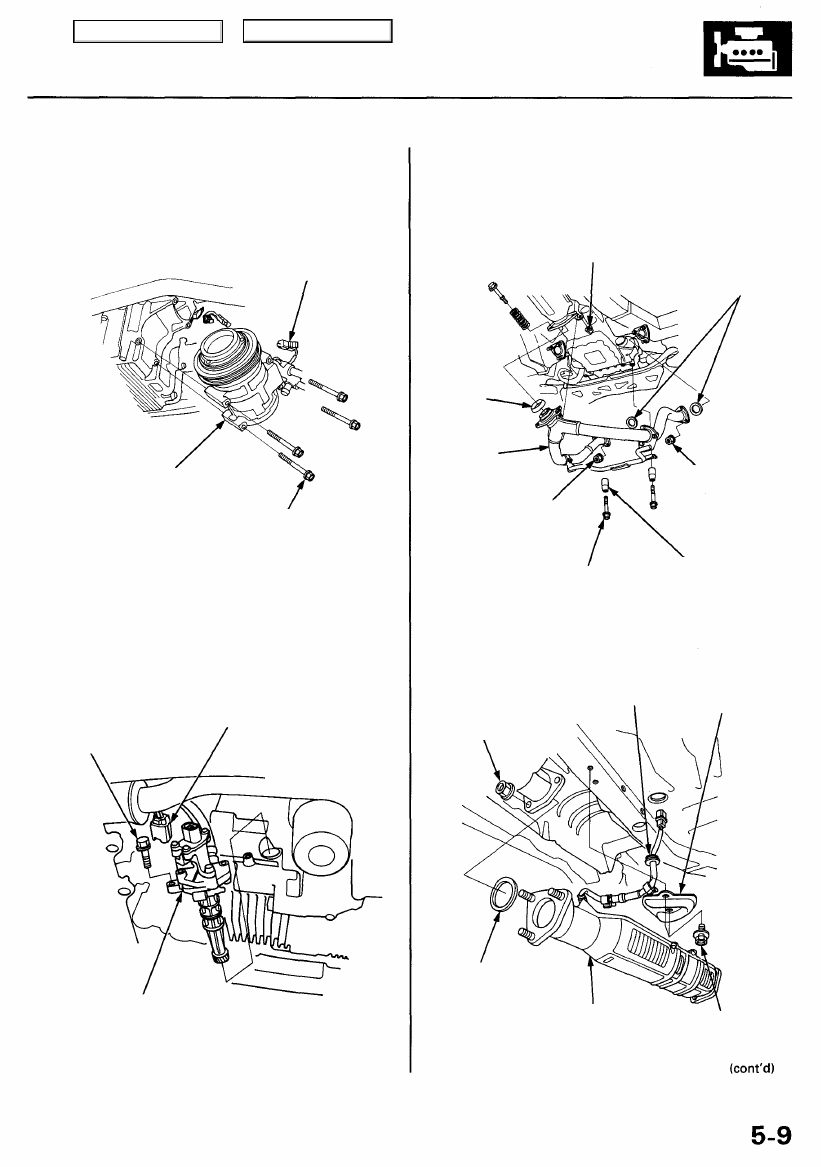

39. Disconnect the compressor clutch connector, then

remove the A/C compressor. Do not disconnect the

A/C hoses.

COMPRESSOR CLUTCH
CONNECTOR

A/C COMPRESSOR

8 x 1.25 mm
22 N-m (2.2 kgf-m,

16 Ibf-ft)

40. Disconnect the vehicle speed sensor (VSS) connector,

then remove the VSS/power steering speed sensor.

Do not disconnect the fluid hoses.

6 x 1.0 mm

12 N-m (1.2 kgf-m,

8.7 Ibf-ft)

VSS CONNECTOR

VSS/POWER STEERING
SPEED SENSOR

41. Remove the transmission stop collars.

42. Remove exhaust pipe A.

GASKETS
Replace.

GASKET
Replace.

EXHAUST
PIPE A

SELF-LOCKING NUT

10 x 1.25 mm
54 N-m (5.5 kgf-m,
40 Ibf-ft)
Replace.

10 x 1.25 mm

38 N-m (3.9 kgf-m,
28 Ibf-ft)

SELF-LOCKING NUT

10 x 1.25 mm
54 N-m (5.5 kgf-m,
40 Ibf-ft)
Replace.

TRANSMISSION STOP
COLLAR

43. Remove the wire harness cover and grommet, then

remove the three way catalytic converter (TWC).

SELF-LOCKING NUT

10 x 1.25 mm

33 N-m (3.4 kgf-m,
25 Ibf-ft)

Replace.

GROMMET

WIRE HARNESS
COVER

GASKET

Replace.

TWC

6 x 1.0 mm
9.8 N-m (1.0 kgf-m,
7.2 Ibf-ft)

SELF-LOCKING NUT
8 x 1.25 mm
22 N-m (2.2 kgf-m, 16 Ibf-ft)

Replace.
