Acura RL (1996-2004 year). Manual - part 243





Stereo Sound System

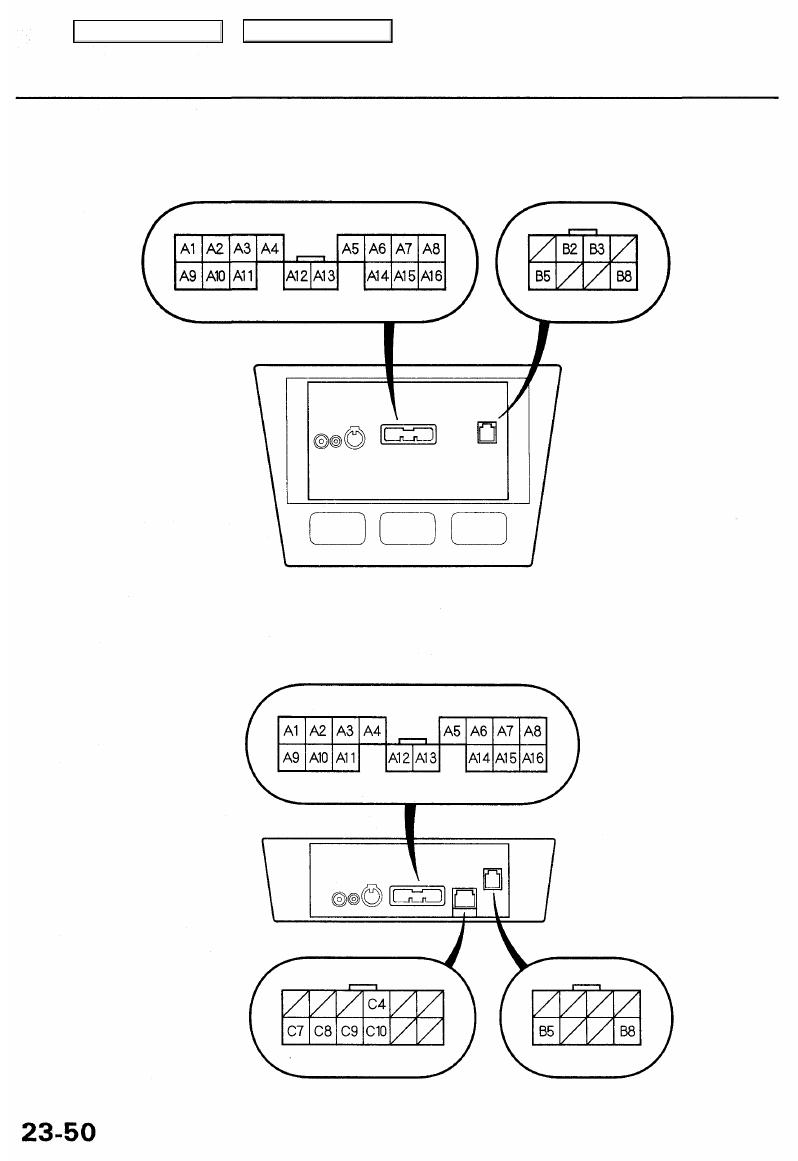

Audio Unit Terminals

'02-03 Models Without Navigation System:

'02-03 Models With Navigation System:

Main Menu

Table of Contents

Cavity

Wire

Connects to

A1

A2

A3

A4

A5

A6

A7

A8

A9

A10

A11

A12

A13

A14

A15

A16

BLU

WHT

RED/BLK

WHT/YEL

WHT/RED

YEL/BLU

ORN

YEL

BRN

BLK

PNK

RED

GRN/RED

BLK

GRN

RED

Output (Right front +)

Output (Left front +)

Lights-on signal

Constant power

ACC (Main stereo power
supply)

Stereo amplifier (power)

Output (Left rear +)

Output (Right rear +)

Output (Right front -)

Output (Left front -)

OnStar system interface unit
(Cellular phone)

Dash lights brightness

Radio remote switch

Ground (G403)

Output (Left rear-)

Output (Right rear-)

*

2

B2

*

2

B3

B5

B8

WHT

BLU/RED

BLK

BLU or GRN*

1

OnStar control unit (Line in +)

OnStar control unit (Line in -)

Ground (G401,G402)

Multiplex control unit (pas-
senger's)

Terminal B1, B4, B6 and B7 are not used.

C4

C7

*

1

C8

*

1

C9

C10

WHT

LT GRN

BLU/RED

WHT

BLK

Navigation unit

Navigation unit

OnStar control unit (Line in -)

OnStar control unit (Line in +)

Navigation unit

Terminal C1, C2, C3, C5, C6, C11 and C12 are not used.

*1: With navigation system (USA)
*2: Without navigation system (USA)

Main Menu

Table of Contents

OnStar System ('02-03 Models USA)

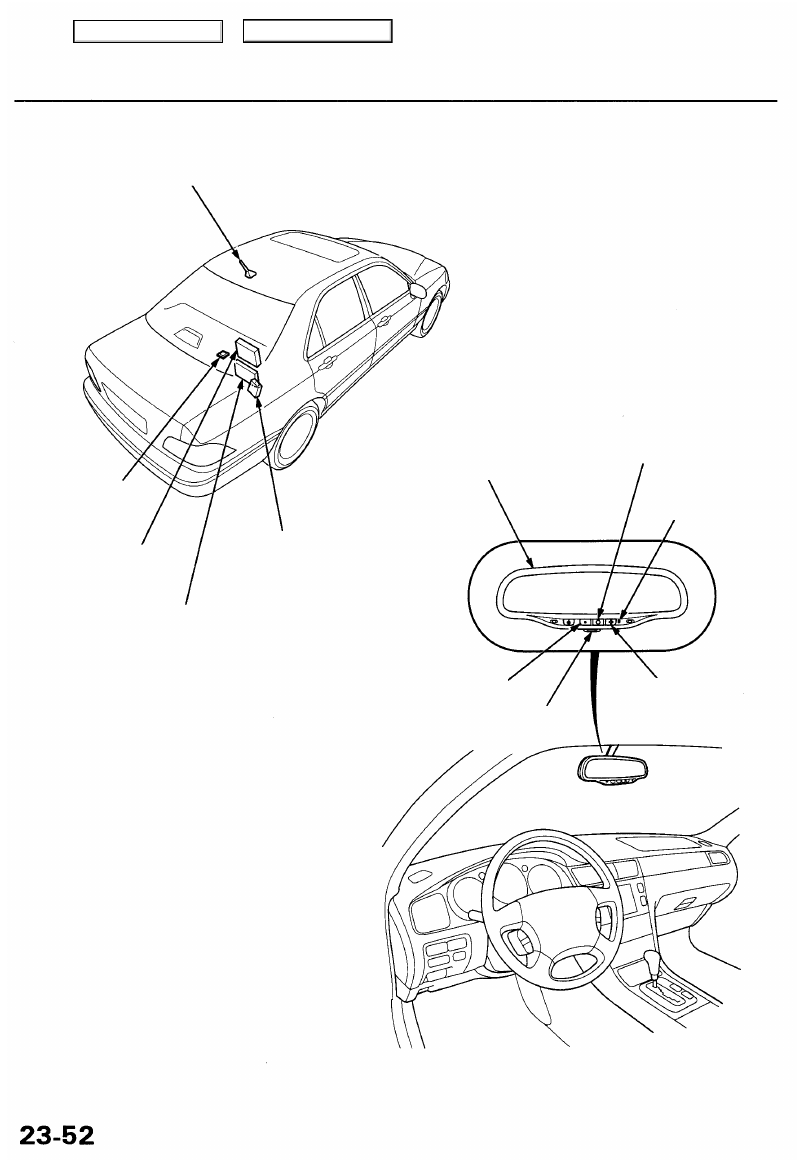

Component Location Index

CELLULAR PHONE ANTENNA
Replacement, page

23-67

ONSTAR SYSTEM
GPS ANTENNA

ONSTAR CONTROL UNIT

Input Test, page

23-59

ONSTAR SYSTEM INTERFACE

UNIT
Input Test, page

23-62

ONSTAR SYSTEM RADIO

FREQUENCY MODULATOR
UNIT
Input Test, page

23-64

ONSTAR BUTTONS and
MICROPHONE/AUTOMATIC
DIMMING MIRROR
OnStar Buttons and
Microphone Input Test,
Pag

23-66

ONSTAR BUTTON

DOT BUTTON

MICROPHONE

EMERGENCY BUTTON

ONSTAR INDICATOR

Main Menu

Table of Contents

Description

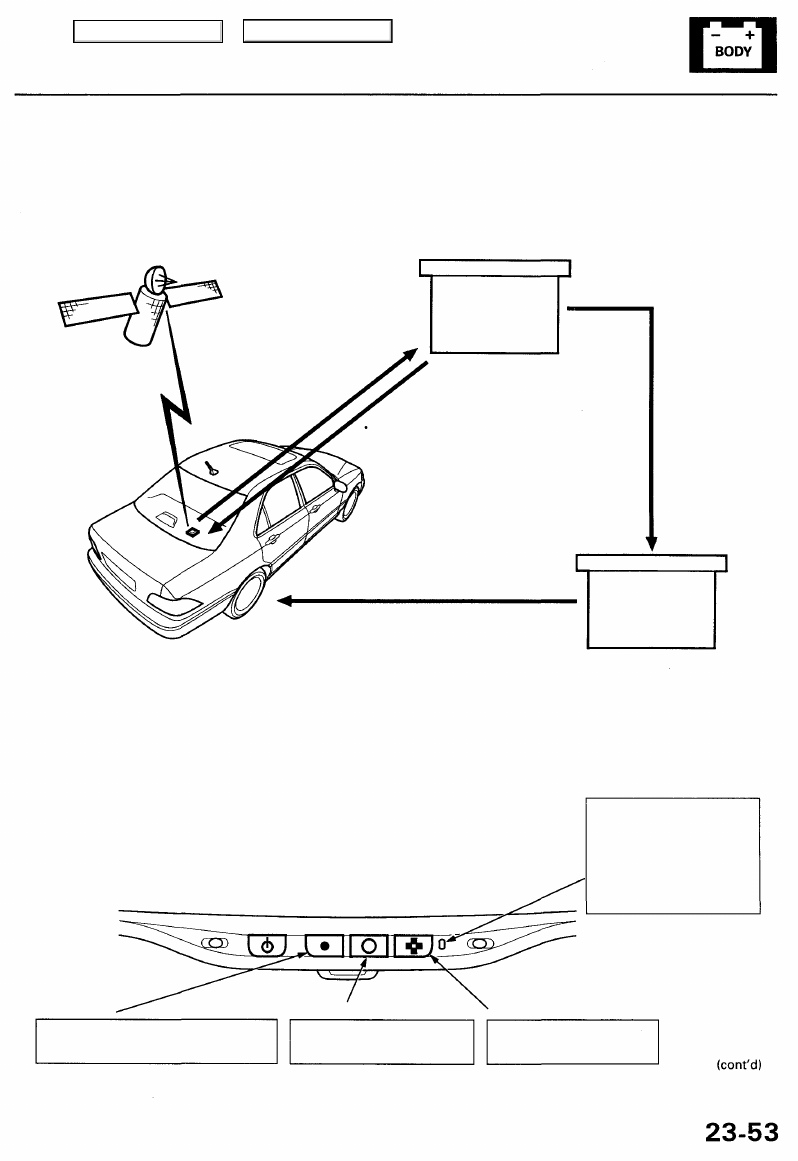

Basic operation:

1. OnStar system is activated.

2. Data is transmitted to service provider.

GPS SATELLITES

Two-way cellular communication
with call center.

Dispatch
Rescue/Police

911 CALL
CENTER

3. Call center associate makes appropriate response:

— Accident/Emergency notification (Police, Fire and EMS, etc.)

— Airbag deployment (Accident)

— Roadside assistance

— Stolen vehicle tracking

— Remote door lock/unlock command

— Misplaced vehicle (Flashes parking lights/honks horn)

— Route guidance

— Ride Assist

— Concierge services/convenience

Buttons and indicator:

DOT BUTTON

ONSTAR INDICATOR

Solid Green Light: System OK
Flashing Green Light: Call in
progress
Solid Red Light: System
malfunction
Flashing Red Light: Call
in progress, but malfunction
in system exist.

ONSTAR BUTTON

EMERGENCY BUTTON

Activation and termination
of voice recognition

(VR) for virtual advisor and cellular phone.

Used to connect to call

center (voice based information
service).

Used for emergencies.
Emergency calls have priority

over all others.

ONSTAR CALL
CENTER
(Human Advisor)

Requests for
dispatch

Main Menu

Table of Contents
