203-36
2004 American Honda Motor Co., Inc.

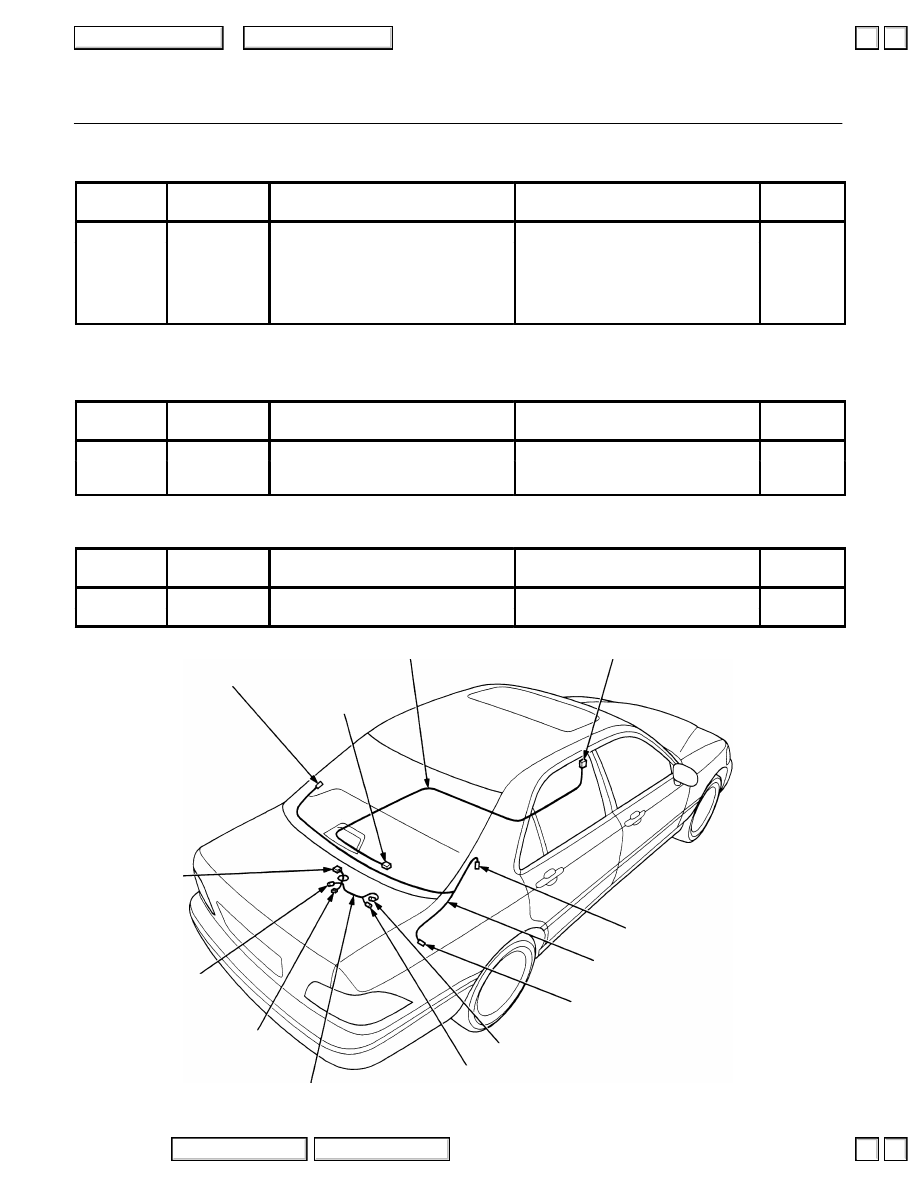

Connector to Harness Index
Fuel Unit Wire Harness
Connector
or Terminal
Cavities/
Color
Location
Connects to
Notes
C669
10-GRY
Front of trunk
Left side wire harness
C722
2-BRN
Middle of fuel tank
Fuel pump (FP)
C723
3-BRN
Middle of fuel tank
Fuel tank unit
C724
2-ORN
On right half of rear cross beam
ABS left rear wheel sensor
*1
C724
4-ORN
On right half of rear cross beam
ABS left rear wheel sensor
*2
C725
2-ORN
On right half of rear cross beam
ABS right rear wheel sensor
*1: ’96-’99
*2: ’00-’04
Rear Window Defogger Wire Harness
Connector
or Terminal
Cavities/
Color
Location
Connects to
Notes
C731
1-BLK
Right C-pillar
Rear window defogger connector A
C732
2-BRN
Right side of trunk
Rear window defogger coil connector B
C733
1-BLK
Left C-pillar
Rear window defogger connector B
Audio Sub-harness (BOSE sound system)
Connector
or Terminal
Cavities/
Color
Location
Connects to
Notes
C484
10-GRY
Under middle of dash
Main wire harness
*1
C632
10-GRY
Front of trunk
Right side wire harness
*1
*1: ’97-’04
C733
C632
AUDIO SUB-HARNESS
C484
C731
REAR WINDOW DEFOGGER
WIRE HARNESS
C732
C724
C725
FUEL UNIT WIRE HARNESS
C723
C722
C669
▲
▼
▲
▼
