＊０５

ＳＮＲ９ＡＮＤＪ３６１００００００００ＦＡＡＴ１４

−

Voice control does not work/respond

YES

23-123

NAVIGATION UNIT CONNECTOR D (5P)

NAVI GUIDE (GRN)

NOTE:

• Check the vehicle battery condition first.
• Make sure that the correct DVD color and version are

installed.

• Check any official Honda service website for more

service information about the navigation system.

• Check the connector for poor connection or loose

terminals.

• Before troubleshooting, make sure you have the

navigation system 4-digit anti-theft code.

• After troubleshooting, enter the navigation system

anti-theft code.

Before assuming that a voice complaint is hardware
related, ensure that the voice control system is being
operated correctly.

• Make sure you are on the correct screen when trying

to issue a voice command. For instance, the
command ‘‘Find the nearest Italian Restaurant’’ only
works on a Map screen (See the Navigation System
Manual for a complete list of allowed voice
commands for the information being displayed.).

• Close the windows, moonroof, and doors.
• Set the fan speed to low (1 or 2).
• Adjust the air flow from the air conditioning vents so

that they do not blow against the microphone on the
ceiling.

• Pause after pressing the navigation TALK button,

then give a voice command clearly in a natural
speaking voice. If the system cannot recognize your
command, speak louder.

• If the microphone picks up voices other than yours,

the system may not interpret your voice commands
correctly.

• If you speak a command with something in your

mouth, or your voice is too husky, the system may
misunderstand your command.

• Compare the system operation with a known-good

vehicle. Have more than one person test the system
operation. If the known-good vehicle performs the
same, it is a characteristic of the system.

1. Turn the ignition switch to ON (II).

2. Go into the Diagnostic Menu and use the Mic Level

test under Functional Setup (see page 23-147) to
check the operation of the navigation TALK and
navigation BACK buttons.

Go to step 10.

Go to step 3.

3. Turn the ignition switch to LOCK (0).

4. Do the voice control switch test (see page 23-156).

Go to step 5.

Replace the voice control switch.

5. Disconnect the cable reel 20P connector and

navigation unit connector D (5P).

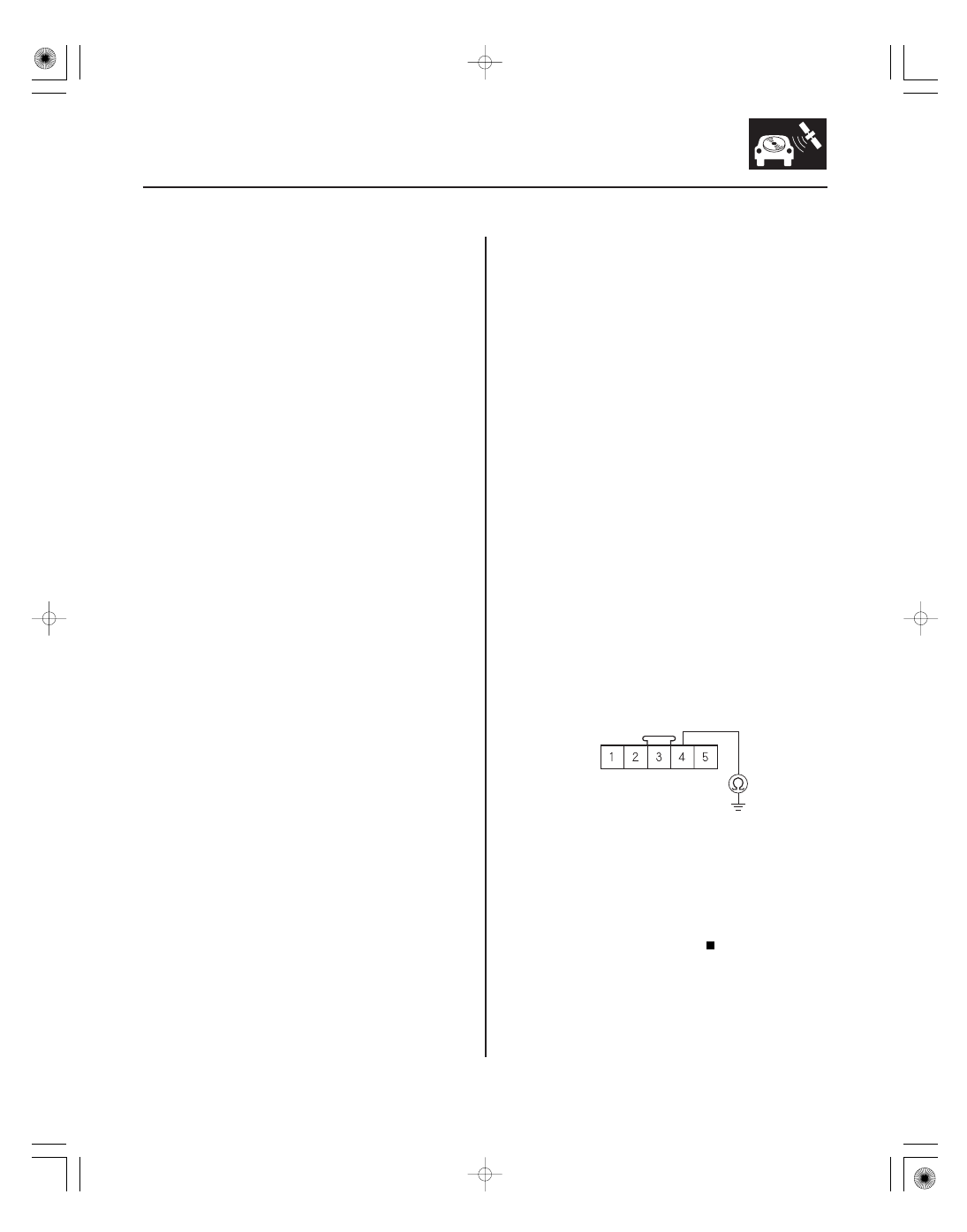

6. Check for continuity between body ground and

navigation unit connector D (5P) terminal No. 4.

Repair short to body ground in the wire

between the navigation unit and the voice control
switch, or replace the cable reel.

Go to step 7.

Wire side of female terminals

Ar e the navigation T ALK and navigation BACK
buttons oper ational?

Is the voice contr ol switch OK ?

Is ther e continuity?

08/08/21 14:07:26 61SNR030_230_0126

＊０６

＊０７

−

YES

23-124

Navigation System

NAVIGATION UNIT CONNECTOR D (5P)

CABLE REEL 20P CONNECTOR

NAVI GUIDE (GRY)

NAVI GUIDE (GRN)

NAVIGATION UNIT CONNECTOR B (22P)

CABLE REEL 20P CONNECTOR

AUDIO REMOTE
GND (BRN)

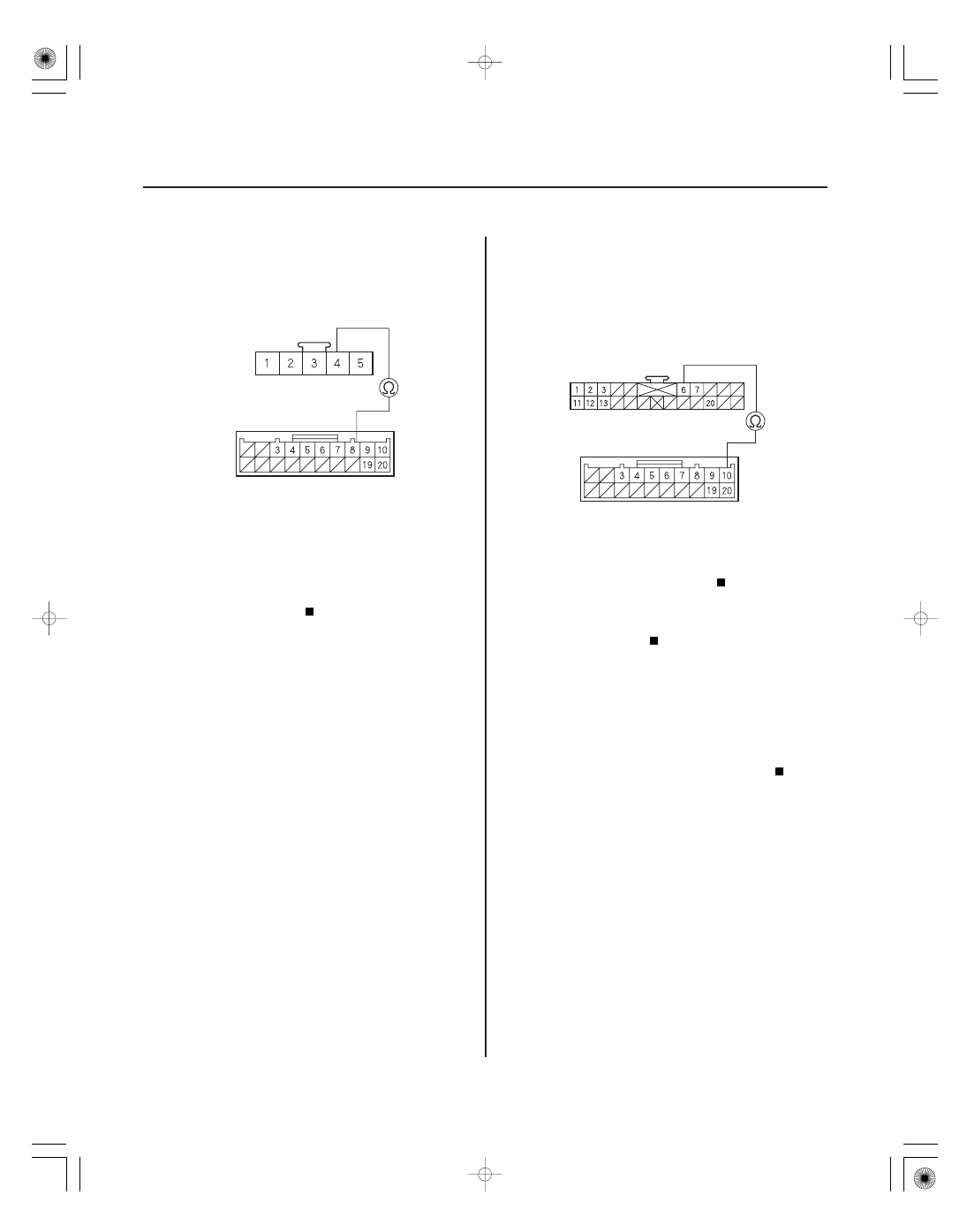

7. Check for continuity between navigation unit

connector D (5P) terminal No. 4 and cable reel 20P
connector terminal No. 8.

Go to step 8.

Repair open in the wire between the

navigation unit and the voice control switch, or
replace the cable reel.

8. Disconnect navigation unit connector B (22P).

9. Check for continuity between navigation unit

connector B (22P) terminal No. 6 and cable reel 20P
connector terminal No. 10.

Replace the navigation unit.

Repair open in the wire between the

navigation unit and the voice control switch, or
replace the cable reel.

10. Use the Mic Level diagnostic under Functional

Setup (see page 23-147) to check the operation of
the microphone.

Check the operation of the voice control

system (see the Navigation System Manual).

Go to step 11.

11. Turn the ignition switch to LOCK (0).

12. Disconnect the microphone 3P connector (see page

23-157).

13. Disconnect navigation unit connector D (5P).

Wire side of female terminals

Terminal side of male terminals

Wire side of female terminals

Terminal side of male terminals

Is ther e continuity?

Is the micr ophone oper ational?

08/08/21 14:07:27 61SNR030_230_0127

＊０８

＊０９

＊１０

＋

−

YES

From terminal

To terminals

YES

Navigation

unit

connector

Microphone

connector

Wire

color

YES

23-125

NAVIGATION UNIT CONNECTOR D (5P)

MIC ADPT (ORN)

MIC SIG

(YEL)

NAVIGATION UNIT CONNECTOR D (5P)

MICROPHONE 3P CONNECTOR

NAVIGATION UNIT CONNECTOR D (5P)

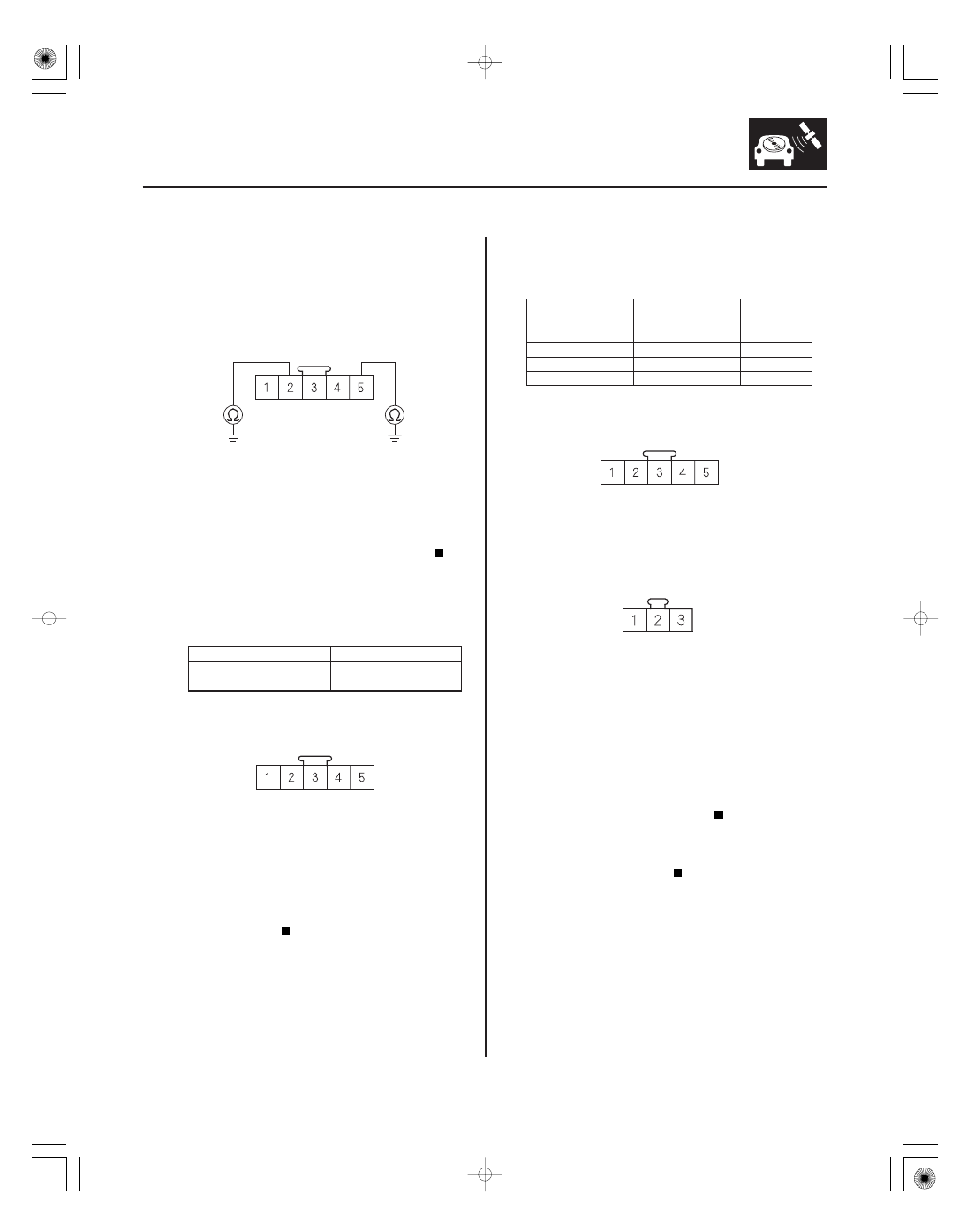

14. Check for continuity between body ground and

navigation unit connector D (5P) terminal No. 2 and
No. 5 individually.

Repair short to body ground in the wire(s)

between navigation unit and the microphone.

Go to step 15.

15. Check for continuity between navigation unit

connector D (5P) according to the table.

D3, D5

Short in the wire(s) between the navigation

unit and the microphone. Replace the affected
shielded harness.

Go to step 16.

16. Check for continuity between navigation unit

connector D (5P) and microphone 3P connector
according to the table.

BRN

YEL

ORN

Substitute a known-good microphone

(see page 23-157), then reconnect all of the
connectors, and recheck. If the symptom/indication
goes away, replace the original microphone. If the
symptom/indication is still present, replace the
navigation unit (see page 23-155).

Repair open in the wire(s) between the

navigation unit and the microphone. Replace the
affected shielded harness.

Wire side of female terminals

Wire side of male terminals

Wire side of female terminals

Is ther e continuity?

Is ther e continuity between any of the ter minals?

Is ther e continuity?

08/08/21 14:07:27 61SNR030_230_0128

ＳＮＲ９ＡＮＤＪ３６１００００００００ＦＡＡＴ０３

ＳＮＲ９ＡＮＤＪ３６１００００００００ＦＡＡＴ０８

−

Vehicle position icon constantly leaves road,
moves erratically, or is displayed very far
from actual position

Vehicle icon wanders across the map when
driving (does not follow a displayed road) or
map or vehicle ICON spins

YES

23-126

Navigation System

NOTE:

• Check the vehicle battery condition first.
• Make sure that the correct DVD color and version are

installed.

• Check any official Honda service website for more

service information about the navigation system.

• Check for aftermarket accessories.

1. Check the GPS icon on the navigation picture.

Do the troubleshooting for GPS icon is white

or not shown (see page 23-122).

Go to step 2.

2. Go into the Diagnostic Menu, and use the Yaw Rate

test (see page 23-144) to check the yaw rate sensor.

3. Go into the Diagnostic Menu and use the Car Status

test (see page 23-141) to check the vehicle speed
pulse.

The problem may be a normal characteristic.

Check to see if the problem occurs in the same
place. If it does, the problem could be in the
database. Compare to a known-good vehicle under
the same conditions. If you can duplicate the
problem, report it. Refer to the client Assistance
section of the Navigation User’s Guide, ‘‘Reporting
Errors’’.

If the problem is the yaw rate sensor, replace

the navigation unit (see page 23-155). If the
problem is the vehicle speed pulse, troubleshoot
the vehicle speed signal circuit.

NOTE:

• Check the vehicle battery condition first.
• This symptom is usually caused by a defective yaw

rate sensor. Perform this diagnostic when the vehicle
is cold and warm.

• Also refer to symptom troubleshooting for GPS icon

is white or not shown (see page 23-122).

1. Go into the Diagnostic Menu, and use the Yaw Rate

test (see page 23-144).

The system is OK.

Replace the navigation unit (see page 23-155).

Is the GPS icon on the map scr een?

Ar e the yaw r ate sensor and vehicle speed pulse
OK ?

Ar e the values cor r ect?

08/08/21 14:07:27 61SNR030_230_0129
