Cavity
Wire
Test condition
Test: Desired result
Possible cause if desired result
is not obtained
Cavity
Wire
Test condition
Test: Desired result
Possible cause if desired result
is not obtained
22-331

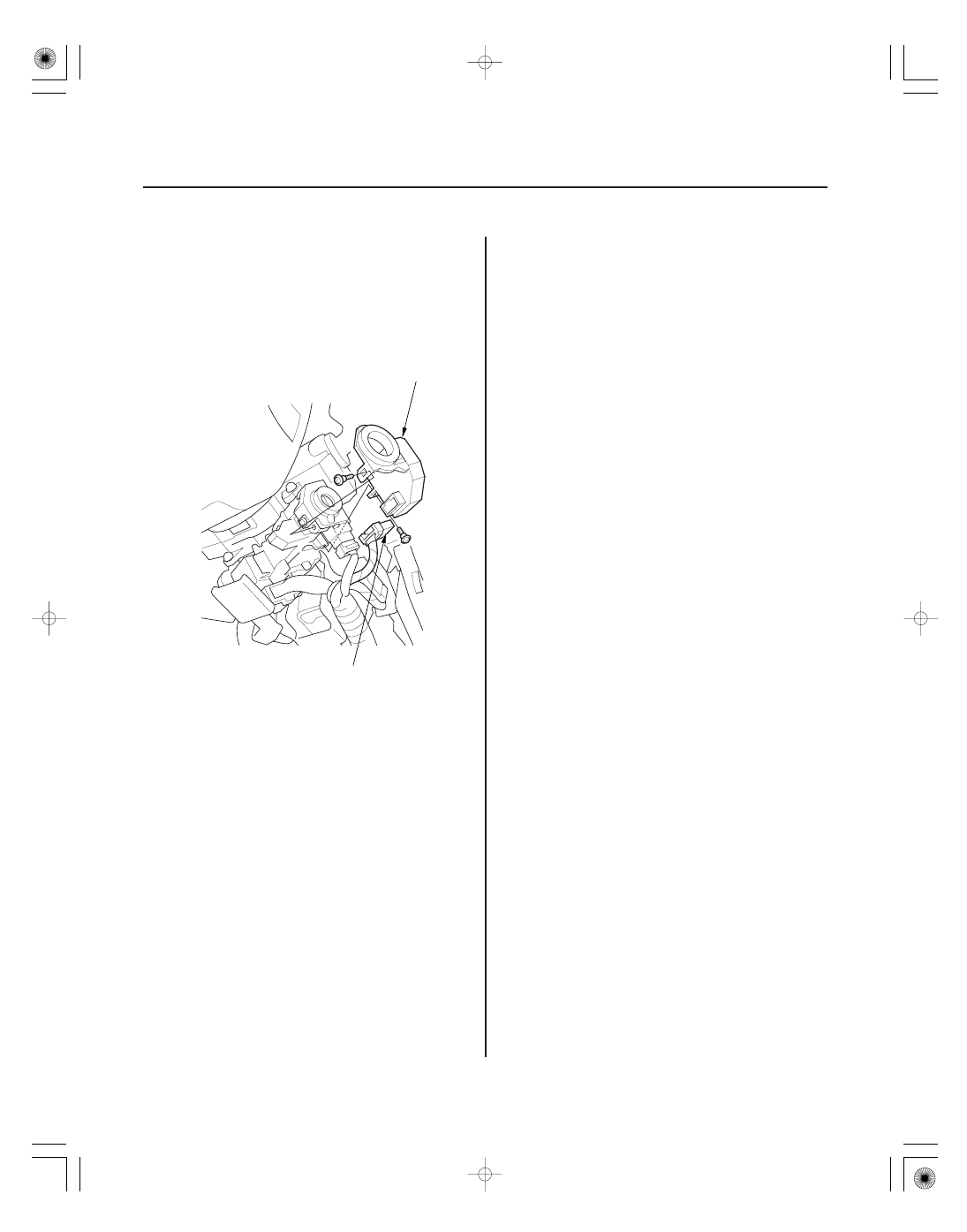

5. With the connector still disconnected, do these input tests at the following connector.
• If any test indicates a problem, find and correct the cause, then recheck the system.
• If all the input tests prove OK, go to step 6.
•
•
•
•
1
ORN
Under all
conditions
Measure the voltage between
immobilizer-keyless control unit
7P connector terminals No. 1
and body ground:
There should be battery voltage.
Blown No. 23 (10 A) fuse in
the under-hood fuse/relay
box
An open in the wire
2
YEL
Ignition switch ON
(II)
Measure the voltage to ground:
There should be battery voltage.
Blown No. 2 (15 A) fuse in the
under-dash fuse/relay box
An open in the wire
6. Reconnect the connector to the immobilizer-keyless control unit, and do these input tests at the following
connector.
• If any test indicates a problem, find and correct the cause, then recheck the system.
• If all the input tests prove OK, the immobilizer-keyless control unit must be faulty; replace it.
•
•
•
•
•
7
BLK
Under all
conditions
Measure the voltage to ground:
There should be less than 0.5 V.
Poor ground (G101)
An open in the wire
6
PNK
Ignition key
inserted into the
ignition switch
Measure the voltage to ground:
There should be less than 1 V.
Poor ground (G504)
Faulty ignition key switch
An open in the wire
