Acura CSX. Manual - part 455

０３

０１

ＳＮＲ９Ａ００Ｊ４６１６６４１４５５０ＫＢＡＴ００

Special Tools Required

20-137

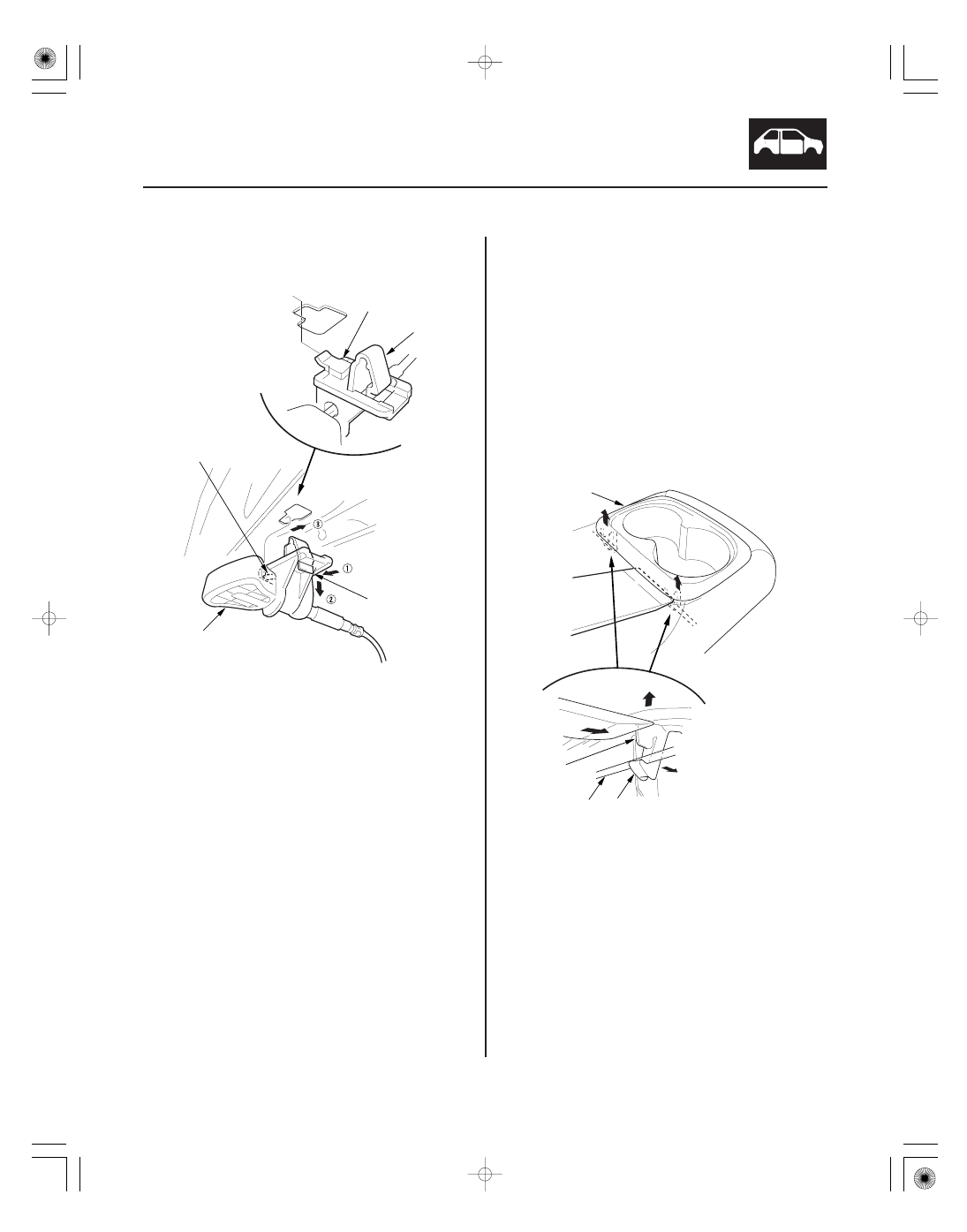

Rear Seat Armrest Beverage Holder
Replacement

4. Push the tab (A) to release the hook (B), and rotate

the seat-back release lever (C) clockwise to release
the hook (D).

5. Install the release lever/cable in the reverse order

of removal, and note these items:

• Make sure the release cable is connected

securely.

• Make sure the seat-back locks securely and

unlocks properly.

KTC trim tool set SOJATP2014

NOTE:

• Use the appropriate tool from the KTC trim tool set to

avoid damage when removing components.

• Take care not to tear or damage the seat covers.

1. Using a trim tool, push on the bottom ribs (A) of the

rear hooks (B) to pull up the beverage holder (C),
then release the hooks from the wire (D).

08/08/21 15:04:05 61SNR030_200_0139

07AAC-SEPA240

０３

０１

ＳＮＲ９Ａ００Ｊ４６１６６４１４５５０ＫＢＡＴ００

Special Tools Required

20-137

Rear Seat Armrest Beverage Holder
Replacement

4. Push the tab (A) to release the hook (B), and rotate

the seat-back release lever (C) clockwise to release
the hook (D).

5. Install the release lever/cable in the reverse order

of removal, and note these items:

• Make sure the release cable is connected

securely.

• Make sure the seat-back locks securely and

unlocks properly.

KTC trim tool set SOJATP2014

NOTE:

• Use the appropriate tool from the KTC trim tool set to

avoid damage when removing components.

• Take care not to tear or damage the seat covers.

1. Using a trim tool, push on the bottom ribs (A) of the

rear hooks (B) to pull up the beverage holder (C),
then release the hooks from the wire (D).

08/08/21 15:04:05 61SNR030_200_0139

07AAC-SEPA240

０２

０１

０２

ＳＮＲ９Ａ００Ｊ４６１６６４５３０５１ＫＢＡＴ００

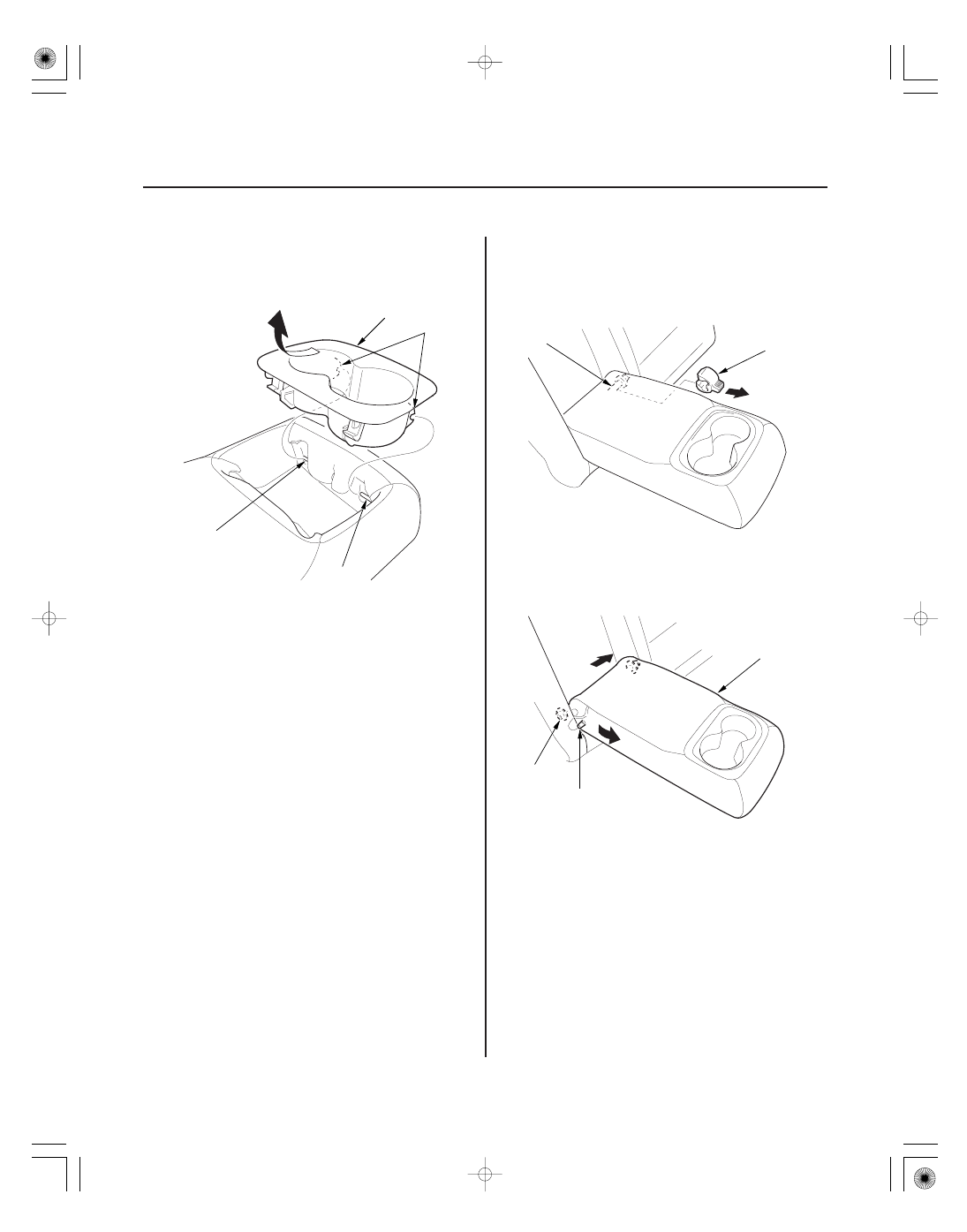

20-138

Seats

Rear Seat Armrest Replacement

2. Release the front hooks (A) from the wire (B), then

remove the beverage holder (C).

3. Install the beverage holder in the reverse order of

removal. Make sure the front hooks are installed
securely to the wire, then push down on the
beverage holder and install the rear hooks into the
wire securely.

NOTE: Take care not to tear the seams or damage the
seat covers.

1. Remove the clip (A) from the left portion of the

armrest pivot (B).

2. Slide the armrest (A) toward the driver’s side of the

vehicle, and remove the pivot shaft (B) from the
collar (C) on the right side of the vehicle by pulling
back on the armrest.

08/08/21 15:04:05 61SNR030_200_0140

０２

０１

０２

ＳＮＲ９Ａ００Ｊ４６１６６４５３０５１ＫＢＡＴ００

20-138

Seats

Rear Seat Armrest Replacement

2. Release the front hooks (A) from the wire (B), then

remove the beverage holder (C).

3. Install the beverage holder in the reverse order of

removal. Make sure the front hooks are installed
securely to the wire, then push down on the
beverage holder and install the rear hooks into the
wire securely.

NOTE: Take care not to tear the seams or damage the
seat covers.

1. Remove the clip (A) from the left portion of the

armrest pivot (B).

2. Slide the armrest (A) toward the driver’s side of the

vehicle, and remove the pivot shaft (B) from the
collar (C) on the right side of the vehicle by pulling
back on the armrest.

08/08/21 15:04:05 61SNR030_200_0140
