Acura CSX. Manual - part 404





SNR9AC7K801000R1212FAAT00

DTC

Appropriate Wheel Speed Sensor

YES

NO

YES

NO

DTC 12-12:

DTC 14-12:

DTC 16-12:

DTC 18-12:

19-121

19-121

5. Turn the ignition switch to LOCK (0).

6. Check that the appropriate wheel speed sensor is

properly mounted (see page 19-173).

12-11

Right-front

14-11

Left-front

16-11

Right-rear

18-11

Left-rear

Check for loose terminals in the VSA

modulator-control unit 37P connector. If necessary,
substitute a known-good VSA modulator-control
unit (see page 19-171), and retest.

Reinstall the wheel speed sensor, and check

the mounting position (see page 19-173).

1. Turn the ignition switch to ON (II).

2. Clear the DTC with the HDS.

3. Test-drive the vehicle. Drive the vehicle at 20 km/h

(13 mph) or more, and go a distance of 100 m
(328 ft) or more.

NOTE: Drive the vehicle on the road, not on a lift.

4. Check for DTCs with the HDS.

Go to step 5.

Intermittent failure, the system is OK at this

time. Check for loose terminals between the wheel
speed sensor 2P connector and the VSA modulator-
control unit 37P connector. Refer to intermittent
failures troubleshooting (see page 19-98).

5. Turn the ignition switch to LOCK (0).

6. Disconnect the VSA modulator-control unit 37P

connector (see step 2 on page 19-171).

Right-front Wheel Speed Sensor

Short to the Other Sensor Circuit

Left-front Wheel Speed Sensor

Short to the Other Sensor Circuit

Right-rear Wheel Speed Sensor

Short to the Other Sensor Circuit

Left-rear Wheel Speed Sensor

Short to the Other Sensor Circuit

Is the wheel speed sensor installation OK ?

Is DT C 12-12, 14-12, 16-12, and/ or 18-12
indicated?

08/08/21 15:05:52 61SNR030_190_0121

*01

DTC

VSA Modulator-control Unit 37P

Connector Terminal

Other Terminals

YES

NO

Appropriate

Terminal

19-122

VSA System Components

VSA MODULATOR-CONTROL UNIT 37P CONNECTOR

DTC 12-12

DTC 14-12

DTC 16-12

DTC 18-12

RR-GND (BLU)

FR-GND (PNK)

RL-GND (PUR)

FR-GND (PNK)

RR-GND
(BLU)

RL-GND (PUR)

RL-GND (PUR)

FR-GND (PNK)

RR-GND (BLU)

FR-GND (PNK)

RL-GND (PUR)

FL-GND (RED)

FL-GND (RED)

FL-GND (RED)

FL-GND (RED)

RR-GND (BLU)

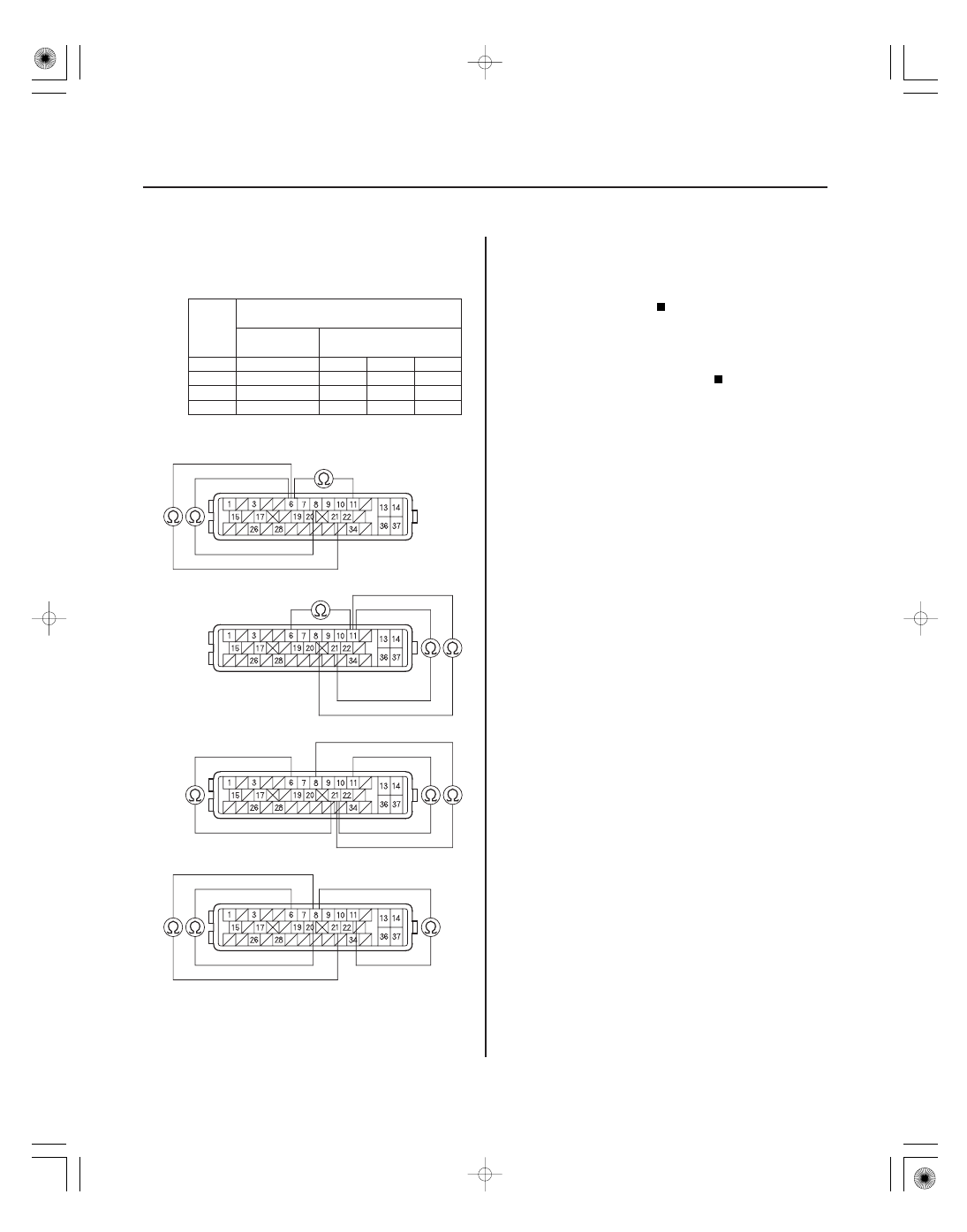

7. Check for continuity between the appropriate VSA

modulator-control unit 37P connector wheel speed
sensor GND terminals (see table).

12-12

No. 6

14-12

No. 11

16-12

No. 21

18-12

No. 8

Repair short in the wires between the

appropriate wheel speed sensor and the VSA
modulator-control unit.

Check for loose terminals in the VSA

modulator-control unit 37P connector. If necessary,
substitute a known-good VSA modulator-control
unit (see page 19-171), and retest.

No. 11

No. 21

No. 8

No. 6

No. 21

No. 8

No. 6

No. 11

No. 8

No. 6

No. 11

No. 21

Wire side of female terminals

Is ther e continuity?

08/08/21 15:05:53 61SNR030_190_0122

SNR9AC7K801000R1221FAAT00

DTC 12-21:

DTC 14-21:

DTC 16-21:

DTC 18-21:

YES

NO

DTC

Appropriate Wheel Speed Sensor

YES

NO

19-123

Right-front Wheel Speed Sensor

Installation Error

Left-front Wheel Speed Sensor

Installation Error

Right-rear Wheel Speed Sensor

Installation Error

Left-rear Wheel Speed Sensor

Installation Error

1. Test-drive the vehicle at 10 km/h (7 mph).

NOTE: Drive the vehicle on the road, not on a lift.

2. Check the RF, LF, RR, LR WHEEL SPEED in the VSA

DATA LIST with the HDS.

Intermittent failure, the system is OK at this

time. Check for loose terminals between the wheel
speed sensor 2P connector and the VSA modulator-
control unit 37P connector. Refer to intermittent
failures troubleshooting (see page 19-98).

Go to step 3.

3. Turn the ignition switch to LOCK (0).

4. Check that the appropriate wheel speed sensor is

properly mounted (see page 19-173).

12-21

Right-front

14-21

Left-front

16-21

Right-rear

18-21

Left-rear

Replace the appropriate wheel speed sensor

(see page 19-173).

Reinstall the wheel speed sensor, and check

the mounting position (see page 19-173).

Ar e all f our values the same?

Is the wheel speed sensor installation OK ?

08/08/21 15:05:53 61SNR030_190_0123

SNR9AC7K801000R1222FAAT00

SNR9AC7K801000R1223FAAT00

DTC 12-22:

DTC 14-22:

DTC 16-22:

DTC 18-22:

DTC 12-23:

DTC 14-23:

DTC 16-23:

DTC 18-23:

YES

NO

DTC

Appropriate Wheel Speed Sensor

YES

NO

YES

NO

DTC

Appropriate Wheel Speed Sensor

YES

NO

19-124

19-124

VSA System Components

Right-front Wheel Speed Sensor

Installation Error (30 km/h (19 mph) or More)

Left-front Wheel Speed Sensor

Installation Error (30 km/h (19 mph) or More)

Right-rear Wheel Speed Sensor

Installation Error (30 km/h (19 mph) or More)

Left-rear Wheel Speed Sensor

Installation Error (30 km/h (19 mph) or More)

Right-front Wheel Speed Sensor

Installation Error (0 to 15 km/h (0 to 9 mph))

Left-front Wheel Speed Sensor

Installation Error (0 to 15 km/h (0 to 9 mph))

Right-rear Wheel Speed Sensor

Installation Error (0 to 15 km/h (0 to 9 mph))

Left-rear Wheel Speed Sensor

Installation Error (0 to 15 km/h (0 to 9 mph))

1. Test-drive the vehicle between 30 km/h (19 mph)

and 50 km/h (31 mph) for 70 seconds or more.

NOTE: Drive the vehicle on the road, not on a lift.

2. Check the RF, LF, RR, LR WHEEL SPEED in the VSA

DATA LIST with the HDS.

Intermittent failure, the system is OK at this

time. Check for loose terminals between the wheel
speed sensor 2P connector and the VSA modulator-
control unit 37P connector. Refer to intermittent
failures troubleshooting (see page 19-98).

Go to step 3.

3. Turn the ignition switch to LOCK (0).

4. Check that the appropriate wheel speed sensor is

properly mounted (see page 19-173).

12-22

Right-front

14-22

Left-front

16-22

Right-rear

18-22

Left-rear

Replace the appropriate wheel speed sensor

(see page 19-173).

Reinstall the wheel speed sensor, and check

the mounting position (see page 19-173).

1. Test-drive the vehicle between 1 km/h (1 mph) and

15 km/h (9 mph).

NOTE: Drive the vehicle on the road, not on a lift.

2. Check the RF, LF, RR, LR WHEEL SPEED in the VSA

DATA LIST with the HDS.

Intermittent failure, the system is OK at this

time. Check for loose terminals between the wheel
speed sensor 2P connector and the VSA modulator-
control unit 37P connector. Refer to intermittent
failures troubleshooting (see page 19-98).

Go to step 3.

3. Turn the ignition switch to LOCK (0).

4. Check that the appropriate wheel speed sensor is

properly mounted (see page 19-173).

12-23

Right-front

14-23

Left-front

16-23

Right-rear

18-23

Left-rear

Replace the appropriate wheel speed sensor

(see page 19-173).

Reinstall the wheel speed sensor, and check

the mounting position (see page 19-173).

Ar e all f our values the same?

Is the wheel speed sensor installation OK ?

Ar e all f our values the same?

Is the wheel speed sensor installation OK ?

08/08/21 15:05:53 61SNR030_190_0124
