Acura CSX. Manual - part 282

→

−

→

−

→

−

→

−

→

−

→

−

→

−

→

−

→

−

→

−

→

−

→

−

→

−

→

−

→

−

→

−

→

−

→

−

Upshift: D Position

APP sensor A voltage: 1.3 V

APP sensor A voltage: 2.5 V

Fully-opened throttle
APP sensor A voltage: 4.4 V

Downshift: D Position

APP sensor A voltage: 1.3 V

APP sensor A voltage: 2.5 V

Fully-opened throttle
APP sensor A voltage: 4.4 V

14-209

14. Review each snapshot individually, and compare

the Shift Control, the APP Sensor A Voltage, and
the Vehicle Speed to the following table.

1st

2nd

18 km/h (9

11 mph)

2nd

3rd

35 km/h (18

22 mph)

3rd

4th

49 km/h (25

30 mph)

4th

5th

72 km/h (39

45 mph)

Lock-up ON

56 km/h (30

35 mph)

1st

2nd

30 km/h (15

19 mph)

2nd

3rd

59 km/h (30

37 mph)

3rd

4th

93 km/h (50

58 mph)

4th

5th

155

171 km/h (96

106 mph)

Lock-up ON

177

193 km/h (110

120 mph)

1st

2nd

64 km/h (34

40 mph)

2nd

3rd

100

112 km/h (62

70 mph)

3rd

4th

148

162 km/h (92

101 mph)

Lock-up OFF

54 km/h (29

34 mph)

5th

4th

57 km/h (29

35 mph)

4th

3rd

35 km/h (18

22 mph)

3rd

1st

13 km/h (4

8 mph)

Lock-up OFF

106

118 km/h (66

73 mph)

Lock-up OFF

173

189 km/h (108

117 mph)

5th

4th

182

198 km/h (113

123 mph)

4th

3rd

123

137 km/h (76

85 mph)

3rd

2nd

96 km/h (52

60 mph)

2nd

1st

52 km/h (26

32 mph)

15. Drive the vehicle in 4th or 5th gear with the shift

lever in S with the sequential sportshift mode, then
decelerate and downshift to 2nd gear by pressing
the paddle shifter

(downshift switch). The

vehicle should immediately begin to slow down
from the engine braking, then slow to a stop.

16. Shift to R, accelerate from a stop at full throttle

momentarily, and check for abnormal noise and
clutch slippage.

17. Park the vehicle on a slope (about 16-degrees),

apply the brake, and shift into P. Release the brake;
the vehicle should not move.

NOTE: Always use the brake to hold the vehicle,
when stopped on an incline in gear. Depending on
the grade of the incline, the vehicle could roll
backwards if the brake is released.

08/08/21 14:46:41 61SNR030_140_0211

０１

ＳＮＲ９ＡＡ１Ｅ１０４７４００００００ＦＥＡＴ００

−

Stall Speed rpm:
Specification: 2,150 rpm
Service Limit: 2,000

2,300 rpm

Problem

Probable causes

14-210

Automatic Transmission

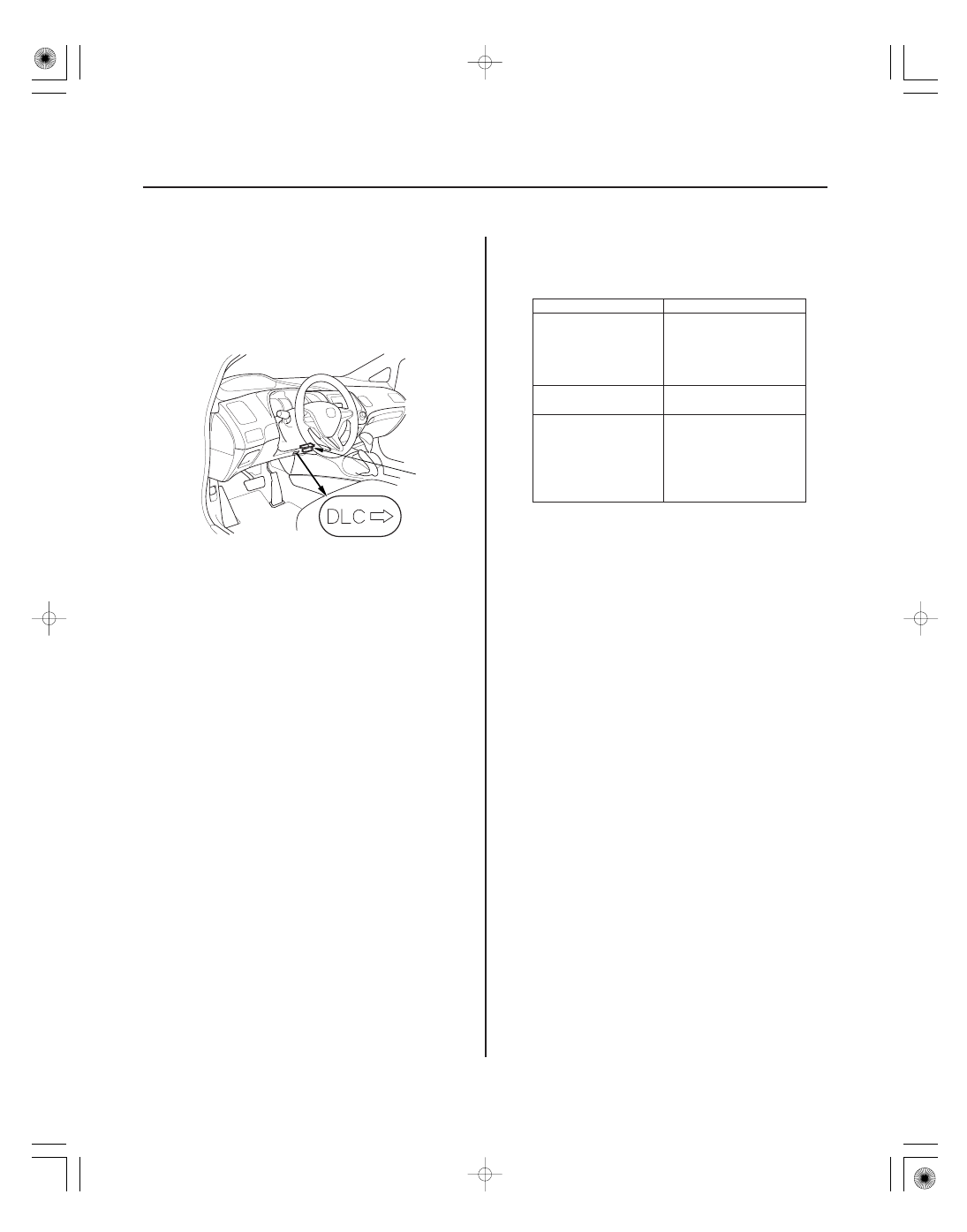

Stall Speed Test

1. Make sure the transmission fluid is filled to the

proper level (see page 14-231).

2. Apply the parking brake, and block all four wheels.

3. Connect the HDS to the DLC (A) located under the

driver’s side of the dashboard.

4. Turn the ignition switch to ON (II), and go to the A/T

Data List. Make sure the HDS communicates with
the PCM. If it does not, go to the DLC circuit
troubleshooting (see page 11-204).

5. Make sure the A/C switch is OFF.

6. Start the engine, and warm it up to normal

operating temperature (the radiator fan comes on).

7. Shift to D while pressing the brake pedal firmly,

then fully press the accelerator pedal for
6 to 8 seconds, and note the engine speed. Do not
move the shift lever or remove your foot off the
brake pedal while raising the engine speed.

8. Allow 2 minutes for cooling, then repeat the test in

S and R.

NOTE:

• Do not test the stall speed for more than

10 seconds at a time.

• The stall speed tests should be used for

diagnostic purposes only.

• Stall speed test results should be the same with

the shift lever in D, S, and R.

• Do not test the stall speed with the A/T oil

pressure gauges installed.

9. If the stall speeds are out of the service limit, the

problems and probable causes are listed in the
table.

•

•
•
•

•
•

•

Stall speed rpm high
in D, S, and R

ATF pump output
low
Clogged ATF strainer
Regulator valve stuck
Slipping clutch

Stall speed rpm high
in R

Slippage of 4th clutch

Stall speed rpm low
in D, S, and R

Engine output low
Engine throttle valve
closed
Torque converter
one-way clutch
slipping

08/08/21 14:46:42 61SNR030_140_0212

−

０３

＊０１

０２

ＳＮＲ９ＡＡ１Ｅ１０４１０８０００００ＦＥＡＴ００

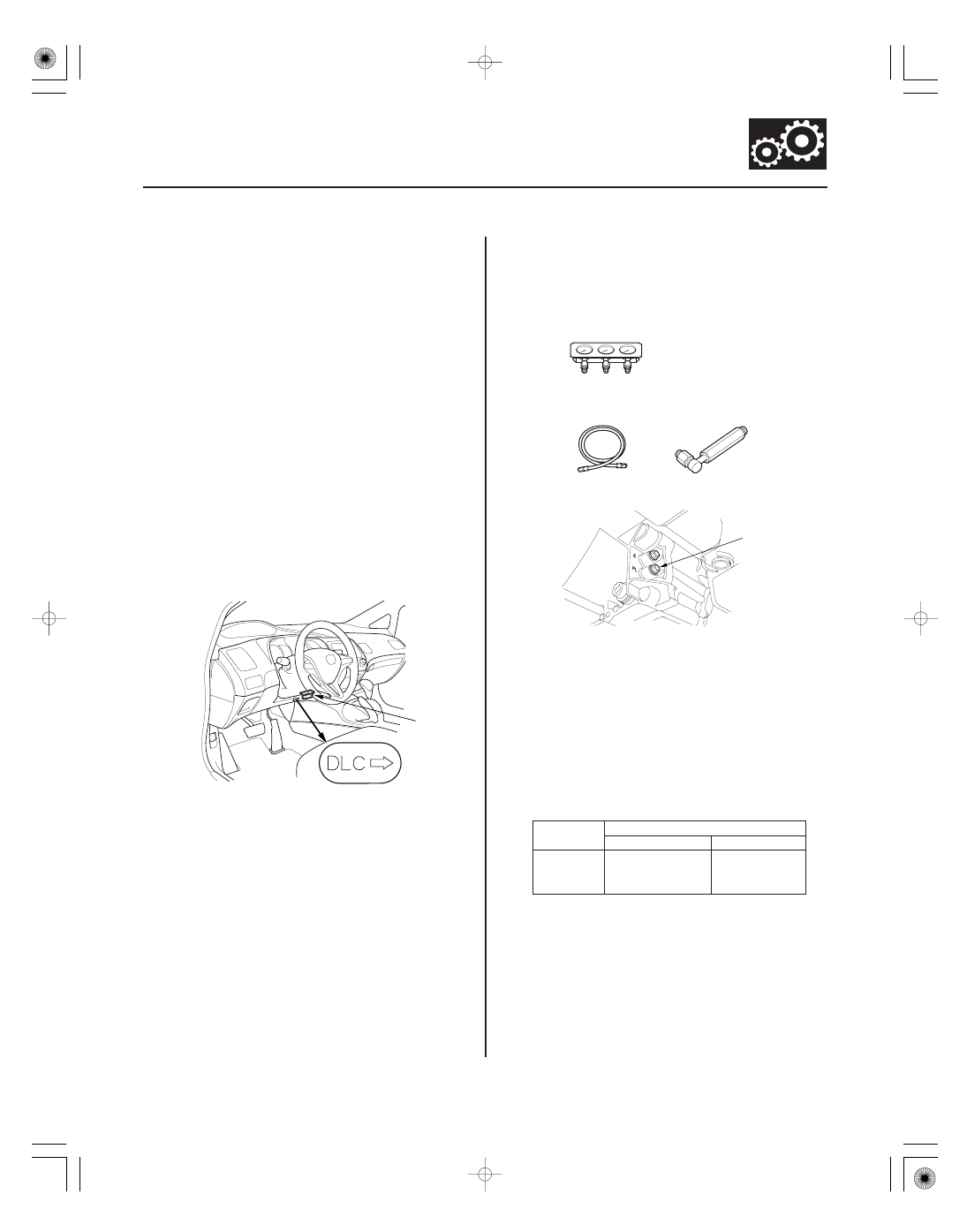

Special Tools Required

Pressure

Fluid Pressure

Standard

Service Limit

14-211

Pressure Test

A/T OIL PRESSURE
GAUGE SET
07406-0020401

A/T PRESSURE HOSE,
2,210 mm
07MAJ-PY4011A
(3 required)

A/T PRESSURE
HOSE ADAPTER
07MAJ-PY40120
(3 required)

• A/T oil pressure gauge set 07406-0020401
• A/T pressure hose, 2,210 mm 07MAJ-PY4011A
• A/T pressure hose adapter 07MAJ-PY40120

NOTE:

• Disable the VSA by pressing the VSA OFF switch (if

equipped).

• VSA DTC(s) may come on during the pressure test. If

the VSA(s) come on, clear the DTC(s) with the HDS.

1. Make sure the transmission fluid is filled to the

proper level (see page 14-231).

2. Raise the vehicle on a lift, or apply the parking

brake, block rear wheels, and raise the front of the
vehicle. Make sure it is securely supported.

3. Remove the splash shield.

4. Allow the front wheels to rotate freely.

5. Connect the HDS to the DLC (A) located under the

driver’s side of the dashboard.

6. Turn the ignition switch to ON (II). Make sure the

HDS communicates with the PCM. If it does not, go
to the DLC circuit troubleshooting (see page
11-204).

7. Connect the A/T oil pressure gauge to the line

pressure inspection port (A). Do not allow dust or
other foreign particles to enter the ports while
connecting the gauges.

8. Start the engine, and warm it up to normal

operating temperature (the radiator fan comes on).

9. Measure the line pressure at the line pressure

inspection port with the shift lever in P or N while
holding the engine speed at 2,000 rpm.

NOTE: Higher pressure may be indicated if
measurements are made in shift lever position
other than P or N.

Line

900

960 kPa

(9.2

9.8 kgf/cm ,

130

140 psi)

850 kPa
(8.7 kgf/cm ,
120 psi)

10. Turn the engine off, then disconnect the A/T oil

pressure gauge from the line pressure inspection
port.

11. Install the sealing bolt to the line pressure

inspection port with a new sealing washer, and
tighten the bolt to 18 N·m (1.8 kgf·m, 13 lbf·ft). Do
not reuse the old sealing washer.

08/08/21 14:46:42 61SNR030_140_0213

＋

−

０４

０５

Pressure

Fluid Pressure

Standard

Service Limit

14-212

Automatic Transmission

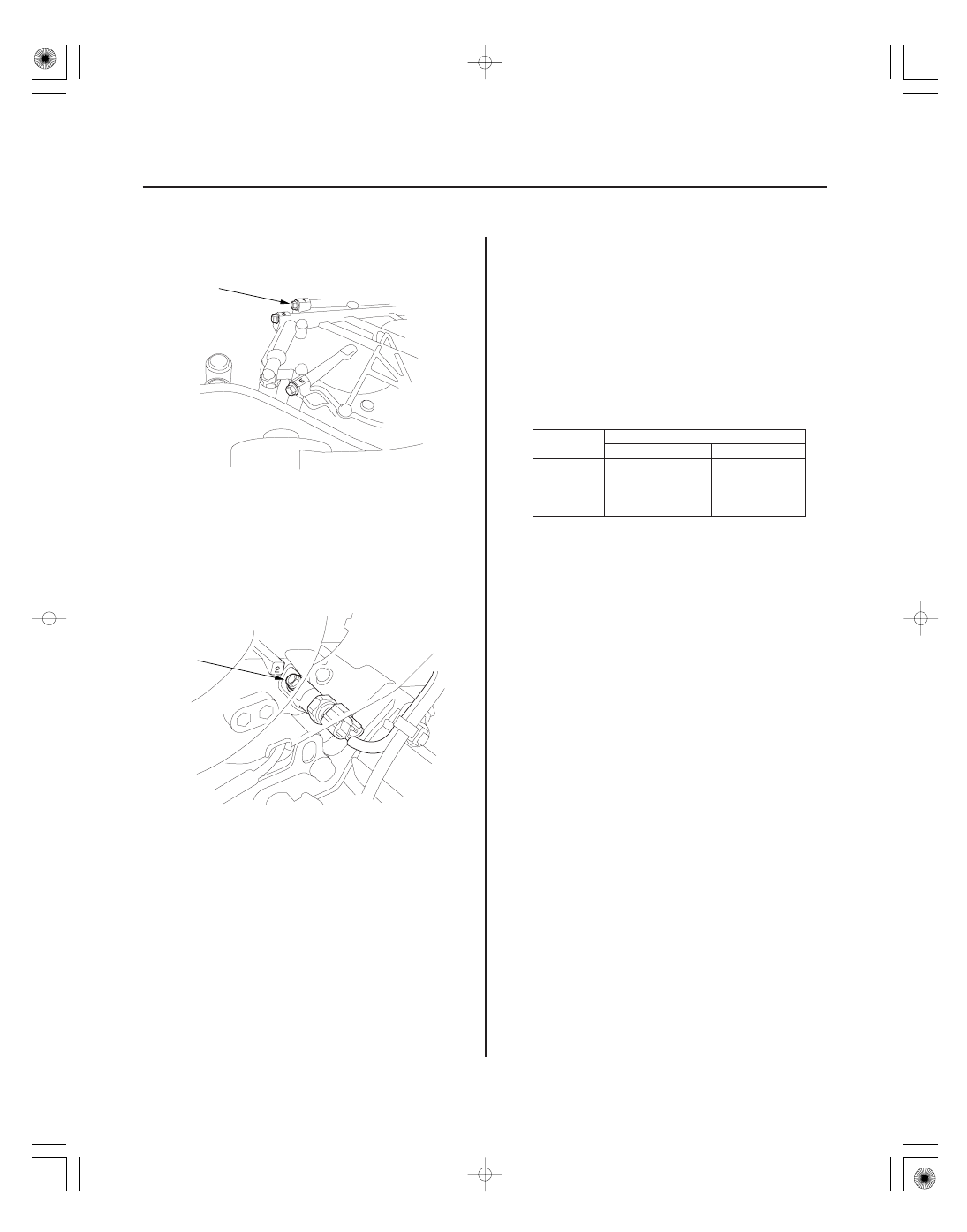

12. Connect the A/T oil pressure gauge to the 1st clutch

pressure inspection port (B).

13. Remove the intake air duct (see page 11-348) and

the air cleaner assembly (see page 11-345).

14. Remove the harness cover from its bracket, and

connect the A/T oil pressure gauge to the 2nd
clutch pressure inspection port (C). Then
temporarily install the air cleaner assembly and the
intake air duct.

15. Start the engine, and shift to S.

16. Shift to 1st gear by pressing the paddle shifter

(downshift switch) if needed, and measure the 1st
clutch pressure at the 1st clutch pressure
inspection port (B) while holding the engine speed
at 2,000 rpm.

17. Upshift to 2nd gear by pressing the paddle shifter

(upshift switch), and measure the 2nd clutch

pressure at the 2nd clutch pressure inspection port
(C) while holding the engine speed at 2,000 rpm.

1st clutch
(B)
2nd clutch
(C)

890

970 kPa

(9.1

9.9 kgf/cm ,

130

140 psi)

840 kPa
(8.6 kgf/cm ,
120 psi)

18. Turn the engine off, remove the air cleaner

assembly (see page 11-345) and the intake air duct
(see page 11-348), then disconnect the A/T oil
pressure gauge from the 1st and 2nd clutch
pressure inspection ports.

19. Install the sealing bolts to the 1st and 2nd clutch

pressure inspection ports with new sealing
washers, and tighten the bolts to 18 N·m (1.8 kgf·m,
13 lbf·ft). Do not reuse the old sealing washers.

20. Install the air cleaner assembly (see page 11-345)

and the intake air duct (see page 11-348).

08/08/21 14:46:43 61SNR030_140_0214
