Acura CSX. Manual - part 201

０１

ＳＮＲ９ＡＡ８Ｅ３４１５０３３９０９１ＭＦＡＴ００

13-28

Manual Transmission

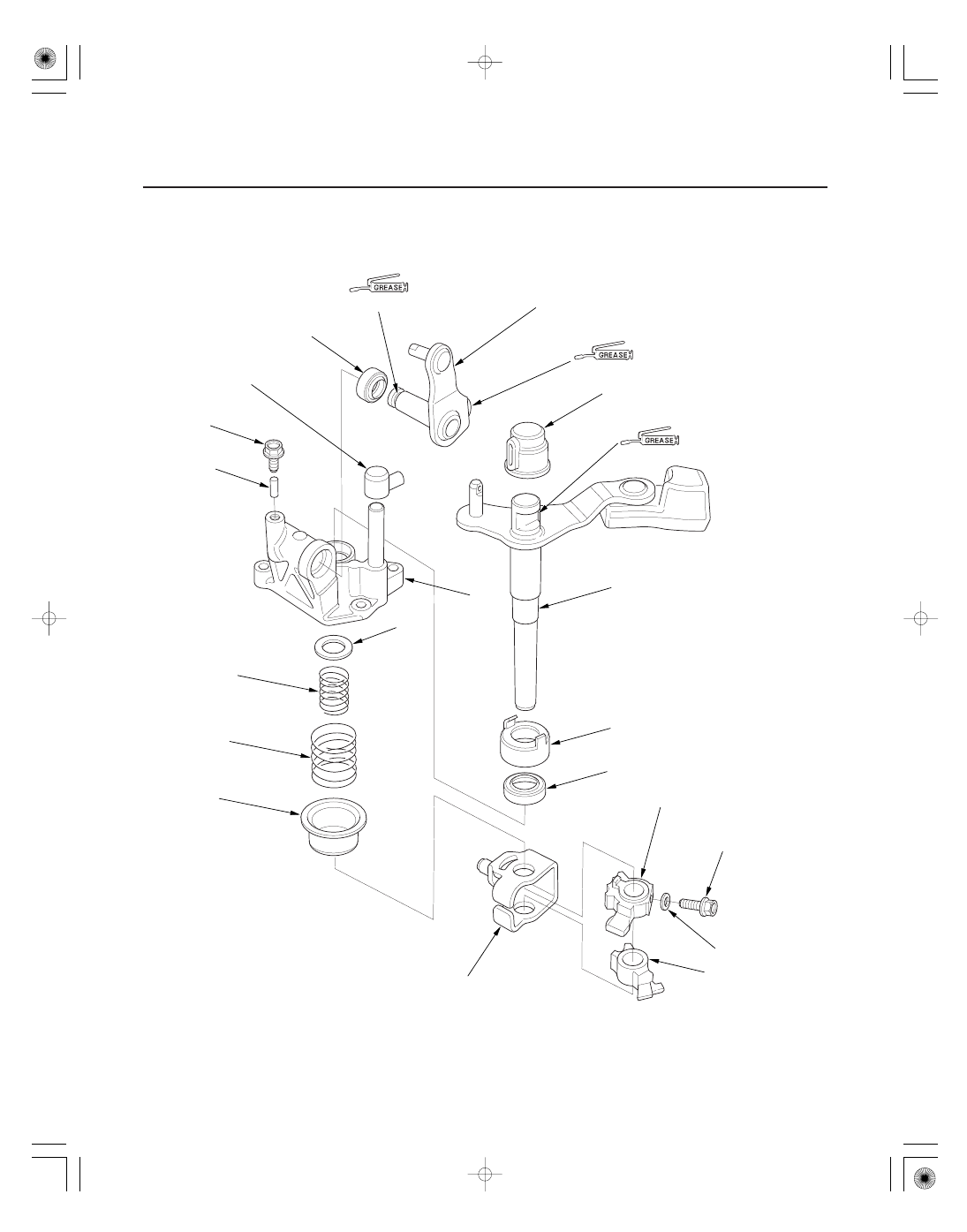

Change Lever Assembly Disassembly/Reassembly

BREATHER CAP

6 x 1.0 mm
12 N·m
(1.2 kgf·m, 9 lbf·ft)

ROLLER

WASHER

5TH SELECT
SPRING

SELECT STOP
PLATE

SHIFT ARM
COVER

INTERLOCK

REVERSE LOCK CAM
STRIKER

8 mm SPRING WASHER

8 mm SPECIAL BOLT
31 N·m
(3.2 kgf·m, 23 lbf·ft)

DUST COVER

CHANGE LEVER

CHANGE LEVER COVER

SELECT LEVER

DUST SEAL

1ST/2ND SELECT
SPRING

SHIFT ARM

OIL SEAL

(P/N 08798-9002)

NOTE: Prior to reassembling, clean all the parts in solvent, dry them, and apply grease to the contact surfaces as
shown.

Turn toward the front of
the vehicle, then install it.

Be careful not to damage the
dust seal when installing it.

Replace.

08/08/21 14:45:01 61SNR030_130_0030

０１

０２

０３

０４

ＳＮＲ９ＡＡ８Ｅ３４１５０３５４９０１ＭＡＡＴ００

−

Standard:

0.35

0.65 mm (0.014

0.026 in.)

Service Limit: 1.0 mm (0.039 in.)

Standard: 7.4

7.6 mm (0.29

0.30 in.)

Standard:

0.2

0.5 mm (0.008

0.020 in.)

Service Limit: 0.62 mm (0.024 in.)

Standard: 16.9

17.0 mm (0.665

0.669 in.)

13-29

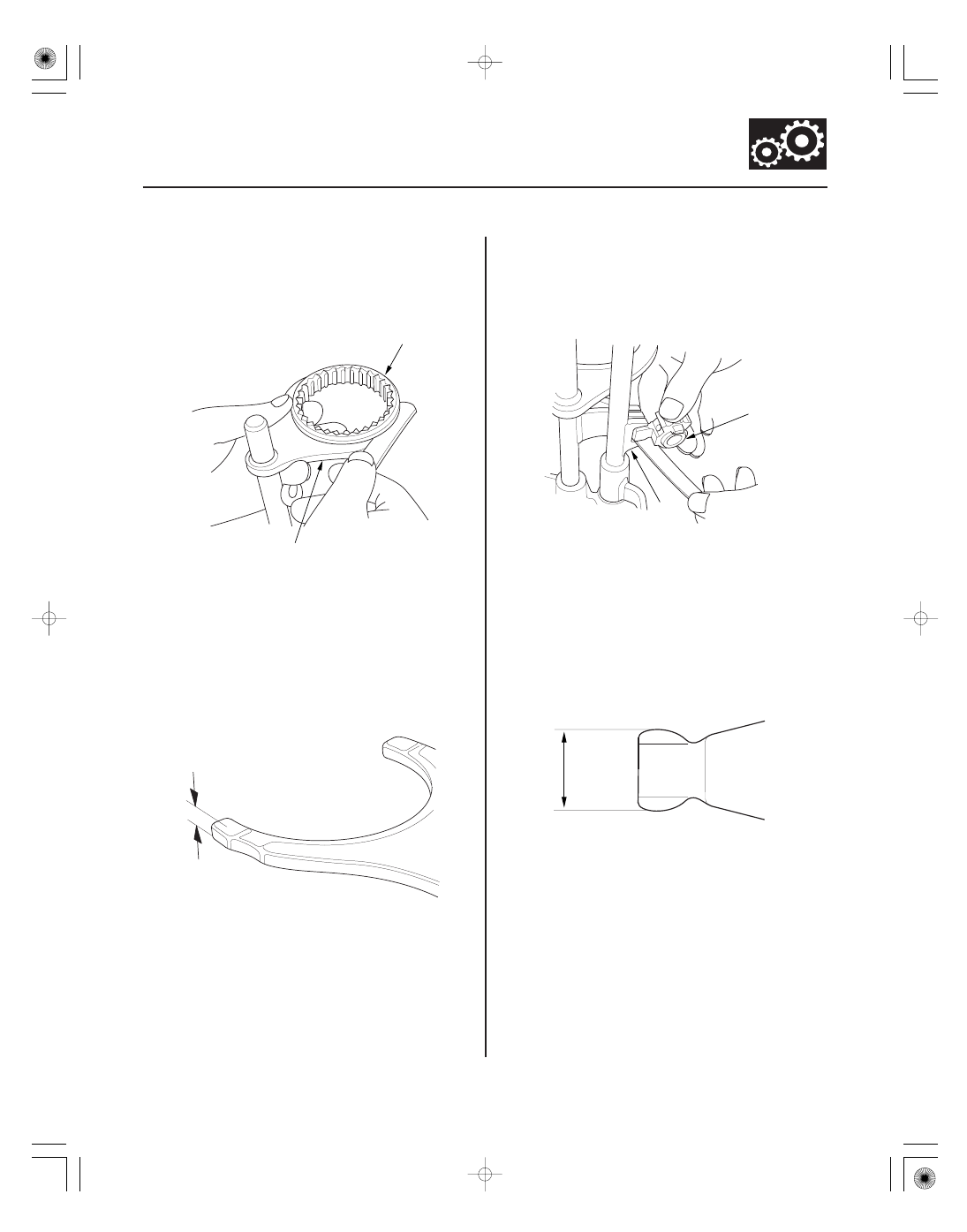

Shift Fork Clearance Inspection

1. Measure the clearance between each shift fork (A)

and its matching synchro sleeve (B). If the
clearance exceeds the service limit, go to step 2.

2. Measure the thickness of the shift fork fingers.

• If the thickness is not within the standard, replace

the shift fork.

• If the thickness is within the standard, replace the

synchro sleeve and the synchro hub as a set.

• If one arm of the shift fork shows more wear than

others, the fork may be bent and needs to be
replaced.

3. Measure the clearance between the shift fork (A)

and the shift arm (B). If the clearance exceeds the
service limit, go to step 4.

4. Measure the width of the shift arm.

• If the width is not within the standard, replace the

shift arm.

• If the width is within the standard, replace the

shift fork and the reverse shift piece.

08/08/21 14:45:02 61SNR030_130_0031

＊０１

ＳＮＲ９ＡＡ８Ｅ３４１５０３５４９０１ＭＦＡＴ００

13-30

Manual Transmission

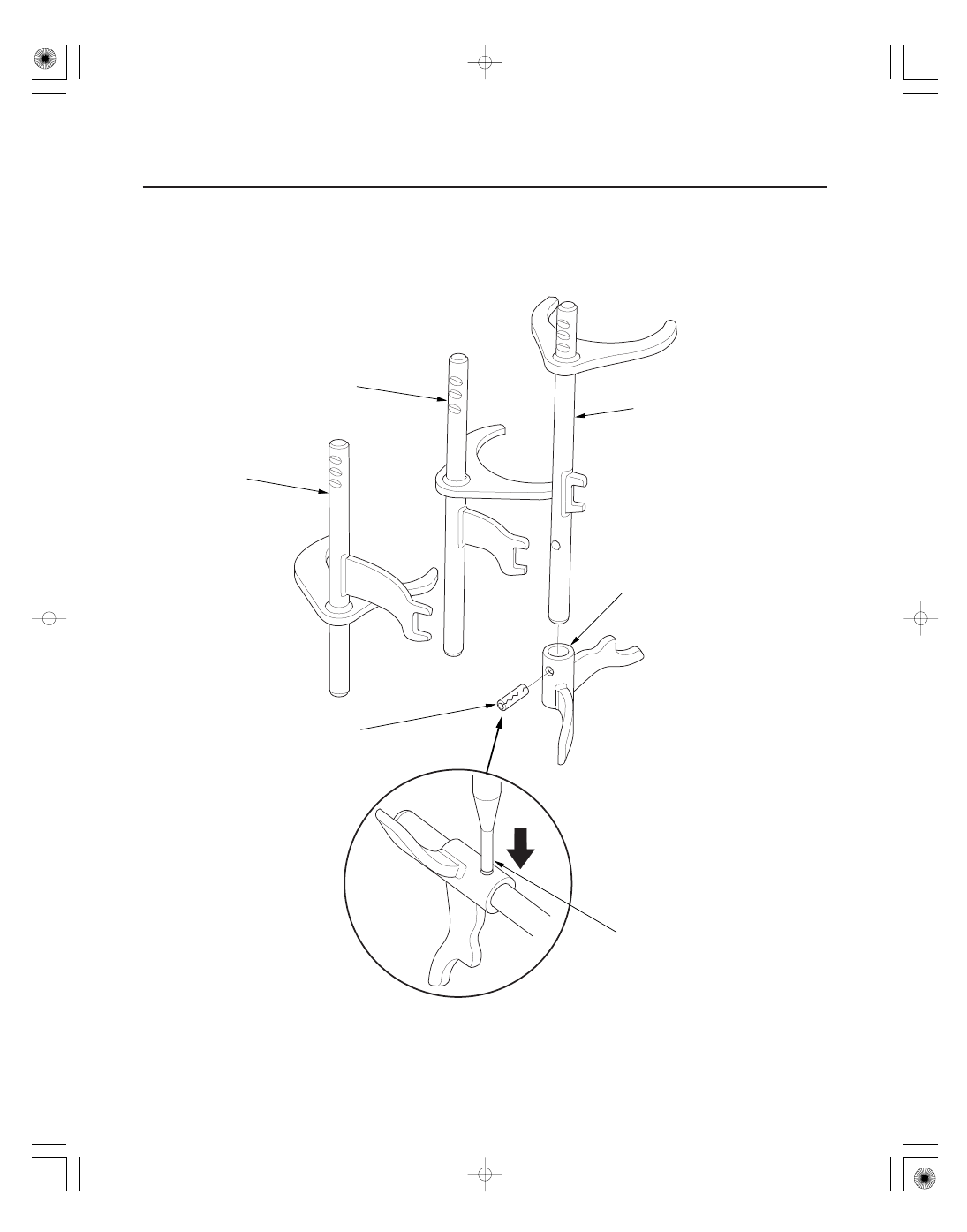

Shift Fork Disassembly/Reassembly

1ST/2ND
SHIFT FORK

5 x 25 mm SPRING PIN

PIN DRIVER, 5 mm

3RD/4TH
SHIFT FORK

5TH SHIFT FORK

REVERSE SHIFT PIECE

NOTE: Prior to reassembling, clean all the parts in solvent, dry them, and apply MTF to all contact surfaces.

Replace.

08/08/21 14:45:02 61SNR030_130_0032

＊０１

０２

＊０２

ＳＮＲ９ＡＡ８Ｅ３４１５０４０００００ＭＡＡＴ１０

−

Standard:

0.06

0.16 mm (0.002

0.006 in.)

Service Limit: 0.25 mm (0.010 in.)

Standard:

23.92

23.97 mm (0.942

0.944 in.)

Service Limit: 23.80 mm (0.937 in.)

Standard:

0.06

0.16 mm (0.002

0.006 in.)

Service Limit: 0.25 mm (0.010 in.)

13-31

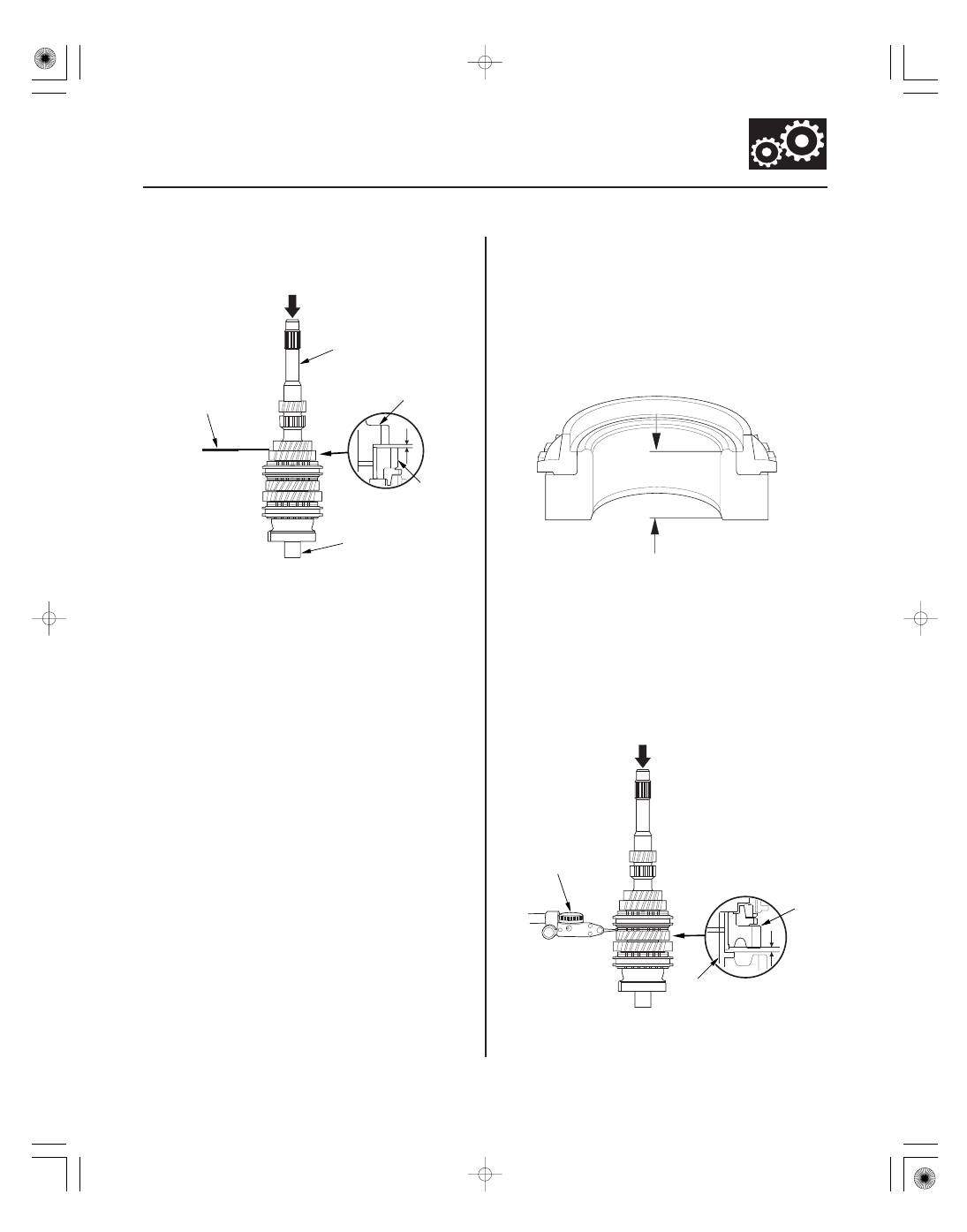

Mainshaft Assembly Clearance Inspection

1. Support the bearing inner race with an appropriate

sized socket (A), and push down on the
mainshaft (B).

2. Measure the clearance between 2nd gear (C) and

3rd gear (D) with a feeler gauge (E).

• If the clearance exceeds the service limit, go to

step 3.

• If the clearance is within the service limit, go to

step 4.

3. Measure the thickness of 3rd gear.

• If the thickness is less than the service limit,

replace 3rd gear.

• If the thickness is within the service limit, replace

the 3rd/4th synchro hub and the 3rd/4th synchro
sleeve as a set.

4. Measure the clearance between 4th gear (A) and

the 4th/5th gear distance collar (B) with a dial
indicator (C).

• If the clearance exceeds the service limit, go to

step 5.

• If the clearance is within the service limit, go to

step 7.

08/08/21 14:45:02 61SNR030_130_0033
