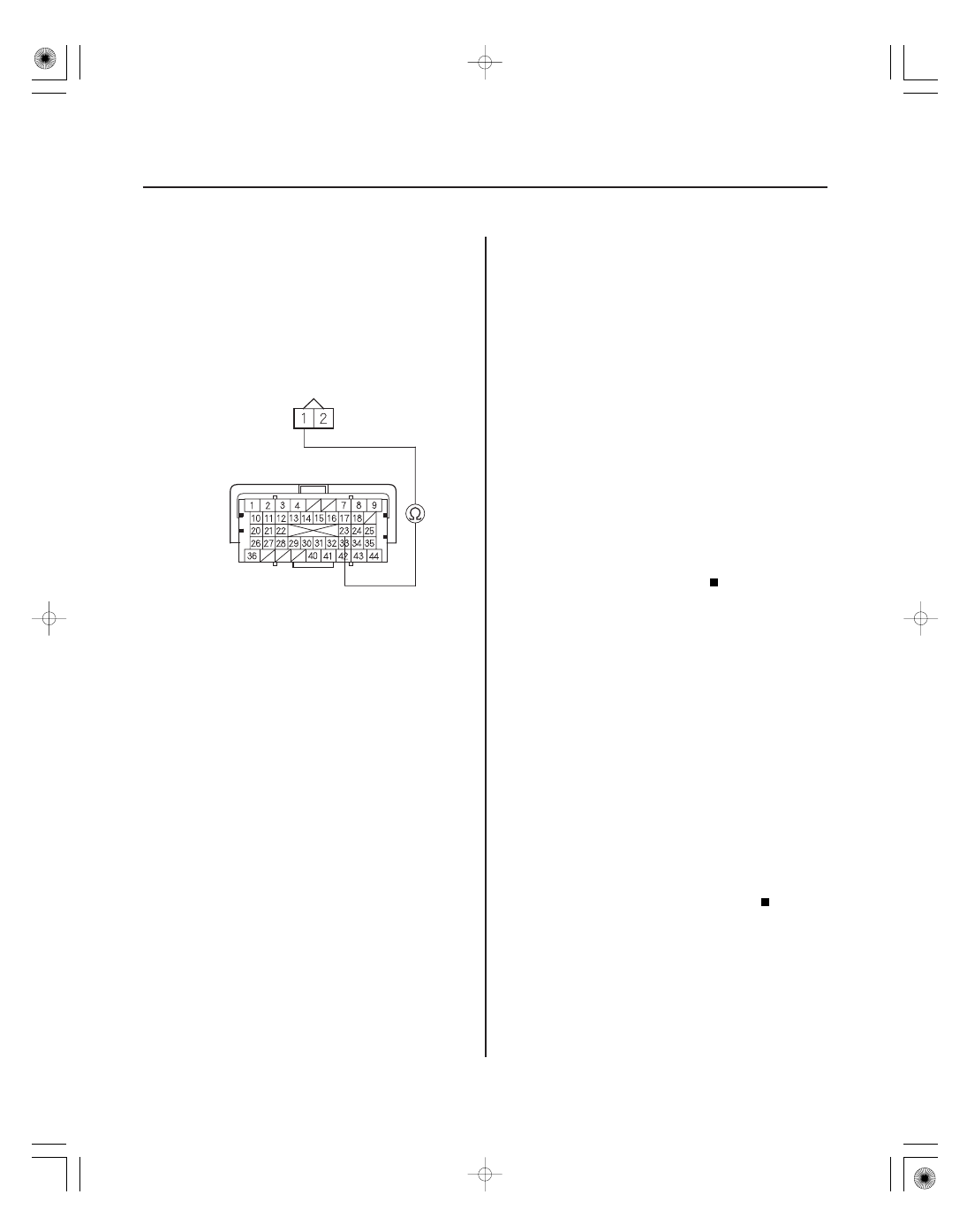

04 − − − − − − YES NO YES NO YES NO 11-94 PGM-FI System ECT SENSOR 1 2P CONNECTOR ECM/PCM CONNECTOR B (44P) ECT1 (RED/WHT) ECT1 (RED/WHT) 16. Turn the ignition switch to LOCK (0). 17. Jump the SCS line with the HDS. 18. Disconnect ECM/PCM connector B (44P). 19. Check for continuity between ECT sensor 1 2P connector terminal No. 1 and ECM/PCM connector Go to step 27. Repair open in the wire between the ECM/ PCM (B23) and ECT sensor 1, then go to step 22. 20. Turn the ignition switch to LOCK (0). 21. Replace ECT sensor 1 (see page 11-225). 22. Reconnect all connectors. 23. Turn the ignition switch to ON (II). 24. Reset the ECM/PCM with the HDS. 25. Do the ECM/PCM idle learn procedure (see page 11-310). 26. Check for Temporary DTCs or DTCs with the HDS. Check for poor connections or loose terminals at ECT sensor 1 and the ECM/PCM, then Troubleshooting is complete. If any other Temporary DTCs or DTCs are indicated, go to the 27. Reconnect all connectors. 28. Update the ECM/PCM if it does not have the latest software (see page 11-227), or substitute a known- 29. Check for Temporary DTCs or DTCs with the HDS. Check for poor connections or loose terminals at ECT sensor 1 and the ECM/PCM. If the If the ECM/PCM was updated, troubleshooting is complete. If the ECM/PCM was substituted, Wire side of female terminals Terminal side of female terminals Is ther e continuity? Is DT C P0118 indicated? Is DT C P0118 indicated? 08/08/21 14:17:17 61SNR030_110_0094 |
