Acura CSX. Manual - part 13

ＳＮＲ９Ａ０００００００００Ｊ０４０１ＺＣＡＴ００

Engine Electrical

Starting System

Ignition System

Charging System

Cruise Control

...........................

Special Tools

. 4-2

...

.....................................

.......................

..................

.......

...........................

.....................

...

.....................................

.......................

..................

.......

...........................

.....................

Component Location Index

. 4-3

Symptom Troubleshooting

Index

. 4-4

Circuit Diagram

. 4-5

Starter System Circuit

Troubleshooting

. 4-6

Clutch Interlock Switch Test

. 4-8

Starter Performance Test

. 4-9

Starter Removal and

Installation

. 4-10

Starter Overhaul

. 4-13

...

.......................

.....

...........................

.............

...

.......................

.....

...........................

.............

Component Location Index

. 4-18

Circuit Diagram

. 4-19

Ignition Timing Inspection

. 4-20

Ignition Coil Removal/

Installation

. 4-21

Spark Plug Inspection

. 4-21

...

.....................................

.......................

...

.....................................

.......................

Component Location Index

. 4-23

Symptom Troubleshooting

Index

. 4-24

Circuit Diagram

. 4-25

......

..................

..............

..........

............................

...........

........................

.......

...........................

................

......

..................

..............

..........

............................

...........

........................

.......

...........................

................

Charging System Indicator

Circuit Troubleshooting

. 4-26

Alternator and Regulator Circuit

Troubleshooting

. 4-28

Alternator Control Circuit

Troubleshooting

. 4-29

Drive Belt Inspection

. 4-30

Drive Belt Replacement

. 4-31

Drive Belt Auto-tensioner

Inspection

. 4-31

Drive Belt Auto-tensioner

Removal/Installation

. 4-32

Tensioner Pulley

Replacement

. 4-33

Idler Pulley Replacement

. 4-34

Alternator Removal and

Installation

. 4-34

Alternator Overhaul

. 4-38

...

.....................................

.......................

.......

...

.......................................

...

.....................................

.......................

.......

...

.......................................

Component Location Index

. 4-43

Symptom Troubleshooting

Index

. 4-44

Circuit Diagram

. 4-46

Cruise Control Input Test

. 4-47

Cruise Control Combination

Switch Test/Replacement

. 4-49

Clutch Pedal Position Switch

Test

. 4-50

０１

ＳＮＲ９Ａ０００００００００Ｊ０４０１ＰＡＡＴ００

Ref. No.

Tool Number

Description

Qty

4-2

Engine Electrical

Special Tools

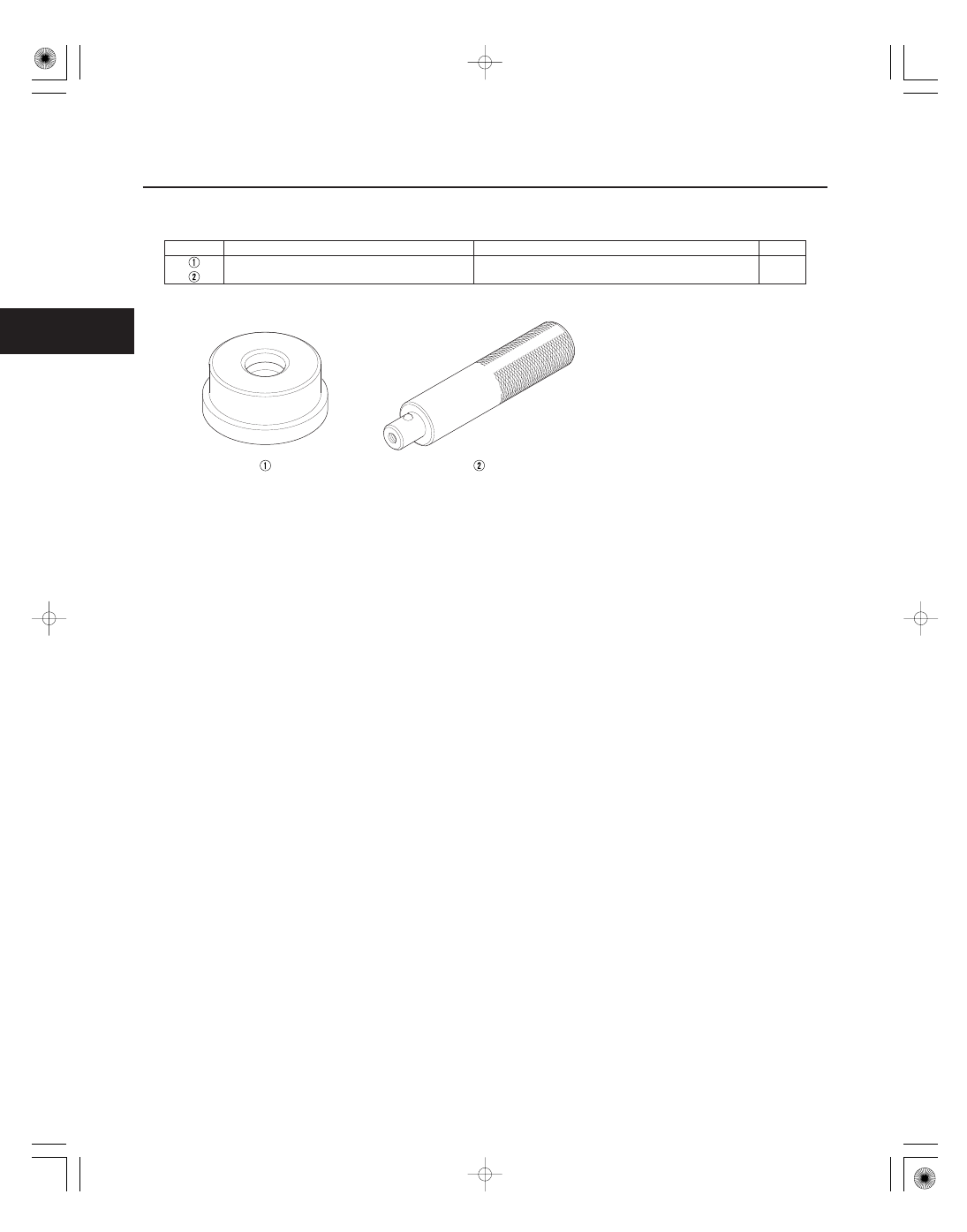

07746-0010300

Attachment, 42 x 47 mm

07749-0010000

Driver

＊０１

＊０２

ＳＮＲ９Ａ００Ａ４６５００００００００ＤＡＡＴ００

4-3

Starting System

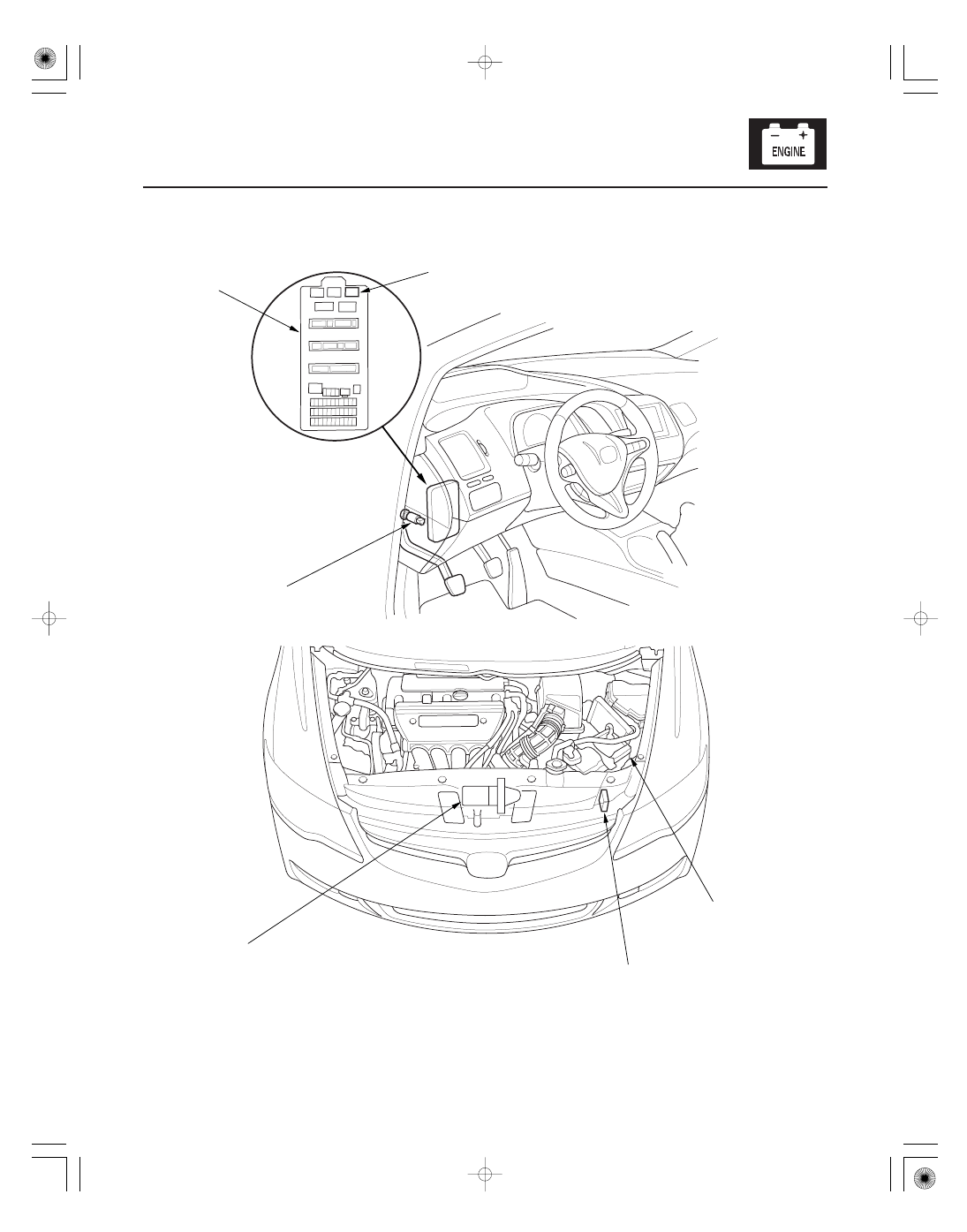

Component Location Index

UNDER-DASH
FUSE/RELAY BOX

STARTER CUT RELAY

CLUTCH INTERLOCK SWITCH
(M/T model)

STARTER

TRANSMISSION RANGE SWITCH (A/T model)

BATTERY

Test, page 22-70

Test, page 4-8

Starter System Circuit Troubleshooting, page 4-6
Performance Test, page 4-9
Removal and Installation, page 4-10
Overhaul, page 4-13

Test, page 14-265
Replacement, page 14-267

Test, page 22-67

ＳＮＲ９Ａ００Ａ４６５００００００００ＨＢＡＴ０１

Symptom

Diagnostic procedure

Also check for

4-4

Starting System

Symptom Troubleshooting Index

•
•

Engine does not start
(does not crank)

1.
2.

3.
4.
5.

Check for loose battery terminals or connections.
Test the battery for a low state of charge (see page
22-67).
Check the starter (see page 4-6).
Check the starter cut relay (see page 22-70).
Check the clutch interlock switch (M/T model) (see page
4-8).
Check the transmission range switch (A/T model)
(see page 14-265).
Check the ignition switch or wire (see page 22-72).

Poor ground at G101
(A/T model) or G401
(M/T model)

Engine cranks, but does
not start

1.
2.

3.
4.

5.
6.
7.
8.

Check for PGM-FI DTCs (see page 11-3).
Check for IMMOBI status and function (see page
22-325).
Check the fuel pressure (see page 11-325).
Check for a plugged or damaged fuel line (see page
11-326).
Check for a plugged fuel filter (see page 11-337).
Check the throttle body (see page 11-343).
Check for low engine compression (see page 6-7).
Check for a damage or broken cam chain (see page
6-21).
Do the engine control module (ECM)/powertrain control
module (PCM) reset in the PGM-FI INSPECTION menu
to cancel the ALL INJECTORS STOP with the Honda
Diagnostic System (HDS).

Empty fuel tank
Weak or fouled spark
plugs

Engine is hard to start

1.
2.
3.

Check for PGM-FI DTCs (see page 11-3).
Check the fuel pressure (see page 11-325).
Check for a plugged or damaged fuel line (see page
11-326).
Check for a plugged fuel filter (see page 11-337).

Weak or fouled spark
plugs

Engine cranks slowly

1.
2.

3.
4.

Check for loose battery terminals or connections.
Test the battery for a low state of charge (see page
22-67).
Check the starter for binding (see page 4-13).
Check for excessive drag in the engine.
