Lotus Elise / Lotus Exige. Manual - part 119

Page 25

Lotus Service Notes

2-Eleven

Fuses

Two 4-slot fuseboxes are mounted on the rear bulkhead and control the principal engine circuits. Track cars

ﬁtted with rear lamps, use a third 4-slot fusebox, located within the battery compartment for the lighting circuits.

Cars with full lighting sets replace this 4-slot box with a 22-slot fusebox within the battery compartment.

The ‘Littel’ type fuses are numbered and coloured according to their amperage rating, and may be removed

by withdrawing from their slots.

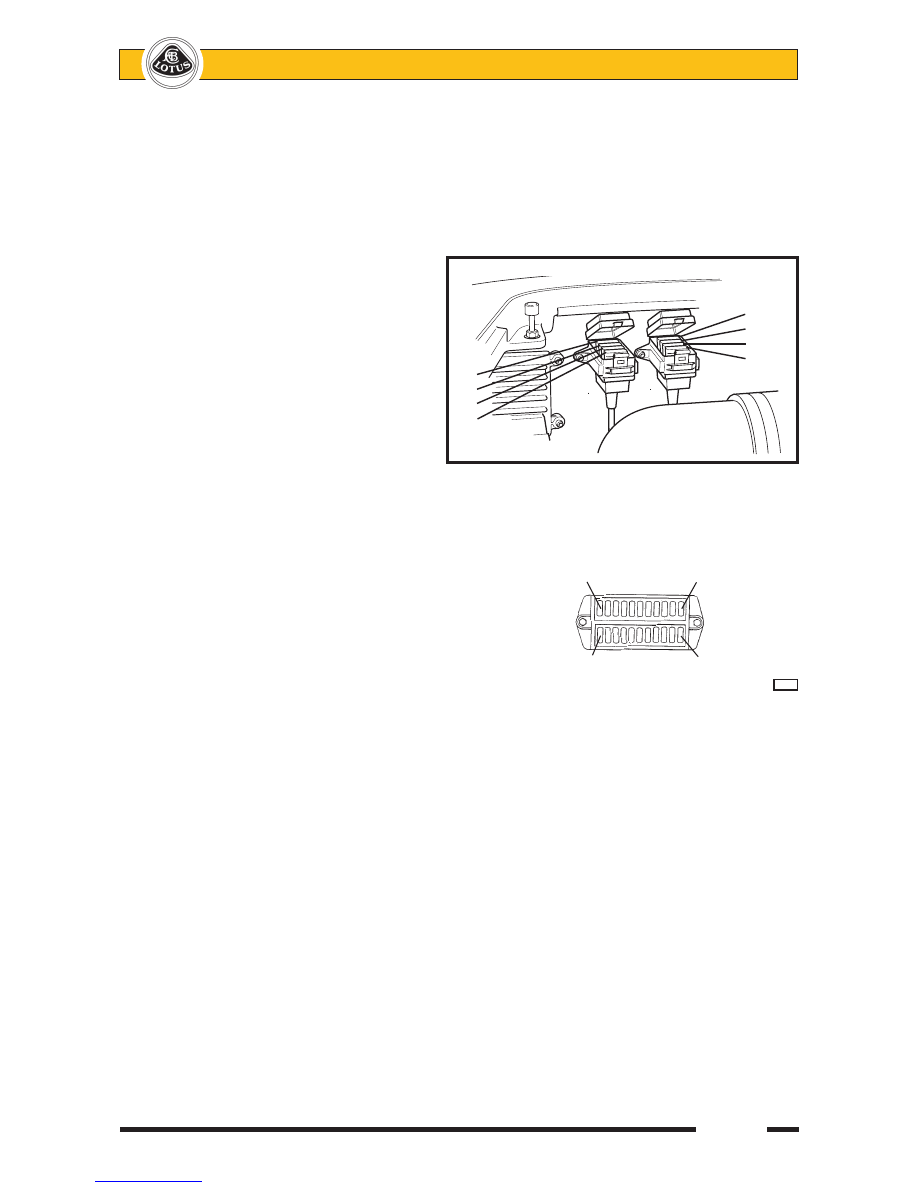

Engine Bay Fuses

Track Lights Fusebox

Full Lighting Set Fusebox

ABS Fuse: A 60A Maxi fuse protecting the ABS circuits is located within the battery box.

Fuse colours:

2A - Black;

3A - Violet;

4A - Pink;

5A - Orange;

7.5A - Brown;

10A - Red;

15A - Light Blue;

20A - Yellow;

25A - Clear.

Slot Rate Circuit

E1 7.5A Engine control

relay

E2 15A Cooling fan 1

E3 15A Cooling fan 2

E4 - Not used

Slot Rate Circuit

F1 15A Batt. services

F2 15A Ign. services

F3 20A Fuel pump

F4 10A Main relay

Slot Rate Circuit

R1 5A Turn lamps

R2 5A Rain lamp

Slot Rate Circuit

R3 5A Rvrs. lamps

R4 5A Stop lamps

Slot Rate Circuit

A1 - Not used

A2 - Not used

A3 7.5A Reverse lamps

A4 - Not used

A5 5A Brake lamps

A6 7.5A Turn lamps

A 7 - Not used

A8 - Not used

A9 10A Hazard

A10 7.5A Horn

A11 - Not used

A12 20A Aux power socket

Slot Rate Circuit

A13 - Not used

A14 - Not used

A15 15A Switch pack &

dipswitch

A16 10A Sidelamps, rear

fog

A17 10A Dip beam LH

A18 10A Dip beam RH

A19 - Not used

A20 10A Main beam LH

A21 10A Main beam RH

A22 - Not used

ENGINE BAY FUSES

m265

Fuse 1

Fuse 11

Fuse 12

Fuse 22

RHD front



LHD front



m255

Lotus Service Notes

2-Eleven

Page 26

2-ELEVEN.O - MAINTENANCE & LUBRICATION

A Maintenance Schedule for the 2-Eleven is available under part number LSL519, and a Pre Track Ses-

sion Check List, which should be completed before each and every track driving session, under part number

LSL520.

Recommended lubricants are unchanged apart from the option of Castrol SRF brake ﬂuid. Spark plugs

are part number ALS3E6015F (NGK PFR7G) with 0.8mm (- 0.1, + 0) gap.

Vehicle Recovery

No towing eye is ﬁtted on the 2-Eleven. If the car has to be recovered by towing either forwards or back-

wards, a fabric towing strap should be secured to the passenger side of the roll over bar. In operation, care

should be taken to prevent damage to the aeroscreen or rear aerofoil.

2-ELEVEN.Z - MISCELLANEOUS

Warranty

‘Track Use’ Cars

The Lotus 2-Eleven is designed and supplied into markets other than the U.K. only as a track use vehicle,

as deﬁned by character 12 of the V.I.N. being ‘H’ or ‘J’. This speciﬁcation is also available as an option in the

U.K., identiﬁed in the same manner. All such cars are not eligible for European type approval, or Australian

Compliance Plate Approval, or equivalent regulations in other countries. The Lotus 2-Eleven is supplied with

no speciﬁc type approval paperwork or certiﬁcation information and Lotus Cars will not provide any assistance

to any person or company seeking to register a 2-Eleven model for road use outside of the U.K.

Lotus offers no warranty other than that required by law, on any ‘track use’ car in any territory.

U.K. Road Use Cars

The following Warranty applies only to cars built by Lotus for road use in the U.K., as identiﬁed by V.I.N.

character 12 being ‘F’ or ‘G’, and only whilst being used in the U.K. It is permissible for the car to be driven on

closed circuits or private test tracks, but using the car in a competitive manner, including timed runs or laps,

will invalidate the Lotus Vehicle Warranty.

Warranty Periods

Warranty period for vehicle; 12 months/12,000 miles.

Warranty period for replacement parts; 12 months/12,000 miles.

Corrosion perforation warranty; 2 years unlimited mileage.

Exclusions From Warranty Coverage

The 2-Eleven features an open cockpit such that all issues relating to water ingress, including damage

to trim and upholstery, staining or discoloration of the chassis, and damage to electrical equipment within

the cabin, are not covered by this warranty; use a suitable outdoor car cover when necessary to protect

against weather damage.

Adjustments to screw ﬁxed body panels and components, glass and trim should be considered as routine

maintenance and may periodically be required, especially when subjected to high forces by repeated track

use.

Internal and external mirrors are vulnerable to damage from driver/passenger ingress/egress as well as

from external strikes, and are excluded from warranty coverage.

All composite panels on the 2-Eleven are designed for light weight consistent with aerodynamic function,

and may be damaged by inappropriate application of bodyweight or other injudicious treatment. The

durability and standard of the paint ﬁnish may not match that of more conventionally constructed cars.

There is no body or paint warranty on the Lotus 2-Eleven.

If the car has ever been used on road or track with ‘slick’ or equivalent racing tyres, warranty is void.

Clutch and brake discs are excluded.

For full details of the 2-Eleven warranty and its restrictions and limitations, refer to the Owner's

Handbook, or 2-Eleven speciﬁc Warranty Certiﬁcate LSL521

Page 27

Lotus Service Notes

2-Eleven

Circuit Diagrams

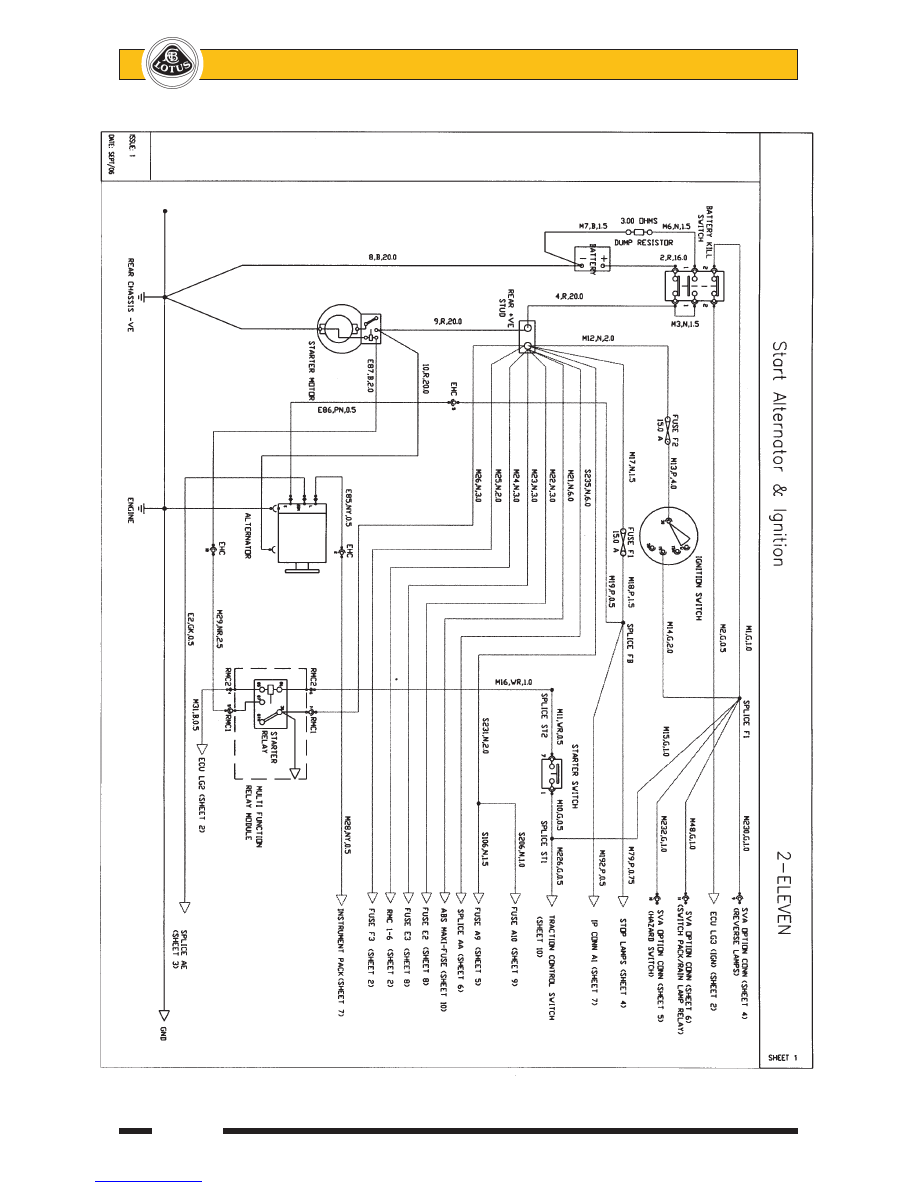

Start, Alternator & Ignition Sheet 1 Page 28

Fuel Pump & Engine Management Sheet 2 Page 29

Engine Management Sheet 3 Page 30

Tail, Stop, Reverse & Fog Lamp Sheet 4 Page 31

Turn Indicators, Side & Hazard Warning Lamps Sheet 5 Page 32

Switch Pack & Headlamps Sheet 6 Page 33

Instruments Sheet 7 Page 34

Engine Cooling Fan Sheet 8 Page 35

Horn & Rain Lamp Relay (track option) Sheet 9 Page 36

ABS & Traction Control Sheet 10 Page 37

Harness Ground Splices Sheet 11 Page 38

Fuse Layout (base & SVA cars) Sheet 12 Page 39

Power & Ground Structure Sheet 13 Page 40

Fuse Layout (base & track cars) Sheet 14 Page 41

Lotus Service Notes

2-Eleven

Page 28
