Lotus Elise / Lotus Exige. Manual - part 111









Lotus Service Notes





       Exige S/C

Page 8

Air is drawn from the standard air cleaner through the throttle body and adaptor and into the supercharger

axial intake port.  From the outlet port on the compressor top surface, the air is directed through a 'U' bend duct

to the LH end of an air/air chargecooler rubber mounted above the engine, where airflow gathered from the roof

duct is used to cool the compressed intake charge.  The chargecooler uses four rubber bobbins attached to two

mounting brackets themselves secured to the inlet manifold and cam cover.  A charge air temperature sensor

is mounted in the outlet tank of the chargecooler.  The cooled air exiting from the RH end of the chargecooler

flows via another 'U' bend duct into a cast alloy intake plenum/manifold.  The whole intake tract has been kept

as short as possible, and uses large diameter ducting and generously radiused bends to optimise airflow and

efficiency to the particular benefit of throttle response and fuel economy.

A re-shaped breather pipe is used to connect the crankcase breather spigot to the cam cover and circum-

navigate the supercharger.

On the 240R and Cup cars, a stainless steel 'level one' sports exhaust muffler (LOTAC05334) is fitted to

provide an acoustic enhancement and features enlarged, slash cut tailpipes and a near 20% weight saving

over the standard system.  Exige S models use a stainless muffler with a single, oval shaped, tailpipe design.

240R models use 4 standard port fuel injectors together with an additional 5th injector mounted in the

intake end of the inlet manifold.  Cup cars use 4 special high-flow port injectors, and Exige S cars retain stand-

ard injectors.  The Lotus engine management system is reprogrammed to suit each engine specification and

incorporates additional functions to control the fifth injector (240R) and supercharger by-pass valve.  The boost

characteristics have allowed the switching point from low to high lift cam profile to be reduced from 6,000 to

4,000 rpm (at normal running temperature).  240R models use a mechanical cable operated throttle body,

whereas the Cup and Exige S cars use '06 model electronic throttle.  Twin front mounted oil/air coolers are

fitted to all supercharged Exige.

Accusump - 240R & Cup 240

To provide protection against the possibility of oil starvation caused by the extreme g-forces possible with

track use on slick tyres, the 240R and Cup cars are fitted with an Accusump oil storage system.

A 2-litre Accusump reservoir is mounted in the rear luggage compartment, plumbed into the LH oil cooler

return hose at the front of the engine bay, with the connecting hose routed over the RH rear wheelarch.  The

device comprises an alloy cylinder divided by a sliding piston, one side of which is connected to the engine

oil supply, with the other containing pressurised air.  With the engine running, the cylinder is charged with oil

provided by the engine oil pump, but if the pressure should drop for a short period due to oil pump pick up pipe

exposure during extreme braking or cornering events, the accumulator air pressure forces the stored oil into

the engine lubrication system to maintain continuity of oil supply until normal conditions are resumed.

A one-way valve at the oil cooler connection of the 'T'- piece ensures that the oil discharged from the

Accusump is directed into the oil pump and not the cooler.  An Electric Pressure Control (EPC) valve fitted at

the connection to the Accusump cylinder, allows cylinder charging when oil pressure is above 35 - 40 psi, and

cylinder discharging at engine oil pressures below 35 - 40 psi.   The EPC is also linked to the ignition switch

such that with the ignition switched on the valve is open to allow oil flow, and with ignition off the valve is closed

to retain oil within the reservoir.

Normal Operation

When the ignition is turned on, the EPC valve on the Accusump is opened, allowing the pressurised oil

stored in the reservoir to flow out into the engine and prime the oil galleries and bearings ready for start up.

When the reservoir has been emptied, the pressure gauge on the end of the reservoir will indicate the pre-

charge pressure which should be 7 - 15 psi.

When the engine is started, engine oil pressure will force the reservoir piston back, such that the reservoir

air pressure gauge will indicate engine oil pressure, with the quantity of stored oil dependent on this pressure

at any one time.  With cold oil, 80 psi may be seen, but idling at normal running temperature should produce

around 30 - 40 psi.

When the engine is stopped, the EPC valve closes and a quantity of oil pertaining to that oil pressure will

be retained in the Accusump, ready for re-starting.

Routine Checks

Be aware that the indicated oil level on the dipstick will depend on the amount of oil stored in the Accu-

sump, which itself is dependent on the both the Accusump pre-charge air pressure and the engine oil pressure

when the ignition was switched off.

sn_Exige Supercharged supplement.indd   8

03/03/2006   11:32:37

Page 9





Lotus Service Notes





       Exige S/C

Before checking the oil level, the Accusump pre-charge pressure should first be checked; turn on the

ignition to open the EPC valve and allow the stored oil to be discharged from the Accusump.  The pressure

gauge reading will drop during this discharge, but should then register 7 - 15 psi representing the pre-charge.

If necessary, adjust the air pressure using tyre inflator equipment on the Schraeder valve adjacent to the gauge

and set to 15 psi.

The oil level should now be above the top mark on the dipstick.  To check for correct oil level, the engine

should be started to charge the Accusump, and run to normal operating temperature until the Accusump pres-

sure gauge registers 40 psi.  If the engine is already hot, idle oil pressure may not be sufficient to open the

Accusump valve, and the pressure gauge will continue to show 15 psi pre-charge.  Increase engine rpm to

open the valve.  With the gauge showing 40 psi, turn off the engine.  The EPC valve will then close and trap the

normal hot idle quantity of oil in the Accusump cylinder.  After a suitable oil drainback pause, the sump oil level

may then be inspected on the disptick, and the level corrected to the top mark.  It is important to maintain oil at

this level to accommodate the oil transfer into the Accusump at pressures greater than 40 psi.  Be aware that

checking the oil level under any conditions other than 15 psi pre-charge and 40 psi oil pressure will produce

inconsistent results.

Oil Changing

Before draining the sump, the ignition should first be switched on to open the EPC valve and allow the

Accusump to discharge the stored oil into the sump.  Check that a pressure of 7 - 15 psi remains in the Ac-

cusump at the end of this process, and if necessary top up the pressure using tyre inflating equipment on the

Schraeder valve next to the gauge and set to 15 psi.

The oil can then be drained in the usual way, with the quantity contained in the oil cooler lines disregarded

for the purposes of routine maintenance.  If an engine failure has occurred, with possible debris contamination

of oil hoses and coolers, it is recommended to replace both oil coolers, and to replace or thoroughly flush the

feed and return hoses.  At each service interval the in-line filter gauze in the hose between the Accusump and

'T'- piece, and located in the RH rear wheelarch, should be renewed.

After renewing and pre-filling the engine oil filter, refill the sump to about 10mm above the top mark on the

dipstick.  Start the engine and allow to idle.  Do NOT rev the engine or drive the car.  The Accusump will take

up to 2 litres of oil from the sump to store within the cylinder.  Continue to idle the engine until the Accusump

pressure gauge drops to 40 psi (as the oil warms) and then switch off the engine.  Top up the oil to the top

mark on the dipstick.

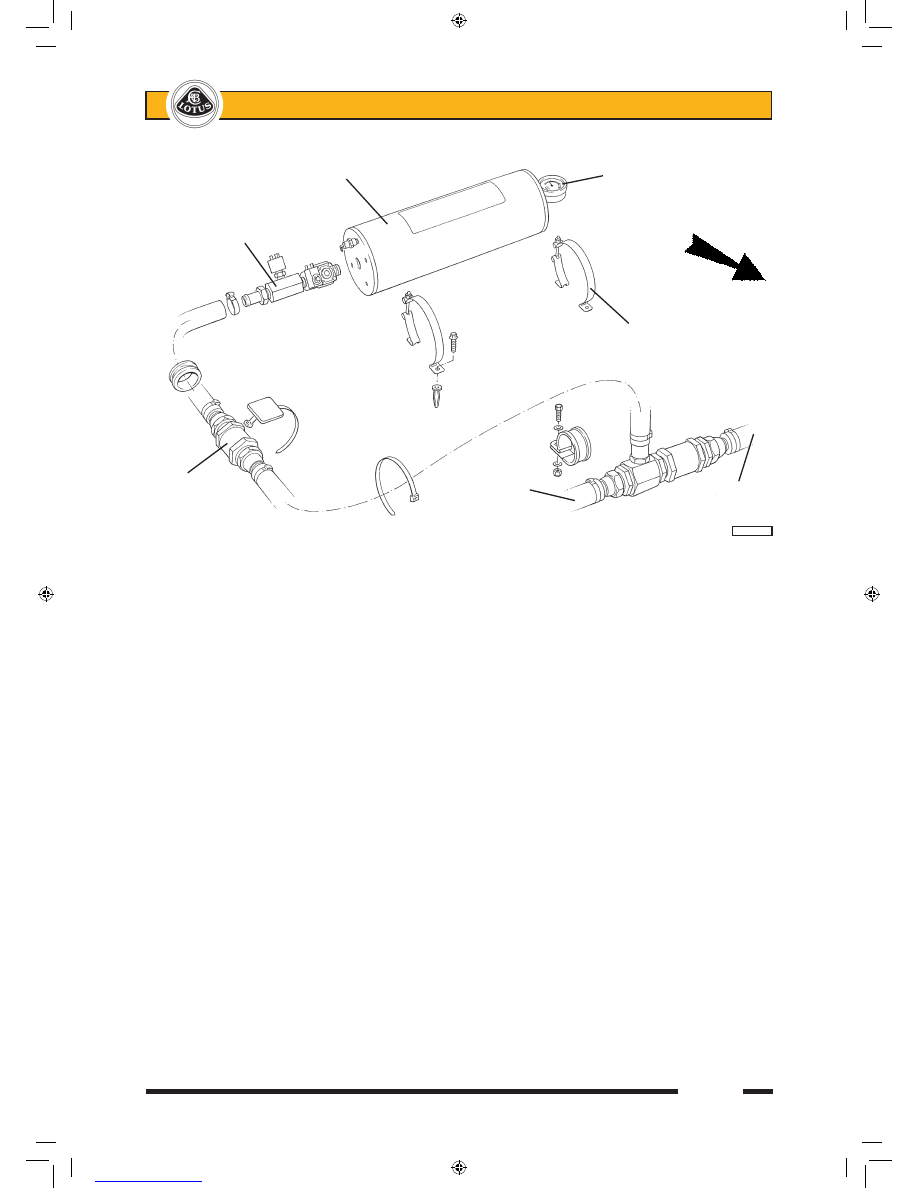

        Accusump reservoir                             Air pressure gauge

    EPC valve

    assembly                                                    FRONT

                                                    Mounting clamp to

                                                    boot floor

In-line

filter                                To LH port                    From oil

                                  on sandwich                  cooler

                                  plate





























































                pl4015cLR

sn_Exige Supercharged supplement.indd   9

03/03/2006   11:32:38





Lotus Service Notes





       Exige S/C

Page 10

Supercharger Remove/Refit

To remove:

1.  Remove the chargecooler together with inlet and outlet 'U' shaped ducts.

2.  Remove the throttle body and vacuum/breather hose plumbing.

3.  Using a 6-point socket, relieve auxiliary belt tension and remove the auxiliary belt.  Remove the alternator

top mounting bolt, slacken the lower, and swing down the alternator.  Release the dipstick tube from the

supercharger.

4.  Using a strap wrench, remove the supercharger pulley retaining nut, and slide off the pulley.

5.  Remove the support strut between the throttle body adaptor and the clutch slave cylinder.  Slacken the

pinch bolt securing the supercharger to the nose bracket.  Remove the two bolts supporting the super-

charger to the inlet manifold and withdraw the supercharger.

To refit:

1.  With the supercharger nose bracket bolted to the engine mounting plinth, fit the upper fixing on the alter-

nator to the nose bracket outer end (with 13.5mm spacer).  This defines the position of the nose bracket.

Tighten bracket to engine mounting plinth to 50 Nm.  Remove alternator top bolt and swing down to allow

supercharger to be fitted.

2.  Prepare supercharger:  Clean mating faces of supercharger and outlet adaptor using Betaclean 3900.  Fit

'O' ring into groove in outlet adaptor and fit to supercharger using 6 off M8 x 25 setscrews with Permabond

A130.  On the fixing located inside the adaptor, Permabond should be applied over the entire thread length.

Orientate the adaptor with the outlet pointing towards the rear of the car when fitted.  Torque tighten all

fixings to 25 Nm.



Clean mating faces of outlet adaptor and outlet elbow using Betaclean 3900.  Fit 'O' ring into groove in

outlet adaptor face.  Fit outlet elbow to point to LH side of car using 4 off M8 x 25 setscrews with a pipe

clip bracket secured by both rearmost fixings.  Tighten to 25 Nm.

3.  Fit M8 stud B111E6081S into RH top (as viewed on face) fixing position in supercharger inlet flange.  Clean

mating face on supercharger and inlet adaptor using Betaclean 3900.  Fit 'O' ring into groove in adaptor

face and fit adaptor to supercharger using 2 off M8 x 30 flange head bolts in top positions and M8 flange

nut on stud - all 25 Nm.  Disregard 4th position at this stage.

4.  Mount supercharger:  With the pulley removed from the supercharger, slide the nose into the nose bracket

until hard against the machined step.  Support to the inlet manifold sliding bushes using M10 x 50 flange

head bolts and Permabond A130, but do not tighten.  Tighten the nose bracket socket head pinch bolt to

25 Nm.

5.  Loosley fit the supercharger support strut between the inlet adaptor (M8 x 55 bolt with A130) and the clutch

slave cylinder fixings (M8 x 25 with A130).  Tighten the three support strut bolts to 25 Nm.  Carefully tighten

the two M10 x 50 flange head bolts to pull in the two spacers evenly to clamp against the supercharger.

6.  Refit the alternator upper bolt and spacer and tighten to 25 Nm.  Tighten the lower bolt to 25 Nm.

7.  Fit the pulley to the supercharger with the longer boss towards the 'charger.  Fit the nut onto the shaft, and

use a strap wrench to hold the pulley whilst the nut is tightened to 61 Nm.

sn_Exige Supercharged supplement.indd   10

03/03/2006   11:32:38

Page 11





Lotus Service Notes





       Exige S/C

8.  Use a 6-point socket on the tensioner arm to allow fitment of the multirib accessory drive belt around the

pulleys as shown, ensuring that the belt is correctly seated in all the ribbed pulleys.

9.  Refit other components in reverse order to removal.

Note areas of change compared with standard models;

Engine dipstick tube altered to avoid supercharger.

Crankcase breather pipe altered to avoid supercharger.

Relays on engine bulkhead move to avoid supercharger by-pass capsule

Charcoal canister moved from bulkhead to bracket on top of chassis right hand rear upright member to

avoid alternator.

EXIGE S/C.G - WHEELS & TYRES

240R cars use lightweight forged alloy 5-spoke roadwheels at 7x16 and 8x17 are ½ inch wider, front and

rear, than standard Exige wheels, but retain the standard insets of + 31.3 mm and + 38.0 mm.  The wheels

are finished in either Satin Black or High Power Silver dependent on body colour (see above).  'Lotus Sport' is

moulded into one of the spokes of each wheel.  Cup and Exige S models use standard Exige wheels finished

in hi-power silver.

The Lotus specific, regular Exige Yokohama A048 tyres, identified by 'LTS', are fitted as standard.

EXIGE S/C.J - BRAKES

For 240R and Cup models, the braking system is uprated in the following respects:

Motorsport brake pads are fitted front and rear;

Steel braided brake hoses fitted all round;

Front and rear brake callipers are finished in 'Sport Yellow';

Hydraulic system filled with Castrol 'SRF' synthetic racing brake fluid.  Over 500°F boiling point.  Dot 4.

EXIGE S/C.K - COOLING

Twin front mounted oil/air coolers (std. Exige hot climate spec.) are fitted to all supercharged Exige mod-

els.  An engine intake air chargecooler radiator is rubber mounted to the engine, with cooling airflow collected

by the roof duct and directed via the tailgate panel and flexible bellows to the radiator, after which the hot air

exhausts through the tailgate louvres.

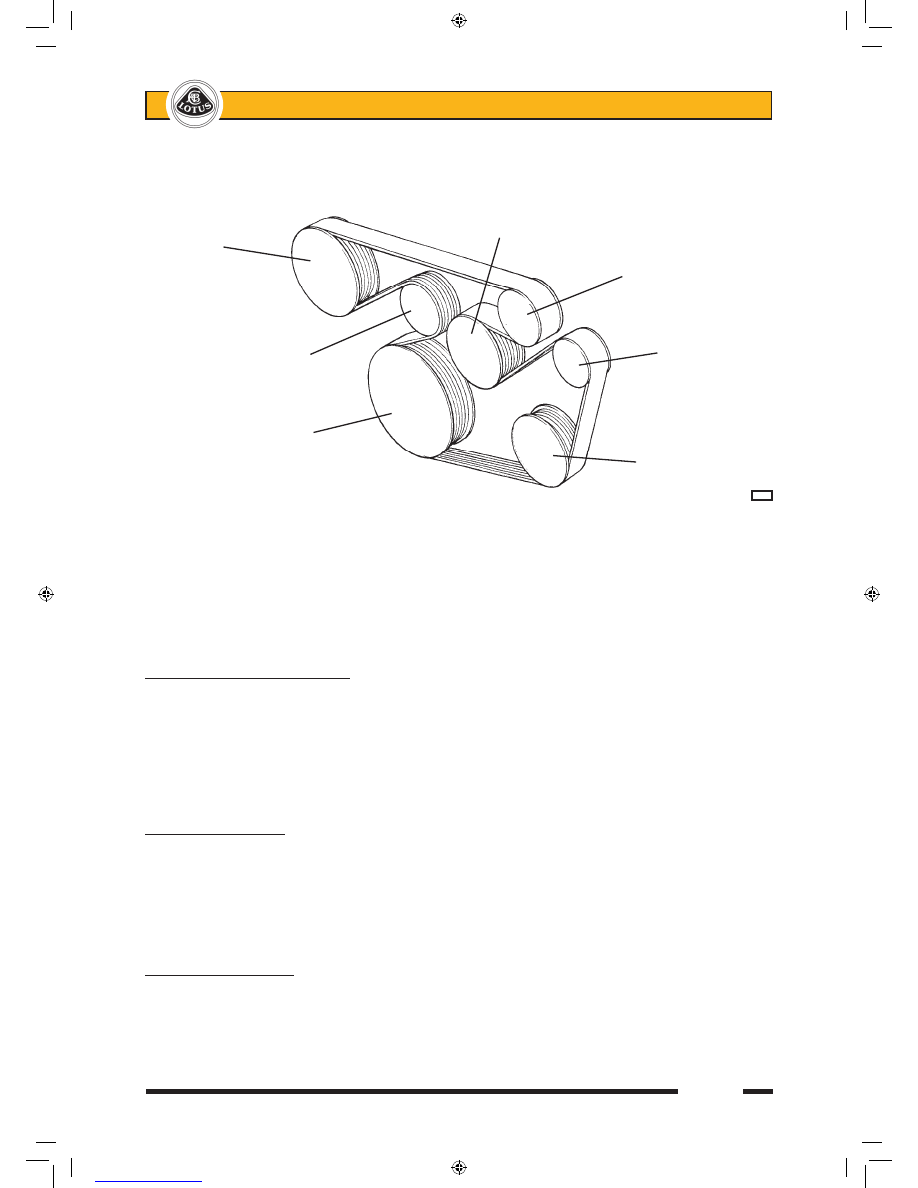

                                    Water pump

Slave pulley



                                                    Supercharger



        Belt tensioner                                        Alternator

      Crankshaft pulley

                                                      A.C. compressor



e232

sn_Exige Supercharged supplement.indd   11

03/03/2006   11:32:38
