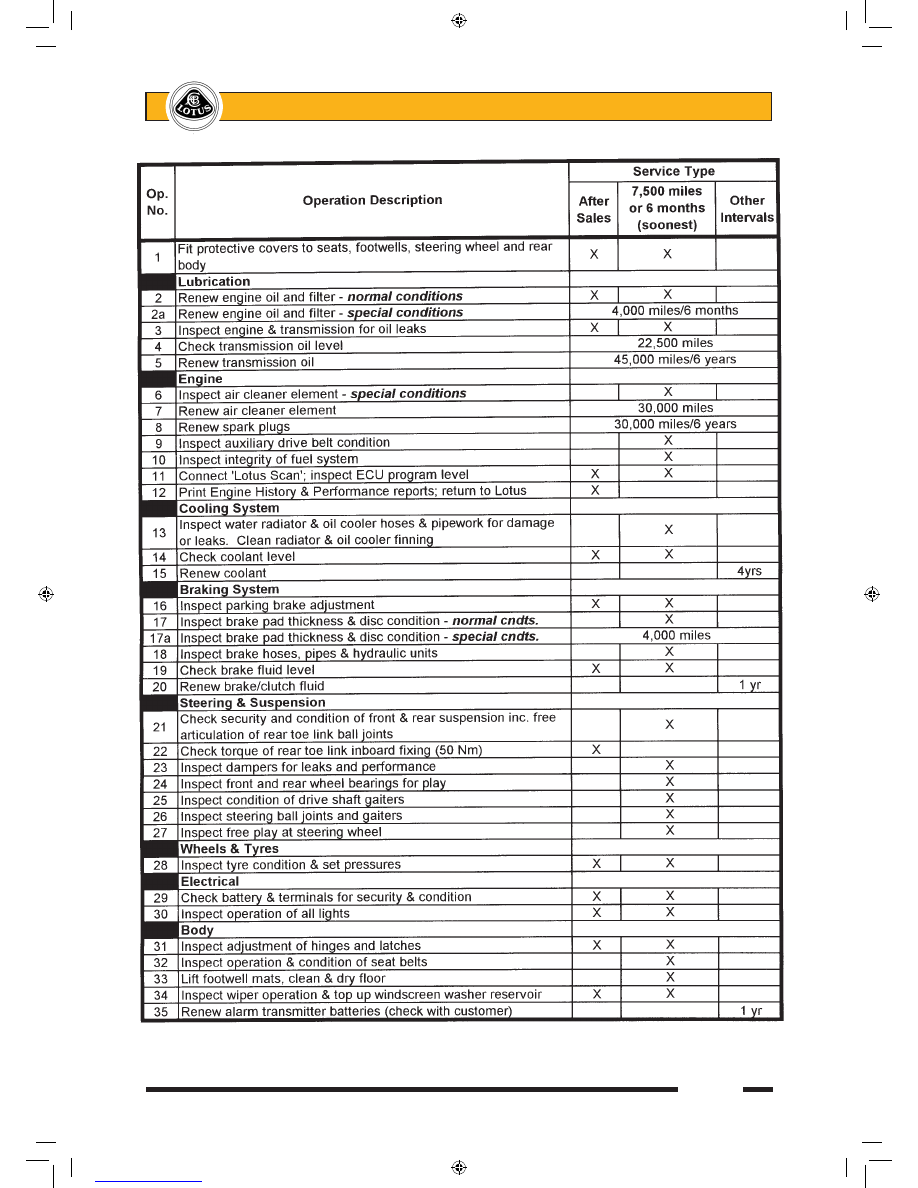

Page 7





Lotus Service Notes





    Section OI

lsl462 sn

sn_oi_cyclone.indd   7

03/03/2006   11:24:17

Page 8





Lotus Service Notes





    Section OI

Road Test Performance



















Engine performance ...........................…..................

Tailpipe CO .............................................................







Clutch operation ......................................................

Gearbox operation ..................................................







Brake performance ...................................................

Steering performance .............................................







Driveline & suspension noise/vibration .......................

Wheel balance ........................................................

















General comments ………………………………………………………………………………...…………………......

 ...........................................................................................................……………………….................................

……………………………………………………………………………………………………………..…………….....

.



















Additional Work Performed or Required

..…………………………………………………………………………………………………………………………......

....……………………………………………………………………………….............................................................

.............................................................................................................................................................................

.............................................................................................................................................................................

Work completed by ...........................…  Owner’s Maintenance Booklet stamped: …………

















Recommended Service Times                Dealer Stamp:



After Sales Service:  1.9 hr

Regular Service:    2.8 hr

Op.2a:          0.6 hr

Op.4:           0.1 hr

Op.5:           0.7 hr

Op.7:           0.6 hr

Op.8:           0.5 hr

Op.14:          0.6 hr                   Date:

Op.16a:          0.3 hr

Op.19:          0.6 hr

sn_oi_cyclone.indd   8

03/03/2006   11:24:18

Page 9





Lotus Service Notes





    Section OI

                  MAINTENANCE SCHEDULE - EXIGE SUPERCHARGED (Non-USA)

LSL501













Job no.: ........................  Owner’s name: .....………….......................  Vehicle: ..............………...………..























Vehicle registration no.: ......………...................  V.I.N.: ......………................................................…























Recorded mileage: ........………...…….…………   Mileage at last service.: ..............………………























Today’s date: ………………..………...……………  Date of last service: ………………………























EXPLANATORY NOTES:























Required Maintenance











In order to maintain warranty validation and help ensure proper safety, emissions performance and dependability

of the vehicle, Lotus Cars Ltd. requires that the vehicle be serviced in accordance with this schedule.  Each

service should be performed within 9,000 miles (15,000 km) or 12 months of the previous service, whichever

first occurs.  Any necessary repairs should be completed without delay.



A cross ( X ) in the following table indicates an operation to be performed.  The corresponding box should be

ticked when the operation has been satisfactorily performed, or the X circled if extra work and time is required.

The approval of the customer should be obtained before any extra work is undertaken, details of which should

be recorded in the space provided at the end of the schedule.











‘Inspect’ means assess condition and test for correct operation.  Extra time is required to adjust or repair -

advise customer beforehand if necessary.











‘Check’ means test and adjust/fill or tighten as necessary.  Labour time is included.











Special Operating Conditions









If the car is subjected to one of the following 'special operating conditions', additional servicing is required:

- Regular use on unpaved or dusty roads (1,2)

- Use in mountainous areas with severe or prolonged brake usage (3)

- Frequent short trips with cold engine (esp. in cold weather/climates); and/or frequent or prolonged idling (1)

- Occasional circuit use, with repeated high rpm, wide throttle openings and high oil temperatures (1,3,4)

- Competition, or timed track use (5)







Additional servicing:

1.  Oil & filter change @ 3,500 m (5,500 km) intervals.

2.  Inspect air cleaner @ 9,000 m (15,000 km) intervals, or as required.

3.  Inspect brake pads & discs @ 1,000m (1,500 km) intervals, or as required.

4.  Thorough safety check including wheels, tyres, suspension, steering and brake systems.

5.  The Lotus Elise and Exige are designed as road going sports cars.  It is recognised that owners may wish

to use the car occassionally on closed circuit tracks to experience the car's full range of dynamic capabilities.

However, use of the car in a competitive manner, including timed runs or laps, is not endorsed by Lotus.  This

type of timed, competitive use will invalidate warranty and require appropriate levels of expert vehicle preparation

and servicing.











After Sales Service

To be performed within 1,000 - 1,500 miles (1,500 - 2,500 km) or 12 months of vehicle sale, whichever first

occurs.

If carried out by the selling dealer, there is no charge to the vehicle owner for the labour content of the After

Sales Service.  Only for materials used will a charge be made.  To maintain warranty validation, an Engine

History Report print out from the Lotus Scan tool must be submitted to the Warranty Department.

sn_oi_cyclone.indd   9

03/03/2006   11:24:18

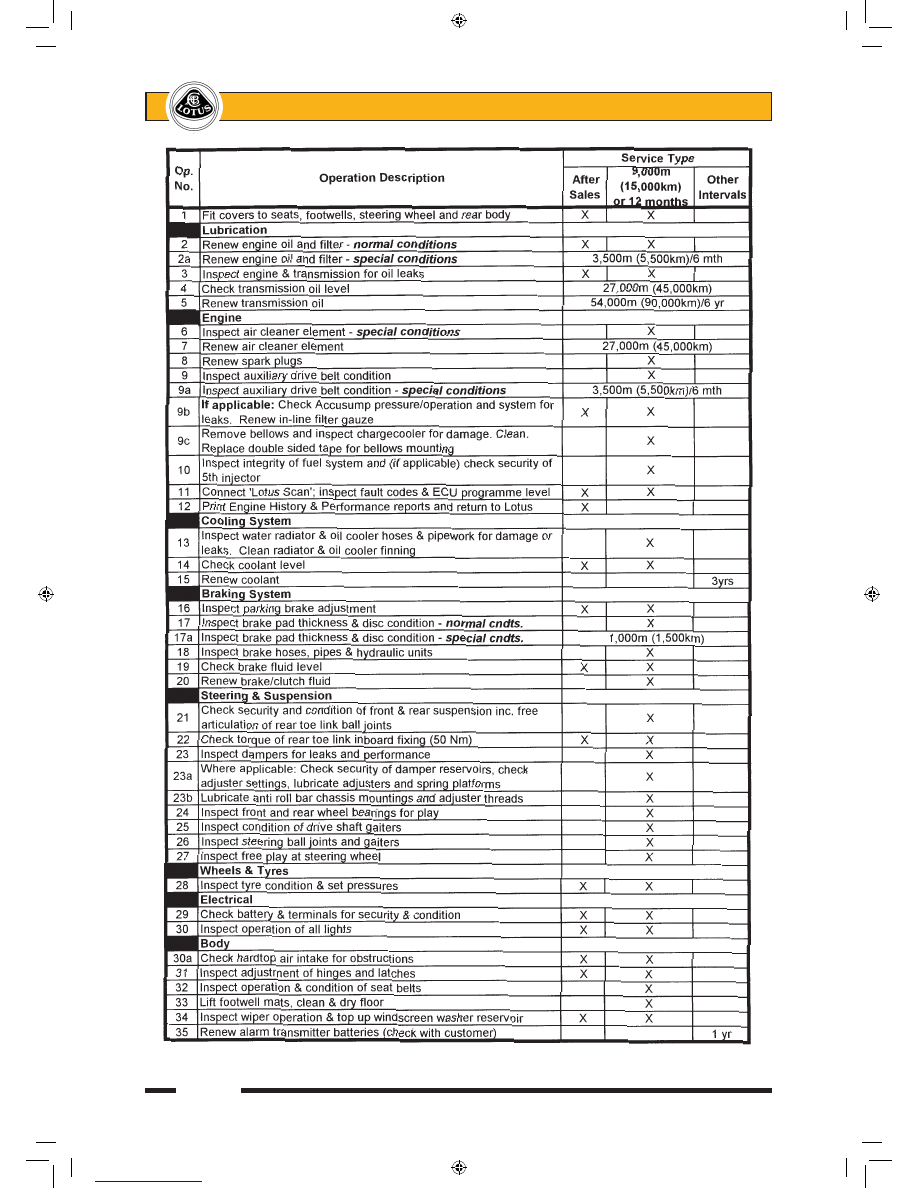

Page 10





Lotus Service Notes





    Section OI

lsl501
