Page 1





Lotus Service Notes





        2-Eleven







SUPPLEMENT

2-Eleven

                                                   Sub-Section         Page





Concept & Overview









2-Eleven.#



2





Technical Data











2-Eleven.TD



3





Chassis













2-Eleven.A



5





Body













2-Eleven.B



5





Front Suspension











2-Eleven.C



9





Rear Suspension











2-Eleven.D



9





Engine













2-Eleven.E



11





Wheels & Tyres











2-Eleven.G



17





Brakes













2-Eleven.J



17





Cooling













2-Eleven.K



18





Fuel System











2-Eleven.L



19





Electrical













2-Eleven.M



20





Maintenance & Lubrication







2-Eleven.O



26





Miscellaneous











2-Eleven.Z



26





Circuit Diagrams Index









-





27







Lotus Service Notes





        2-Eleven

Page 2

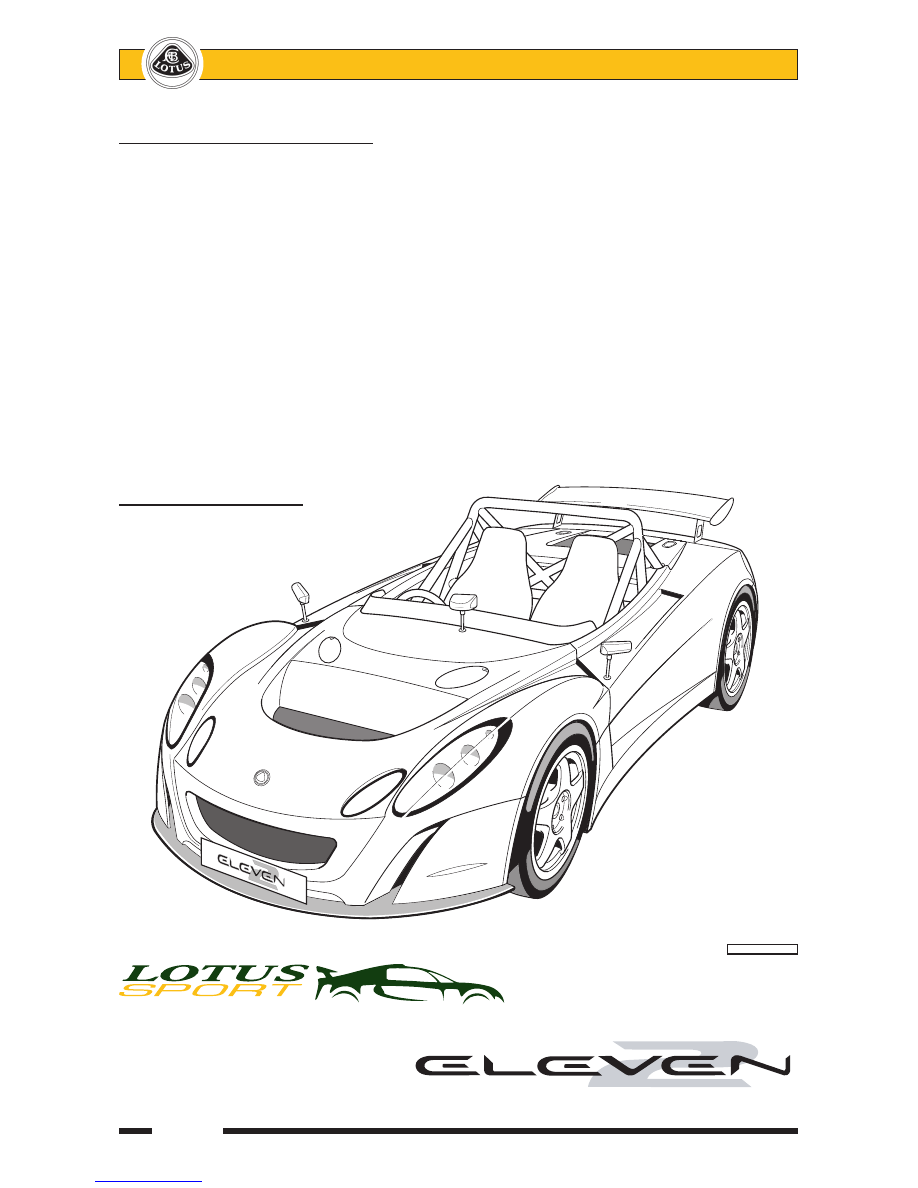

Lotus 2-Eleven (road spec.)

2-ELEVEN.# - CONCEPT & OVERVIEW

In March 2007, Lotus announced the Lotus 2-Eleven (255 PS) designed for the motorsport enthusiast, and

aiming to provide a high fun factor from a lightweight, high performance, distinctively styled vehicle, suitable

as a basis for various sporting disciplines, as well as offering U.K. customers the option of a unique road going

experience.  The cars to be produced in small numbers for the U.K. and certain overeas territories tailored to

customer specification from an extensive options list.

The running gear is based on the Exige S, and shares that car's basic chassis and supercharged powertrain

componentry, but uses a new chargecooler arrangement and peripheral systems.  Unique engine programming

is used in conjunction with 4 high flow fuel injectors as used on Exige Cup cars.  The open top lightweight body

is designed to be amenable to economic accident repair and is supplemented by an FIA compliant roll over

bar, and strut mounted rear aerofoil acting directly onto the rear subframe.  Options include a race specifica-

tion carbon fibre adjustable rear aerofoil combined with an enlarged front splitter for enhanced aerodynamic

balanced downforce, and Ohlins fully adjustable spring/damper units with remote reservoirs.

This supplement describes the unique features of the 2-Eleven, and refers to other models where com-

ponentry is shared.

2-11 fq road black

Page 3





Lotus Service Notes





        2-Eleven

2-ELEVEN.TD - TECHNICAL DATA (Where different to standard naturally aspirated Exige)

Identification

The VIN coding of the 2-Eleven includes the following identifying characters:

Character 4 (engine type); 2-Eleven 2ZZ supercharged 255 bhp = N

Character 6/7/8 (vehicle type); 2-Eleven = 123

Character 12 (chassis specification);  U.K.  SVA RHD = F            Note that the VIN label on the

                        U.K.  SVA LHD = G            2-Eleven is located on the cabin

                        Track only LHD = H            rear bulkhead, behind the

                        Track only RHD = J            driver's seat.

Character 13 (model); 2-Eleven = 2

Dimensions

Overall length  - SVA                             3822 mm

Overall width  - excluding mirrors                     1709 mm

          - including mirrors                      1735 mm (approx.)

Overall height (at kerb weight)                        1112 mm

Ground clearance                                95 mm

Dry weight - base car                              670 kg

Unladen weight - SVA                             745 kg. incl. full fuel tank

Maximum weight                                895 kg. incl. occupants

Capacities

Engine oil; refill incl. filter & Accusump                   6.4 litre

(The oil cooler circuit contains an additional 3.5 litres, but this volume is not normally drained during routine

servicing)

Engine

Forced induction                                Magnuson MP62 supercharger with

                                          integral by-pass valve.

                                          Air/air chargecooler.

Maximum boost pressure                           0.5 bar (7 psi)

Max. power                                    255 PS (252 bhp; 188 kW) @ 8000rpm

Max. torque                                   242 Nm (179 lbf.ft; 24.7 kgf.m) @

                                          7000rpm

Power to weight ratio - base car                       376 bhp/tonne

Specific power output                             142 PS/l (140 bhp/l; 105 kW/l)

Lubrication system supplement                       Accusump oil storage reservoir

Oil cooling                                    Twin front mounted oil coolers

Clutch

Spring cover assembly                            Uprated diaphragm spring

Friction plate                                  Uprated cush drive springs



Wheels & Tyres

Wheels  - type   - std.                            Cast alloy, 8 x Y-spoke (as Exige)

            - option                          Lightweight forged alloy 5-spoke

      - size    - std.    - front                     6.5J x 16

                  - rear                      7.5J x 17

            - option  - front                     7J x 16

            - rear    - rear                      8J x 17







Lotus Service Notes





        2-Eleven

Page 4

Suspension

General                                      Unique front top wishbones and steering

                                          arms.  Chassis rear brace

Ride height, mid-laden, front/rear                      100/110 (2 x 75 kg pass., ½ tank fuel)

Option                                      Siffened, 5-position adjustable front anti-

                                          roll bar with Ohlins gas pressurised,

                                          2-way adjustable, remote reservoir damp

                                          ers, with adjustable spring top platforms.

Suspension Geometry (at mid-laden ride height)

Front

Castor                                      + 3.5° to + 4.5° (+ 3°30’ to + 4°30’)

                                          max. side/side 0.4° (0°24’)

Camber                                      - 1.5° to - 1.3° (- 1°30’ to - 1°18’)

                                          max. side/side 0.4° (0°24’)

Alignment                                    - 0.4 mm to zero

Steering axis inclination                            11°54’ to 12°06’

Rear

Camber                                      - 2.75° to - 2.48° (- 2°45’ to - 2°29’)

Alignment                                    1.2 to 1.5 mm toe-in each side

Electrical

Battery    - type                               Odyssey PC680

        - rating                              PHCA 5 second 680 amps

        - capacity (20 hr)                        17 ah

        - cold cranking                          220 amps

        - reserve capacity                        24 minutes

        - dimensions                          L185; W 79; H 187 mm

        - weight                              7 kg
