Porshe 911 (997). Manual - part 988

2. Insert a screwdriver through the openings in the rear spoiler from below, press the locking mechanism -B-

for the auxiliary brake light together -A- and carefully pull out the brake light.

3. Repeat the procedure on the other side if necessary.

4. Release the electric plug connection -C- and disconnect it from the brake light.

Removing auxiliary stop light in convertible top compartment
lid

Removing auxiliary stop light in convertible top compartment lid

1. Open the convertible top compartment lid fully.

Release retaining clips with special tool

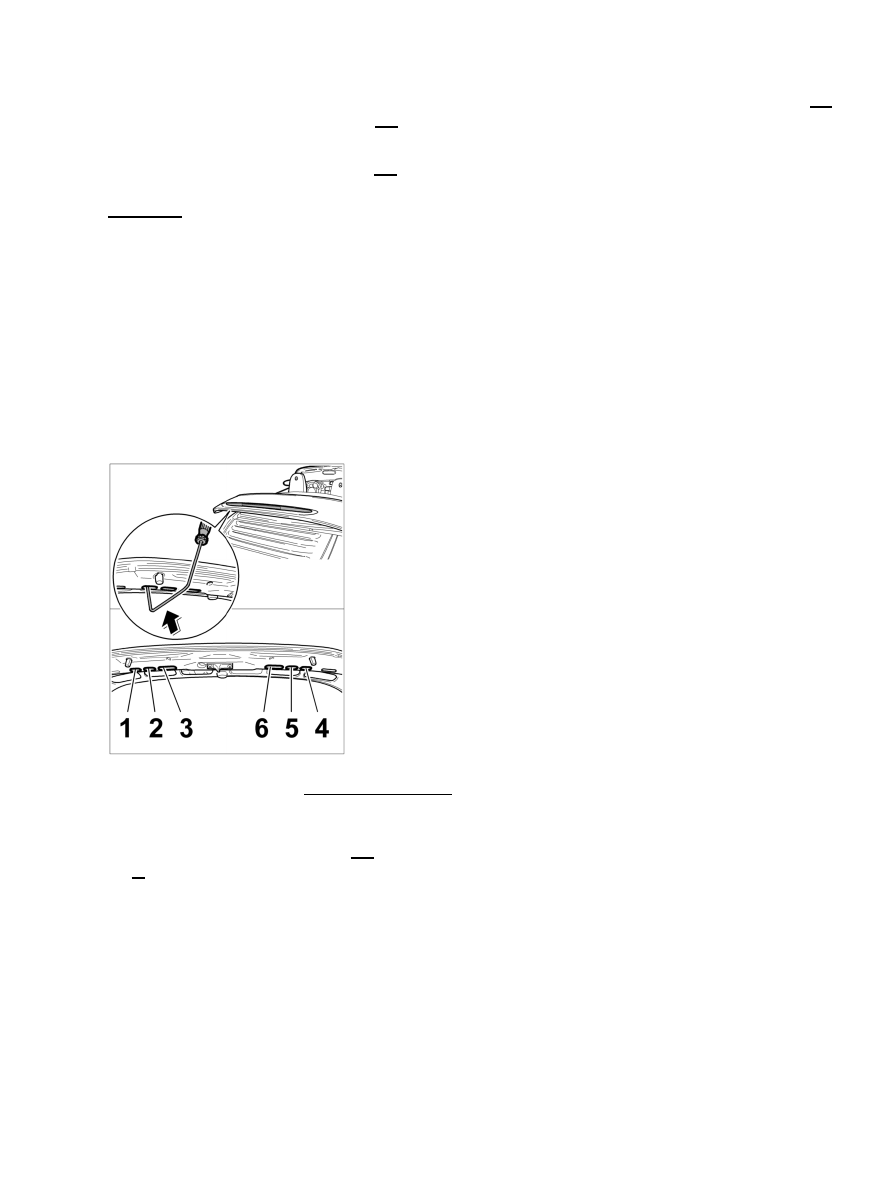

2. Pass the disassembly tool disassembly aid 9707 through the openings in the convertible-top

compartment lid and guide the disassembly tool onto the retaining clips of the auxiliary stop light
with the finger.

3. Unclip the retaining clips in turn -1 -

6-

 .

Diagnostic system: reading out fault memory and activating systems

Removing auxiliary brake light in rear spoiler

4109

Moving the stop light

4. Carefully pull out the auxiliary stop light in the area of the outer retaining clips and slowly push to the left.

5. The auxiliary stop light then disengages on the right side of the convertible-top compartment lid

and you can now remove it easily to the right.

Releasing electric plug connection

6. Release electric plug connection -A- and pull it off the auxiliary stop light.

Installing auxiliary stop light in rear spoiler

Installing auxiliary brake light in rear spoiler

Diagnostic system: reading out fault memory and activating systems

Removing auxiliary stop light in convertible top compartment lid

4110

Installing auxiliary brake light

1. Plug electric plug connection -A- into the auxiliary brake light until the connector is felt to engage.

2. Insert brake light into the centre of the opening in the rear spoiler and press into place -C-

.

3. Check that the brake light is fitted securely in the rear spoiler by pulling it gently -B-

.

Installing auxiliary stop light in convertible top compartment lid

Installing auxiliary stop light in convertible top compartment lid

1. Connect the electric plug connection to the auxiliary brake light until it clicks into place.

Clipping auxiliary stop light into the convertible-top compartment lid.

Diagnostic system: reading out fault memory and activating systems

Installing auxiliary brake light in rear spoiler

4111

2. Position the auxiliary stop light on the convertible-top compartment lid and carefully clip it in,

from the centre outwards.

3. Check auxiliary stop light is secure and in working order.

4. Close the convertible-top compartment lid.

997310, 997311, 997320, 997321, 997610, 997611, 997620, 997621
