Porshe 911 (997). Manual - part 982

Preliminary work

Preliminary work on control unit for gas discharge

Removing control unit for gas discharge

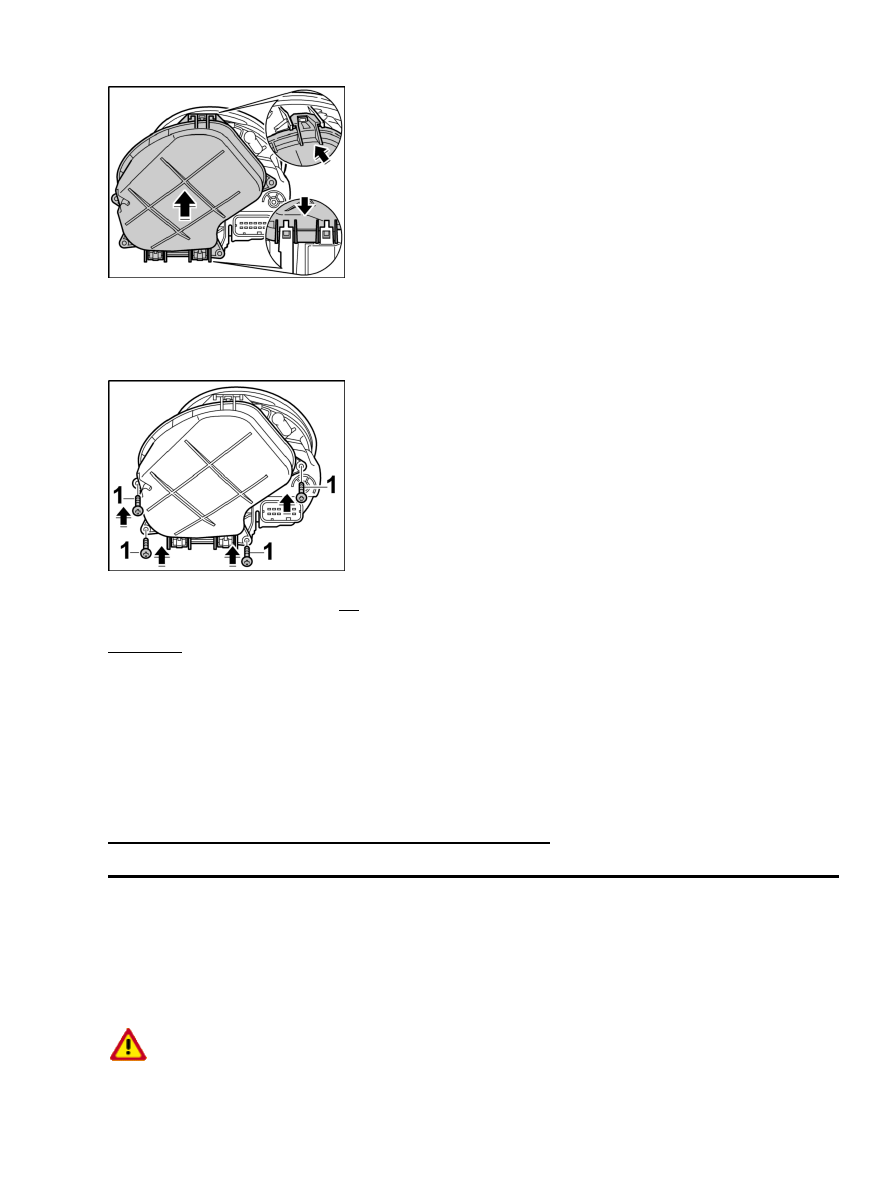

Removing cap of main headlight

Fastening screws for cap

1. Unscrew four fastening screws -1- from the cap.

4085

Releasing cap

2. Release cap once at the top and twice at the bottom -a- and remove from the main

headlight.

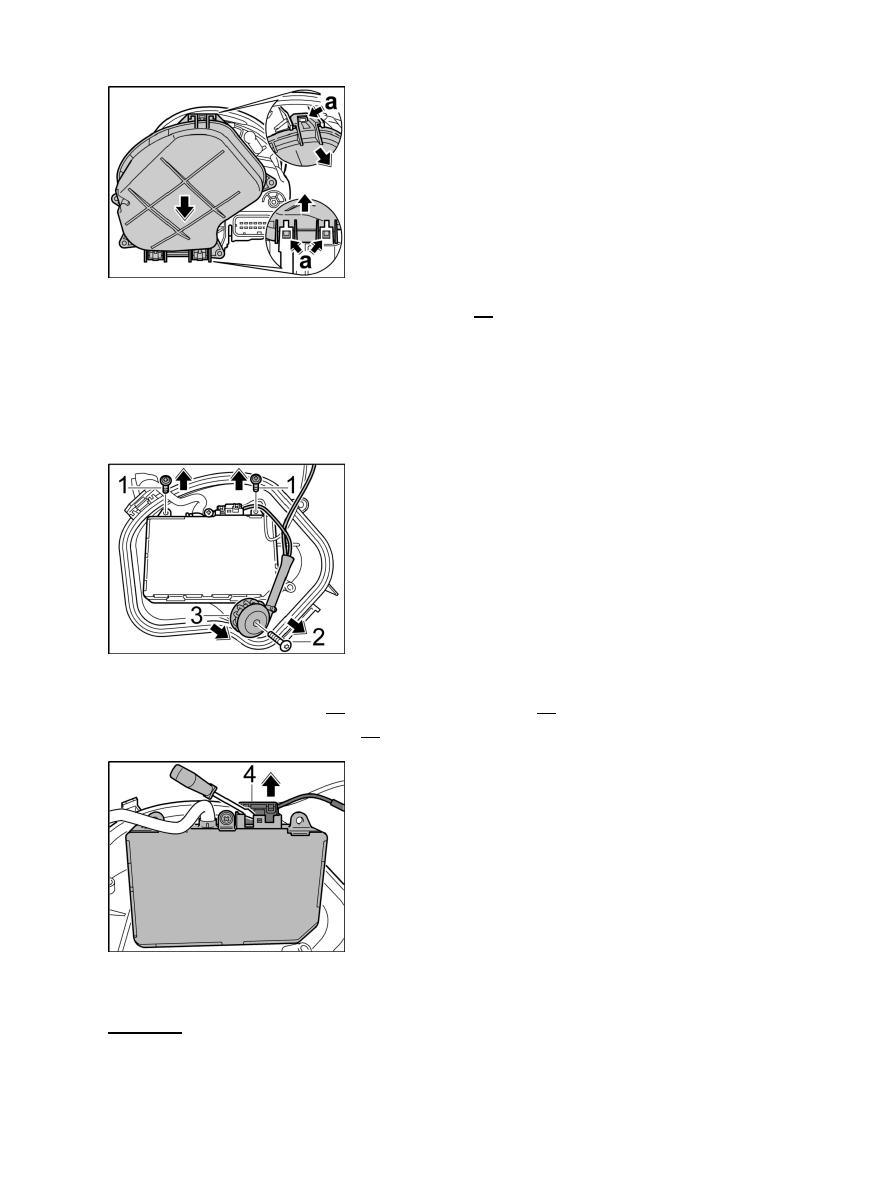

Removing control unit for gas discharge

Unscrewing fastening screws and pulling out coil

1. Unscrew the fastening screw -2- for the coil and pull the coil -3- out of the cap.

Releasing electrical connector with screwdriver

3. Using a screwdriver, carefully release the electrical connector on the screwdriver and lever it out.

Diagnostic system: reading out fault memory and activating systems

Removing cap of main headlight

4086

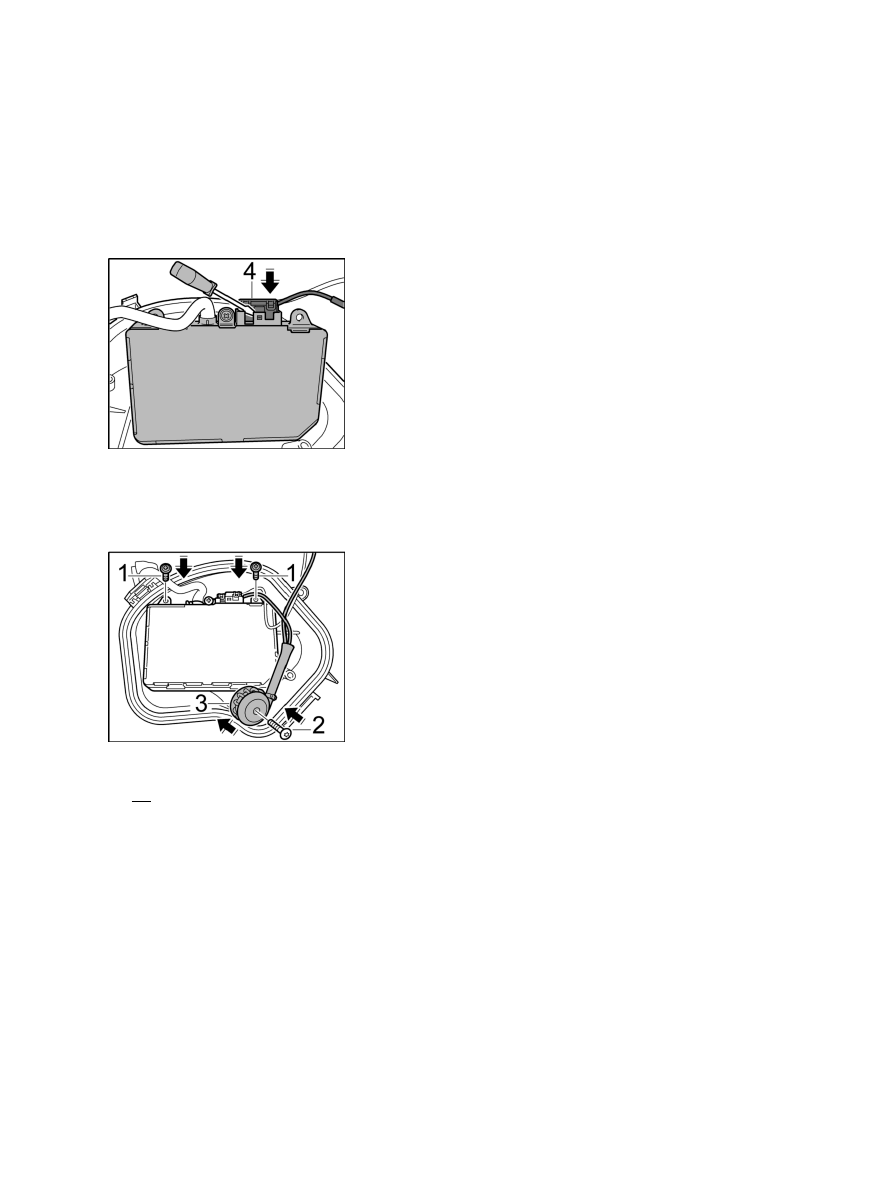

Installing control unit for gas discharge

Connecting electric plug

1. Press in the electrical connector for the gas-discharge control unit until it clicks into

place.

Screwing down the fastening screws and the coil

2. Insert the control unit in the headlight cap and screw down with both fastening screws

3. Push on the coil and screw it down with the fastening screw.

Installing main headlight cap

Diagnostic system: reading out fault memory and activating systems

Installing control unit for gas discharge

4087

Positioning cap

1. Position cap on main headlight and press into place, making sure that the cap engages once at the top and

twice at the bottom.

Screwing in the fastening screws

Subsequent work

Subsequent work on control unit for gas discharge

997110, 997111, 997120, 997121, 997310, 997311, 997320, 997321, 997410, 997411, 997430, 997431,
997610, 997611, 997620, 997621
