Diagnostic system: reading out fault memory and activating systems

Reworking the cigar lighter

3697

- Preliminary work
- Removing PCM display and control unit
- Installing PCM display and control unit
- Subsequent work
- Reading out PCM display and control unit
- Programming PCM display and control unit

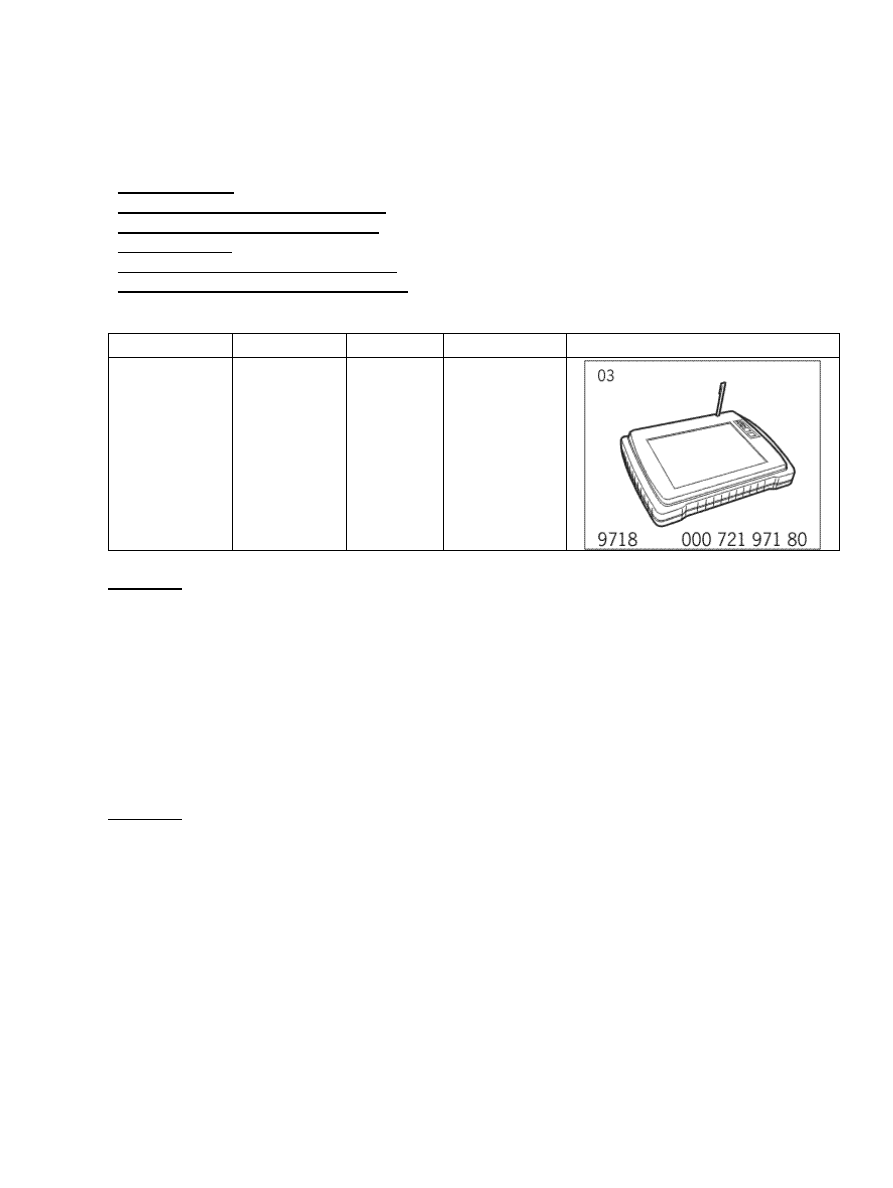

Tools

Designation

Type

Number

Explanation

PIWIS tester

special tool

9718

Preliminary work

Preliminary work for display and PCM operator control unit

Remove both covers on centre console. →  21 Removing and installing centre console cover - removing

Removing PCM display and control unit

Removing display for the PCM operator control unit

Switch off ignition and remove ignition key.

3698

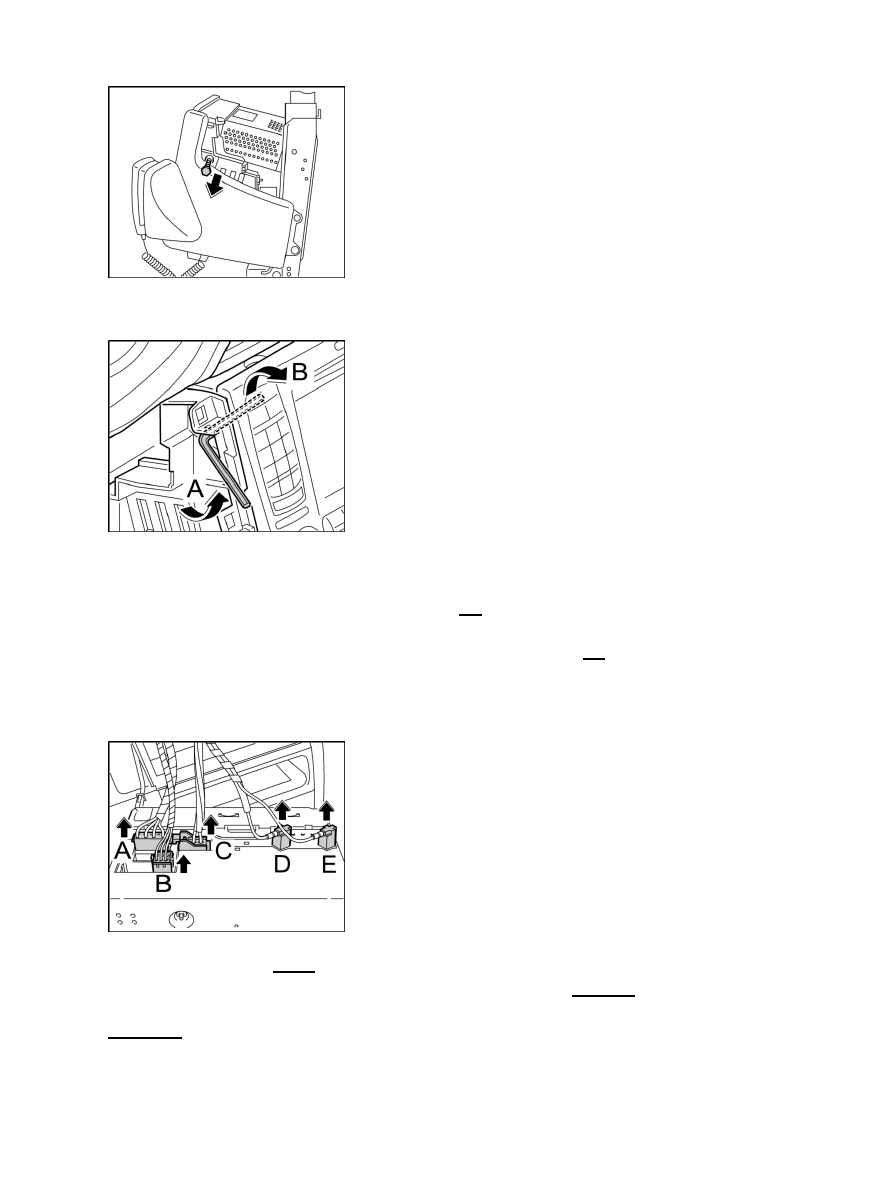

PCM screw locking lacquer

1. Loosen the side fastening screw a few turns.

Fastening the PCM

2. Insert a hexagon-socket wrench sideways into the screw connection of the PCM detent

hooks.

3. Close the detents (2 each side) with an Allen key -A- and carefully pull out the

PCM.

4. For reinstallation, open the detents with the hexagon-socket wrench -B- .

The number of plug connections will vary, depending on the I No. (CD changer, amplifier, etc.).
The variant without additional audio components (external Most control units) has a jumper (output to input)
connected to the optical waveguide plug.

PCM plug connections

5. Unlock antenna plug -D, E- and remove.

6. Unlock and disconnect the electrical plug connections in the order -A, B, C- .

Diagnostic system: reading out fault memory and activating systems

Removing display for the PCM operator control unit

3699

Installing PCM display and control unit

Installing display and PCM operator control unit

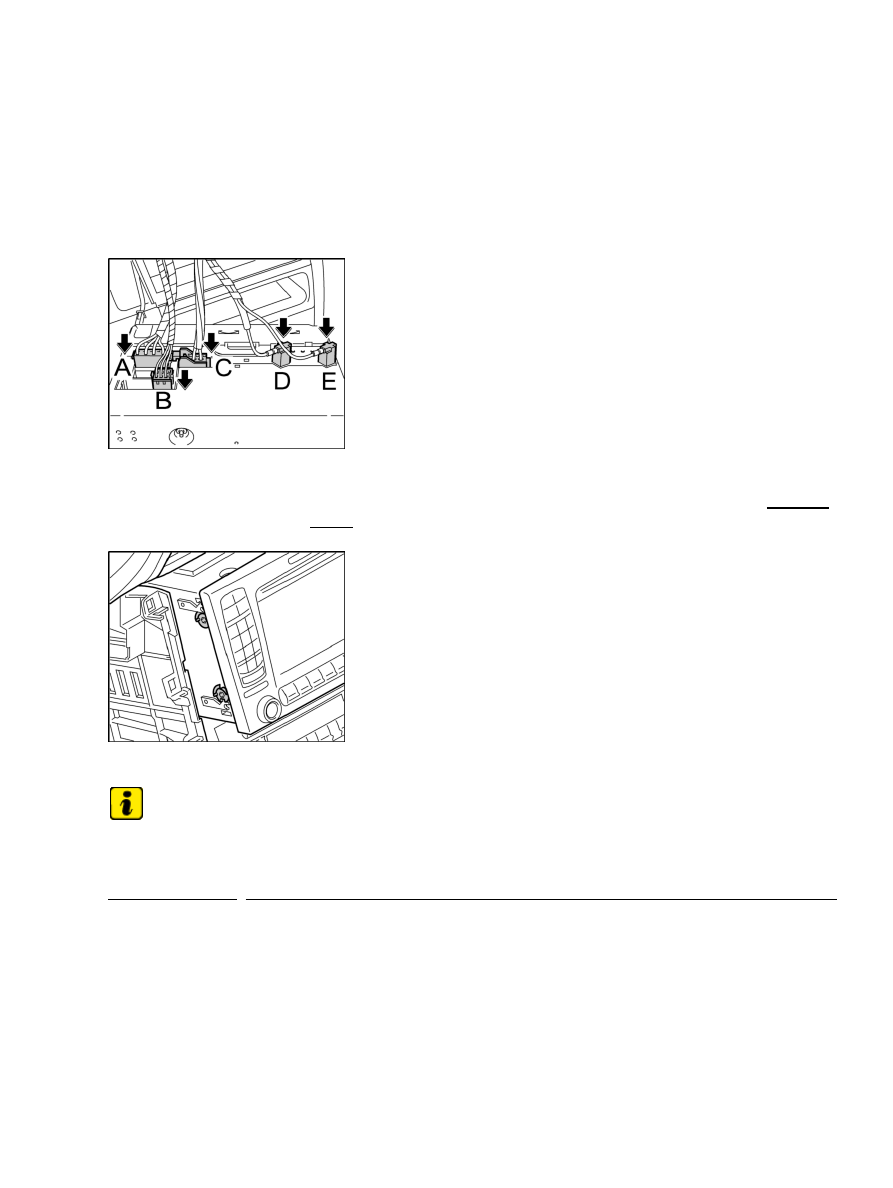

PCM plug connections

1. Push on the electrical plug connections for the display and operator control unit in the sequence -C, B, A-

and the antenna amplifiers -D, E- until the plugs are felt to engage.

Locking tabs on the PCM

2. Check that the locking tabs on the PCM are out, open the lock with an Allen key if necessary.

Note

Before sliding the PCM/radio into the installation slot, make sure that the electric lines are not trapped by the
PCM/radio or damaged .
After installation of a new display and PCM/radio operator control unit, the system must be activated with the
PIWIS tester 9718

. → 911019 Removing and installing display and PCM operator control unit - programming

3. Push the navigation unit into the installation slot until the locks engage on the PCM

housing.

Diagnostic system: reading out fault memory and activating systems

 Installing PCM display and control unit

3700
