Porshe 911 (997). Manual - part 856

Fill refrigerant on the air-conditioning system in accordance with regulations. → 870317 Draining and filling
in refrigerant
Open air outlet nozzles on the instrument panel, and set blower to at least 75 %.
After allowing the system to stabilise at idle speed (approx. 5 sec.), switch on air conditioning and allow the
engine to run uninterrupted for at least 2 minutes at 1500 rpm.
Switch off the air-conditioning system again. Do not drive until the air-conditioning system has been filled.

Checking refrigerant oil in "new" air-conditioning compressor

Correct the refrigerant oil level in the "new" air-conditioning compressor

WARNING

A new air-conditioning compressor contains the oil quantity for the complete air-conditioning circuit.

Risk of damaging the air-conditioning compressor by excessive refrigerant oil in the
air-conditioning circuit.

•

→ If a new air-conditioning compressor or a component in the circuit is replaced, the oil quantity

must be determined and adjusted.

→ Insufficient refrigerant oil causes a lack of lubrication, resulting in the failure of the

air-conditioning compressor.

→ Too much refrigerant oil results in reduced refrigerant performance.

Note

All connection points must be completely dirt-free.
The air-conditioning compressor must be dry (washing the vehicle) and the air-conditioning compressor and
lines must be free of moisture.
The connection points must be closed after they have been opened. Use the original transport caps.
A clean measuring cylinder with a capacity of approx. 300 ml is required.

Determining oil quantity on the "old" air-conditioning compressor

Diagnostic system: reading out fault memory and activating systems

Subsequent work for the air-conditioning compressor

3581

Caps

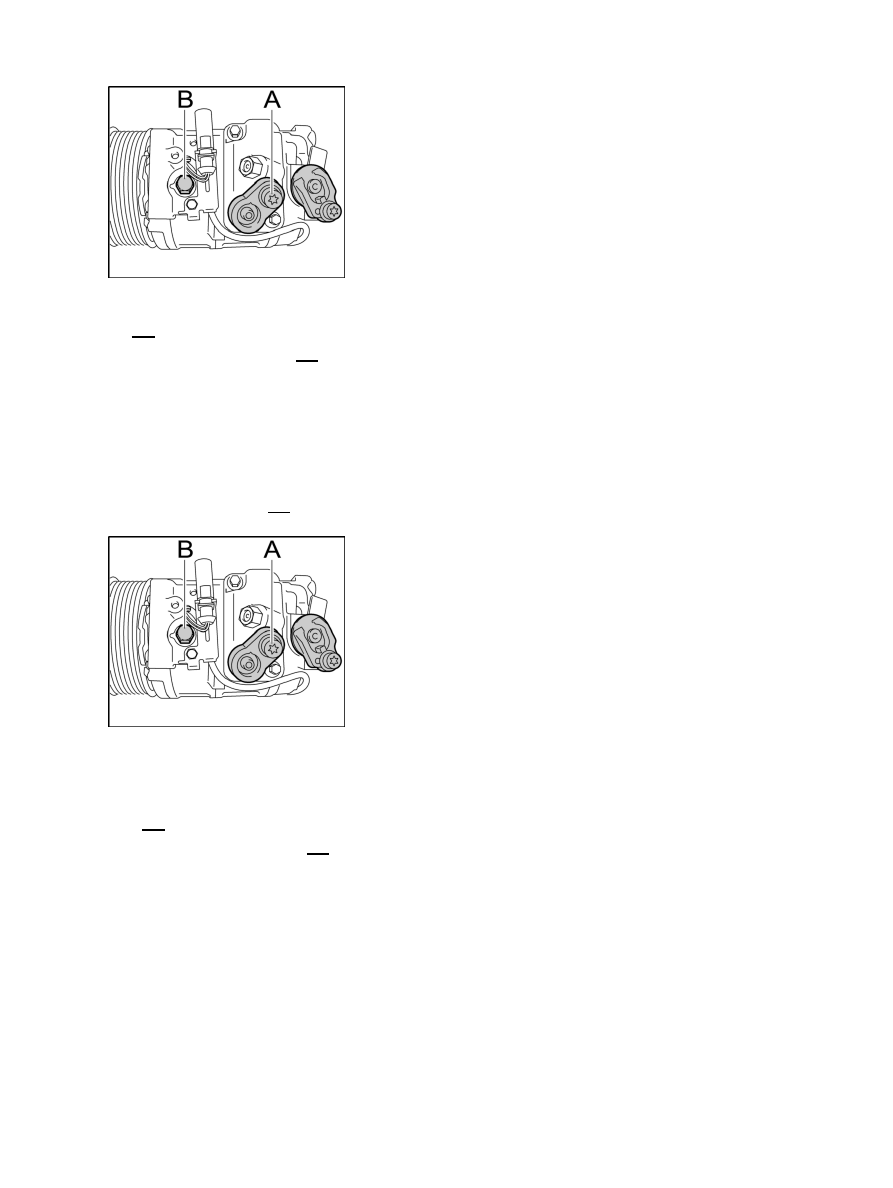

1. First, open the cap on the high-pressure side and relieve the pressure from the compressor

-A-

 .

2. Open the oil filler screw -B- on the

compressor.

3. Fill the refrigerant oil from the air-conditioning compressor into the measuring cylinder. Turn the pressure

plate on the air-conditioning compressor (not the belt pulley) when emptying the refrigerant oil.

The amount of refrigerant oil is referred to as "V

old

" in the formula below.

4. Always replace the sealing ring for the oil filler

plug.

5. Screw oil filler plug -B- into the compressor. → Tightening torque: 30 (22 ftlb.) Nm

Oil filler screw

Determining the oil quantity at the "new" oil filler screw of the air-conditioning compressor

1. To drain refrigerant oil:

1.1. First, open the cap on the high-pressure side and relieve the pressure from the compressor

-A-

 .

1.2. Open the oil filler screw -B- on the

compressor.

1.3. Drain the refrigerant oil from the air-conditioning compressor.

The refrigerant oil must not be re-used, but must be disposed of properly.

2. To determine the refrigerant oil

quantity:

2.1. V

total

 = "V

removed

" + "V

old

" + 20 cm

3

2.2. V

total

= Total volume for the new air-conditioning compressor

2.3. V

removed

 = Volume of refrigerant oil removed by suction

2.4. V

old

 = Volume of refrigerant oil in the old air-conditioning

compressor

Diagnostic system: reading out fault memory and activating systems

Correct the refrigerant oil level in the "new" air-conditioning compressor

3582

2.5. 20 cm

3

3. To fill the air-conditioning compressor:

3.1. Fill the determined refrigerant oil volume V

total

 into the air-conditioning

compressor.

3.2. Always replace the sealing ring for the oil filler

plug.

3.3. Screw oil filler plug -B- onto the compressor. → Tightening torque: 30 (22 ftlb.) Nm

3.4. Install air-conditioning compressor. → 873419 Removing and installing compressor -

Installing

997110, 997111, 997120, 997121, 997310, 997311, 997320, 997321, 997410, 997411, 997430, 997431,
997610, 997611, 997620, 997621
