Removing motor for lumbar support

Removing support for left backrest side part

Installation Location:

Installation position of motor for lumbar support

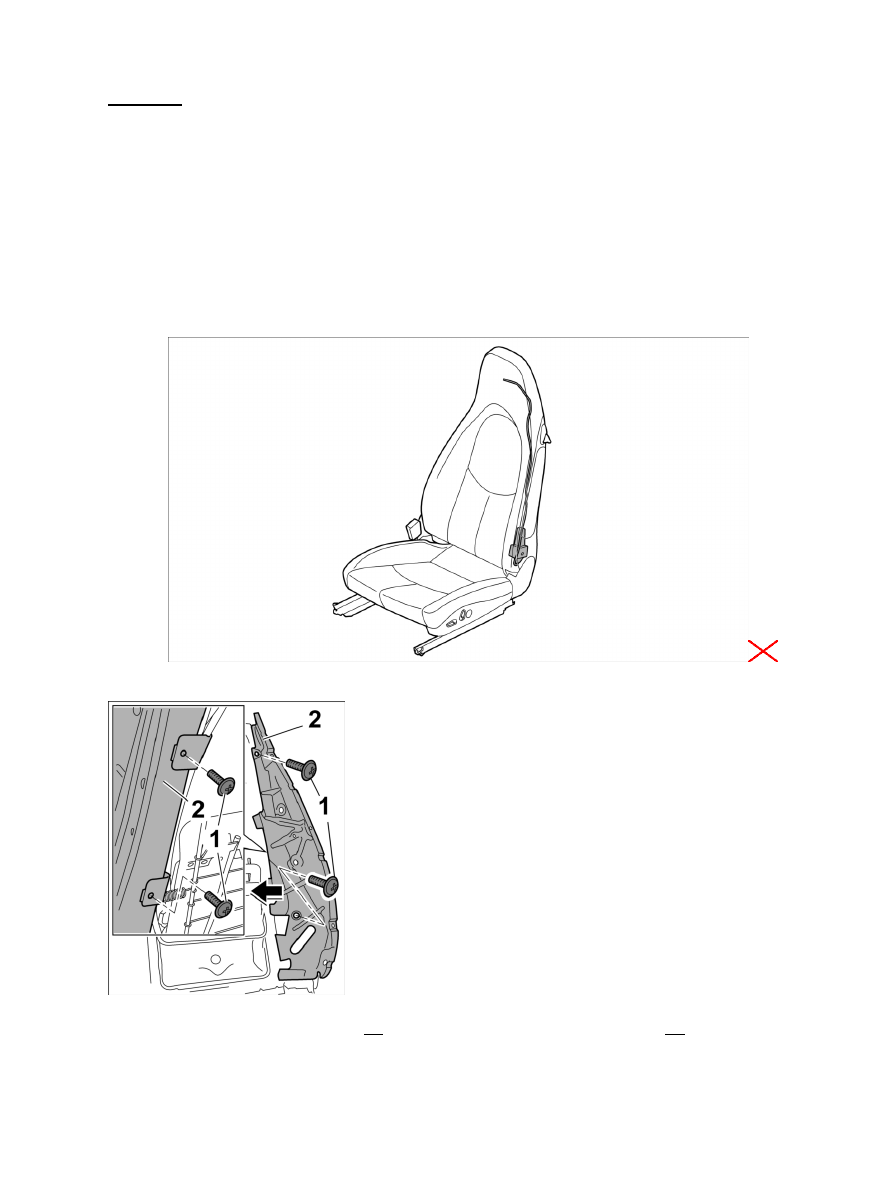

Removing support for left backrest side part

1. Unscrew the four fastening screws -1- and remove support for backrest side part -2- .

Diagnostic system: reading out fault memory and activating systems

Preliminary work

3257

Taking off foam part

Installation Location:

Installation position of control valve for lumbar support adjustment

Taking off foam part

1. Remove foam part -1- at the

headrest.

Removing motor for lumbar support

Diagnostic system: reading out fault memory and activating systems

Taking off foam part

3258

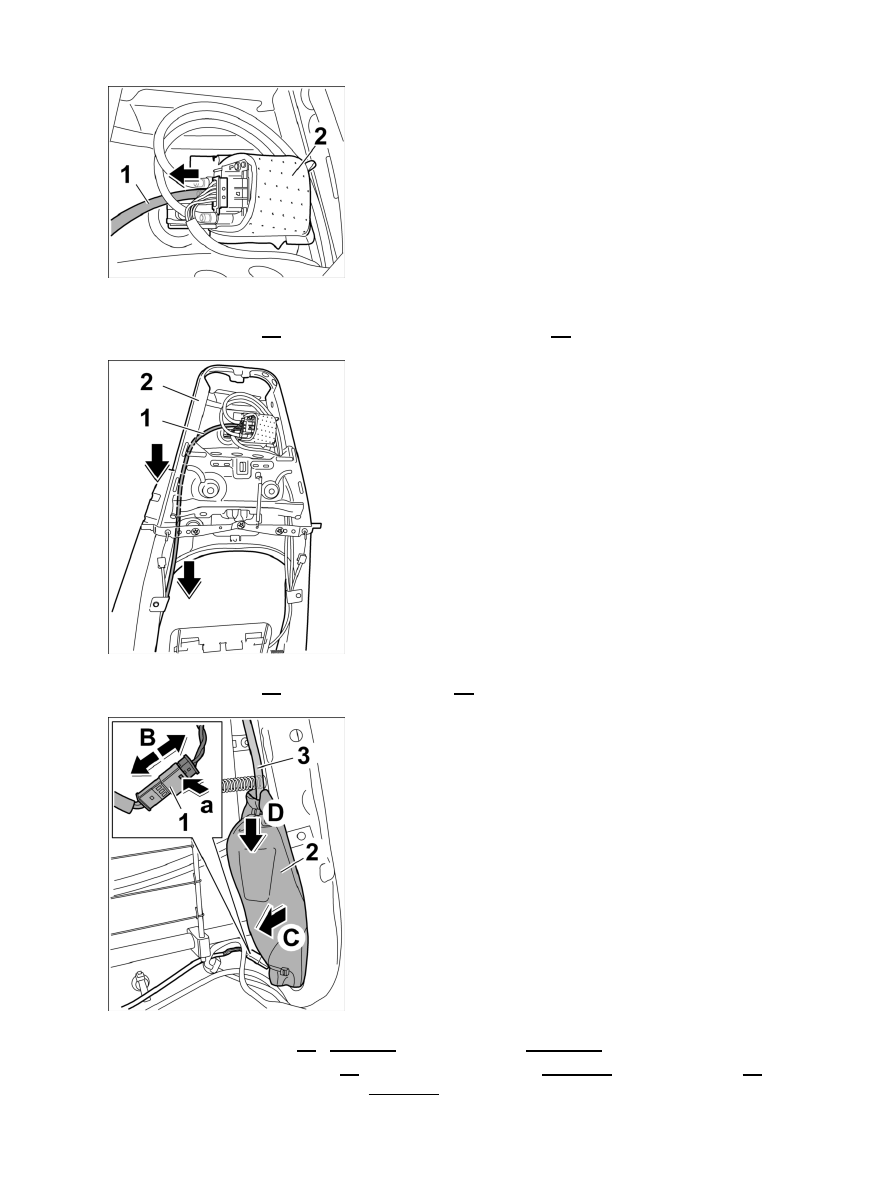

Pulling hose off the control valve for lumbar support

1. Pull the white hose -1- off the control valve for lumbar support -2- .

Pulling hose out of the backrest frame

2. Pull the white hose -1- out of the backrest frame -2- .

Removing motor for lumbar support

3. Release plug connection -1- ( -arrow a- ) and disconnect it -arrows B- .

4. Take motor for lumbar support -2- out of the backrest frame ( -arrow C- ) and pull the hose -3- along with

the motor out of the backrest frame -arrow D- .

Diagnostic system: reading out fault memory and activating systems

Removing motor for lumbar support

3259

Installing motor for lumbar support

Installing motor for lumbar support

Installing motor for lumbar support

1. Push hose -3- into the backrest frame -arrow A- and insert motor for lumbar support -2- into the backrest

frame -arrow B- .

2. Push plug connection -1- together -arrows C- until it engages securely.

Laying hose on backrest frame

3. Lay the white hose -1- on the backrest frame -2- .

Diagnostic system: reading out fault memory and activating systems

 Installing motor for lumbar support
