Overview, removing and installing front seat

1. Disconnect battery. → 271000  Work instructions after disconnecting the battery

Releasing electrical wire

2. Tilt seat backwards.

3. Unclip wiring harness -1- .

Disconnecting central plug

Installation Location:

Diagnostic system: reading out fault memory and activating systems

Releasing electrical wire

3121

Overview, removing and installing front seat

Disconnecting central plug

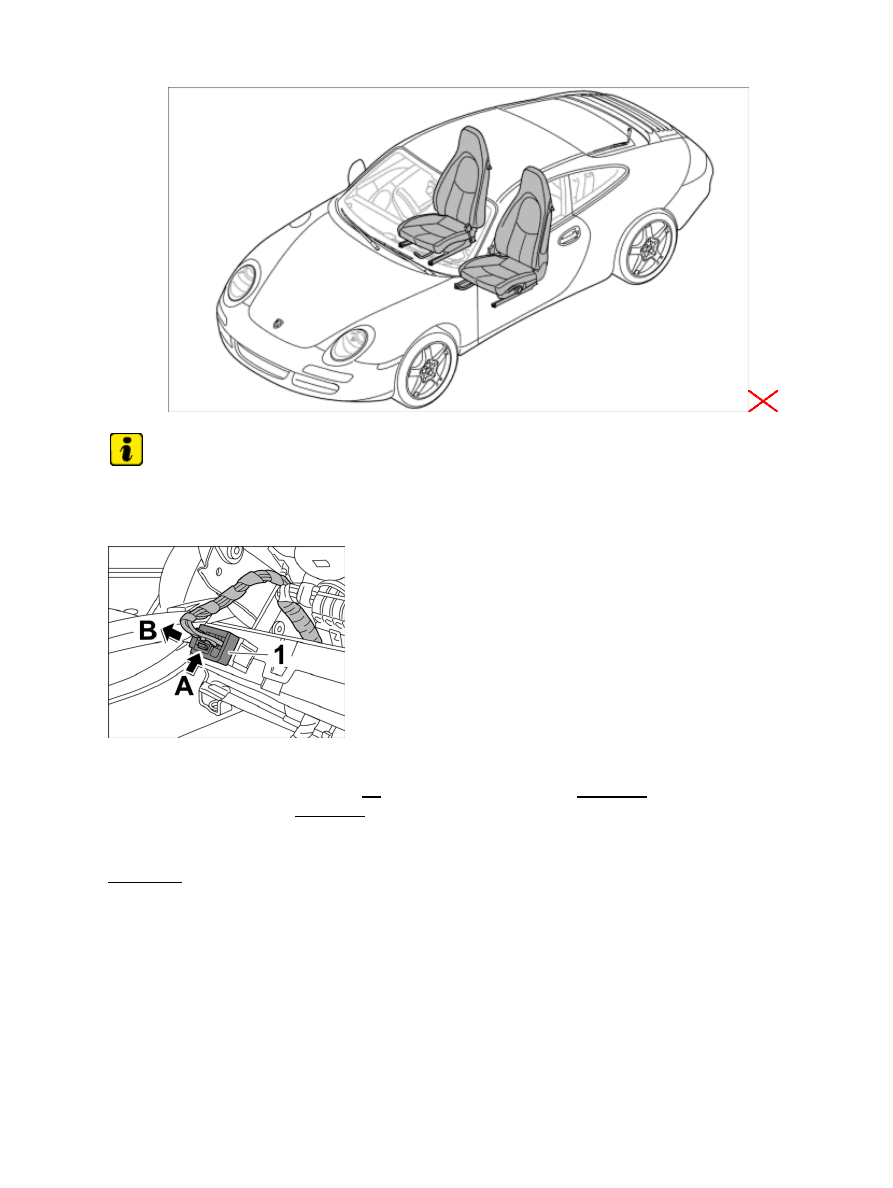

1. Release plug connector locking device -1- on the side -arrow A- and separate the plug connection -2-

-arrow B-

 .

Disconnecting electrical plug connection (power seat)

Installation Location:

Diagnostic system: reading out fault memory and activating systems

Disconnecting central plug

3122

Overview, removing and installing front seat

Note

Only for vehicles with electrically adjustable seat

Disconnecting seat memory plug connection

1. Release electrical plug connection -1- by activating the locking tab -arrow A- and remove from seat

memory control module -arrow B- .

2. Remove front seat.

Installing front seat

Fastening electric line

Installation Location:

Diagnostic system: reading out fault memory and activating systems

Disconnecting electrical plug connection (power seat)

3123

Overview, removing and installing front seat

WARNING

If the wiring at the telephone holder is not routed correctly, the wires can catch at the seat.

Danger of destroying/damaging wire harness for the telephone control unit

•

→ The wire harness at the telephone holder must not be routed over the edge.

Routing of wire harness

Note

The routing of the wire harness for the control unit must be checked before installing the seat.
The wire harness must not be routed over the cover, but should be laid along side the cover -A- .

Note

Before installing and securing the front seat, make sure the electric lines are not pinched or damaged.

Diagnostic system: reading out fault memory and activating systems

Fastening electric line
