Porshe 911 (997). Manual - part 648

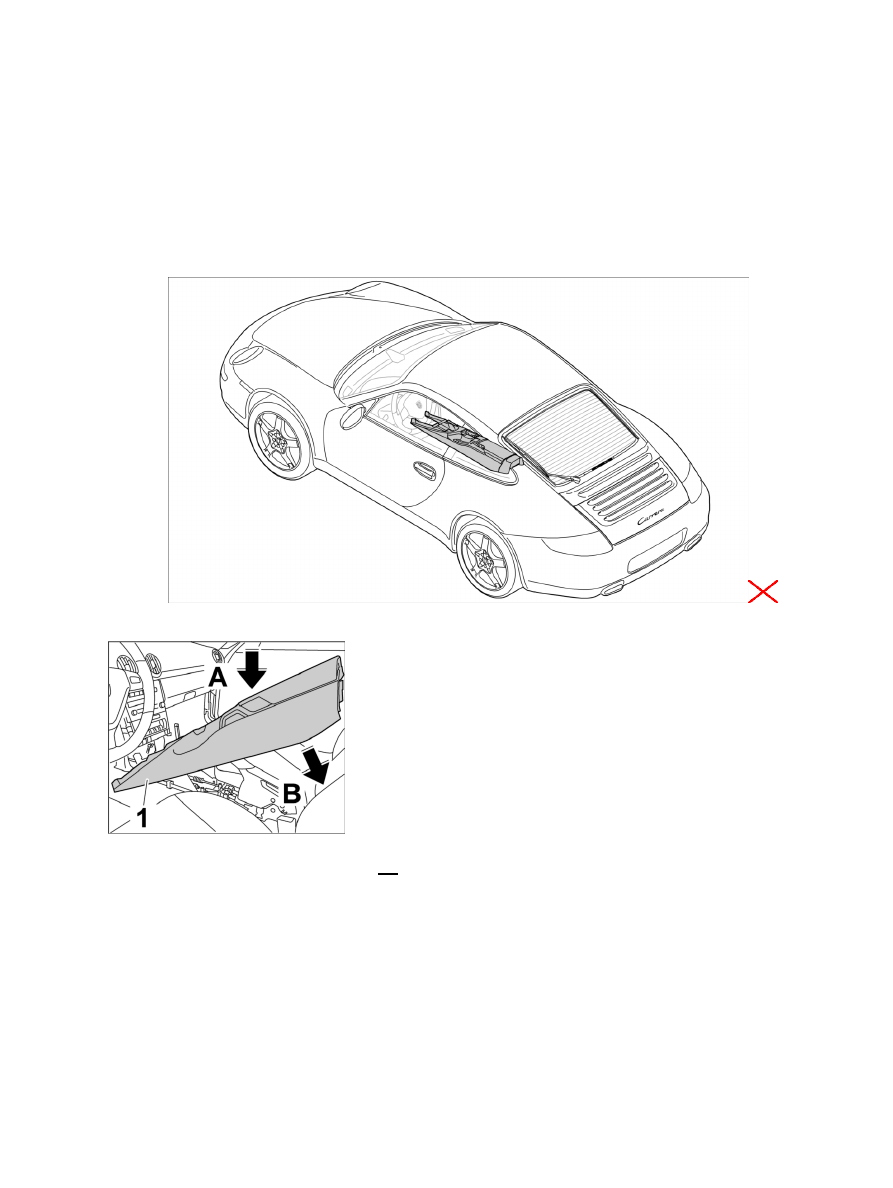

1. Release wire harness electric plug connection for centre console -1- on right and left -arrows A- and pull

apart -arrow B- .

Removing centre console

Installation Location:

Installation position for centre console

1. Open lid of oddments tray.

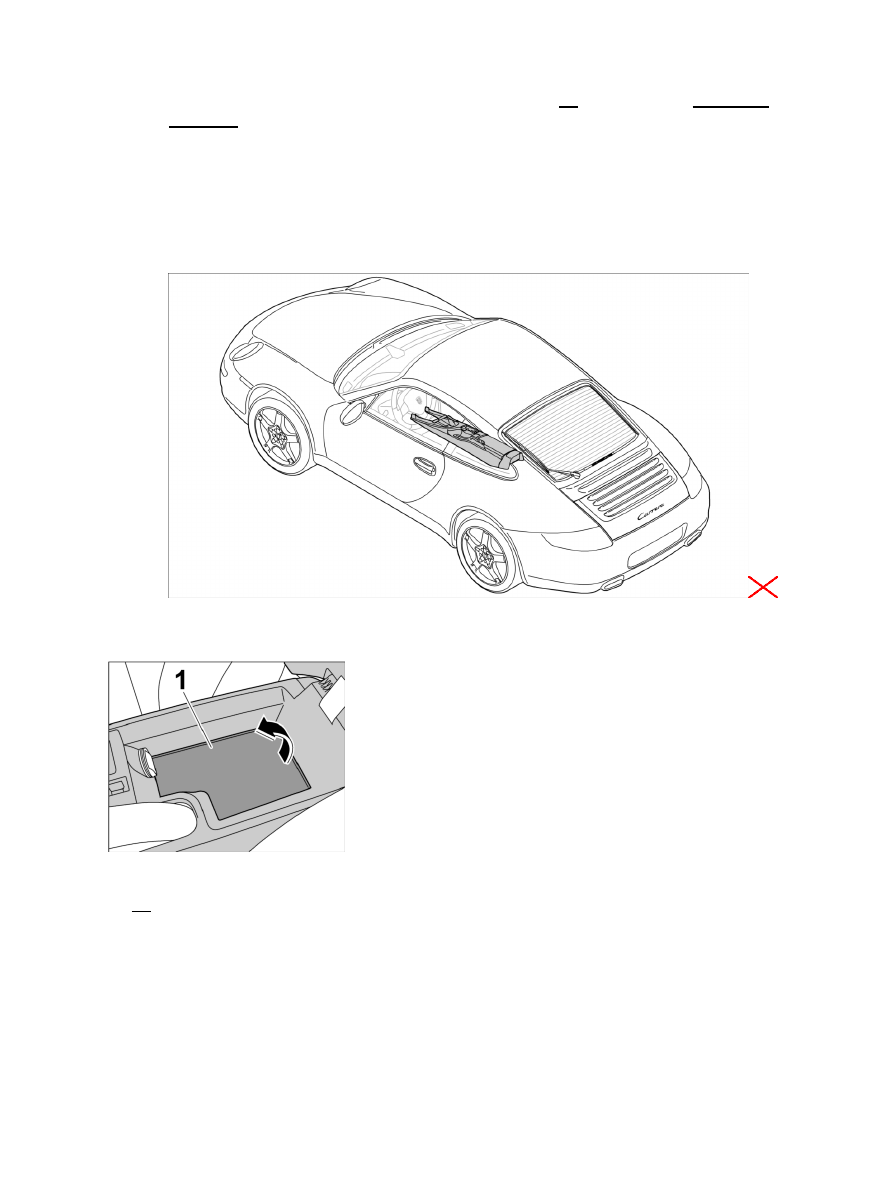

Removing centre console insert

2. Remove insert at rear of centre console

-1-

 .

Diagnostic system: reading out fault memory and activating systems

Disconnecting wire harness plug connection for centre console

2749

Removing floor at rear of centre console

3. Unscrew fastening screws -1- and remove floor at rear of centre console

-2-

 .

4. Close lid of oddments tray.

Releasing centre console

5. Undo fastening screws -1- .

Removing centre console

6. Swivel centre console -1- upward -arrow A- and remove -arrow

B-

 .

Diagnostic system: reading out fault memory and activating systems

Removing centre console

2750

Installing centre console

Installing centre console

Installation Location:

Installation position for centre console

Installing centre console

1. Position and align the centre console -1-

Diagnostic system: reading out fault memory and activating systems

 Installing centre console

2751

Fastening centre console

2. Tighten fastening screws -1- .

3. Open lid of oddments tray.

Installing floor at rear of centre console

4. Insert floor at rear of centre console -2- and screw down with fastening screw

-1-

 .

Installing insert of centre console

5. Position insert at rear of centre console -1- and close lid of oddments tray.

Locking wire harness plug connection for centre console

Installation Location:

Diagnostic system: reading out fault memory and activating systems

Installing centre console

2752
