Disconnecting electrical plug connection

1. Separate electrical plug connection -1- for lid release by pressing the locking tab -Pfeil A- -Pfeil B- .

2. Press locking tab on fastening clip -2- -Pfeil C- and press plug up and out -Pfeil D-

.

Removing lower part of lid lock at rear

Installation Location:

Overview, removing and installing lower part of lid lock at rear

Diagnostic system: reading out fault memory and activating systems

Disconnecting electrical plug connection

1869

Removing lower part of lid lock at rear

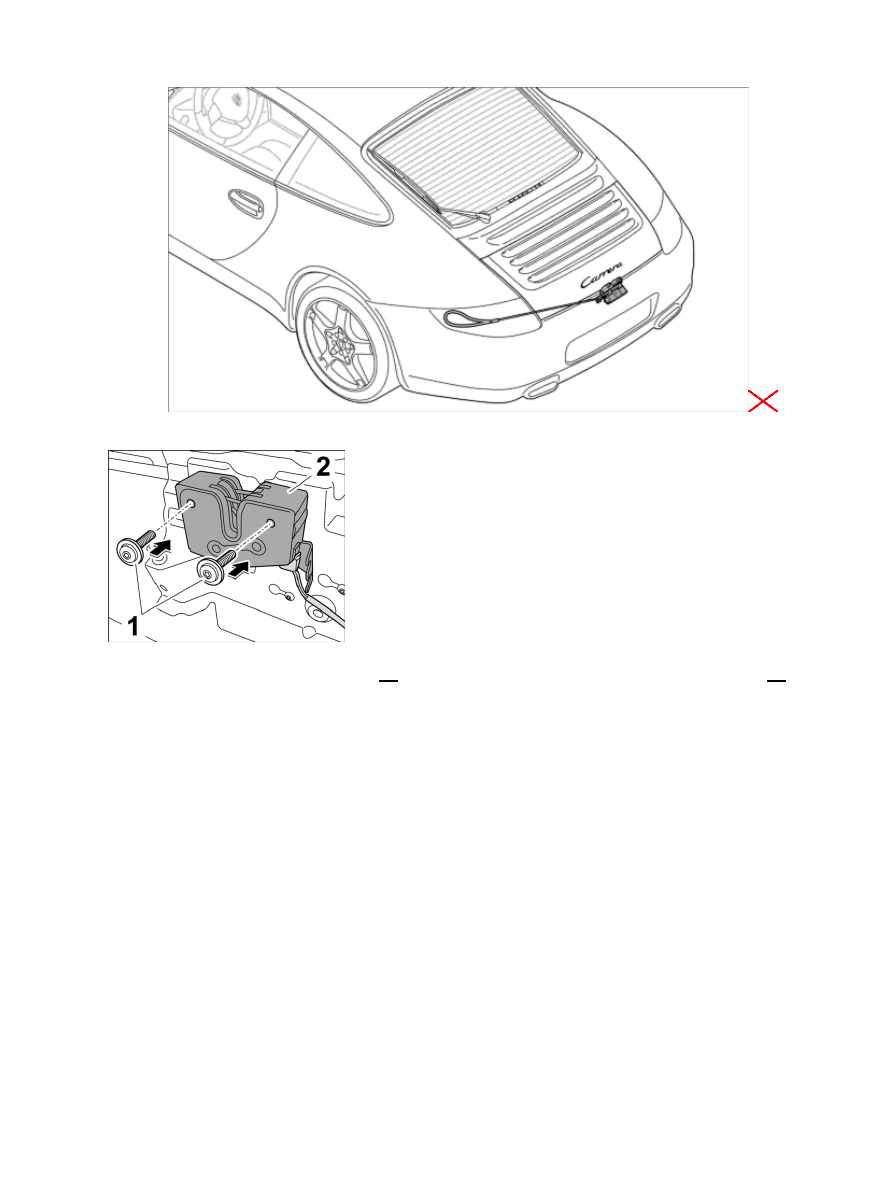

1. Unscrew fastening screws -1- from the lower part of lid lock at rear -2- .

Disconnecting the emergency release cable

Installation Location:

Overview, removing and installing lower part of lid lock at rear

Disconnecting the emergency release cable

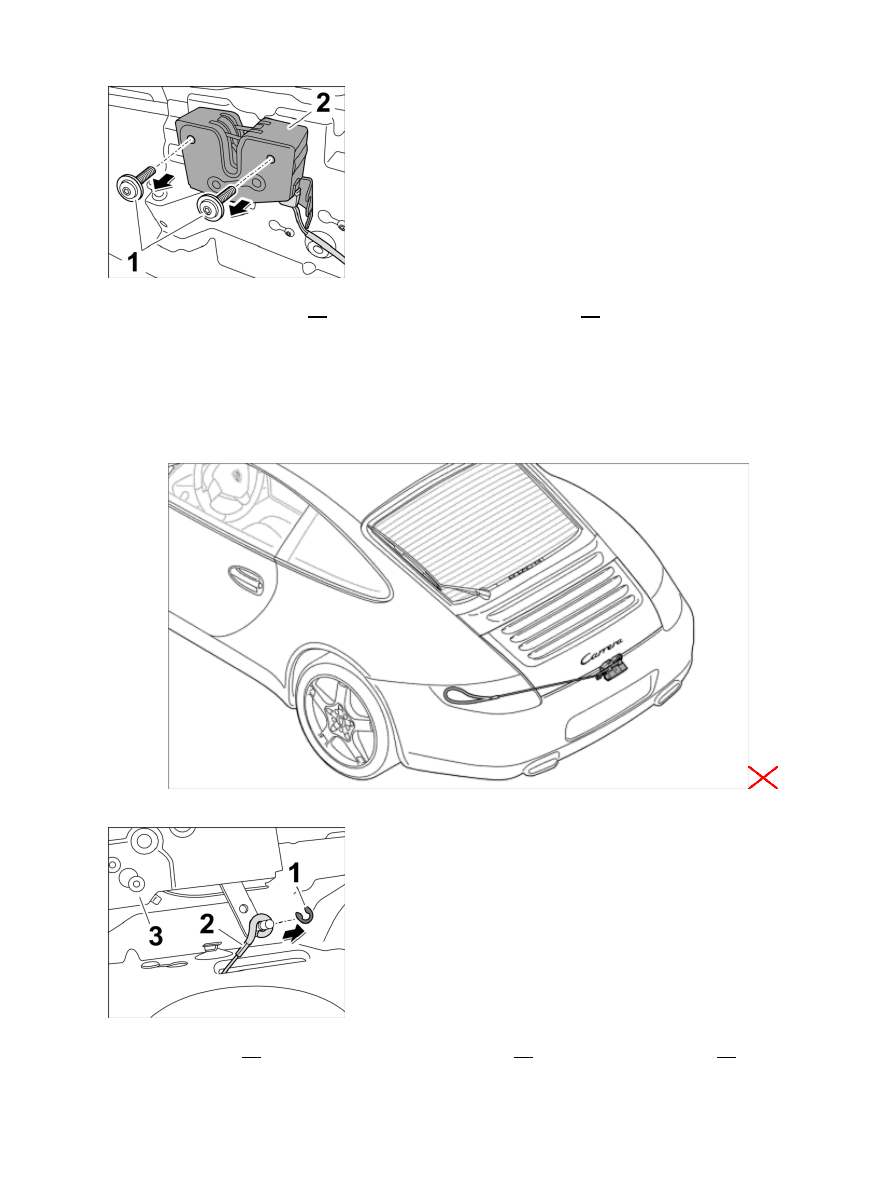

1. Press out circlip -1- and pull out emergency release cable -2- from lower part of lid lock -3- .

Diagnostic system: reading out fault memory and activating systems

Removing lower part of lid lock at rear

1870

Installing lower part of lid lock at rear

Installing the emergency release cable

Installation Location:

Overview, removing and installing lower part of lid lock at rear

Installing the emergency release cable

1. Position emergency release cable -2- on lower part of lid lock at rear -3- and secure using circlip -1- .

Installing lower part of lid lock at rear

Installation Location:

Diagnostic system: reading out fault memory and activating systems

Disconnecting the emergency release cable

1871

Overview, removing and installing lower part of lid lock at rear

Installing lower part of lid lock at rear

1. Position lower part of lid lock at rear -2- on the body and screw down with the fastening screws -1- .

Tightening torque → Final tightening: 7 ftlb.

Locking electrical plug connection

Installation Location:

Diagnostic system: reading out fault memory and activating systems

Installing lower part of lid lock at rear
