Porshe 911 (997). Manual - part 181

- Information
- Preliminary work
- Removing torque converter
- Installing torque converter
- Subsequent work

Tools

Designation

Type

Number

Explanation

fixing pin

special tool

95951

Information

Notes

Note

When pulling out, the torque converter must be kept horizontal, otherwise ATF can emerge.

Note

Before installing the torque converter, check the hub for scoring. If damaged, the converter must be replaced.

881

Preliminary work

Preliminary work

1. Remove transmission → 373527 Removing and refitting the automatic transmission -

removing [997110 997111 997120 997121 997310 997311 997320 997321]→ 373527
A3 Removing and refitting the automatic transmission - removing [997410 997411 997430
997431 997610 997611 997620 997621]

2. Put transmission in horizontal position.

Removing torque converter

Removing the torque converter

Fixing the torque converter

1. Pull out fixing pin 95951 (long) from transmission housing.

Pulling out torque converter

Note

Diagnostic system: reading out fault memory and activating systems

 Preliminary work

882

When pulling out, the torque converter must be kept horizontal, otherwise ATF can emerge.

2. Screw two screws (M8) into torque converter and remove torque converter using the screws from

transmission input shaft.

Installing torque converter

Installing the torque converter

Note

Before installing the torque converter, check the hub for scoring. If damaged, the converter must be replaced.

1. Move torque converter up to stop on the transmission input shaft.

ATTENTION

The ATF pump can be damaged if the torque converter is incorrectly positioned during refitting.

→ Note the installation position of the torque converter.

→ Check installation position of torque converter.

2. Press torque converter by hand into the converter bell housing and turn until the cutout of the converter

hub clicks into place in the driver of the impeller. The converter must slip inwards until it makes a noise.

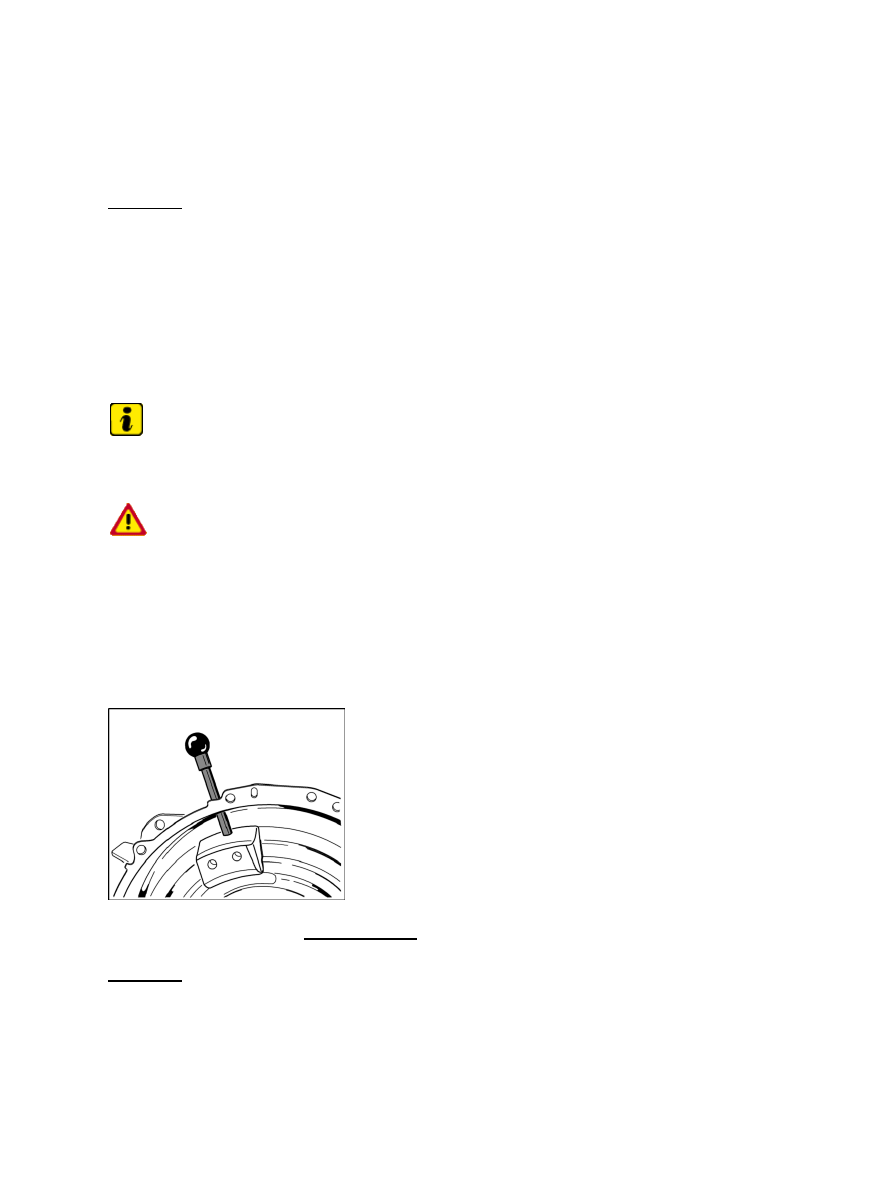

Fixing the torque converter

3. Fix torque converter with fixing pin 95951 (long) into installation position.

Diagnostic system: reading out fault memory and activating systems

Removing the torque converter

883

Subsequent work

Reworking

1. Refit transmission → 373527 Removing and refitting the automatic transmission -

refitting [997110 997111 997120 997121 997310 997311 997320 997321]→ 373527
AG Removing and refitting the automatic transmission - refitting [997410 997411 997430
997431 997610 997611 997620 997621]

2. After installing the engine-transmission-unit, the ATF level is to be checked, and topped up as necessary.

→  35 Checking and topping up ATF - checking and topping up

997110, 997111, 997120, 997121, 997310, 997311, 997320, 997321, 997410, 997411, 997430, 997431,
997610, 997611, 997620, 997621
