Porshe 911 (997). Manual - part 1204

Removing spring strut locking devices

Note

The wheels need not be removed!

•

1. Lift the vehicle (wheels at the front axle must be free).→ 401000  Lifting the vehicle

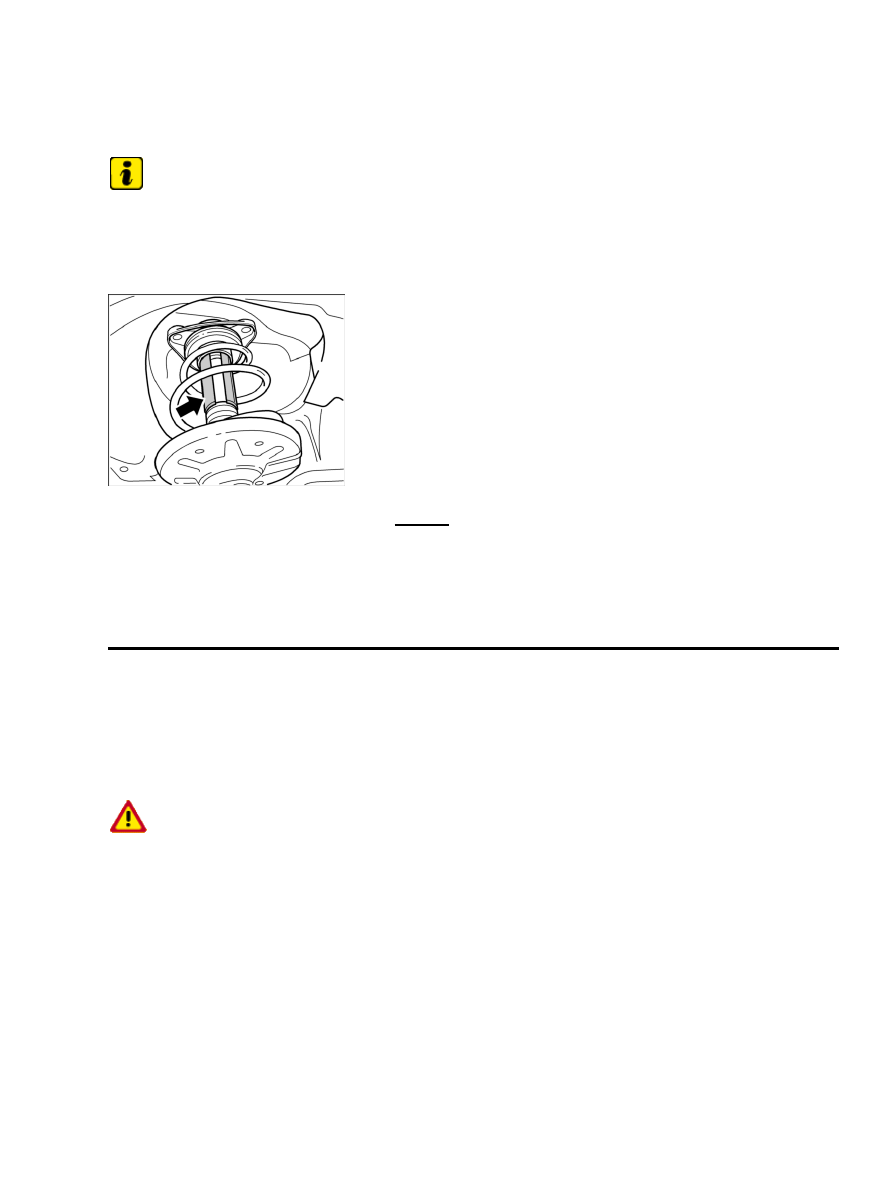

Front spring strut locking device

2. Remove the spring strut locking device -arrow- . To do this, twist the spring strut locking device until the

slot points toward the luggage compartment.

3. Beginning at the lower end, press the spring strut locking device away from the piston rod via the slot and

guide it out of the spring.

4. Repeat the procedure on the spring strut.

997110, 997111, 997120, 997121, 997310, 997311, 997320, 997321, 997410, 997411, 997430, 997431,
997610, 997611, 997620, 997621
