- Preliminary work
- Optical waveguide variants
- Installing optical waveguide
- Subsequent work

Tools

Designation

Type

Number Explanation

press-out and unlocking tools
for tab and round plug
connectors of all sizes

commercially
available tool

NR.155

Preliminary work

Preliminary work

Note

Release the main wire harness only until the damaged optical waveguide has been released and the new
optical waveguide can be attached to the main wire harness.

Expose main wire harness. → 970919 Removing and installing main wire harness - chapter on "Removing"

Optical waveguide variants

Optical waveguide variants

Note

4513

Depending on the equipment I No., the installation positions of the audio components in the front luggage
compartment differ.

MOST control units, variant A - B - C, shown on the 911

MOST control units, variant A - B - C

A

- Radio/PCM

B

- Connection point interior/luggage compartment

C

- Loudspeaker amplifier

MOST control units, variant A - B - D, shown on the 911

MOST control units, variant A - B - D

A

- Radio/PCM

B

- Connection point interior/luggage compartment

D

- CD changer

MOST control units, variant A - B - C - D, shown on the 911

MOST control units, variant A - B - C - D

A

- Radio/PCM

B

- Connection point interior/luggage compartment

C

- Loudspeaker amplifier

D

- CD changer

Diagnostic system: reading out fault memory and activating systems

Optical waveguide variants

4514

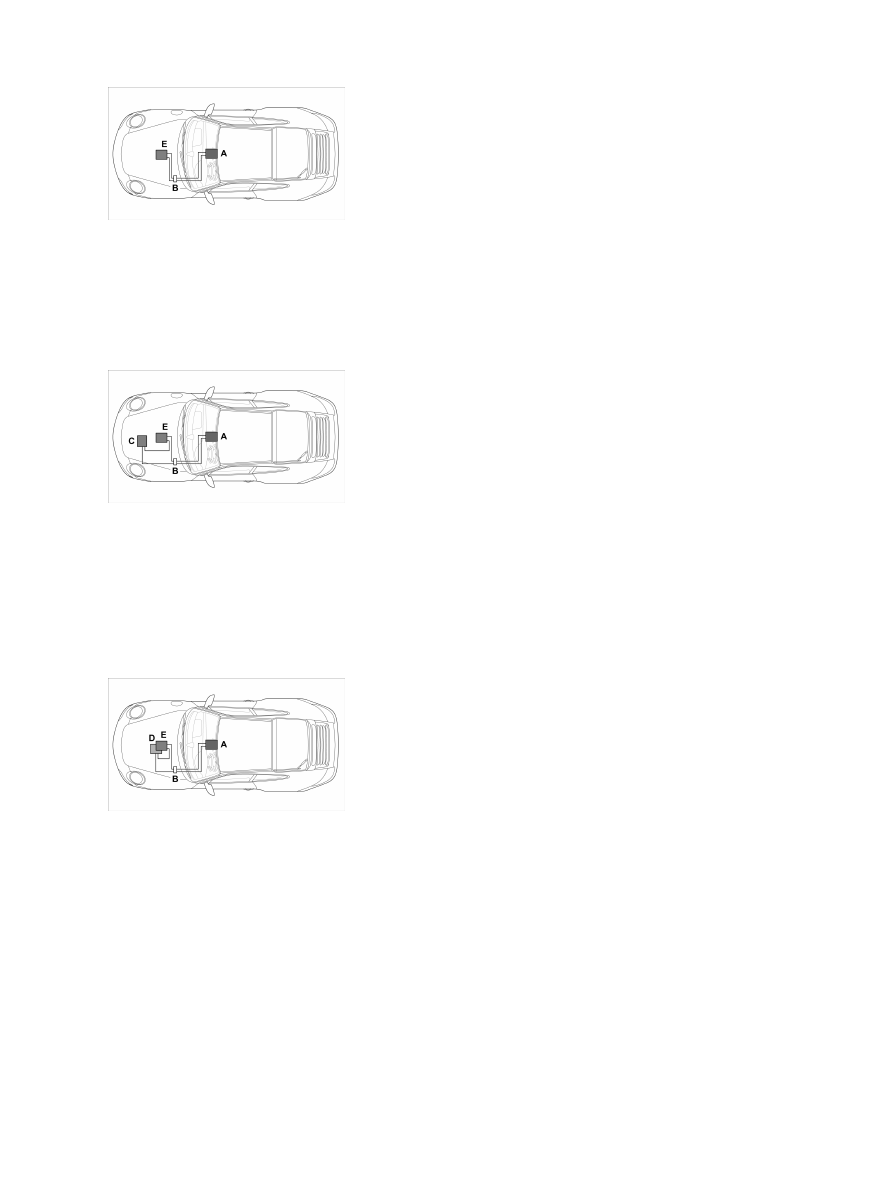

MOST control units, variant A - B - E, shown on the 911

MOST control units, variant A - B - E

A

- Radio/PCM

B

- Connection point interior/luggage compartment

E

- Navigation unit

MOST control units, variant A - B - C - E, shown on the 911

MOST control units, variant A - B - C - E

A

- Radio/PCM

B

- Connection point interior/luggage compartment

C

- Loudspeaker amplifier

E

- Navigation unit

MOST control units, variant A - B - D - E, shown on the 911

MOST control units, variant A - B - D - E

A

- Radio/PCM

B

- Connection point interior/luggage compartment

D

- CD changer

E

- Navigation unit

Diagnostic system: reading out fault memory and activating systems

Optical waveguide variants

4515

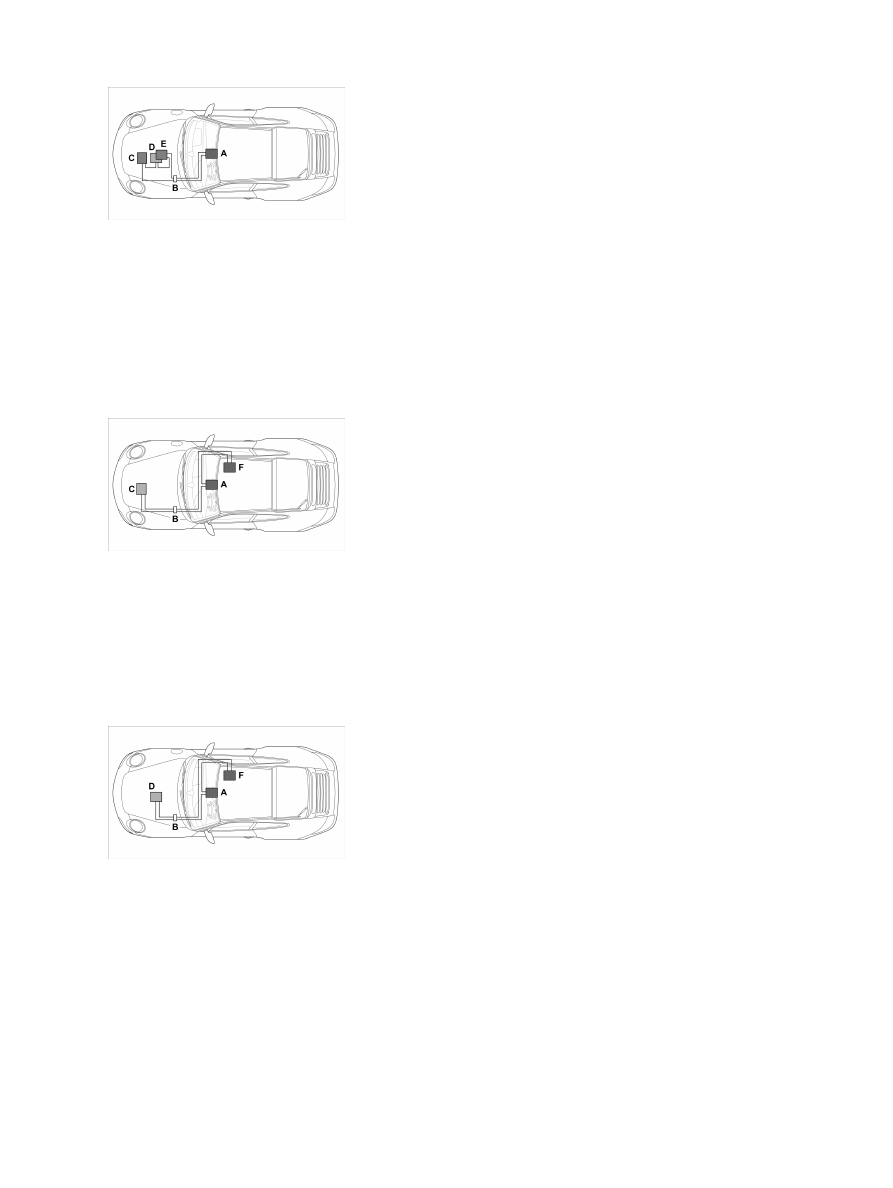

MOST control units, variant A - B C - D - E, shown on the 911

MOST control units, variant A - B - C - D - E

A

- Radio/PCM

B

- Connection point interior/luggage compartment

C

- Loudspeaker amplifier

D

- CD changer

E

- Navigation unit

MOST control units, variant A - B - C - F, shown on the 911

MOST control units, variant A - B - C - F

A

- Radio/PCM

B

- Connection point interior/luggage compartment

C

- Loudspeaker amplifier

F

- Telephone control module

MOST control units, variant A - B - D - F, shown on the 911

MOST control units, variant A - B - D - F

A

- Radio/PCM

B

- Connection point interior/luggage compartment

D

- CD changer

F

- Telephone control module

Diagnostic system: reading out fault memory and activating systems

Optical waveguide variants

4516
