Porshe 911 (997). Manual - part 101





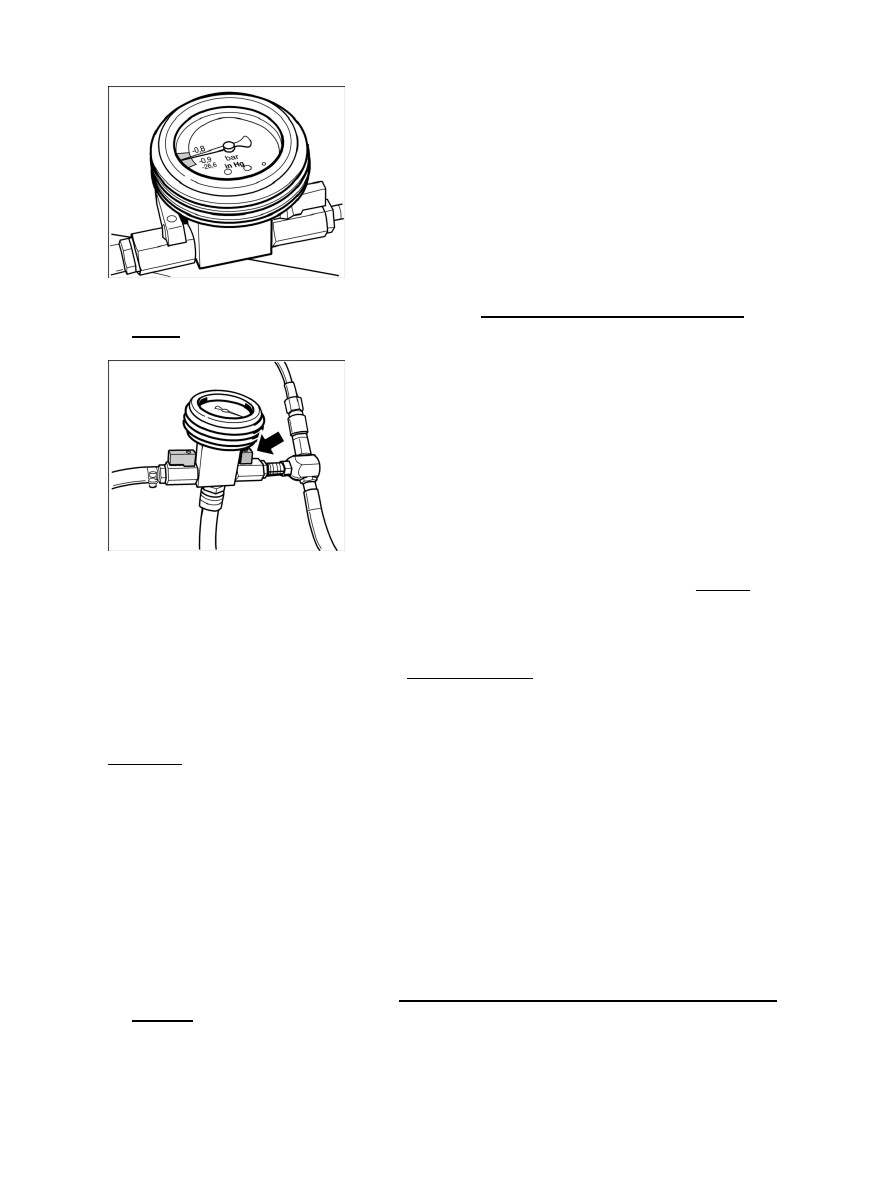

Vacuum established (pointer in green region)

9. When there is enough vacuum in the cooling system → Vacuum established (pointer in green

region) , close right shutoff valve and subsequently unplug the compressed air supply.

Left-hand shutoff valve open - right-hand valve (arrow) closed

10. Open left-hand shutoff valve to the vacuum pressure gauge (right-hand valve closed -arrow- ). The

cooling system is then filled.

11. When the cooling system no longer contains a vacuum (vacuum pressure gauge shows zero), i.e. no more

coolant is being sucked out of the canister, open right-hand shutoff valve.

12. Now remove the complete filling device filling device 9696 (including cap K 22).

13. If necessary, fill the coolant expansion tank with coolant up to the maximum marking and screw on the

cap of the expansion tank (do not tilt).

Reworking

Subsequent work

1. Check coolant line connections and hoses for

leaks.

2. Completely install rear underside panel. → 519419 Removing and installing rear underside panel -

installing

Cayman:

Diagnostic system: reading out fault memory and activating systems

 Reworking

561

Installing engine compartment lid

3. Install engine cover → 557819 23 Remove and install engine compartment lid - chapter on

"Installing".

4. Perform a test drive with the vehicle. Following the test drive and when the engine is still at operating

temperature, accelerate briefly to greater than 6,000 rpm a number of times at idle speed in order to fully
ventilate the system.

5. Check the fluid level with the aid of the marks on the expansion tank. If necessary, correct the

coolant level after the engine has cooled.

997110, 997111, 997120, 997121, 997310, 997311, 997320, 997321, 997410, 997411, 997430, 997431,
997610, 997611, 997620, 997621

WARNUNG

Gefahr des Verlusts der Text-Bild-Zuordnung beim Ausdruck.

Aus technischen Gründen kann derzeit nicht ausgeschlossen werden, dass trotz
einwandfreier Darstellung auf dem Bildschirm beim Ausdruck der
Zusammenhang von Text und zugehörigem Bild verloren geht.

•

Wird der Fehler nicht bemerkt, besteht die Gefahr, daß Arbeiten nicht korrekt
durchgeführt werden und es dadurch zu Personen- und Sachschäden kommt.

•

→ Vergleichen Sie deshalb nach dem Druckvorgang unbedingt die Ausdrucke mit der
Bildschirmdarstellung. Korrigieren Sie die Ausdrucke im Fehlerfall so, daß der Inhalt der
Bildschirmdarstellung zutreffend wiedergegeben wird.

WARNING

Danger of losing text-figure correspondence when printing out.

For technical reasons, it can currently not be ruled out that the correspondence
between text and associated figure can be lost when it is printed out, even though
the display on the screen is correct.

•

If the fault is not noticed, there is the danger that work will not be performed
correctly which can cause injury and damage.

•

Diagnostic system: reading out fault memory and activating systems

Subsequent work

562

→ Therefore, always compare printouts with the screen display after printing them out. Correct
the printouts if they are faulty so that the content of the screen display matches that on the
printouts.

AVERTISSEMENT

Risque de perte de la correspondance texte-illustration lors de l'impression papier.

Pour des raisons techniques, il ne peut pas être exclu à l'heure actuelle que, même
en cas d'affichage correct à l'écran, la correspondance entre le texte et l'illustration
puisse être erronée sur l'impression papier.

•

Si l'erreur passe inaperçue, on court le risque d'exécuter certaines opérations de
manière incorrecte pouvant conduire à des dommages corporels et matériels.

•

→ Comparez impérativement pour cette raison les impressions papier avec l'affichage à l'écran.
Corrigez-les en cas d'erreur de manière à reproduire correctement l'affichage à l'écran.

ATTENZIONE

Pericolo di perdita dell'abbinamento testo-immagine nella stampa.

Per motivi tecnici non è escluso che, nonostante la rappresentazione sullo schermo
risulti perfetta, durante la stampa venga persa la corrispondenza fra testo e
relativa immagine.

•

Se tale difetto non viene rilevato vi è il pericolo che i lavori non siano eseguiti
correttamente; ciò può avere come conseguenza lesioni e danneggiamenti.

•

→ Per questo motivo, dopo la stampa è assolutamente necessario confrontare le stampe con la
rappresentazione sullo schermo. In caso di errore si prega di correggere le stampe, così da
garantire la riproduzione esatta della rappresentazione sullo schermo.

ADVERTENCIA

Al imprimir se corre el riesgo de perder la correcta asignación de las figuras al texto.

Por motivos técnicos, por el momento no se puede descartar que, aun siendo
correcta la imagen que aparezca en la pantalla, al imprimir se pierda la
correlación entre el texto y la figura correspondiente.

•

Si este error pasara desapercibido, existe el riesgo de que los trabajos no se
ejecuten de forma correcta y, por tanto, se produzcan daños personales y
materiales.

•

→ Por ello le rogamos que tras el proceso de impresión compare siempre las copias impresas con
la imagen de la pantalla. En caso de error, corrija las copias impresas de forma que se
correspondan con el contenido de la imagen de la pantalla.

Diagnostic system: reading out fault memory and activating systems

Subsequent work

563

- Preliminary work
- Removing reservoir for coolant
- Installing reservoir for coolant
- Subsequent work

Tools

Designation

Type

Number

Explanation

retainer plate

special tool

P 9592

Preliminary work

Preliminary work

DANGER

Fuel can escape when fuel line is disconnected.

Risk of fatal injury!

•

Damage to skin

•

→ Do not work on fuel system if engine is hot!

→ Do not smoke, avoid fire and naked flames!

→ Wear fuel-resistant protective gloves and goggles.

→ Attach warning sign to vehicle in a clearly visible position.

WARNING

Danger of injury from hot engine parts.

564
