2007 Crossfire 800 EFI

43

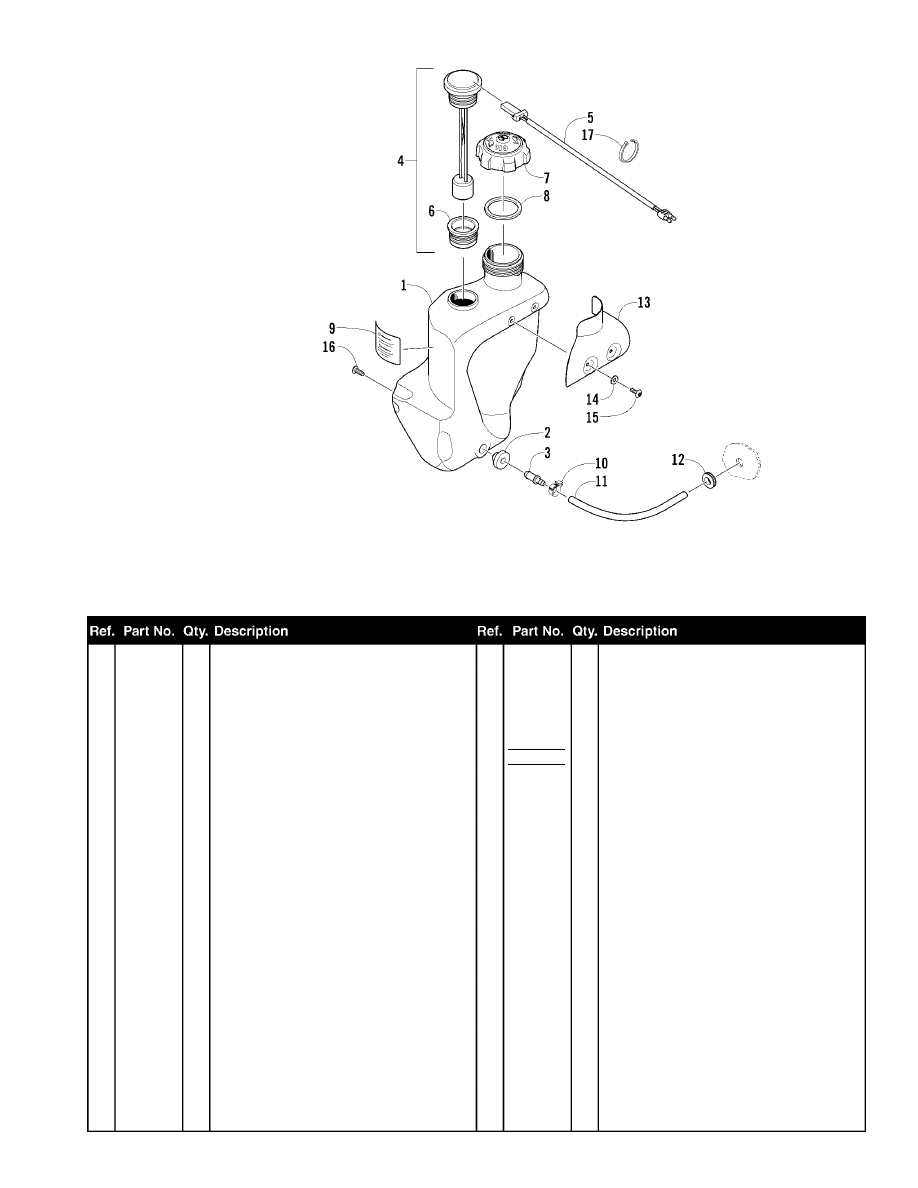

OIL TANK ASSEMBLY

0740-066

1 1670-604

1

Tank, Oil

2 1670-325

1

Grommet

3 1670-481

1

Fitting, Oil Tank

4 0609-503

1

Sensor, Low Oil - Assembly (inc. 5-6)

5 0609-518

1

‹ Switch, Oil Sensor w/Harness

6 0609-237

1

‹ Seal, Grommet - Oil Sensor

7 1670-365

1

Cap, Oil Tank (inc. 8)

8 0109-733

1

‹ Seal, Cap - Oil Tank

9 4611-532

1

Decal, Oil Tank

10 0124-045

2

Clamp, Hose

11 0610-693 AR Hose, Oil - 100 ft

0610-692 AR Hose, Oil - 25 ft

12 1623-256

1

Grommet

13 3606-982

1

Shield, Heat

14 8050-157

2

Washer

15 1623-495

2

Screw, Machine

16 1623-499

3

Screw, Machine

17 0123-788

1

Cable Tie - 4 in.

2007 Crossfire 800 EFI

44

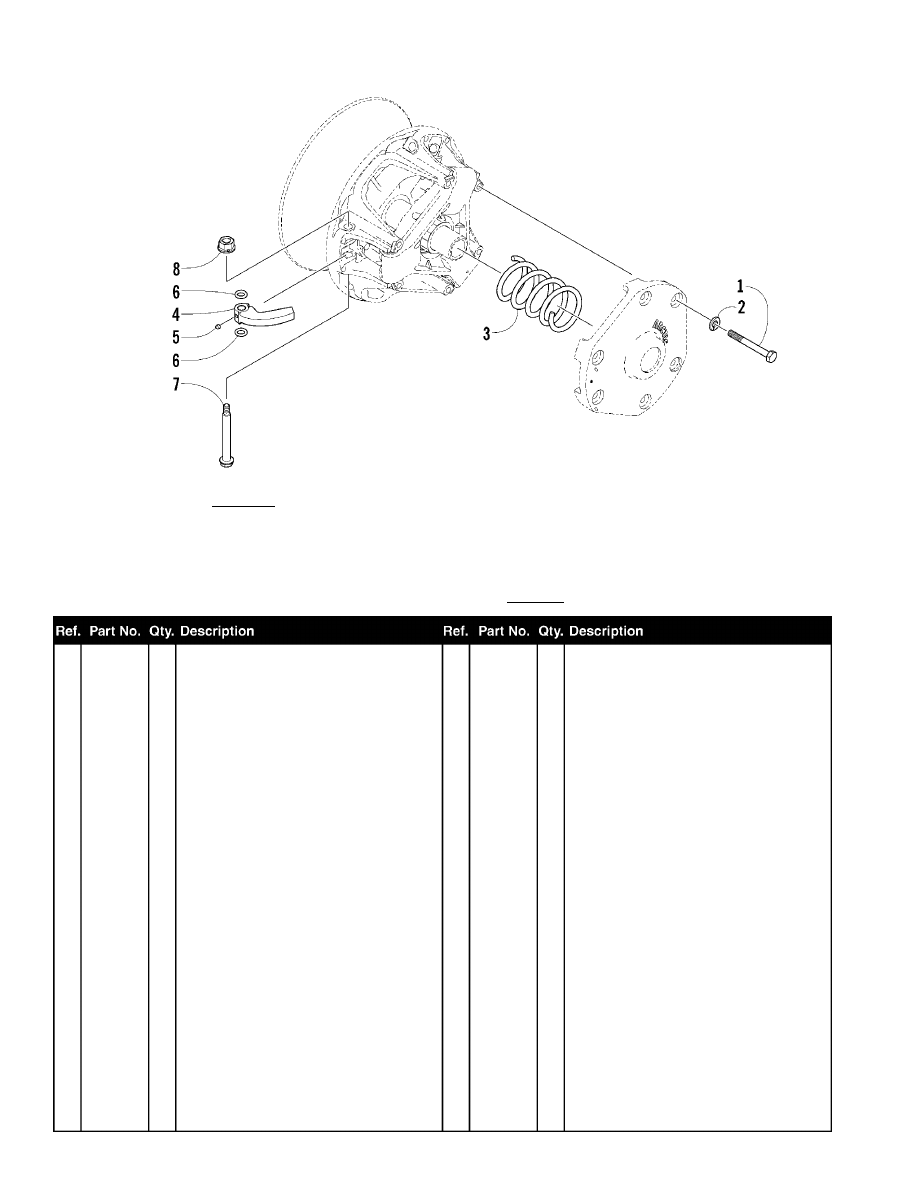

DRIVE CLUTCH

(Uncalibrated Drive Clutch - p/n 0746-192)

0741-939

1 1623-442

6

Screw, Machine

2 8051-212

6

Washer

3 0646-229

1

Spring, Drive Clutch - Yellow/White

4 0746-672

3

Arm, Cam (inc. 5)

0746-671

3

Arm, Cam (inc. 5) (3-6,000 ft Alt.)

0746-703

3

Arm, Cam (inc. 5) (6-9,000 ft Alt.)

0746-670

3

Arm, Cam (inc. 5) (Over 9,000 ft Alt.)

5 1623-183

3

‹ Screw, Set

6 1602-692

6

O-Ring

7 0646-747

3

Pin, Cam Arm

8 8048-366

3

Nut, Lock

Cam Arm Kit - p/n 4639-674 (inc. 5-8)

2007 Crossfire 800 EFI

45

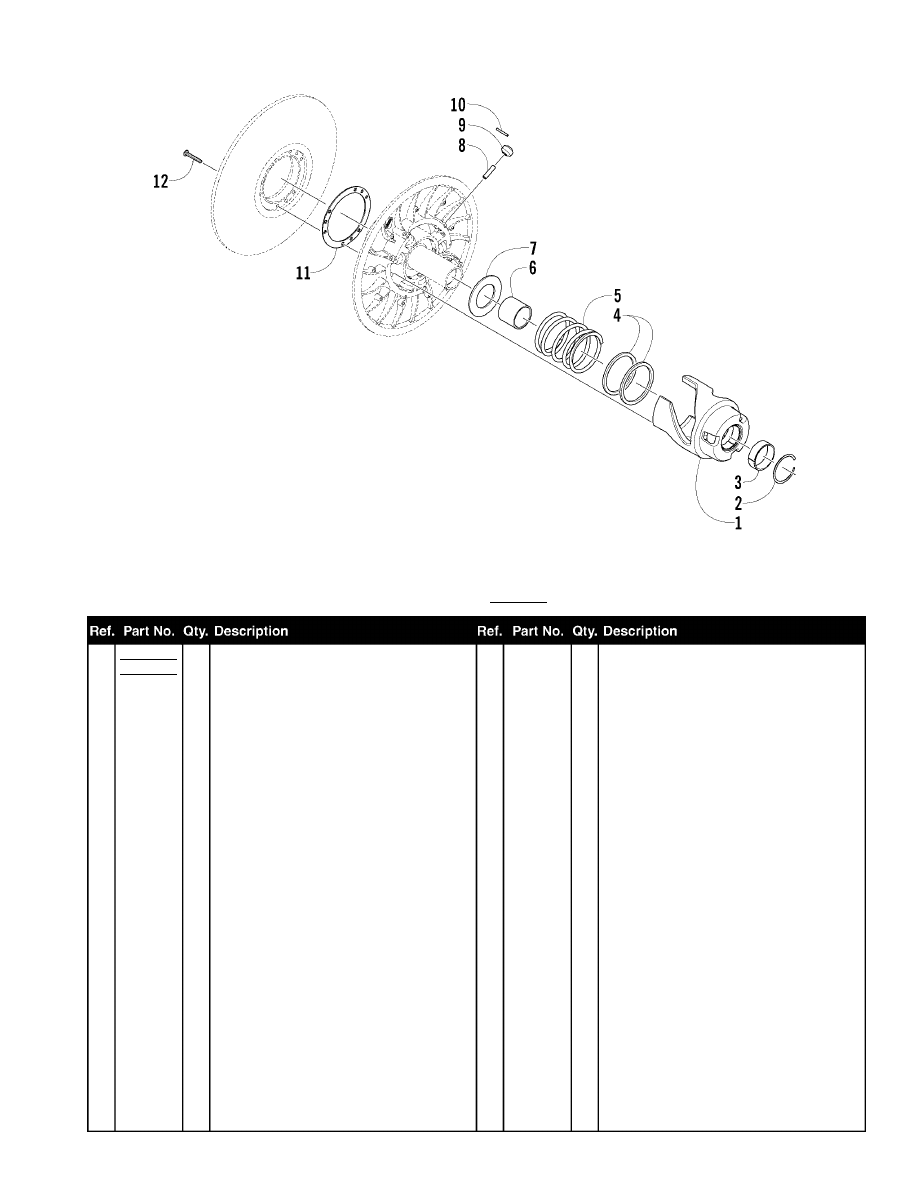

DRIVEN CLUTCH

(Assembly p/n 0726-237)

0741-790

1 0748-664

1

Bracket, Torque 46°/40° (inc. 2-3)

0748-662

1

Bracket, Torque 36° (inc. 2-3)

(Over 6,000 ft Alt.)

2 0648-433

1

‹ Ring, Snap

3 0648-009

1

‹ Bearing

4 0648-713

2

Seat, Spring - Driven Clutch

5 0648-774

1

Spring, Driven Clutch - Orange

6 0648-753

1

Spacer

7 0648-453

1

Seat, Spring

8 0648-097

6

Pin, Cam Roller

9 0648-139

6

Roller, Cam

10 8070-224

6

Pin, Spring

11 0648-650

1

Retainer, Torque Bracket

12 1623-517

9

Screw, Machine

2007 Crossfire 800 EFI

46

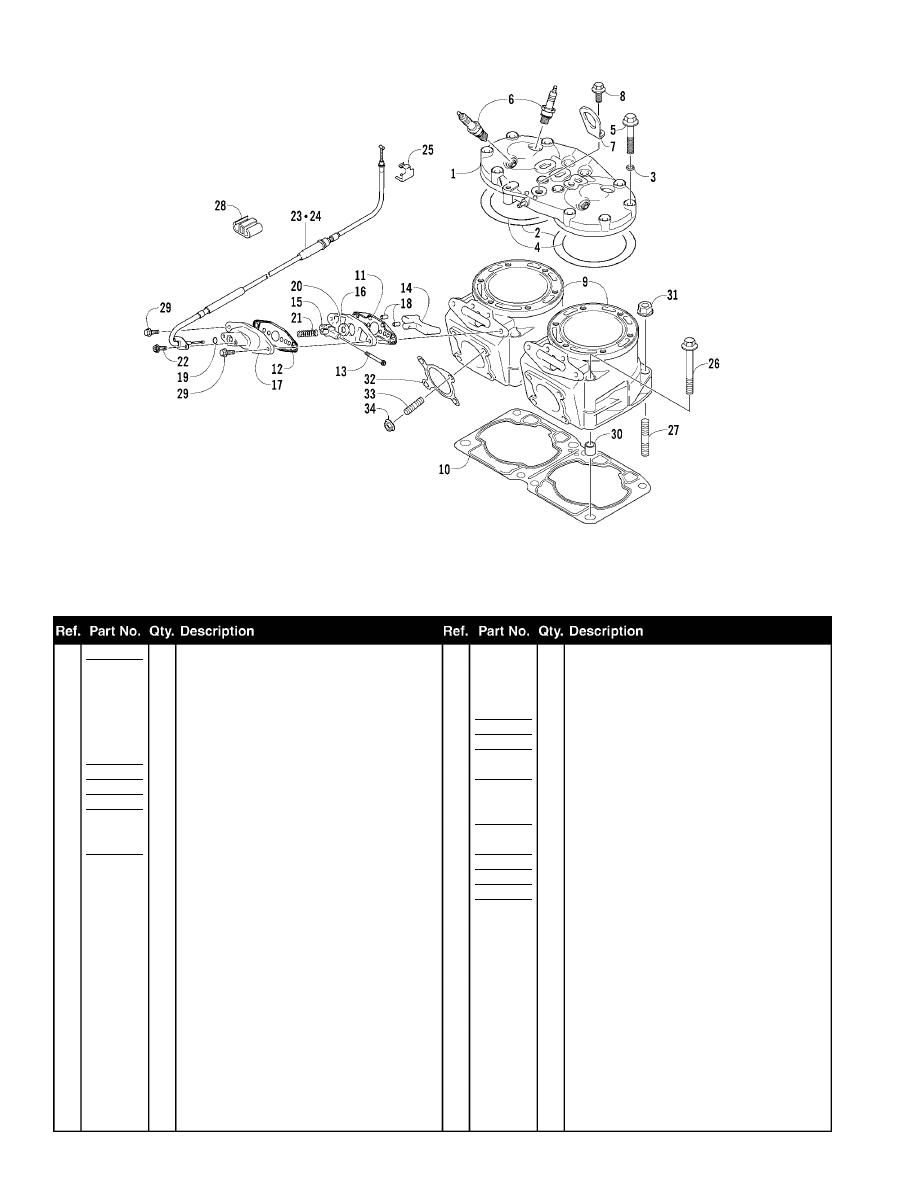

CYLINDER AND HEAD ASSEMBLY

0742-050

1 3007-521

1

Head, Cylinder

2 3004-081

2

O-Ring

3 3003-227 14 O-Ring
4 3005-854

2

O-Ring

5 3006-538 14 Bolt
6 0217-709

4

Plug, Spark (BR9EYA)

7 3006-496

1

Hook, Engine

8 3007-432

1

Bolt

9 3007-522

2

Cylinder

10 3007-523

1

Gasket, Cylinder

11 3007-244

2

Gasket, Exhaust Valve Case

12 3006-436

2

Gasket, Exhaust Valve Cover

13 3005-983

2

Pin, Exhaust Valve

14 3007-524

2

Valve, Exhaust

15 3005-860

2

Stopper, Exhaust Valve

16 3006-495

2

Plate, Exhaust Valve

17 3006-425

2

Cover, Exhaust Valve

18 3006-321

4

Pin, Dowel

19 3005-226

2

O-Ring

20 3006-322

2

Seal, Oil

21 3006-484

2

Spring

22 3007-433

4

Bolt

23 3007-247

1

Cable, Exhaust Valve - MAG

24 3007-248

1

Cable, Exhaust Valve - PTO

25 3005-747

1

Holder, Exhaust Valve Cable

26 3007-525

4

Bolt

27 3005-847

4

Bolt, Stud

28 3005-808

1

Clamp, Exhaust Valve Cable

29 3007-434

4

Bolt

30 3004-975

4

Pin, Dowel

31 3007-391

4

Nut

32 3007-536

2

Gasket, Exhaust

33 3007-415

8

Bolt, Stud

34 3007-390

8

Nut
