Snowmobile Arctic Cat Crossfire 800 EFI (2007 year). Manual - part 8





2007 Crossfire 800 EFI

27

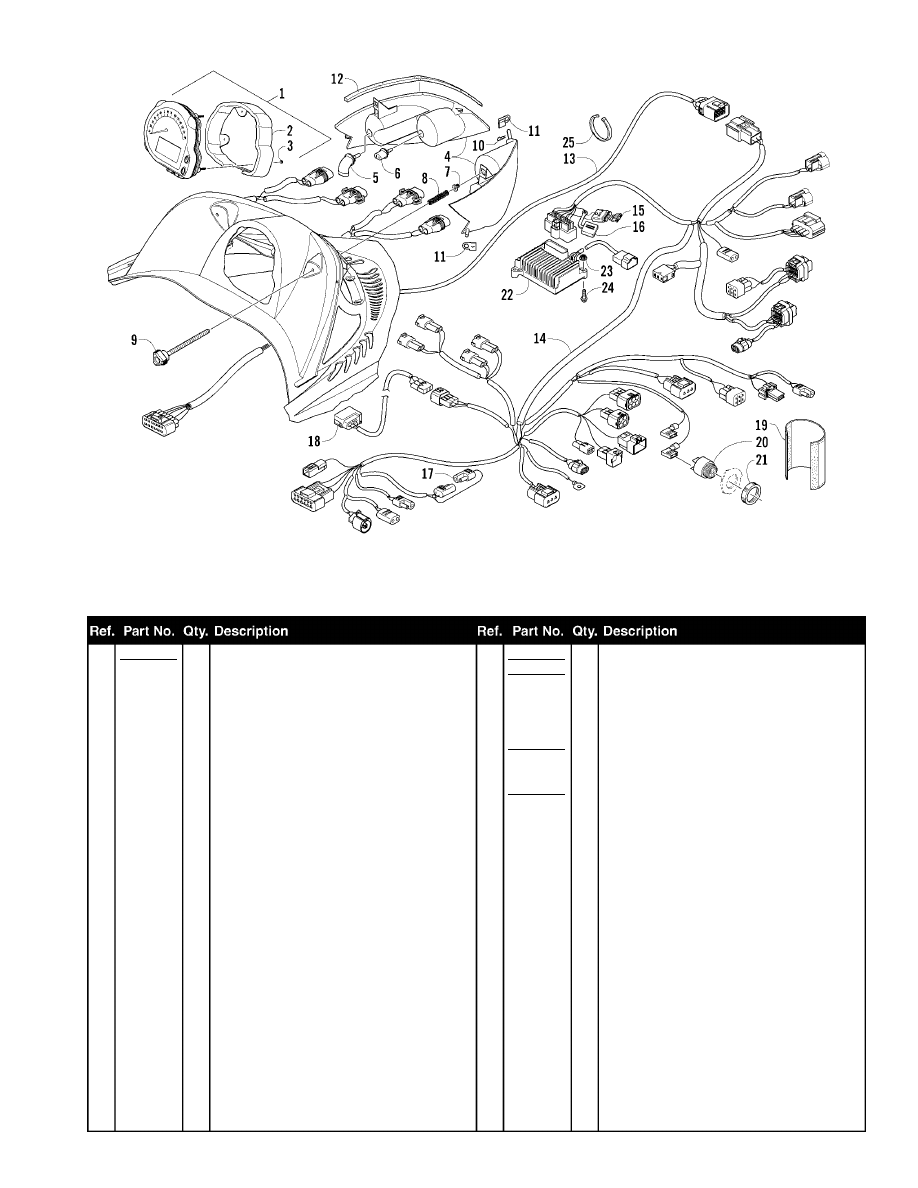

HEADLIGHT, INSTRUMENTS, AND WIRING ASSEMBLIES

0741-913

1 0620-304

1

Tachometer/Speedometer (inc. 2-3)

2 0620-281

1

‹ Bracket, Retaining

3 0620-280

4

‹ Nut w/Washer

4 0609-694

1

Lens/Reflector - Headlight - Right (inc. 5-6)

0609-695

1

Lens/Reflector - Headlight - Left (inc. 5-6)

5 0609-251

2

‹ Bulb, Headlight

6 0609-693

2

‹ Bulb, Headlight

7 1623-025

2

Insert

8 0623-360

2

Spring, Adjuster

9 1623-024

2

Screw, Adjuster

10 1623-137

2

Clip, Hairpin

11 1623-272

2

Clip - Right

1623-273

2

Clip - Left

12 0617-501

2

Foam, Hood/Headlight

13 1686-330

1

Harness, Hood

14 1686-324

1

Harness, Main (inc. 15-17)

15 0630-024

1

‹ Fuse, 15 Amp

16 0630-102

1

‹ Cover, Fuse

17 0486-164

1

‹ Tether, Accessory Connector

18 1686-160

1

Harness, Extension - Taillight

19 3706-761

1

Wrap,  Wire  Harness

20 0630-010

1

Alarm, Reverse (inc. 21)

21 0630-017

1

‹ Ring, Retaining

22 0630-218

1

Unit, Chassis Control

23 8047-366

2

Nut, Lock

24 8017-584

2

Screw, Cap

25 0123-788 AR Cable Tie - 8 in.

2007 Crossfire 800 EFI

28

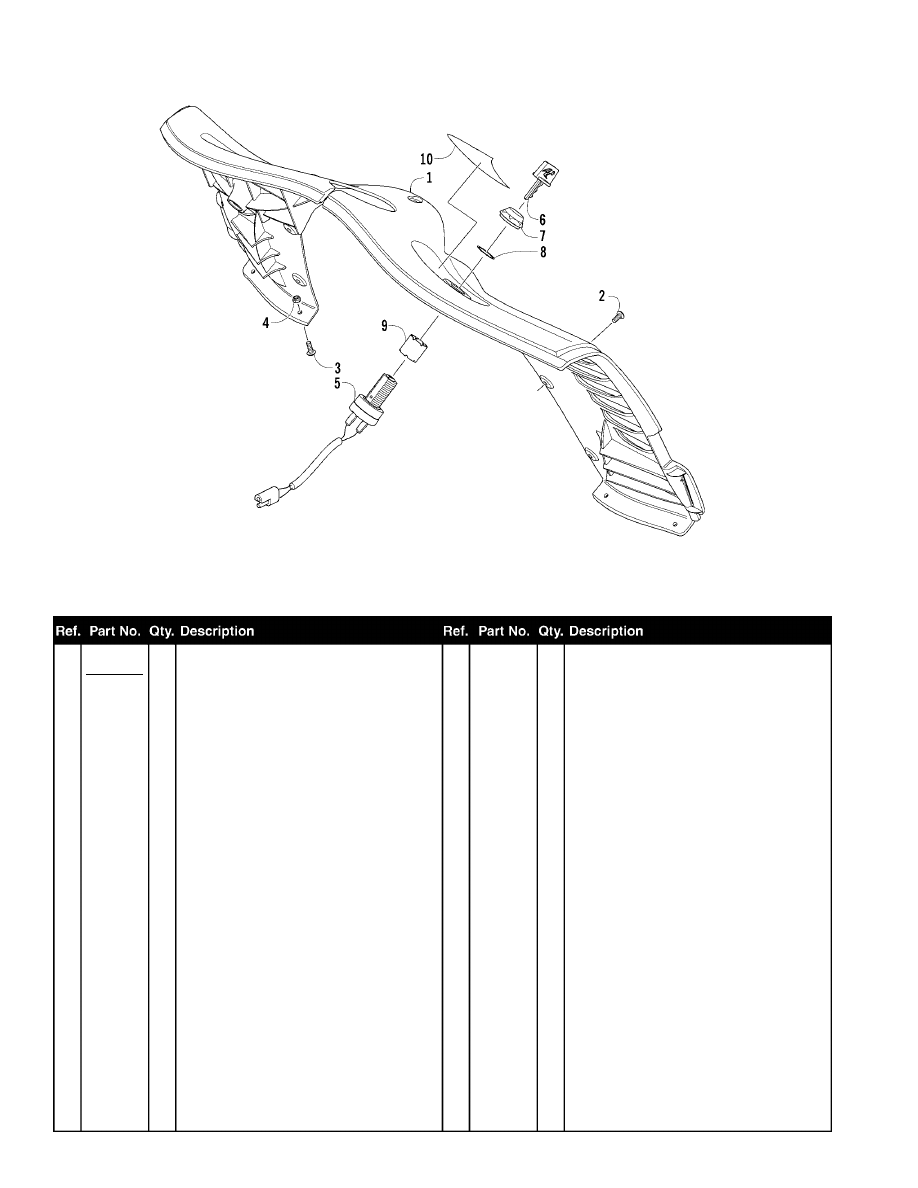

CONSOLE AND SWITCH ASSEMBLY

0740-716

1 3606-442

1

Console

2 1623-498

7

Screw, Machine

3 8017-397

4

Screw, Machine

4 8041-246

4

Nut, Lock

5 0609-728

1

Switch, Ignition (inc. 6)

6

*

1

‹ Key

7 0609-113

1

Nut, Retaining

8 0123-899

1

Washer, Ignition Switch

9 0609-450

1

Spacer, Ignition Switch

10 6611-581

1

Decal, Console

*Key is coded to switch; see dealer to

determine part number.

2007 Crossfire 800 EFI

29

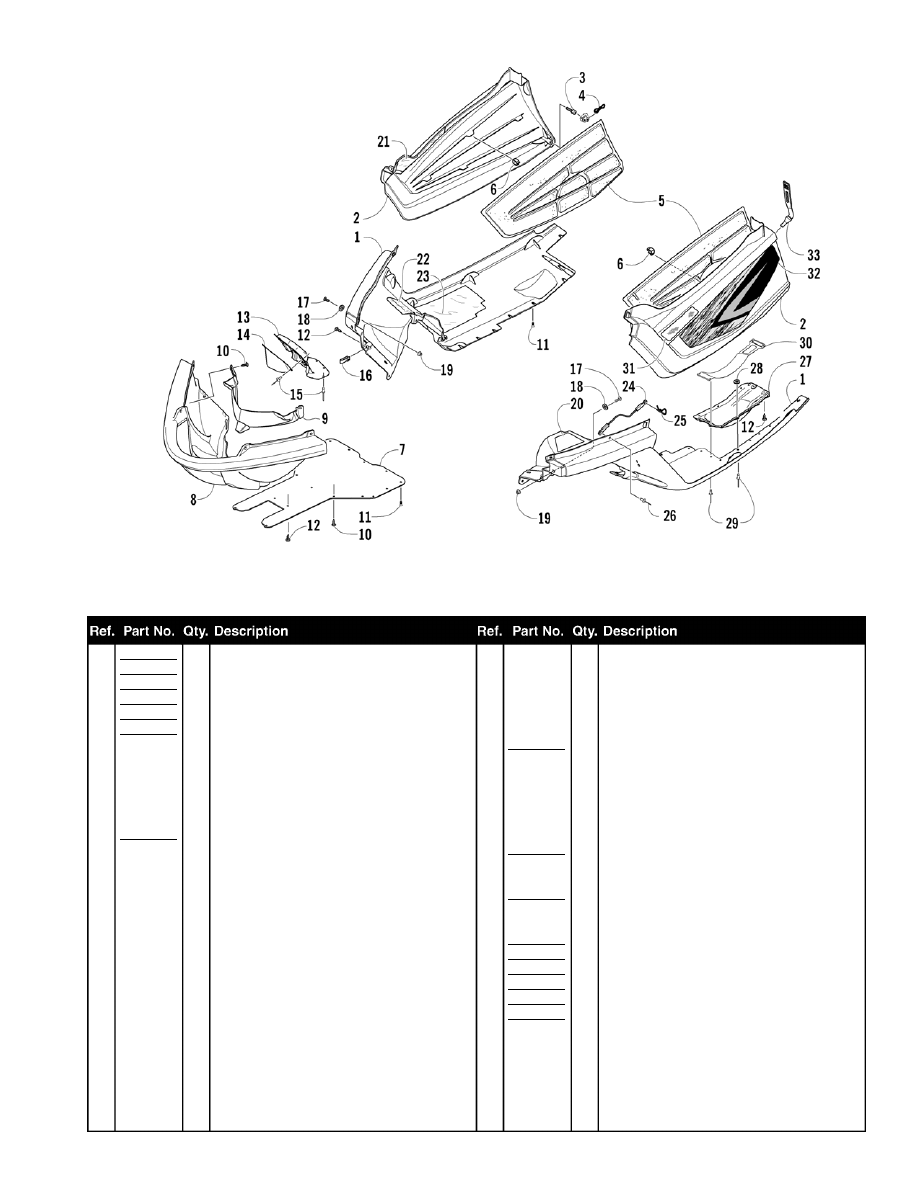

BELLY PAN ASSEMBLY

0741-493

1 3706-612

1

Belly Pan - Right - Green

3706-431

1

Belly Pan - Left - Green

3706-606

1

Belly Pan - Right - Black (Black)

3706-429

1

Belly Pan - Left - Black (Black)

3706-614

1

Belly Pan - Right - Orange (Orange)

3706-433

1

Belly Pan - Left - Orange (Orange)

2 4606-258

1

Panel, Access - Right - Green

4606-259

1

Panel, Access - Left - Green

4606-256

1

Panel, Access - Right - Black (Black)

4606-257

1

Panel, Access - Left - Black (Black)

4606-260

1

Panel, Access - Right - Orange (Orange)

4606-261

1

Panel, Access - Left - Orange (Orange)

3 1623-666

2

Screw, Retaining - Access Panel

4 1623-546

2

Pin, Retaining

5 0617-502

1

Foam, Side Panel - Right

0617-503

1

Foam, Side Panel - Left

6 0123-394 11 Clip, Retaining
7 3606-867

1

Belly Pan, Center - Black

8 4606-041

1

Bumper, Front - Green

4606-040

1

Bumper, Front - Black (Black)

4606-043

1

Bumper, Front - Orange (Orange)

9 2606-911

1

Screen, Belly Pan - Center

10 0623-784 10 Screw, Self-Tapping
11 0623-797 31 Screw, Self-Tapping
12 1623-129

6

Screw, Self-Tapping

13 1612-853

1

Shield, Heat

14 1612-861

1

Deflector, Exhaust - Outlet

15 0623-778 14 Rivet
16 1623-030

2

Nut, Speed

17 8017-581

4

Screw, Machine

18 8050-217

4

Washer

19 8047-366

4

Nut, Lock

20 7611-699

1

Decal, Clutching

21 4606-157

1

Foil, Protective - Access Panel

22 4606-207

1

Foil, Protective - Upper

23 4606-208

1

Foil, Protective - Lower

24 0607-447

2

Cable

25 0605-283

2

Clip, Hairpin

26 8061-426

2

Rivet

27 4606-417

1

Protector, Driven Clutch

28 0123-802

5

Washer

29 8061-628

7

Rivet

30 4606-993

1

Deflector, Driven Clutch Protector

31 7611-160

1

Decal, Reflector - Amber - Right

7611-161

1

Decal, Reflector - Amber - Left

32 7611-266

1

Decal, Access Panel - Right

7611-267

1

Decal, Access Panel - Left

7611-246

1

Decal, Access Panel - Right (Black)

7611-247

1

Decal, Access Panel - Left (Black)

7611-284

1

Decal, Access Panel - Right (Orange)

7611-285

1

Decal, Access Panel - Left (Orange)

33 2606-624

2

Strap, Hold-Down

2007 Crossfire 800 EFI

30

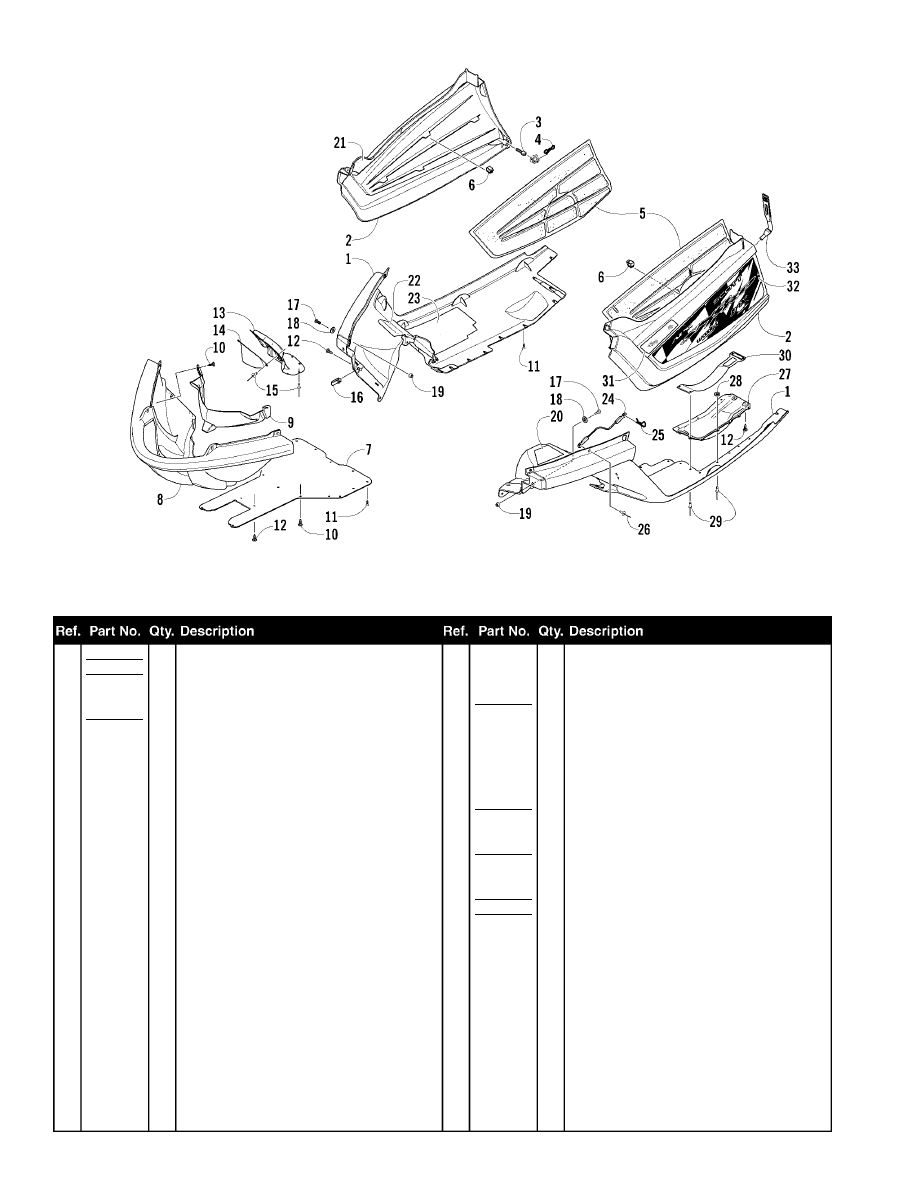

BELLY PAN ASSEMBLY (Sno Pro)

0742-181

1 3706-432

1

Belly Pan - Right - Orange

3706-433

1

Belly Pan - Left - Orange

2 4606-260

1

Panel, Access - Right - Orange

4606-261

1

Panel, Access - Left - Orange

3 1623-666

2

Screw, Retaining - Access Panel

4 1623-546

2

Pin, Retaining

5 0617-502

1

Foam, Side Panel - Right

0617-503

1

Foam, Side Panel - Left

6 0123-394 11 Clip, Retaining
7 3606-867

1

Belly Pan, Center - Black

8 4606-043

1

Bumper, Front - Orange

9 2606-911

1

Screen, Belly Pan - Center

10 0623-784 10 Screw, Self-Tapping
11 0623-797 31 Screw, Self-Tapping
12 1623-129

6

Screw, Self-Tapping

13 1612-853

1

Shield, Heat

14 1612-861

1

Deflector, Exhaust - Outlet

15 0623-778 14 Rivet
16 1623-030

2

Nut, Speed

17 8017-581

4

Screw, Machine

18 8050-217

4

Washer

19 8047-366

4

Nut, Lock

20 7611-699

1

Decal, Clutching

21 4606-157

1

Foil, Protective - Access Panel

22 4606-207

1

Foil, Protective - Upper

23 4606-208

1

Foil, Protective - Lower

24 0607-447

2

Cable

25 0605-283

2

Clip, Hairpin

26 8061-426

2

Rivet

27 4606-417

1

Protector, Driven Clutch

28 0123-802

5

Washer

29 8061-628

7

Rivet

30 4606-993

1

Deflector, Driven Clutch Protector

31 7611-160

1

Decal, Reflector - Amber - Right

7611-161

1

Decal, Reflector - Amber - Left

32 7611-580

1

Decal, Access Panel - Right

7611-581

1

Decal, Access Panel - Left

33 2606-624

2

Strap, Hold-Down
