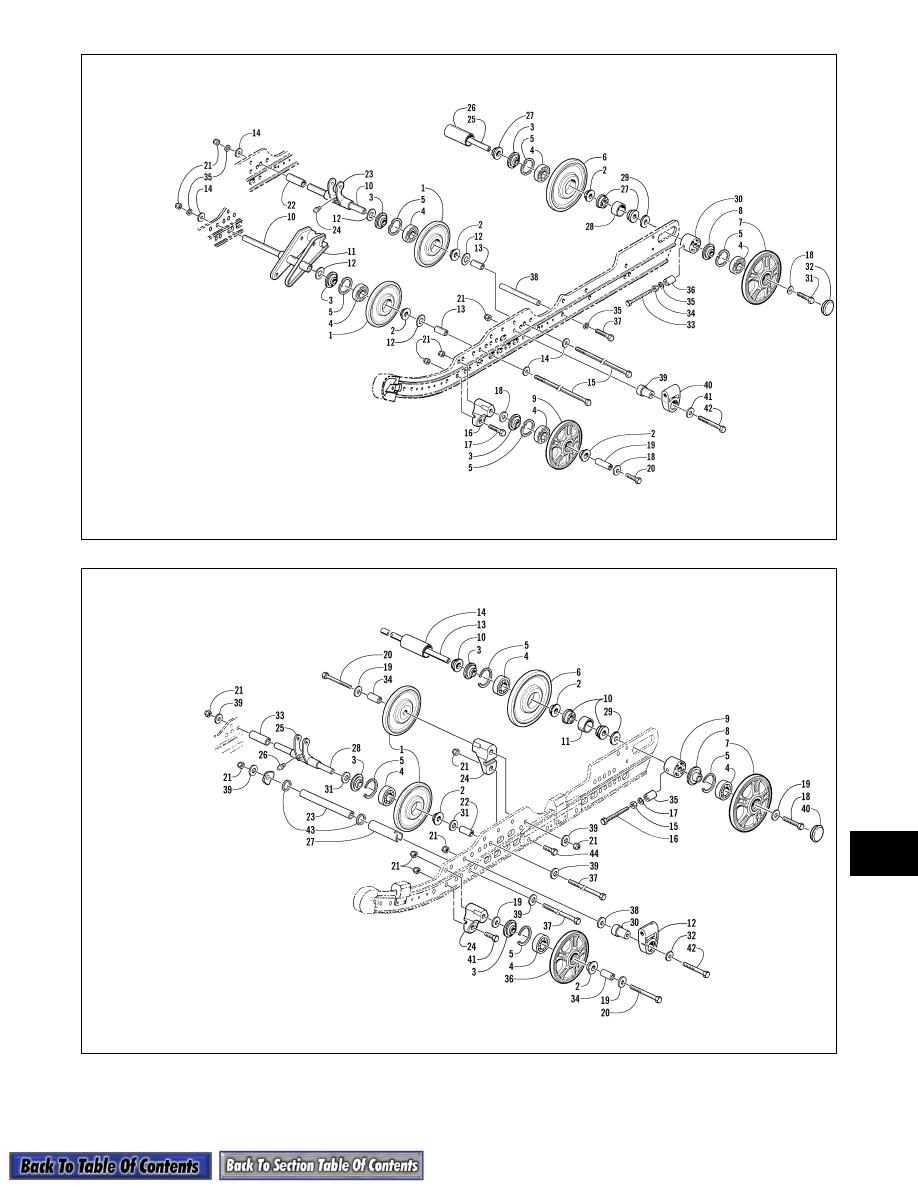

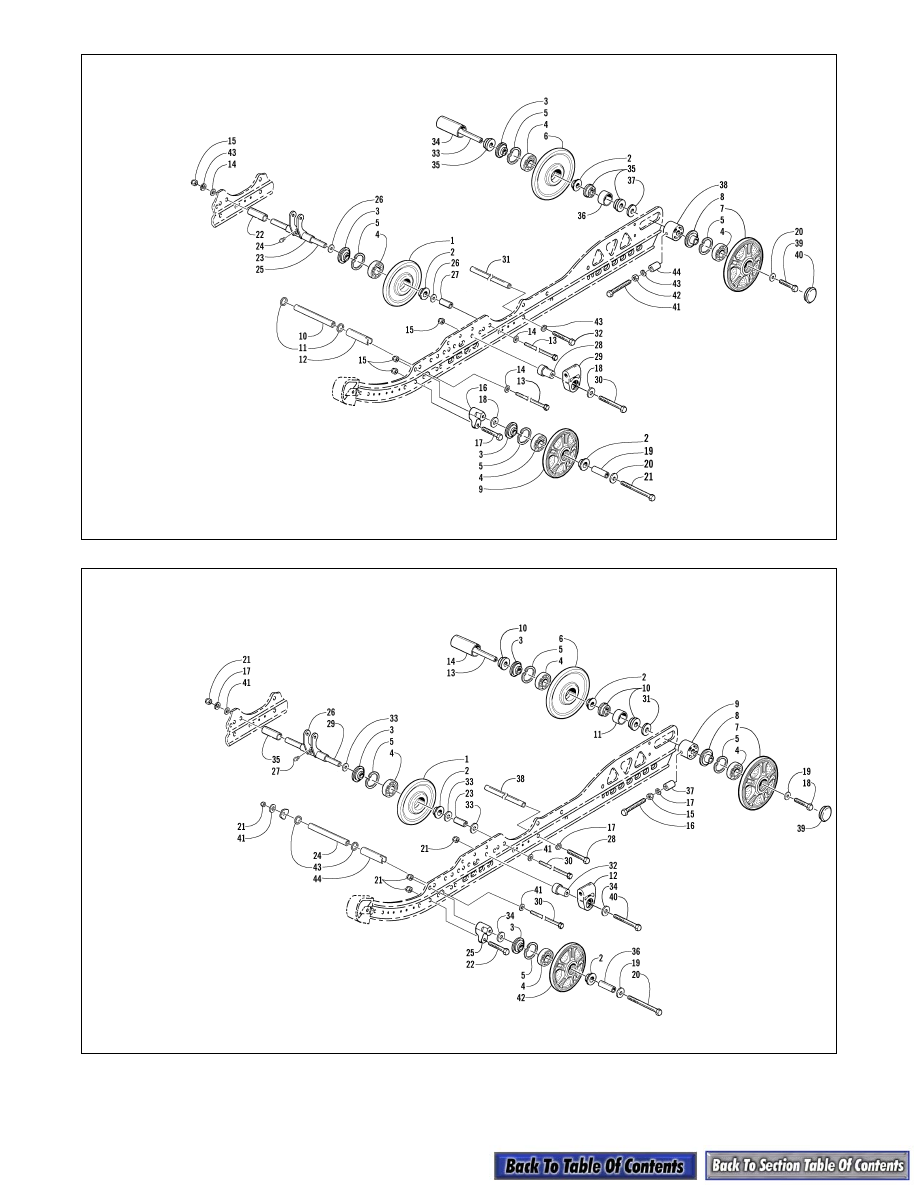

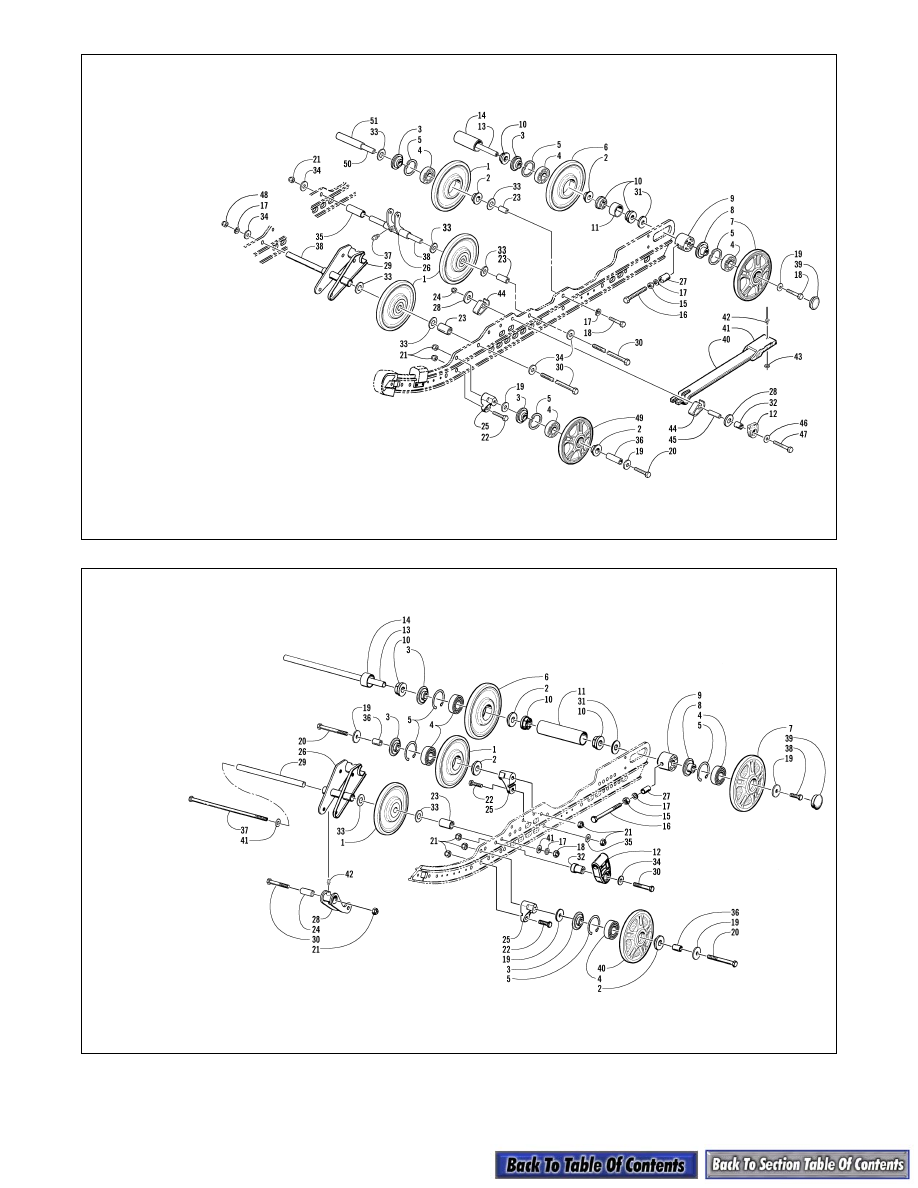

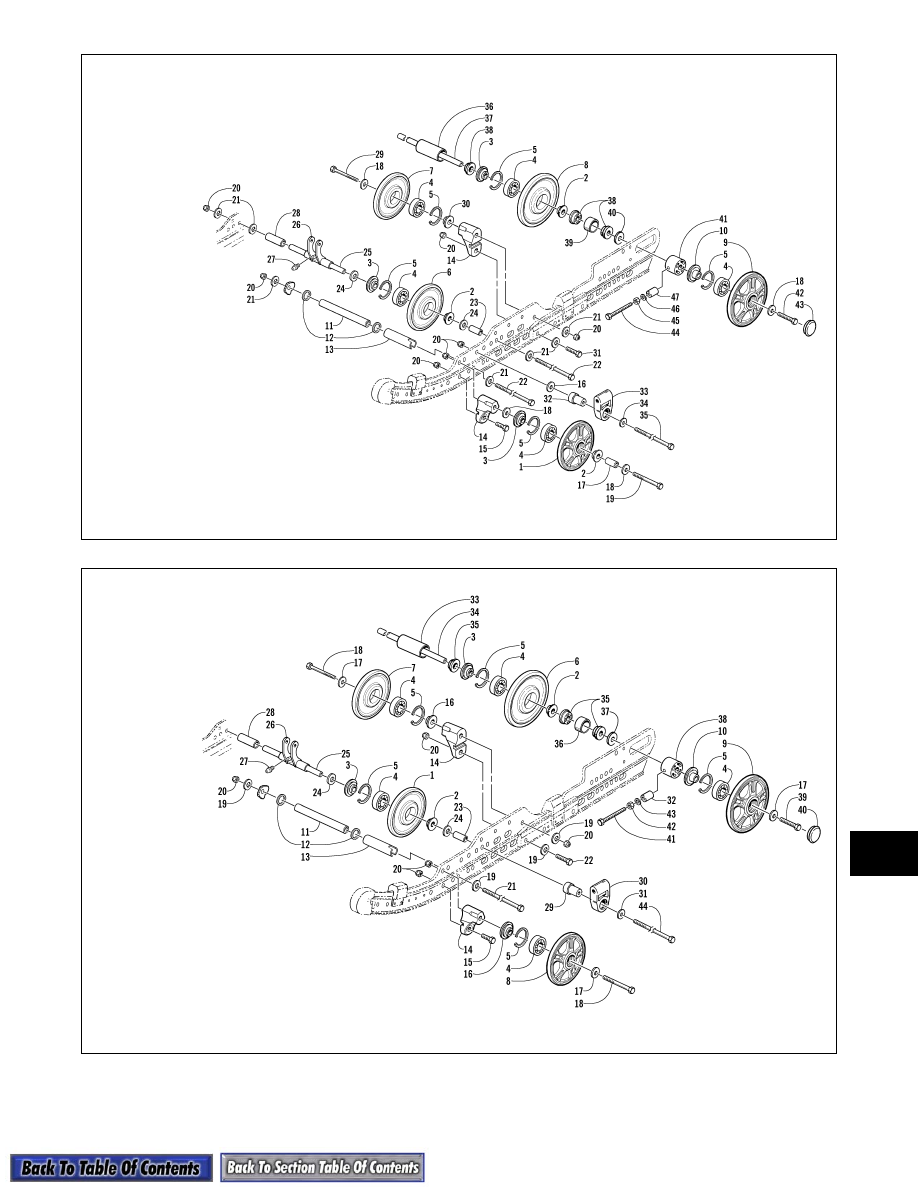

Snowmobile Arctic Cat (2002 year). Manual - part 138
9-30
0736-733
0736-530
KEY
1. Idler Wheel
2. Insert
3. Insert
4. Bearing
5. Retaining Ring
6. Idler Wheel
7. Idler Wheel
8. Insert
9. Bushing
10. Spacer Bushing
11. Spacer
12. Spring Slide
13. Axle
14. Spacer
15. Nut
16. Cap Screw
17. Lock Washer
18. Cap Screw
19. Washer
20. Cap Screw
21. Lock Nut
22. Cap Screw
23. Spacer
24. Lock Nut
25. Mounting Block
26. Pivot
27. Spacer
28. Washer
29. Mounting Bracket
30. Cap Screw
31. Washer
32. Spacer
33. Washer
34. Washer
35. Spacer
36. Axle
37. Grease Fitting
38. Axle
39. Cap
40. Overload Spring Assy
41. Wear Block
42. Rivet
43. Washer
44. Retaining Clip
45. Bushing
46. Washer
47. Cap Screw
48. Lock Nut
49. Idler Wheel
50. Axle
51. Spacer
Style C
KEY
1. Idler Wheel
2. Insert
3. Insert
4. Bearing
5. Retaining Ring
6. Idler Wheel
7. Idler Wheel
8. Insert
9. Bushing
10. Spacer Bushing
11. Spacer
12. Spring Slide
13. Axle
14. Spacer
15. Nut
16. Cap Screw
17. Lock Washer
18. Lock Nut
19. Washer
20. Cap Screw
21. Lock Nut
22. Cap Screw
23. Spacer
24. Axle
25. Mounting Block
26. Bracket
27. Spacer
28. Pivot
29. Axle
30. Cap Screw
31. Washer
32. Slide Block
33. Washer
34. Washer
35. Washer
36. Axle
37. Cap Screw
38. Cap Screw
39. Cap
40. Idler Wheel
41. Washer
42. Grease Fitting
Style D
