9-61

SPEC

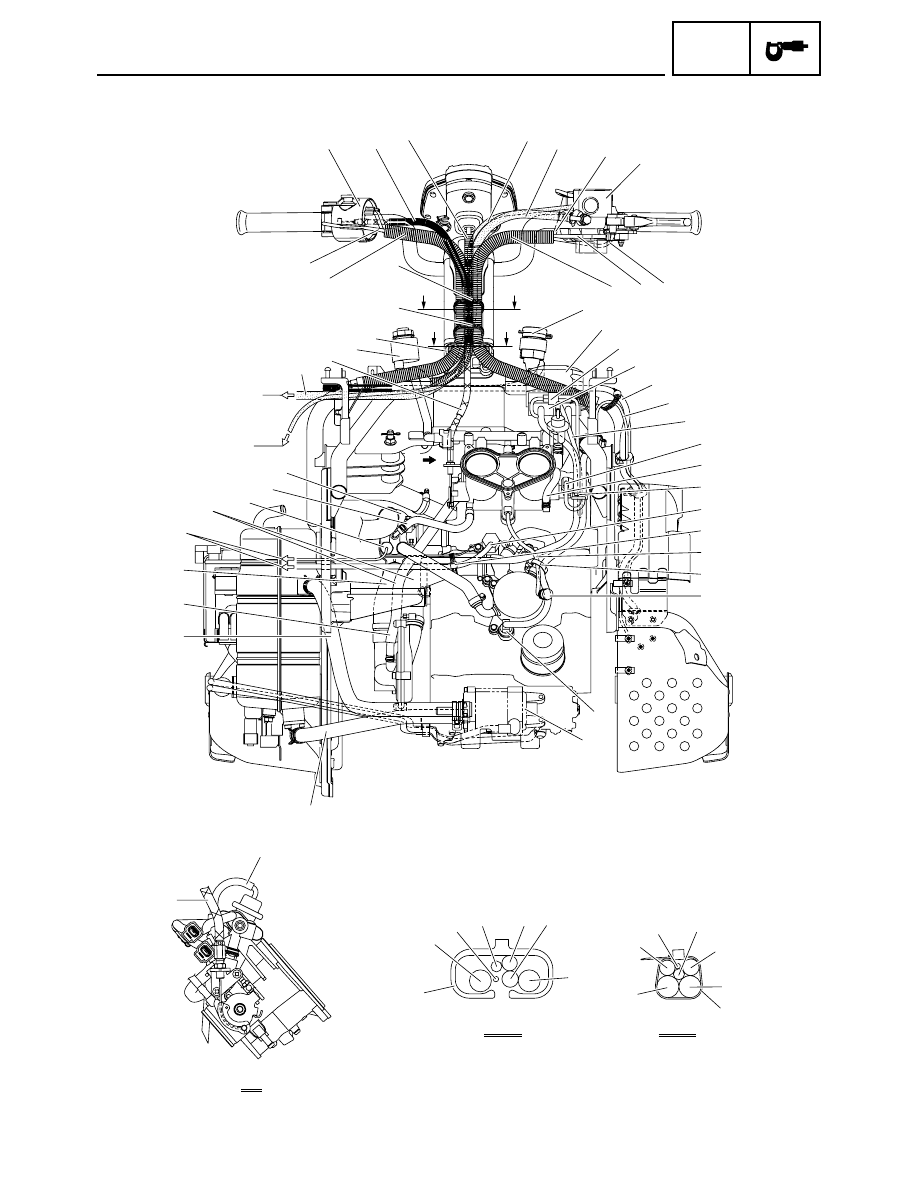

CABLE ROUTING

C

E

F

G

H

H

I

J
K

8

9

0

A

B

B

B

C

D

1

1

1

2

3

4

5

5

5

6

6

6

7

L
M
N
O
P
Q

R

S

T

U

V

W

X

Y

Z

[

\

]

_

a

a

a

b

b

b

b

c

d

e

e

f

g

A

A

B

B

C

A-A

B-B

9-62

SPEC

CABLE ROUTING

e Fasten the corrugated tube

(engine stop switch lead, throttle
switch lead, right grip warmer
lead, and thumb warmer lead),
corrugated tube (left grip warmer
lead, grip/thumb warmer adjust-
ment switch lead, brake light
switch lead, and headlight beam
switch lead), parking brake
cable, throttle cable, speedome-
ter unit lead, and brake hose with
the plastic band.

f Install the plastic band with its

buckle positioned behind the
leads, cables, and hose and its
end facing to the right. Be sure to
position the corrugated tube
(engine stop switch lead, throttle
switch lead, right grip warmer
lead, and thumb warmer lead)
and corrugated tube (left grip
warmer lead, grip/thumb warmer
adjustment switch lead, brake
light switch lead, and headlight
beam switch lead) towards the
front and fasten the throttle cable
at the throttle cable adjusting nut.

g Position the corrugated tube

(engine stop switch lead, throttle
switch lead, right grip warmer
lead, and thumb warmer lead)
and corrugated tube (left grip
warmer lead, grip/thumb warmer
adjustment switch lead, brake
light switch lead, and headlight
beam switch lead) towards the
front of the guide.

9-63

SPEC

CABLE ROUTING

1

2

3

4

5

6

9-64

SPEC

CABLE ROUTING

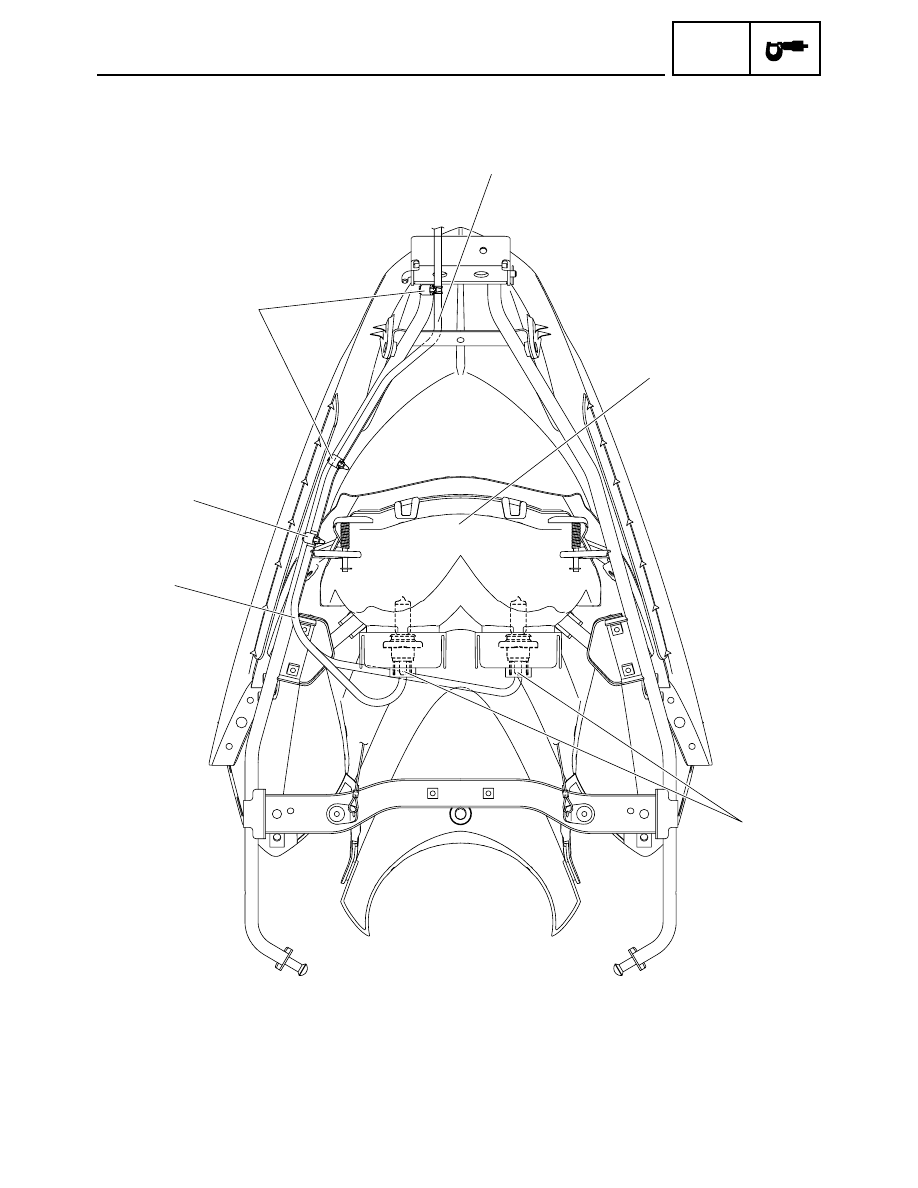

PZ50VT/PZ50MP

1 Headlight unit
2 Headlight lead coupler
3 Headlight lead
4 Fasten the headlight lead at the

white tape to the shroud frame
with the plastic band, making
sure to position the band near
the bracket.

5 Fasten the headlight lead to the

shroud frame with the plastic
band, making sure to route the
lead along the bend in the frame.

6 Route the headlight lead to the

inside of the shroud frame.
